RADIO / OEM FUNCTION FIT
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Plan aroundConfirm dash fitment and the factory features that must remain.
Match itMatch the radio to phone, camera, audio and interface requirements.
Finish itUse the correct vehicle interface instead of sacrificing OEM functions unnecessarily.
Description

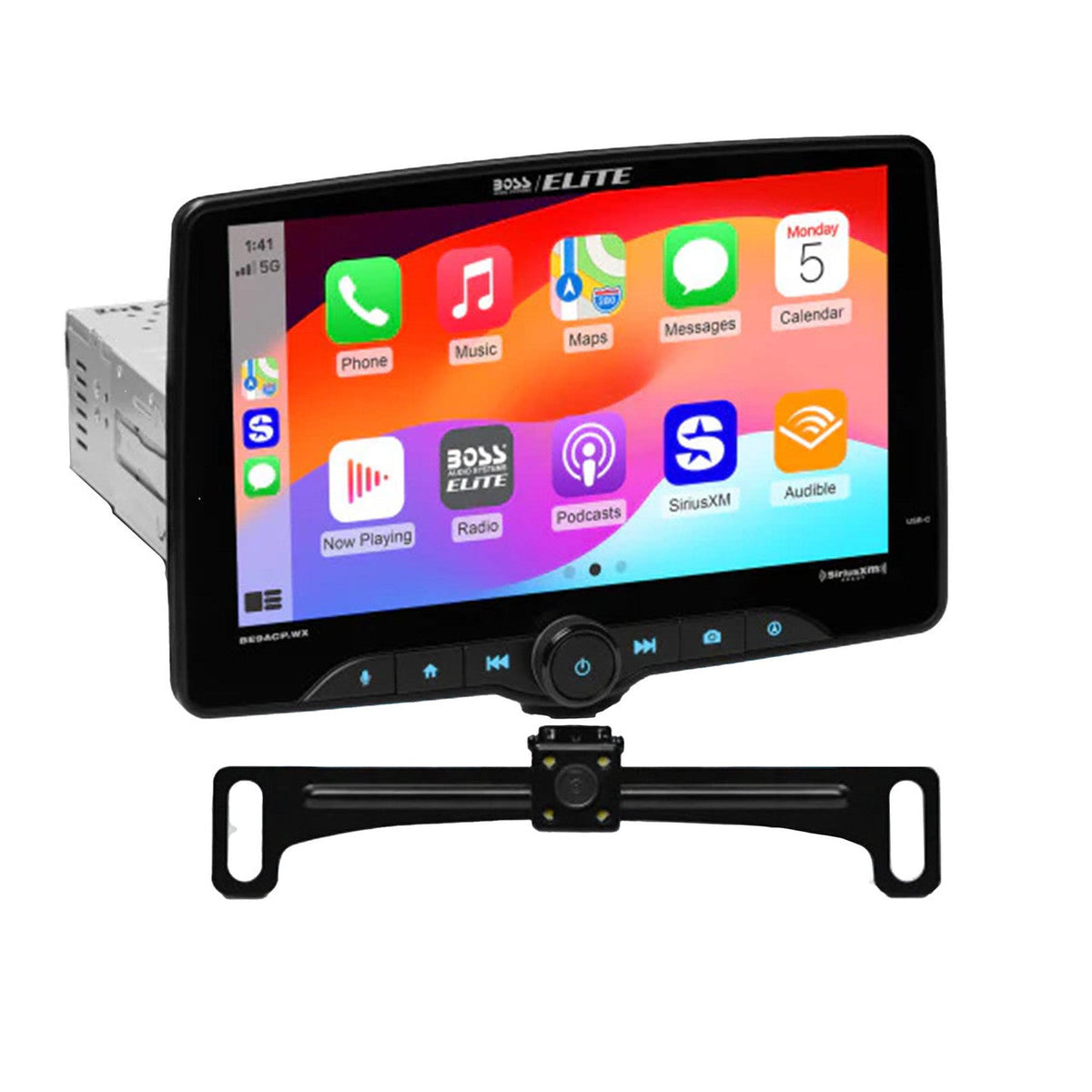

BOSS Elite BE9ACP.XC — 9-Inch Wired CarPlay & Android Auto Receiver with Rear Camera
The BE9ACP.XC is for a vehicle that needs two upgrades at the same time: a larger, easier-to-read phone-integration screen and a rear camera. It keeps the cost below the wireless versions by using wired Apple CarPlay and Android Auto, then puts the camera in the package instead of making it a separate decision later.

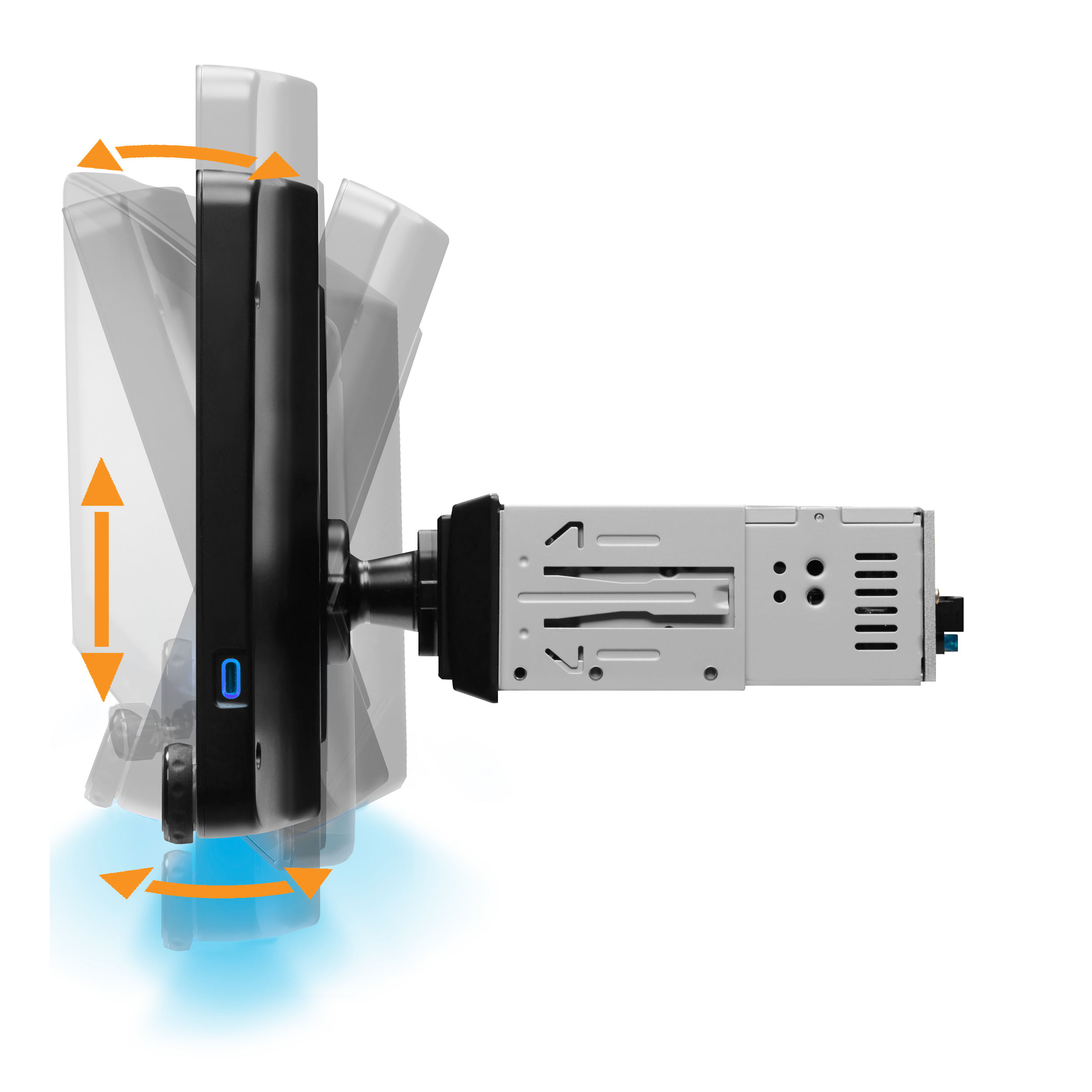

A 9-inch display is a useful middle ground. It gives maps and reverse-camera video more real estate than the 7-inch double-DIN models without occupying as much dash area as a 10.1-, 12- or 14-inch screen. The chassis is designed for a single-DIN fit and includes double-DIN adapter brackets, but the display still sits out in front of the dash, so clearance around vents, controls and the shifter needs to be checked.

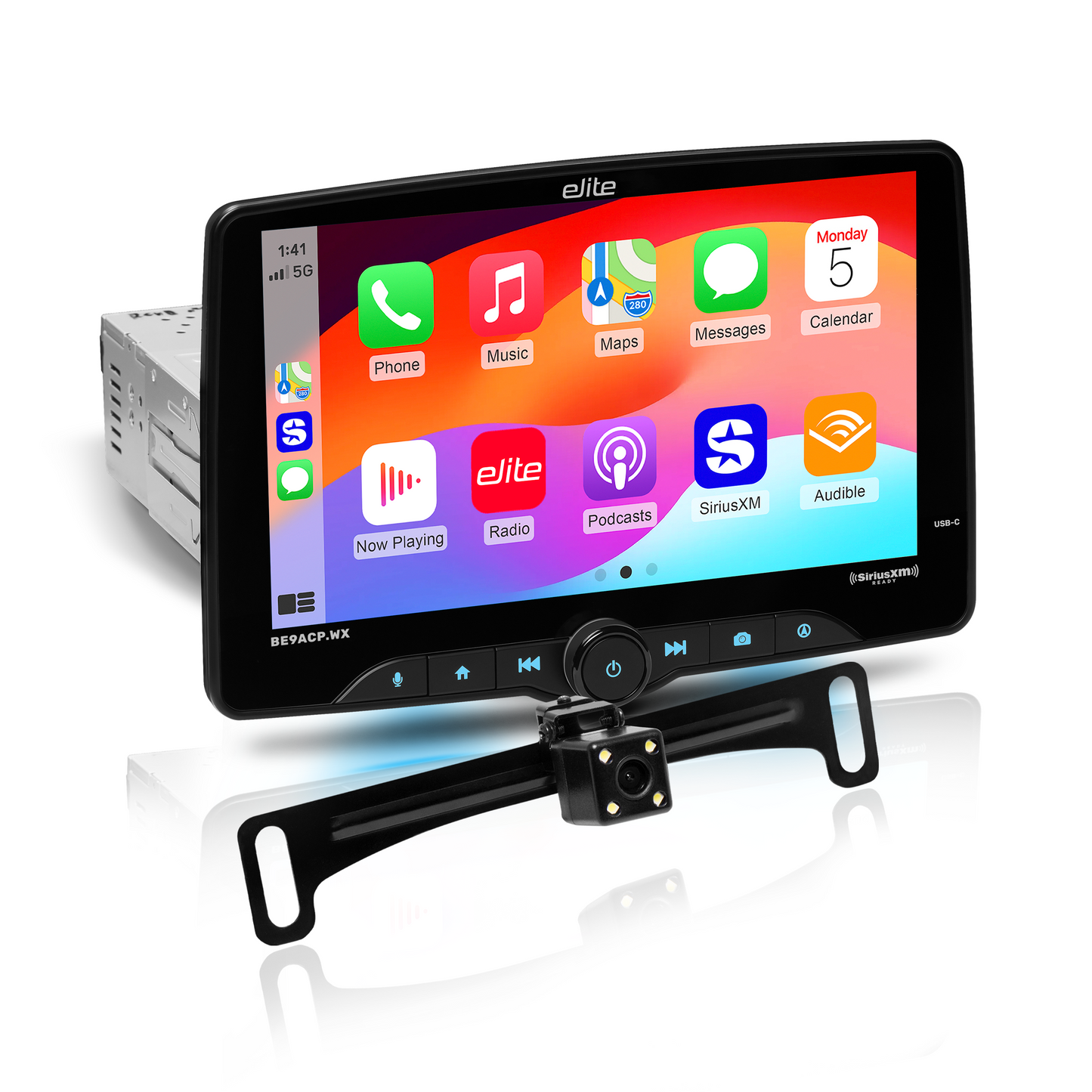

If the vehicle already has a factory camera that can be retained with the correct integration hardware, the BE9ACP.X is usually the smarter wired choice. If the customer wants the phone to connect wirelessly as well, move to the WXC instead of buying the XC just because it includes a camera.
Manufacturer Specifications

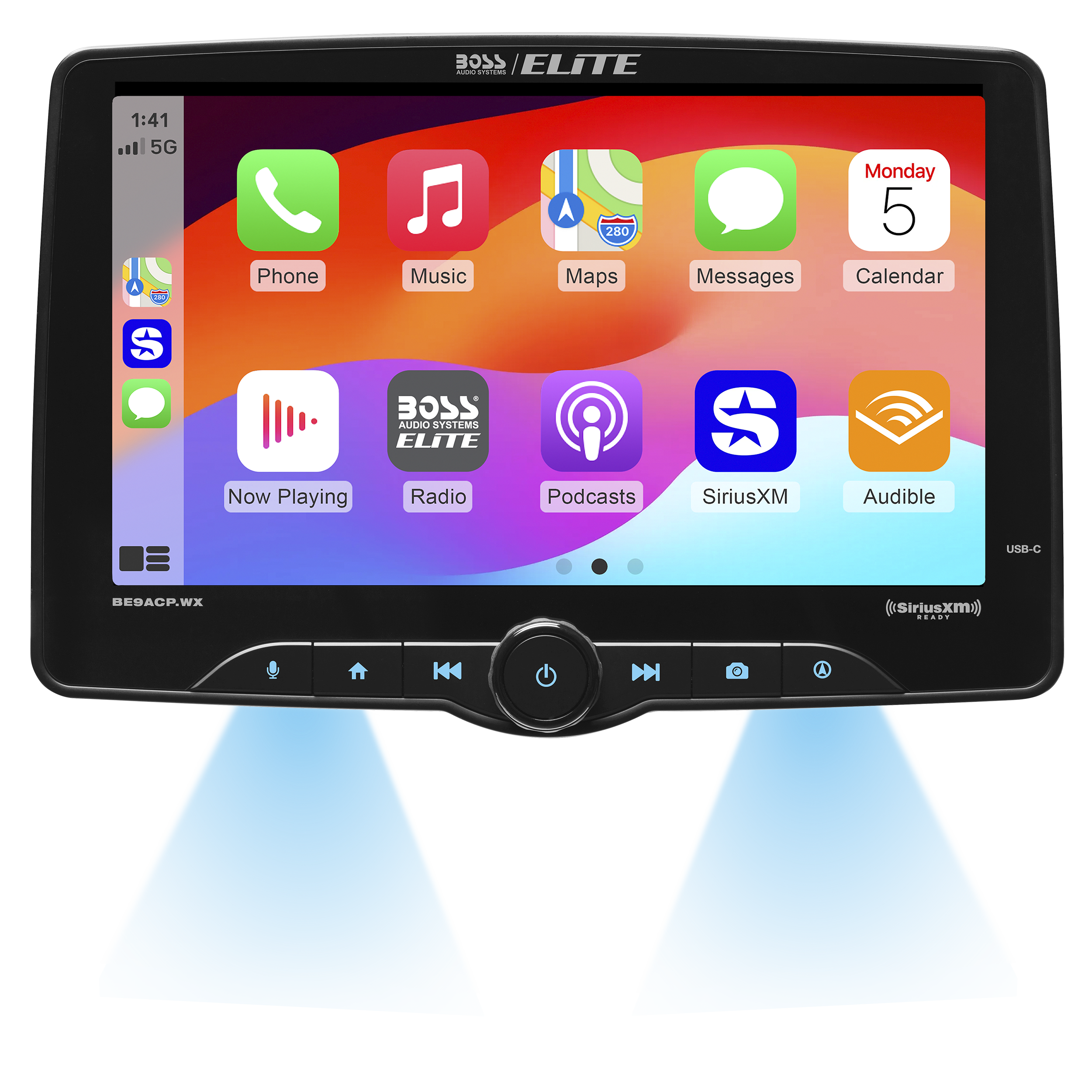

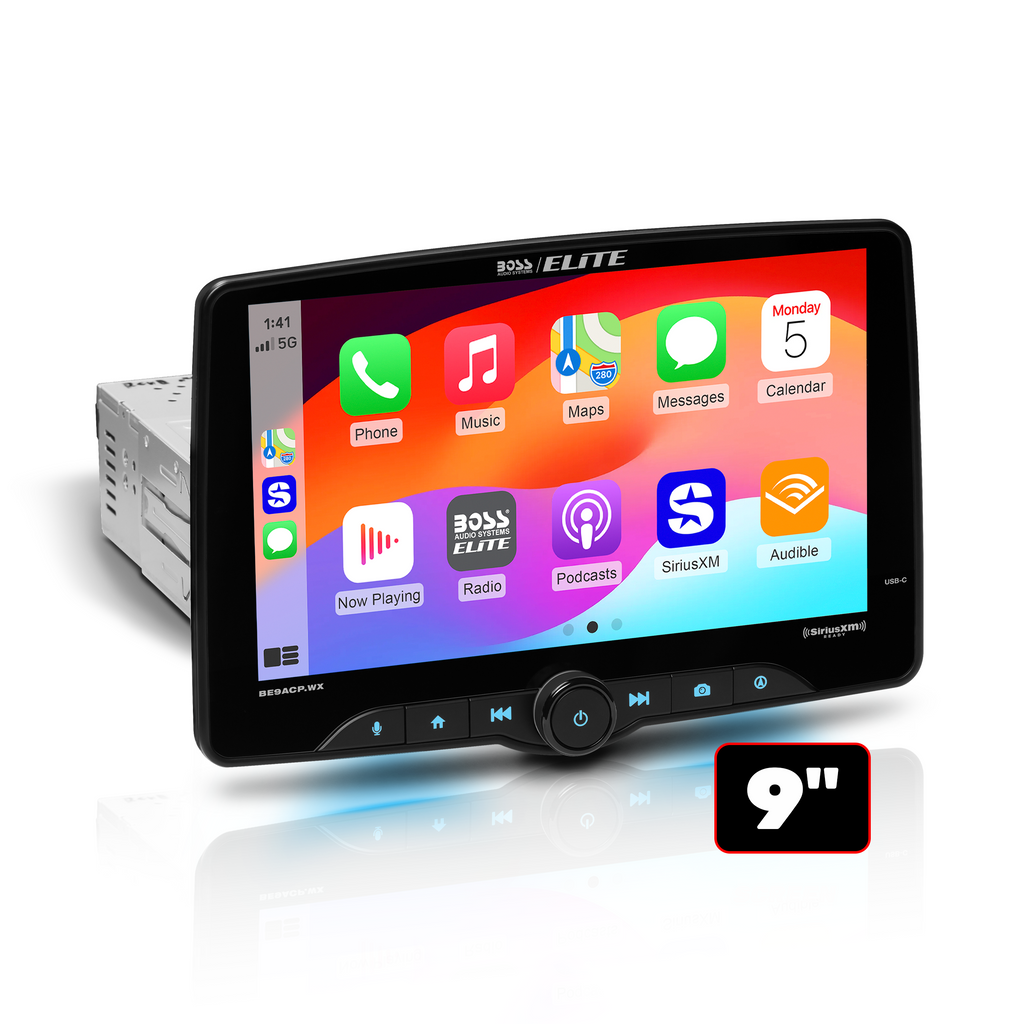

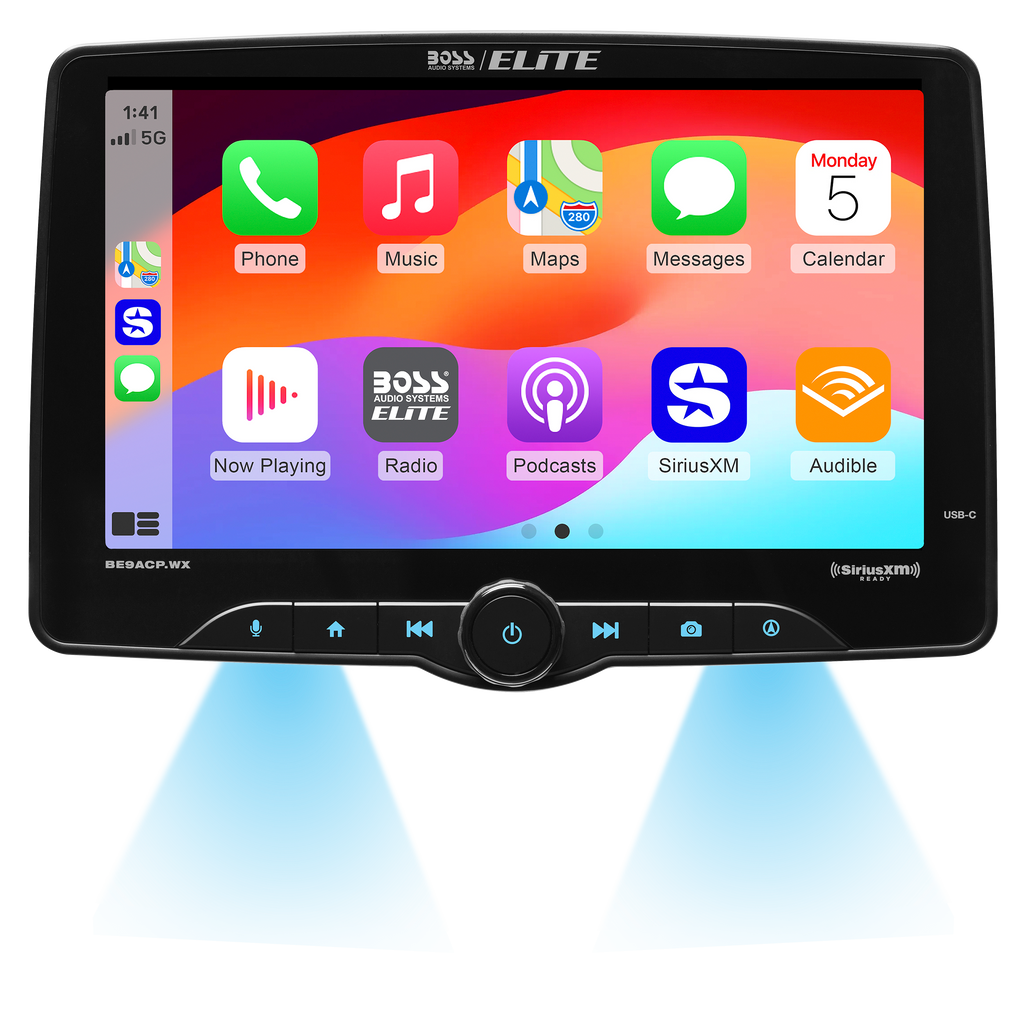

• Screen: 9-inch capacitive touchscreen
• Display resolution: 1024 x 600
• Apple CarPlay / Android Auto: Wired
• Chassis fit: Single-DIN; double-DIN adapter brackets included
• SiriusXM: Ready; tuner and subscription sold separately
• Bluetooth: Hands-free calling and audio streaming
• DSP: 13-band EQ, crossover settings and time alignment
• High-resolution audio: FLAC up to 192 kHz / 24-bit; WAV, MP3 and WMA supported
• Front USB-C: Media playback and 1.5 A charging
• Rear USB-A: Wired CarPlay / Android Auto and 1.5 A charging
• Camera inputs: Front and rear camera ready
• A/V input: Rear
• Preamp outputs: 4 V front, rear and sub
• Radio: RDS/RBDS; switchable US/LATAM/EU tuner frequencies
• Steering-wheel controls: Built-in programmable learning for compatible analog controls; external interface ready when required
• Push-to-Talk: Yes
• Illumination: Multicolor
• External microphone: Included
• Published maximum power: 340 watts total / 85 W x 4 maximum
• Rear-view camera included: Yes
• Camera: High-resolution color, low-light visibility and wide-angle view
• Camera protection: IP67 dustproof and waterproof
• Camera video: NTSC output; AHD/CVBS switchable
• Camera mounting: Hidden mounting bracket
