Description

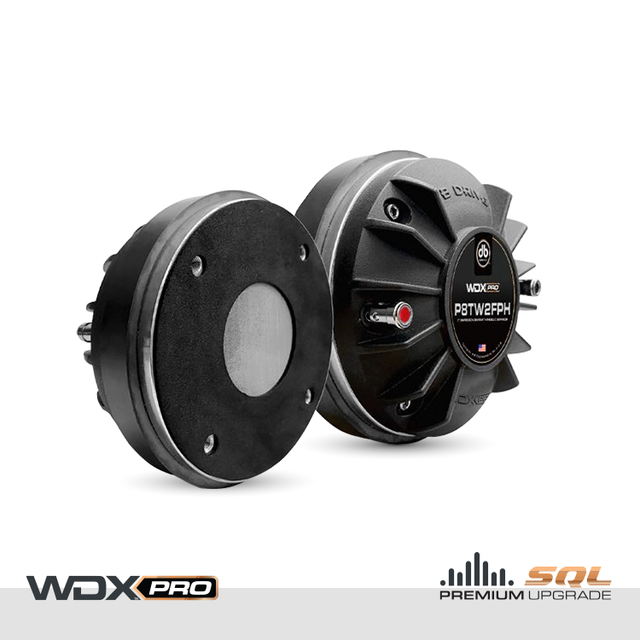

DB Drive P8TW2FPH WDX PRO 2-Inch Phenolic Compression Driver — Single
Building a horn-loaded vocal section and need more output through the vocal range than a small tweeter can give you? That is where the P8TW2FPH makes sense. DB Drive built this 2-inch phenolic compression driver around vocal-midrange through high-frequency reproduction, so it fits a pro-audio system where you want voices and instruments to project cleanly through a proper waveguide.
The phenolic diaphragm is the reason to look at this version instead of automatically choosing the titanium P8TW2FT. DB Drive describes the P8TW2FPH as being focused on the vocal midrange bandwidth with extended response into the highs. The 8-ohm load also gives us useful options when multiple compression drivers are being wired to a dedicated amplifier channel.
This is a 4-bolt driver for a 2-inch-throat waveguide. DB Drive lists it for use with compatible horns such as the P9TWLH, P9TWSH, PHT6 and PHT9, while the standard 4-bolt pattern gives us other compatible waveguide options as well. The aluminum resonance chamber and ferrite-oxide motor are part of the driver assembly; the horn itself is separate.
What it will not do: this is not a complete horn by itself and it is not a full-range speaker. A compatible 4-bolt, 2-inch-throat waveguide is required. Amplifier power and high-pass filtering need to be chosen around the complete horn/driver combination and the actual system design.
Brand Closeout
This is a final-sale brand-closeout listing. The closeout price only makes sense if a phenolic 2-inch, 8-ohm compression driver is what the horn section actually needs. Confirm waveguide fit, amplifier load, crossover strategy, and quantity before purchase.
Manufacturer Features
- Model: P8TW2FPH
- Type: WDX PRO phenolic compression driver
- Diaphragm: 2-inch phenolic
- Nominal impedance: 8 ohms
- Motor: ferrite oxide
- Aluminum resonance chamber
- Mounting pattern: 4 bolt
- Horn interface: compatible 4-bolt, 2-inch-throat waveguide
- Designed for extended vocal-midrange through high-frequency response
- Replacement diaphragm / recone support: available from DB Drive
Manufacturer Dimensions
- Overall diameter: 5.27 inches / 134 mm
- Mounting depth: 2.52 inches / 63.97 mm
Condition Notice
Closeout, Open-Box, Display, B-Stock or Used Item
This listing may have limited quantity, cosmetic wear, damaged or missing retail packaging, previous display use, open-box status, B-stock status, or another condition noted on the product page. Review the exact listing description and included accessories before purchasing.
