Description

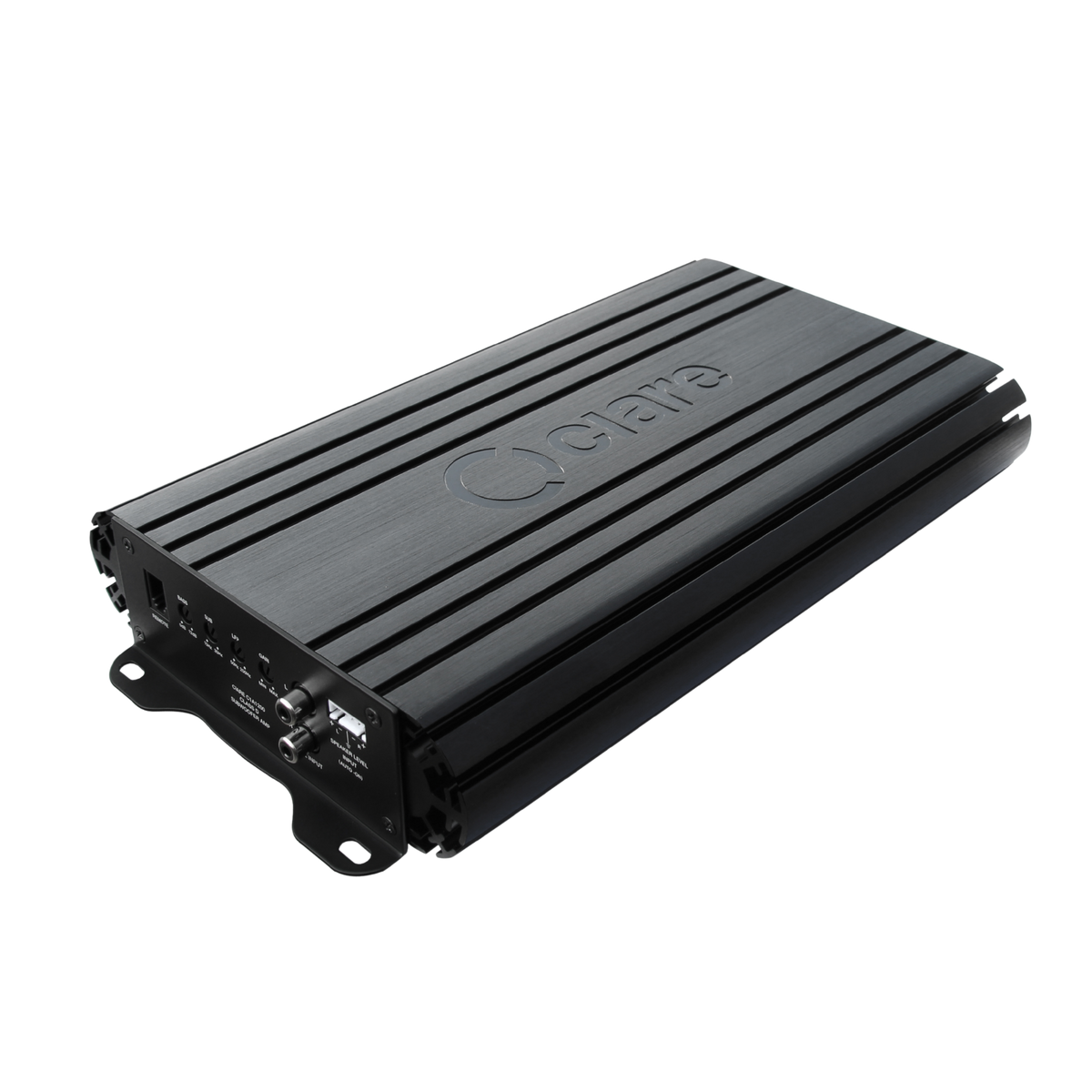

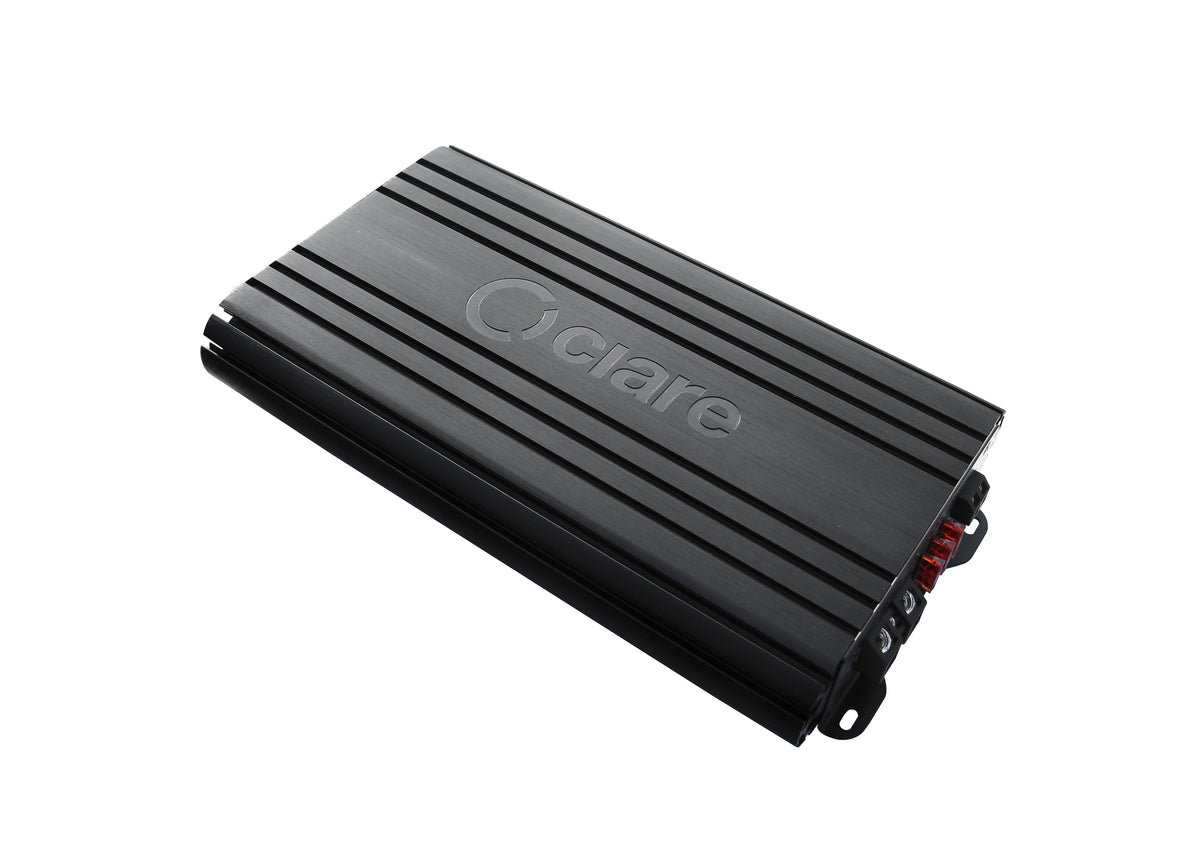

Ciare C1A1200 Monoblock Class D Amplifier
Sale unit: Sold individually — one amplifier.
The C1A1200 is Ciare’s conventional-chassis mono Class D amplifier for subwoofer systems that need up to 1,200 watts RMS at 1Ω. It includes variable crossover controls, bass boost, a subsonic filter, high- and low-level inputs, and a remote bass level control.
Verified Power @ 14.4V / 0.01% THD
- 500W RMS @ 4Ω
- 800W RMS @ 2Ω
- 1,200W RMS @ 1Ω
Key Details
- Monoblock Class D topology

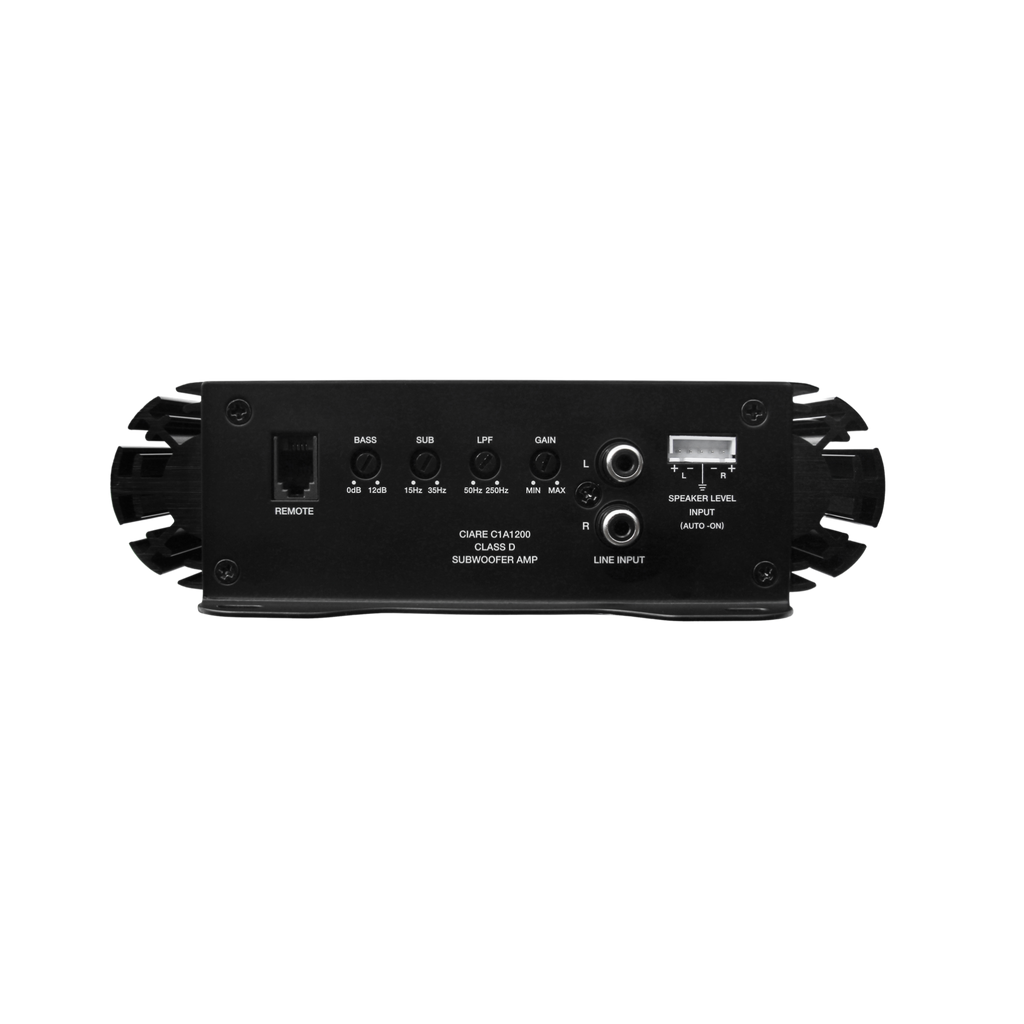

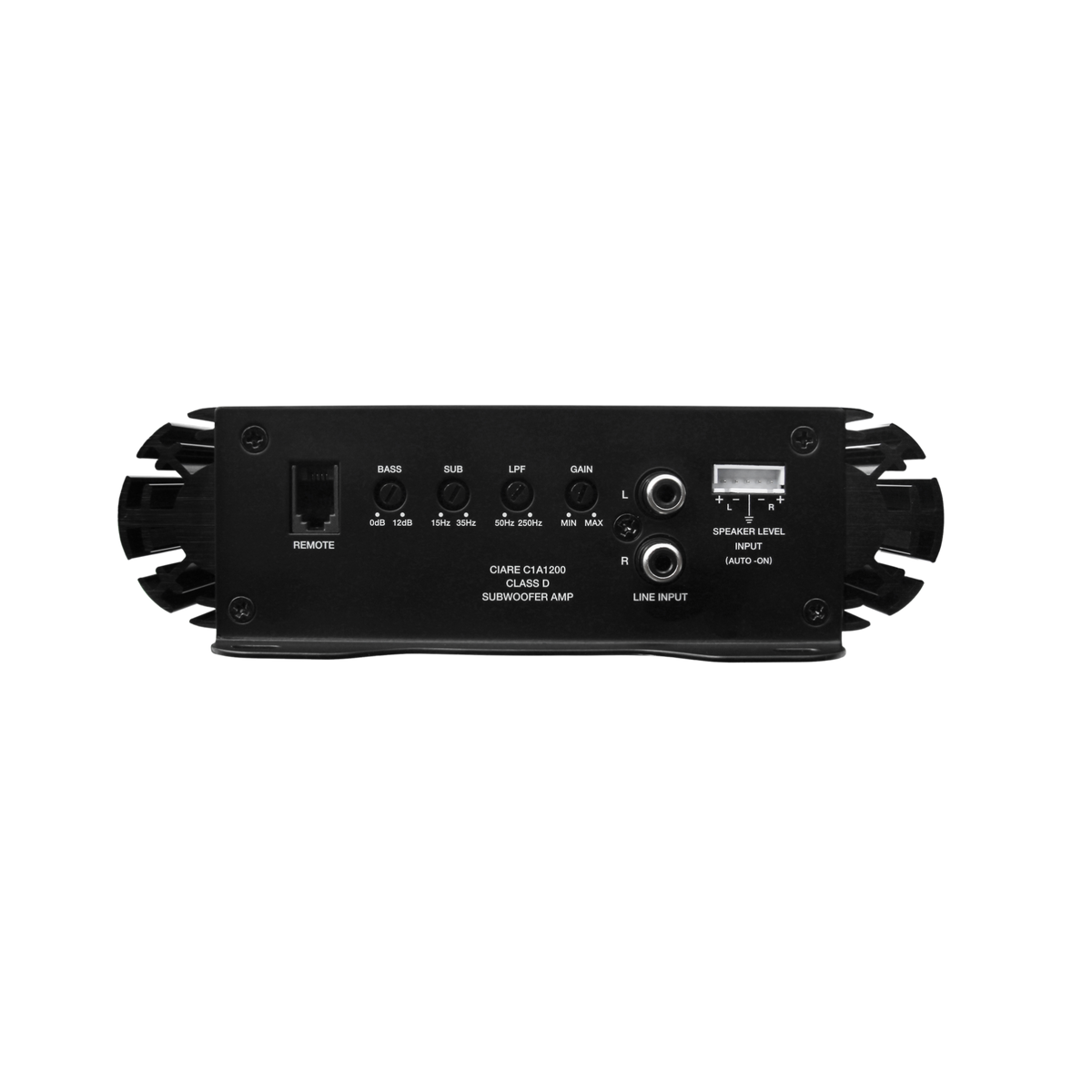

- Variable crossover network and subsonic filtering
- High-level and RCA low-level inputs
- Remote bass control with 15 ft cable
- Thermal, overload, short-circuit and low-voltage protection
- Dimensions: 13 × 7.1 × 2.1 in
- Weight: 7 lb
Which Ciare Mono Amp?
Use the C1A1200 when roughly 500–1,200 watts RMS matches the subwoofer load. The C1A3000PS is a much higher-current, compact powersports-oriented platform and should not be treated as a simple variant of this amplifier.
Included: one Ciare C1A1200 amplifier and manufacturer-supplied accessories.
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
