Description

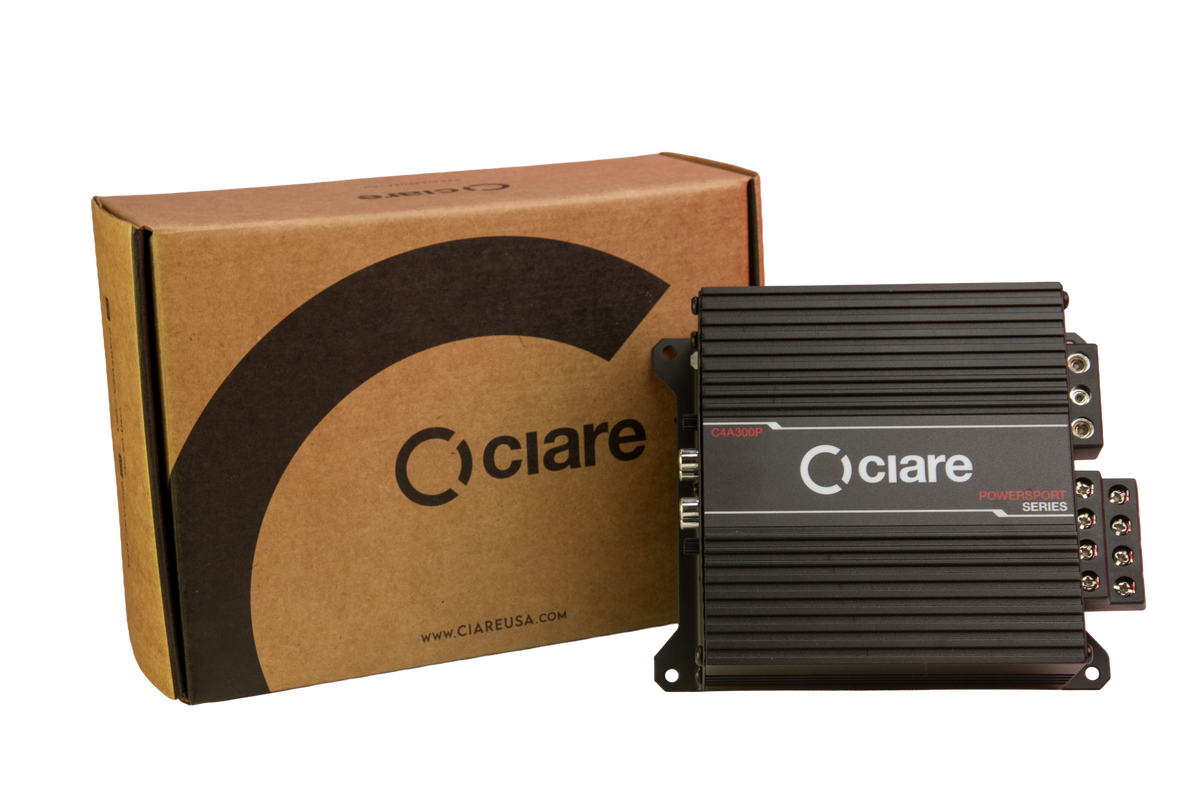

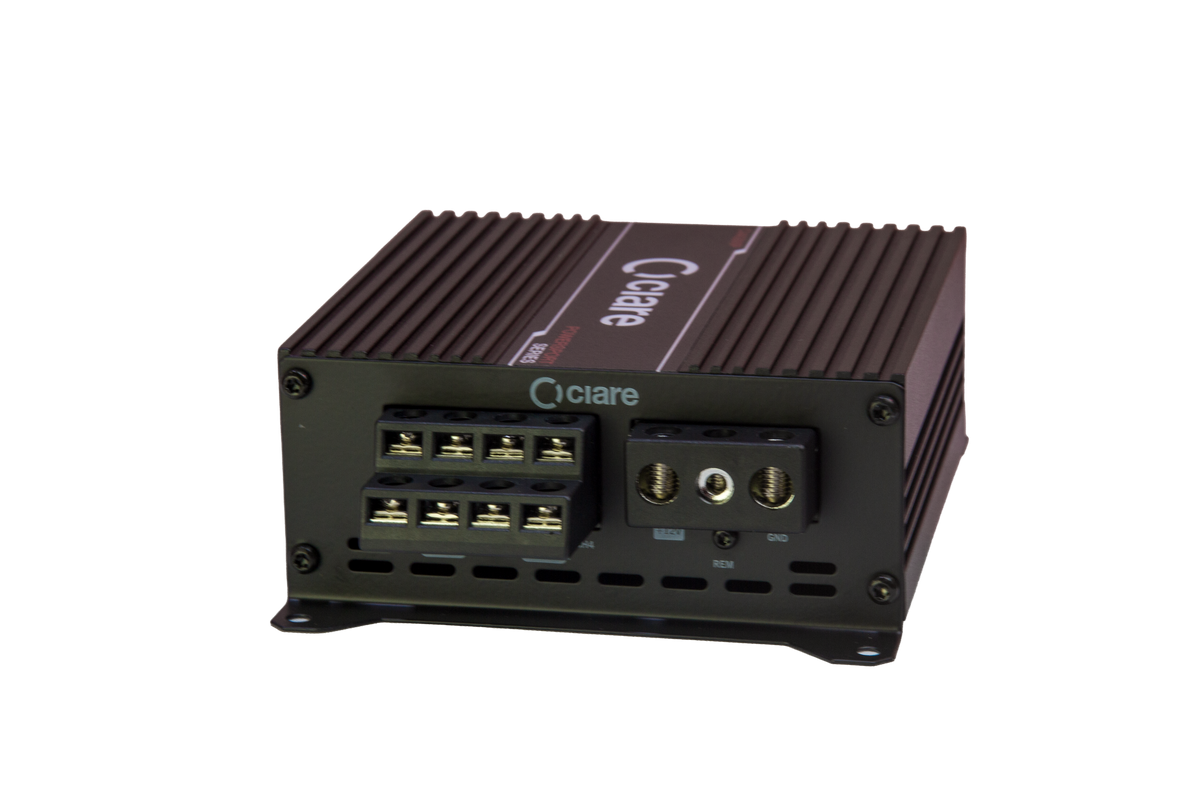

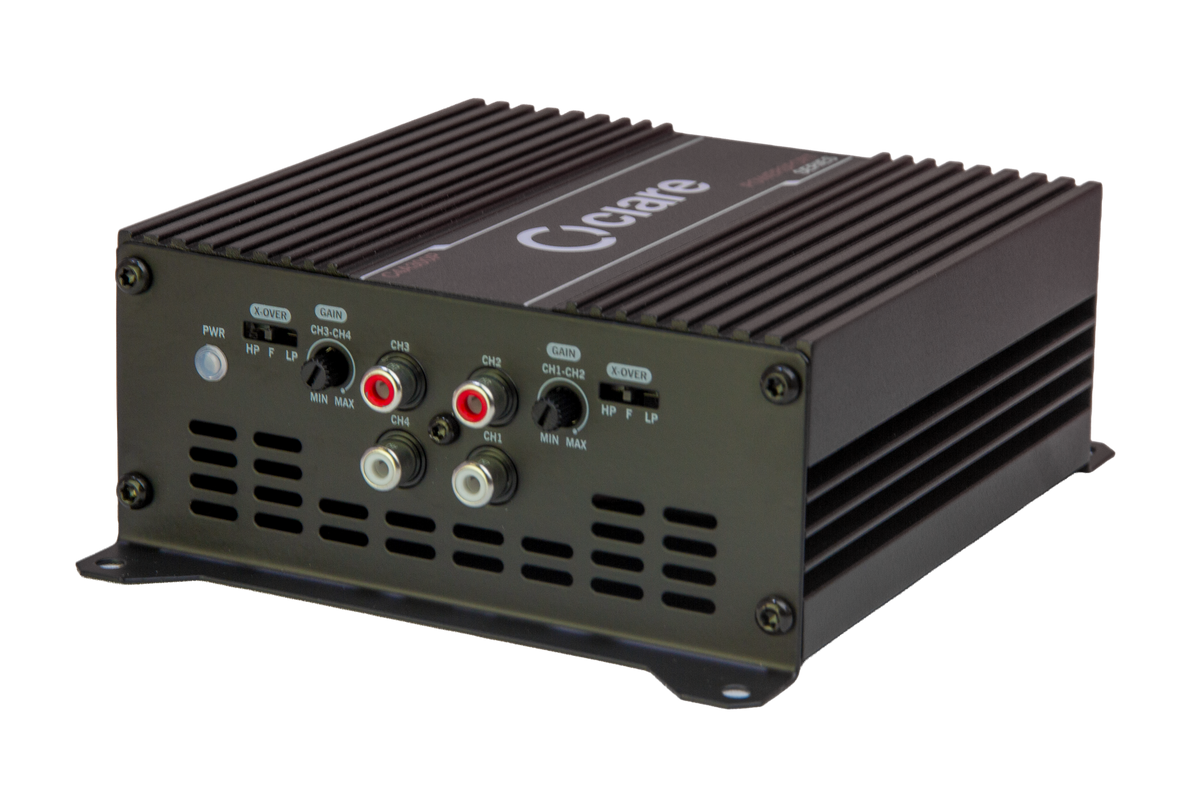

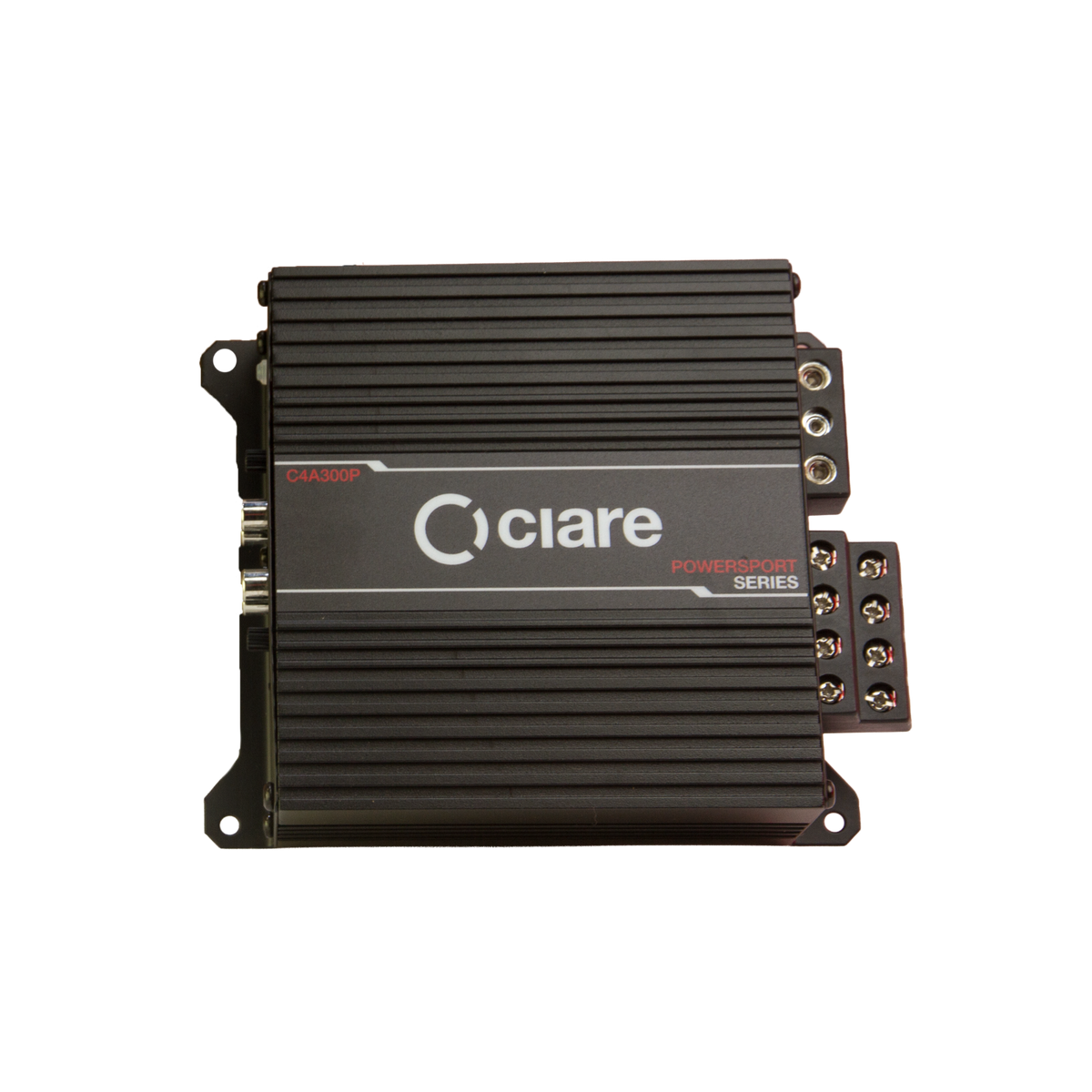

Ciare C4A300PS Powersport 4-Channel Class D Amplifier
Sale unit: Sold individually — one amplifier.
The C4A300PS is Ciare’s compact powersports four-channel amplifier for motorcycles, Slingshots and other installations where chassis size is a hard constraint. It can run four channels or bridge into two 4Ω loads.
Verified RMS Power @ 14.4V / 1% THD
- 4 × 198W @ 4Ω
- 4 × 300W @ 2Ω
- 2 × 600W @ 4Ω bridged
Key Details
- Minimum load: 2Ω/ch or 4Ω bridged
- Switchable 80 Hz high-pass / low-pass filters, 12 dB/oct
- Input sensitivity: 0.2–2V
- Frequency response: 5 Hz–22 kHz
- Recommended fuse: 60A
- 5 AWG power / ground inputs
- Dimensions: 6.8 × 5.3 × 2.2 in
- Weight: 2.4 lb
C4A300PS vs. C4A300
The PS model prioritizes a much smaller chassis. The standard C4A300 makes more power into 4Ω loads and offers broader variable filtering, so these are separate amplifier platforms rather than cosmetic variants.
Included: one Ciare C4A300PS amplifier and manufacturer-supplied accessories.
AMPLIFIER SYSTEM FIT
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
Plan aroundMatch usable channels and power to the actual speakers and load.
Match itPlan signal processing and gain structure before chasing wattage.
Finish itHigher output may require charging, battery and wiring upgrades.
