Ciare CDSP1 6-In / 8-Out Bluetooth DSP
Sale unit: Sold individually — one DSP with the supplied remote controller.
The CDSP1 is Ciare’s 6-input / 8-output mobile-audio DSP for systems that need OEM integration, routing, crossover control, time alignment and detailed equalization in one processor.
Signal Processing
- 32-bit processing / 192 kHz sample rate
- Analog Devices ADAU1452 DSP
- 6 configurable inputs / 8 outputs
- Up to 31-band parametric EQ per channel
- Crossovers adjustable from 6 to 48 dB/oct
- Time alignment, output gain and signal mixing
- Preset save/load and custom channel naming
Inputs / Outputs

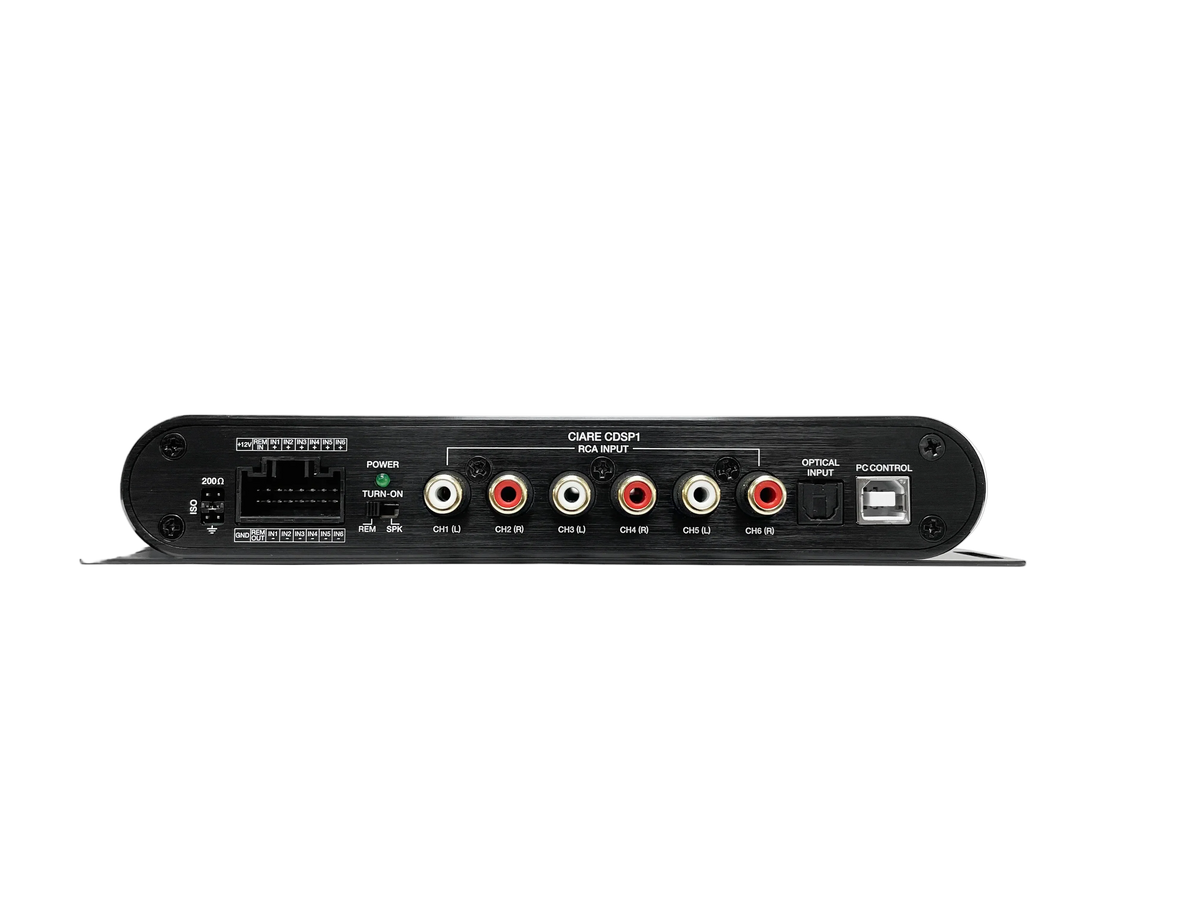

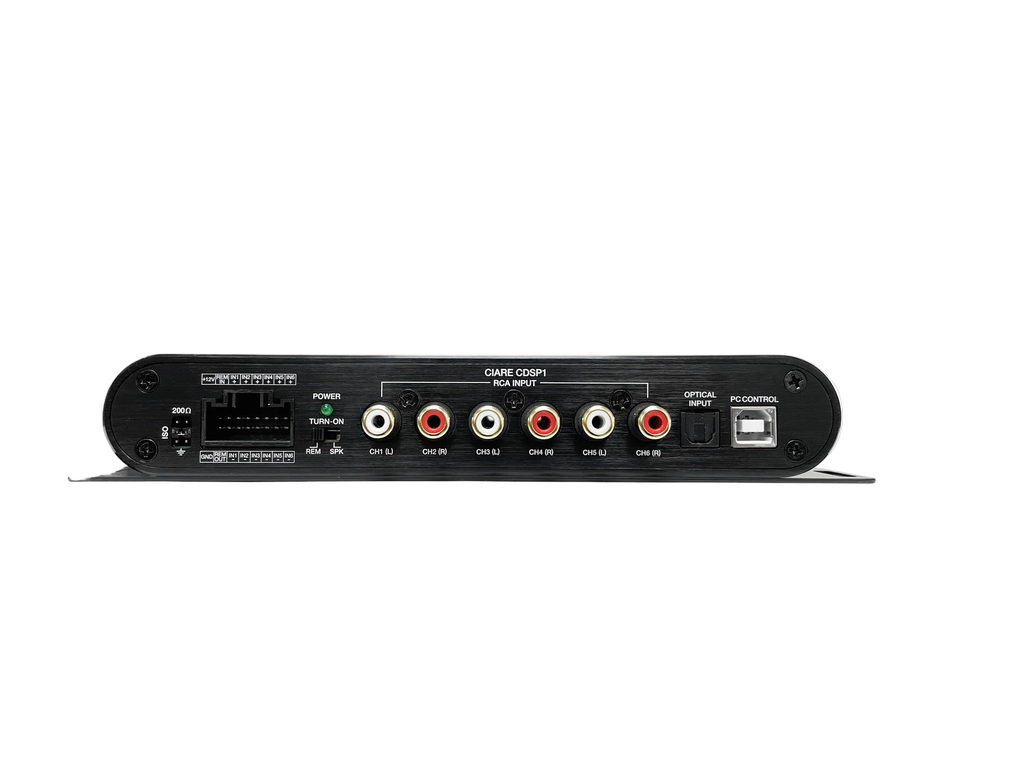

- RCA and high-level speaker inputs
- RCA input range: 1.9–4 Vrms
- High-level input: up to 18.5 Vrms

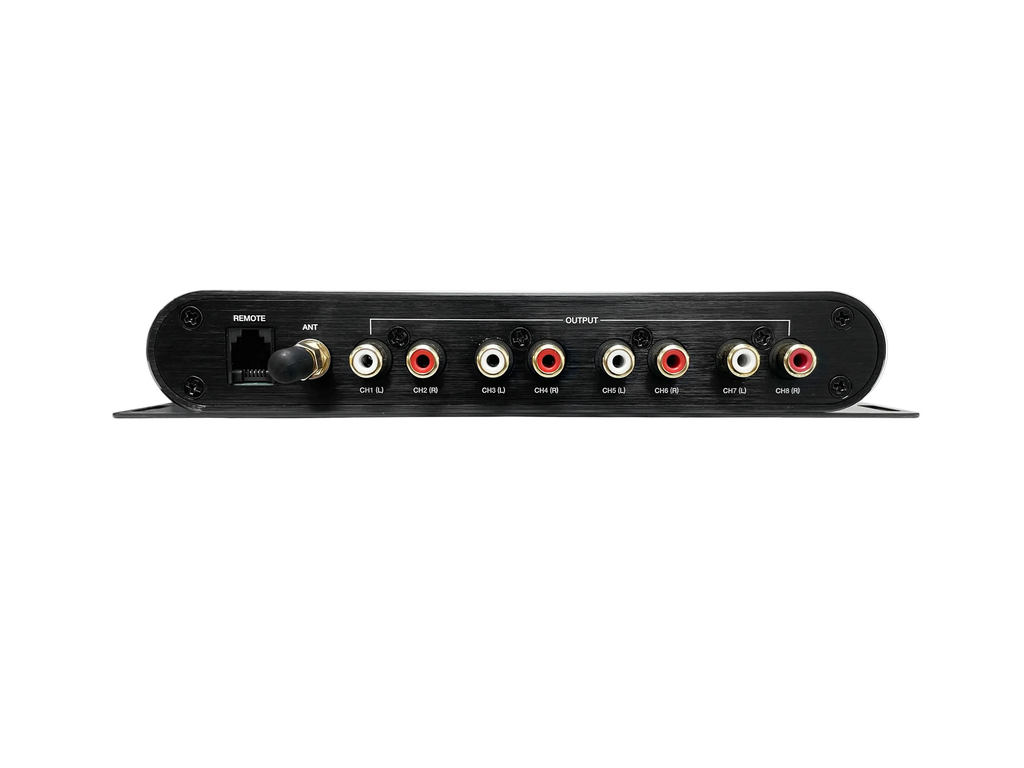

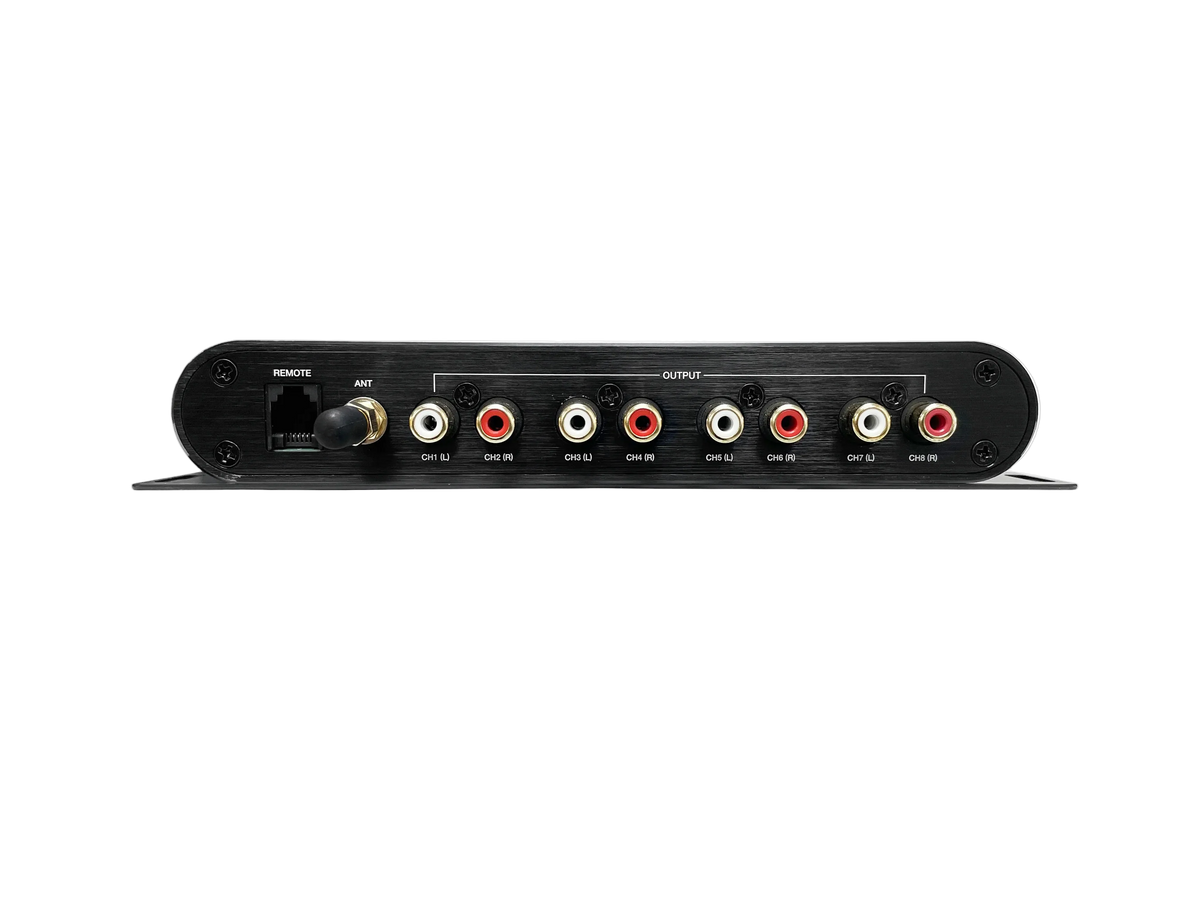

- RCA output: 4.1 Vrms
- Bluetooth 5.0 with aptX streaming
- Operating voltage: 8.5–16.5 VDC
Software / Remote
Windows PC tuning software is supported. Ciare also publishes firmware/software upgrade instructions, so firmware compatibility should be checked before changing software versions. The supplied remote provides source and subwoofer-level control.
Included: one Ciare CDSP1 DSP, remote controller and manufacturer-supplied mounting/accessory hardware.
Where this fits in the build
This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.
