Description

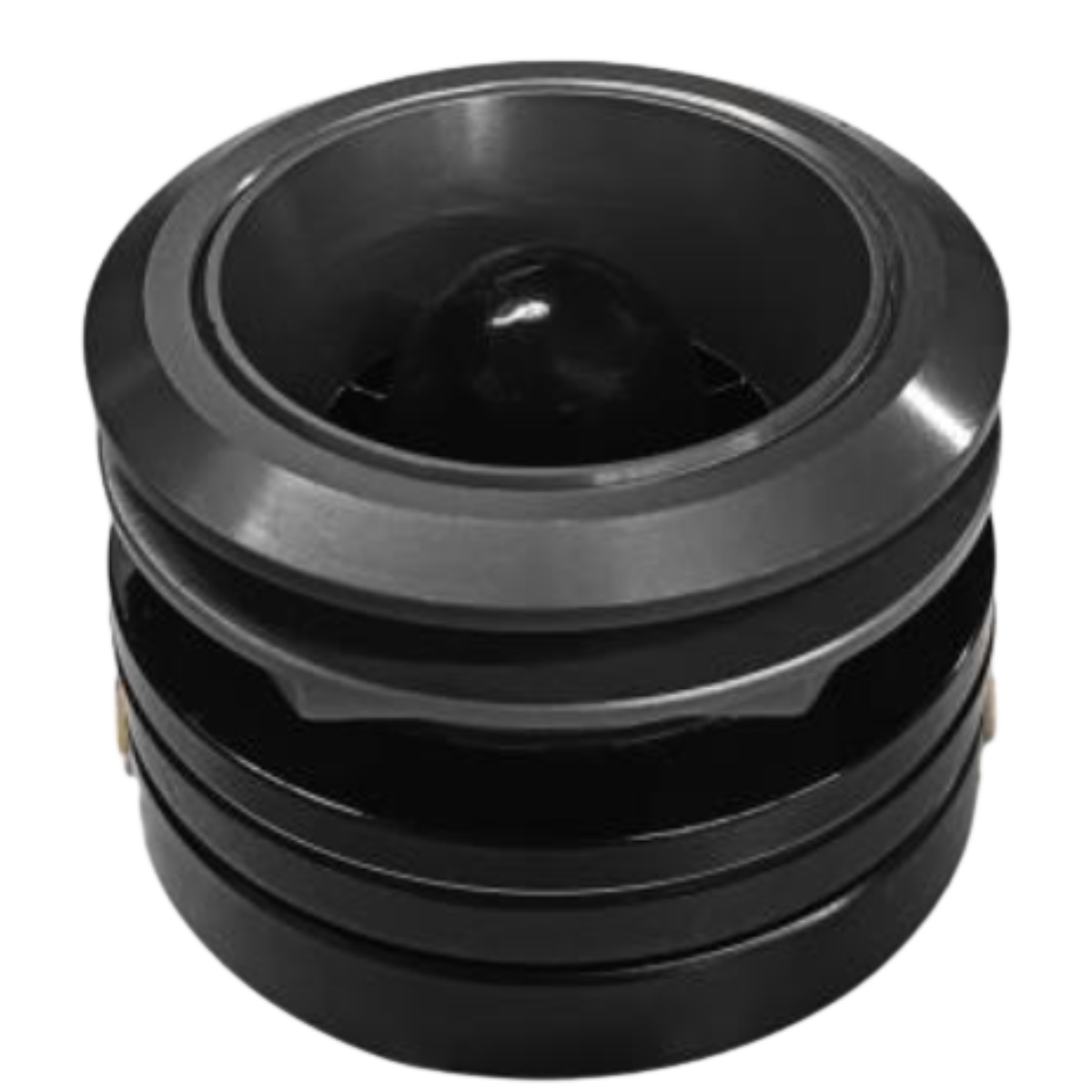

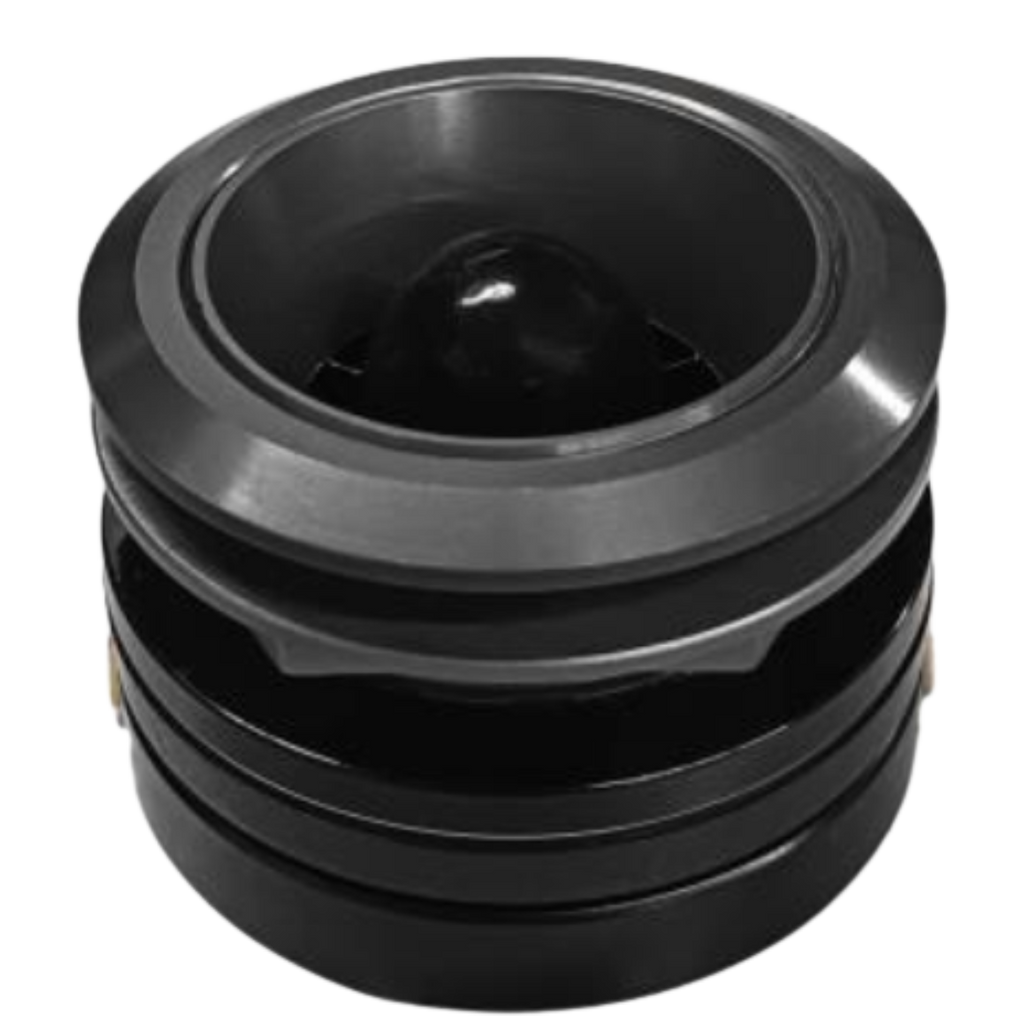

Ciare SPL CTB25-4 Shallow-Mount Bullet Tweeters
Sale unit: Sold as a pair — two tweeters.
The CTB25-4 is built for high-output systems that need a compact tweeter without giving up sensitivity. Ciare uses a 1-inch aluminum planar diaphragm, neodymium motor and shallow 2.28-inch outside diameter, making it easier to package into custom pods, fairings and panels than a large-format super tweeter.
Published Performance
- 4-ohm nominal impedance
- 150W nominal / 250W program
- 107 dB sensitivity
- 4,000–20,000 Hz published frequency range
- 1-inch voice coil
- 44 mm published baffle cutout
This is a dedicated high-frequency driver. Use an appropriate high-pass crossover and verify mounting depth, cutout and panel clearance before fabrication.
Included: one pair of Ciare CTB25-4 tweeters.
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
