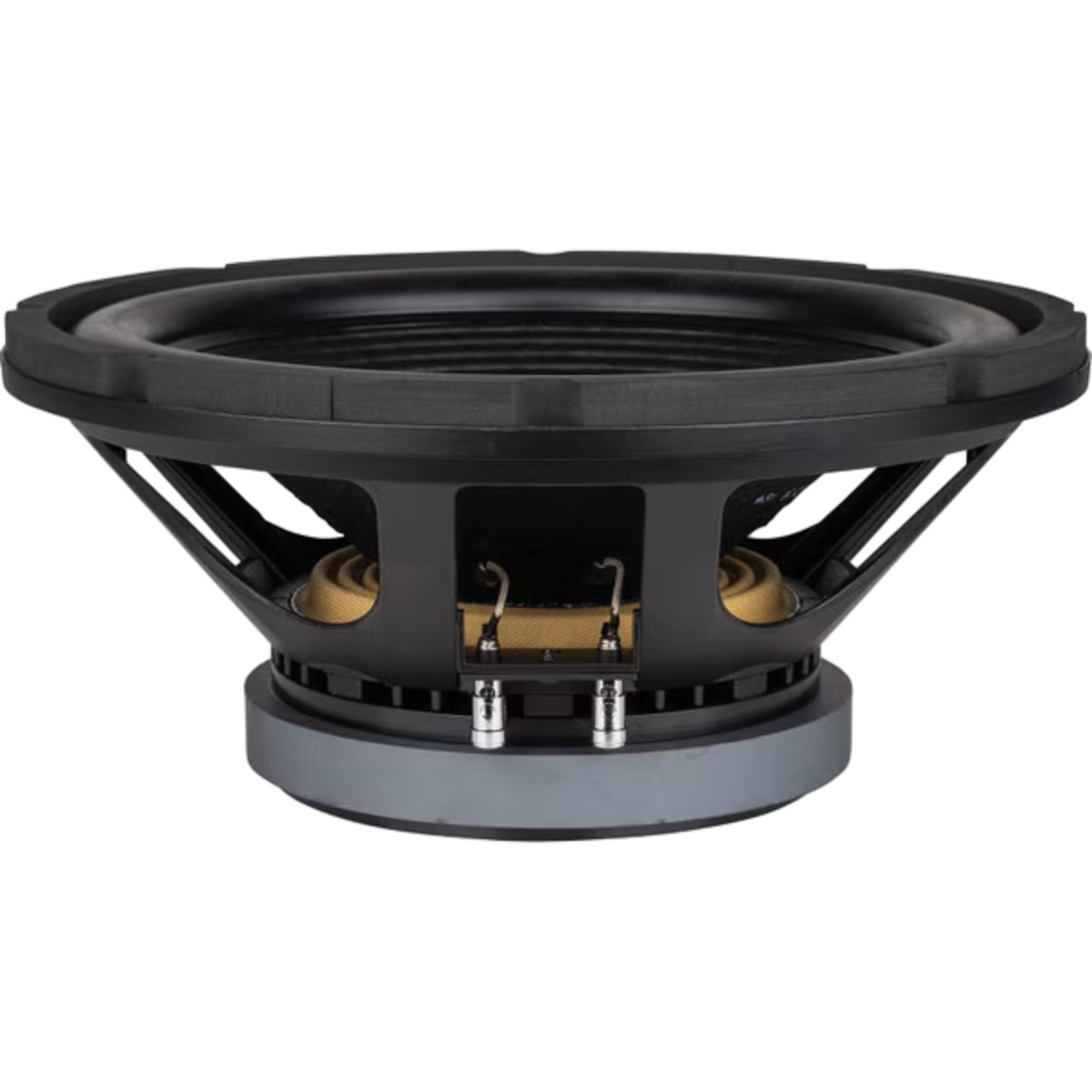

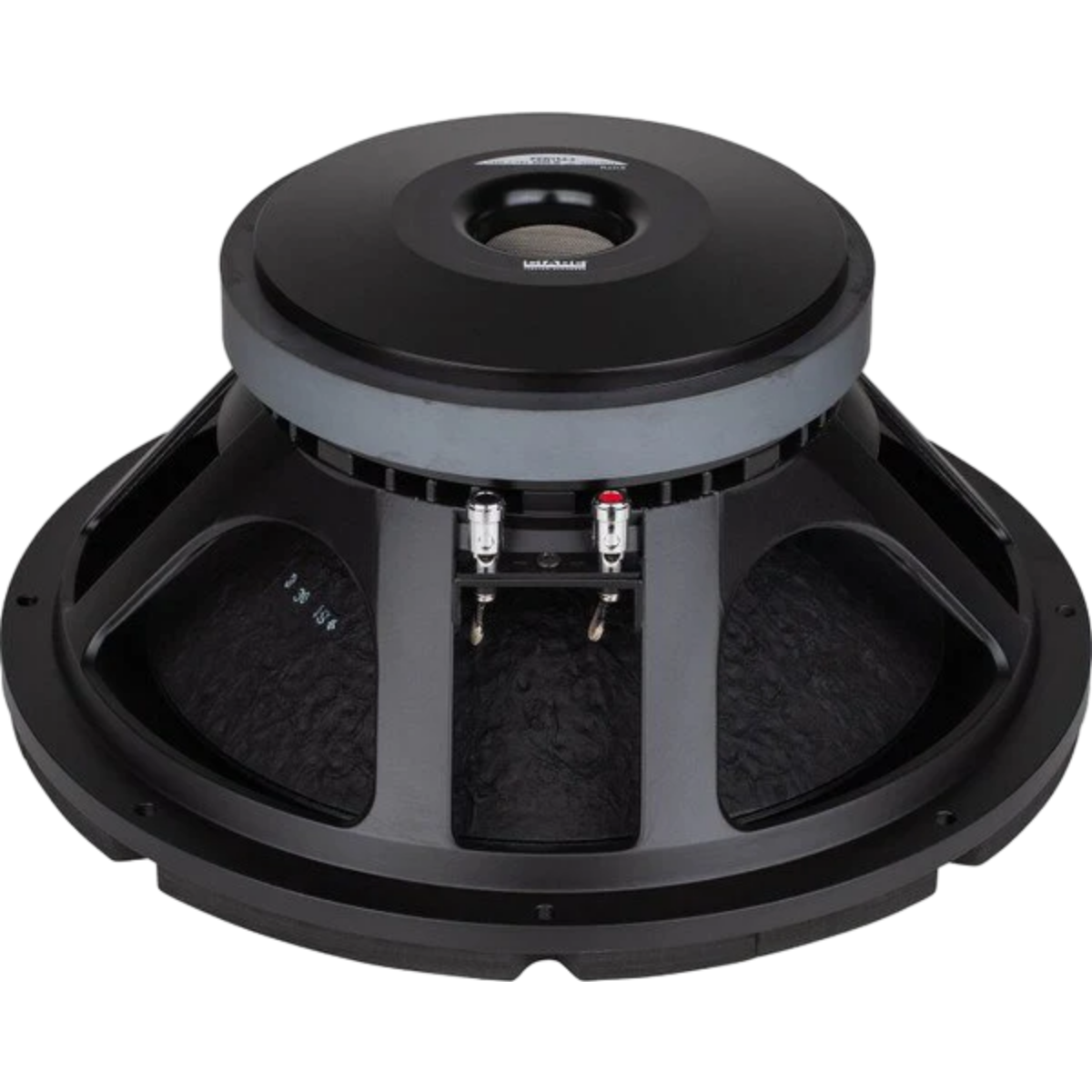

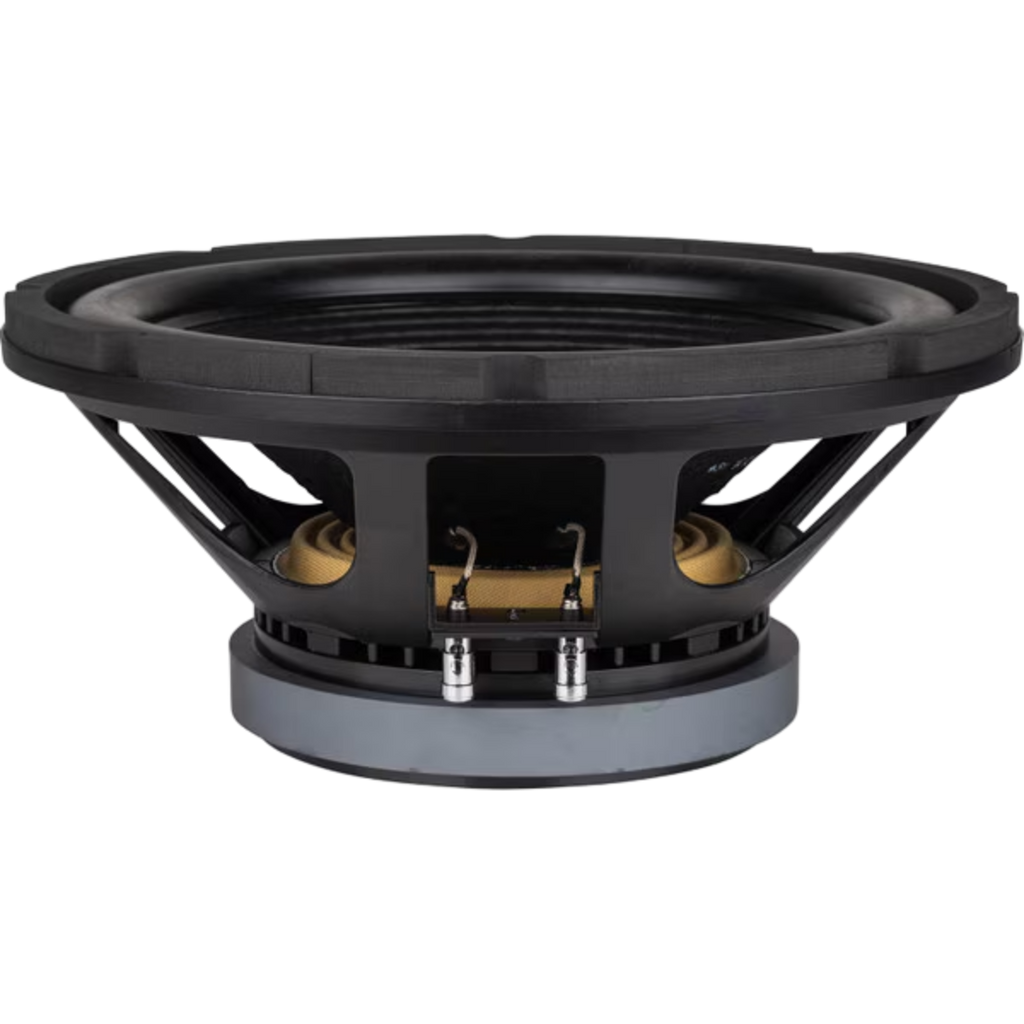

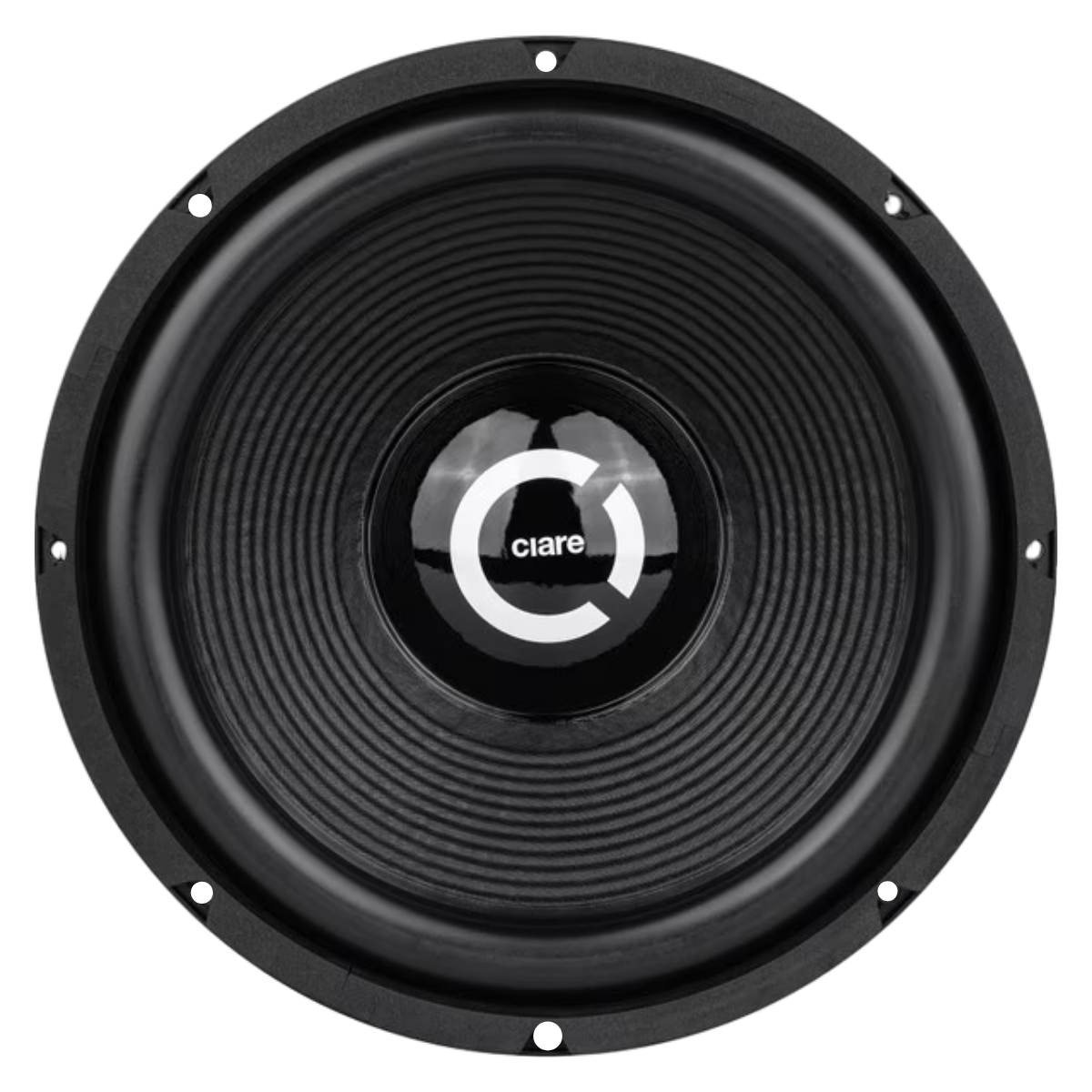

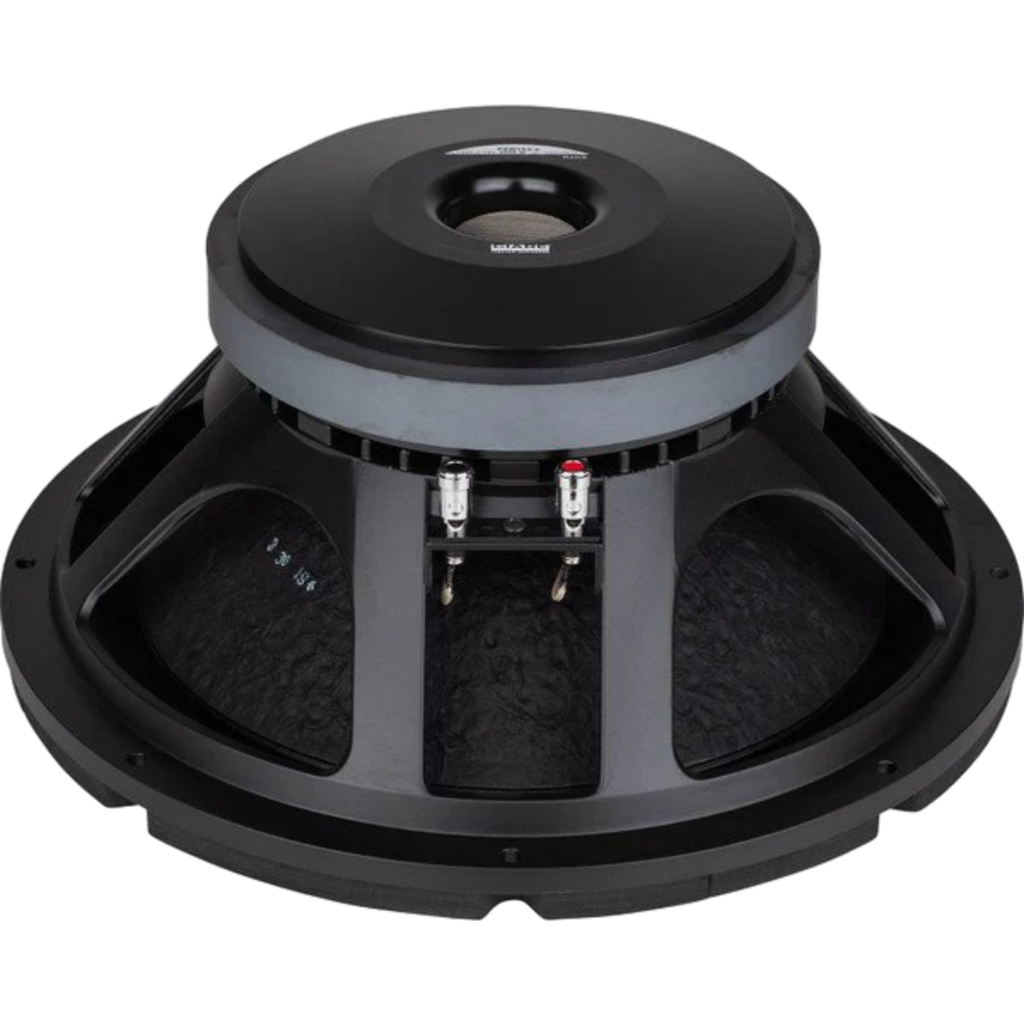

Ciare SPL 15.00SW-4 15″ High-Power Subwoofer
Sale unit: Sold individually — one subwoofer.
The 15.00SW-4 is Ciare’s 15-inch ferrite high-power subwoofer for systems that need serious low-frequency output without stepping up to an 18-inch frame. It combines a 4-inch voice coil, 13.5 mm Xmax and high sensitivity for strong output from a comparatively compact pro-audio subwoofer package.
Verified Specifications
- Rated impedance: 4Ω
- Nominal power handling: 1,000 W
- Program power handling: 2,000 W
- Voice coil: 4 in / 100 mm
- Sensitivity: 94 dB
- Published frequency range: 20–200 Hz
- Xmax: 13.5 mm
- Magnet: ferrite
Fitment
- Overall diameter: 388 mm / 15.28 in
- Baffle cutout: 354 mm / 13.94 in
- Total depth: 178 mm / 7.01 in
- Bolt circle: 370 mm / 14.57 in
Where It Makes Sense
Choose the 15.00SW-4 when enclosure space matters but you still need a high-output 4Ω driver with a large coil and real excursion. Enclosure volume, alignment, tuning and filtering should be designed around the published T/S parameters rather than treating this as a drop-in replacement for any generic 15.
Included: one Ciare 15.00SW-4 subwoofer.
Where this fits in the build
The subwoofer is only one part of the bass system. Enclosure volume and alignment, final impedance, amplifier power, vehicle space and electrical support all affect the result.
