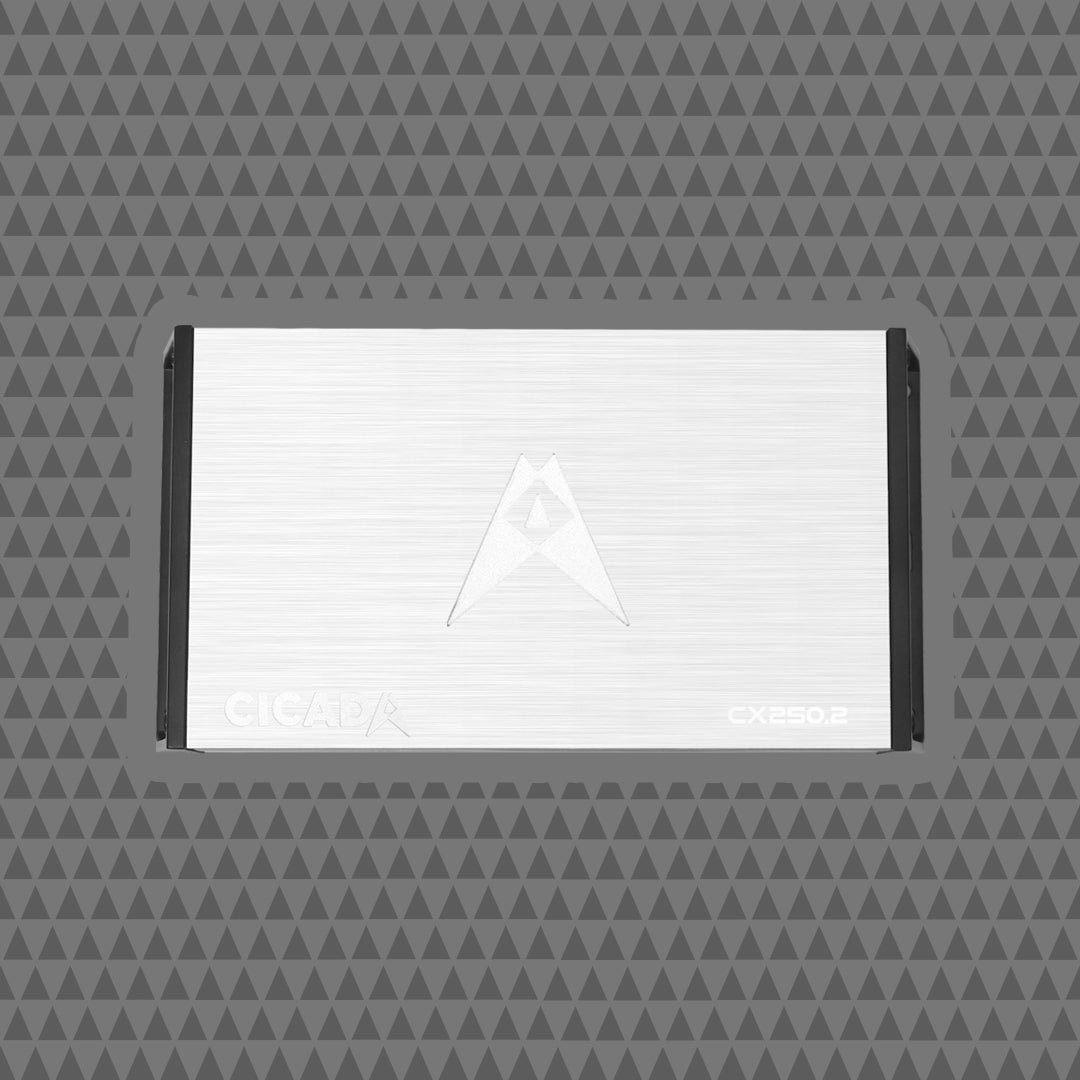

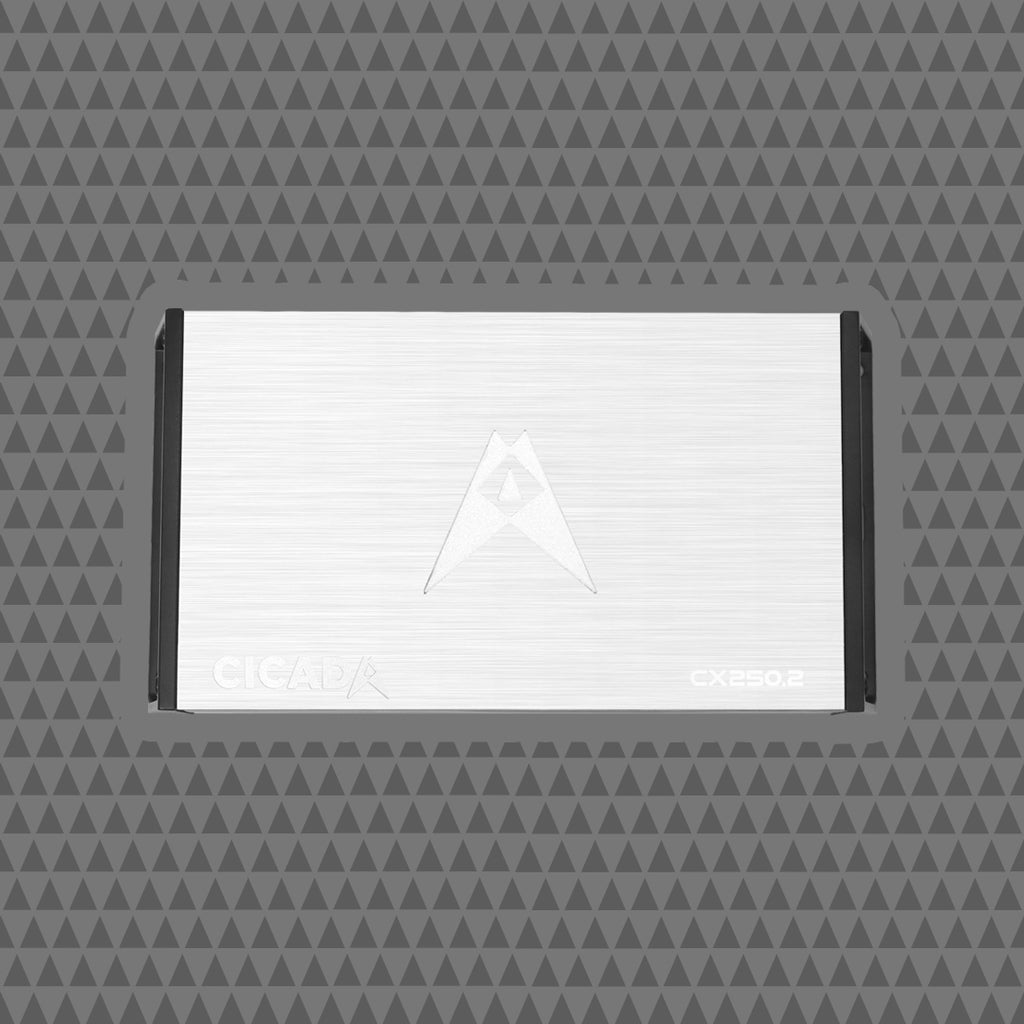

Cicada Audio CX250.2D — 2-Channel Full-Range Amplifier
POWER @ 14.4V
• 2 x 150W RMS @ 4Ω
• 2 x 250W RMS @ 2Ω
• 1 x 550W RMS bridged @ 4Ω
LOAD
• Minimum stereo load: 2Ω per channel
• Minimum bridged load: 4Ω
SPECIFICATIONS
• Frequency response: 20 Hz–20 kHz
• Damping factor: 200
• SNR: 91 dB
• LPF / FULL / HPF crossover: 40–400 Hz, 12 dB/octave
• Turn-on: REM / VOX / DC
• THD+N at 10% rated power: 0.1%
• Operating voltage: 8–16V
• Current draw: 40A music / 80A maximum
• Recommended fuse: 40A for music use
• Dimensions: 7.0 x 4.0 x 1.375 in
• Exact model: CX250.2D
POWER @ 14.4V
• 2 x 150W RMS @ 4Ω
• 2 x 250W RMS @ 2Ω
• 1 x 550W RMS bridged @ 4Ω
LOAD
• Minimum stereo load: 2Ω per channel
• Minimum bridged load: 4Ω
SPECIFICATIONS
• Frequency response: 20 Hz–20 kHz
• Damping factor: 200
• SNR: 91 dB
• LPF / FULL / HPF crossover: 40–400 Hz, 12 dB/octave
• Turn-on: REM / VOX / DC
• THD+N at 10% rated power: 0.1%
• Operating voltage: 8–16V
• Current draw: 40A music / 80A maximum
• Recommended fuse: 40A for music use
• Dimensions: 7.0 x 4.0 x 1.375 in
• Exact model: CX250.2D
AMPLIFIER SYSTEM FIT
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
Plan aroundMatch usable channels and power to the actual speakers and load.
Match itPlan signal processing and gain structure before chasing wattage.
Finish itHigher output may require charging, battery and wiring upgrades.
