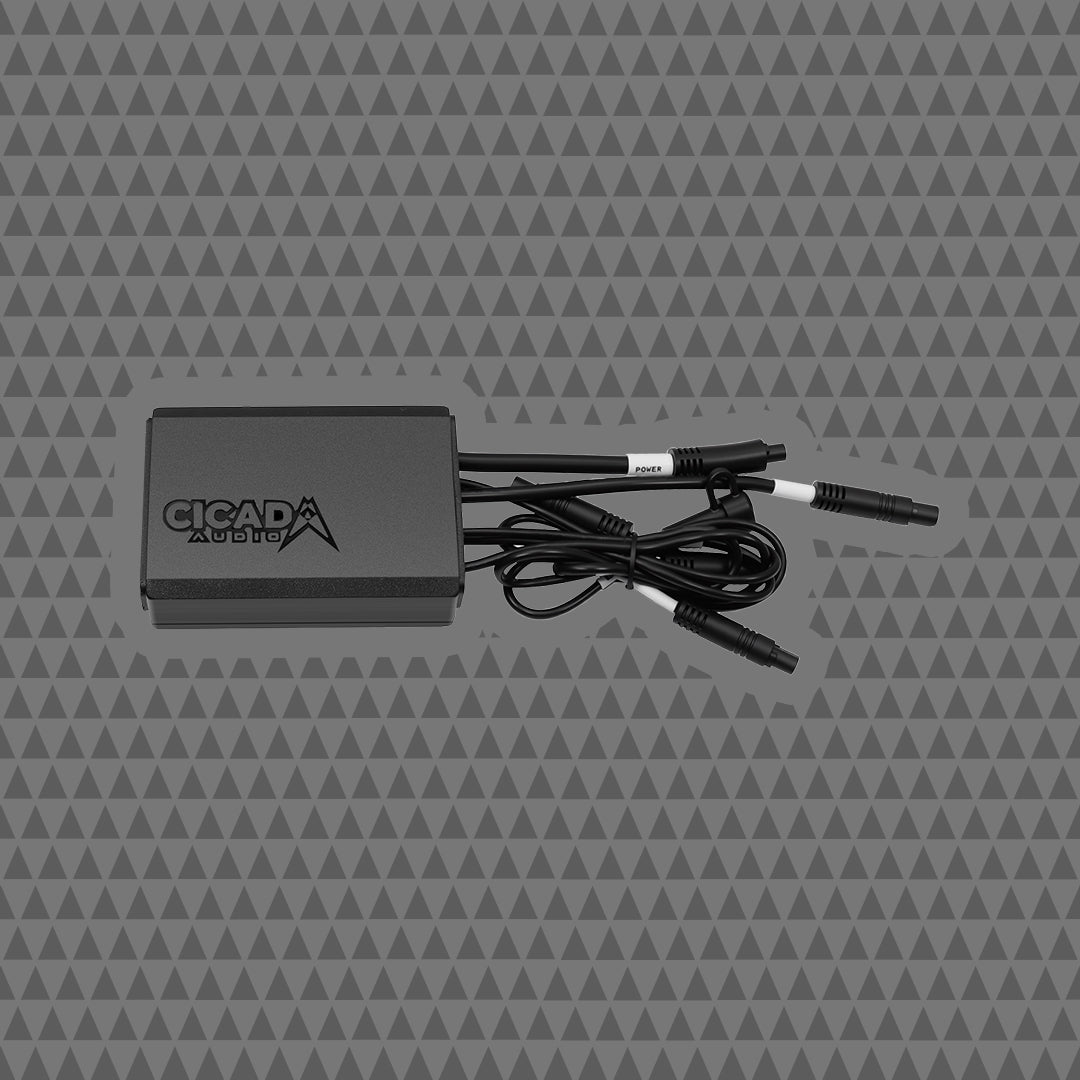

Cicada Audio DSP412PRO 4-input 12-output digital signal processor
Hover over the image to zoom Tap the image to zoom
Cicada Audio DSP412PRO 4-input 12-output digital signal processor

Cicada Audio DSP412PRO 4-Input, 12-Output Digital Signal Processor

Cicada AudioSKU: DSP412PRO
Authorized Dealer In-Store Only

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details

Description

Cicada Audio DSP412PRO — 4-Input / 12-Output Digital Signal Processor
• 24-bit / 96 kHz processing
• Up to 4 inputs and 12 outputs
• USB-C connection for Windows PC tuning
• HP / BP / LP crossover modes from 20 Hz–20 kHz
• Selectable 6 / 12 / 24 / 48 dB-per-octave crossover slopes
• Gain range: 12V–0.2V
• Frequency response: 20 Hz–20 kHz ±3 dB
• Signal-to-noise ratio: 91 dB A-weighted
• IP65 Rain or Shine weather-resistant construction
• REM / DC turn-on configuration
• Dimensions: 2.6 x 3.8 x 1.1 in / 67 x 98 x 28 mm
DSP SOFTWARE
• Use Cicada Audio's Windows PC DIALD software for setup/tuning
• Exact model: DSP412PRO
DSP · OEM INTEGRATION

Where this fits in the build

This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.

Plan aroundVerify the source signal and vehicle architecture first.
Match itPlan inputs, outputs, summing, routing and gain structure as one signal path.
Finish itTune after installation, polarity, crossover capability and levels are correct.
DSP & OEM Integration Ask SMS About This Product
