Description

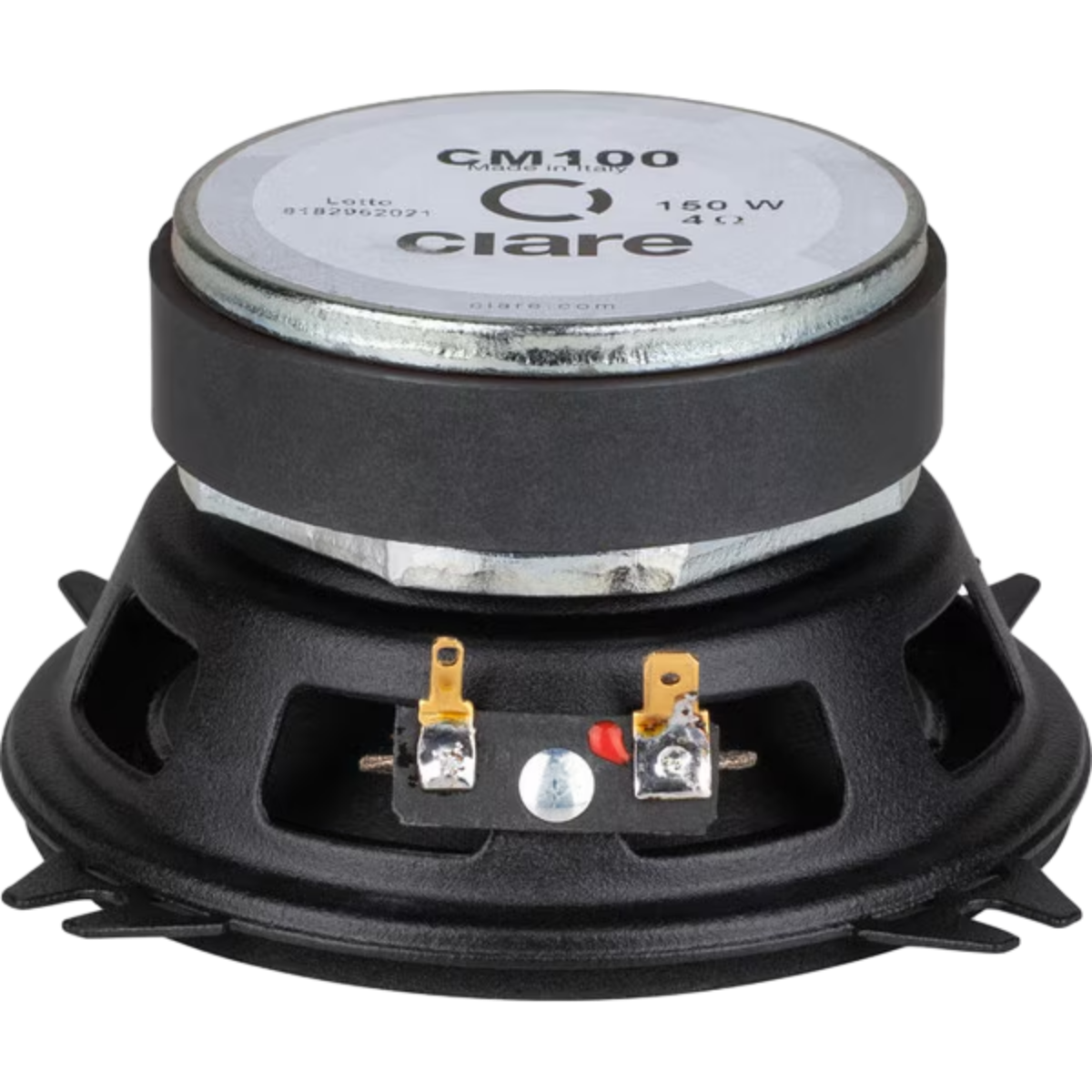

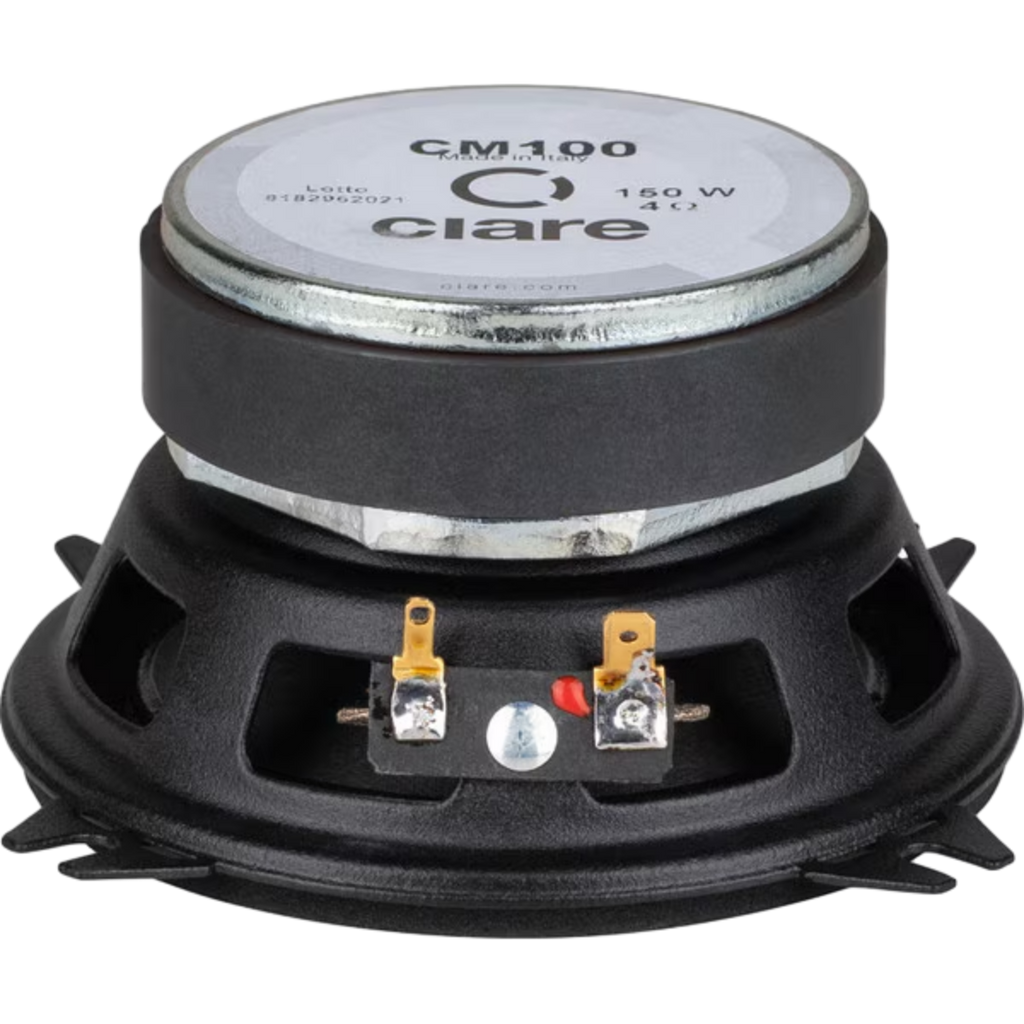

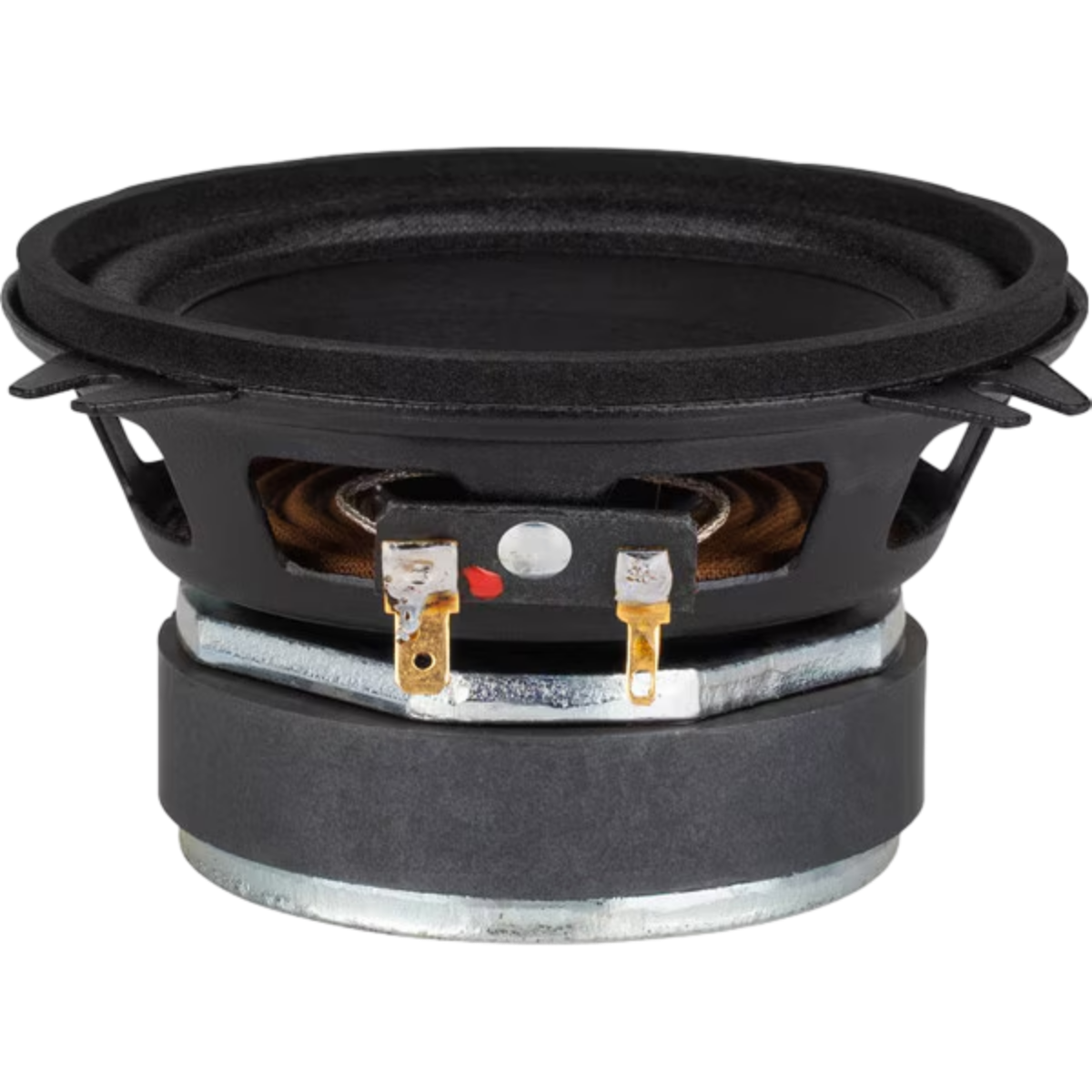

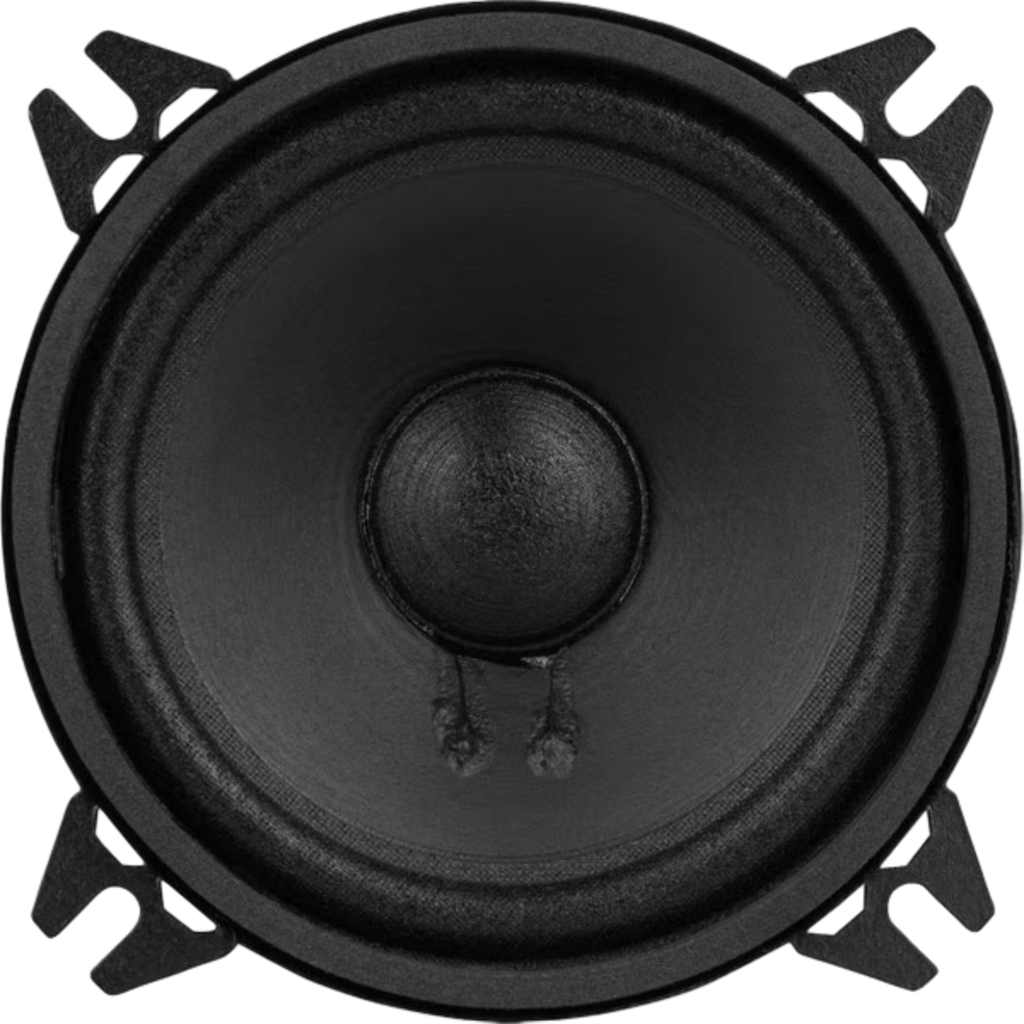

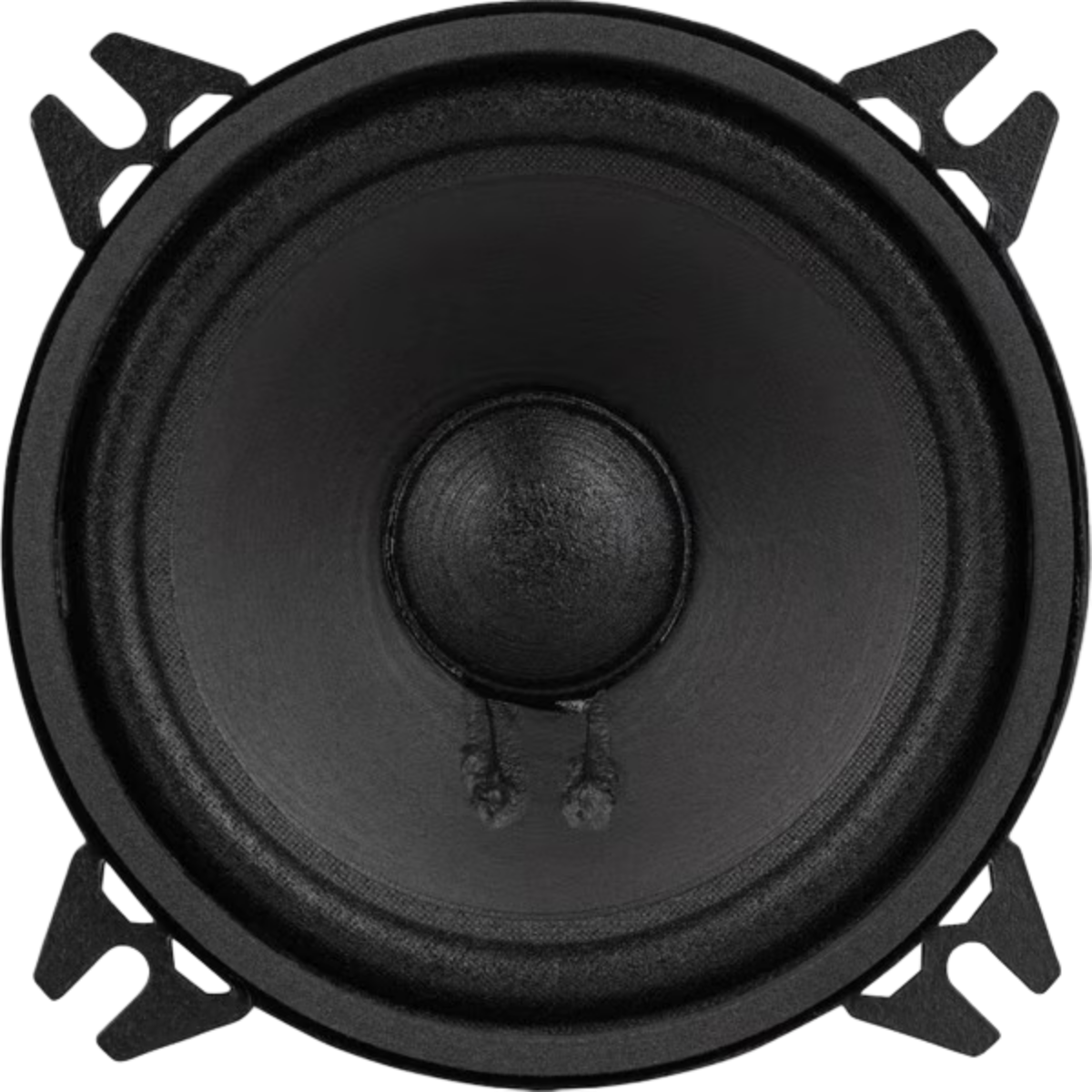

Ciare SPL CM100 4-Inch Midrange/Woofer
Sale unit: Sold individually — one speaker.
The CM100 is a compact 4-inch ferrite driver for locations where cone area is limited but a dedicated midrange still needs usable output and bandwidth.
Published Specs
- 4Ω nominal impedance
- 60W nominal / 120W program
- 89 dB sensitivity
- 150–8,000 Hz frequency range
- 1-inch voice coil
- 91 mm cutout / 55 mm total depth
This is not a subwoofer. Use appropriate high-pass filtering and verify the actual panel opening and rear clearance before ordering.
Included: one Ciare CM100.
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
