Description

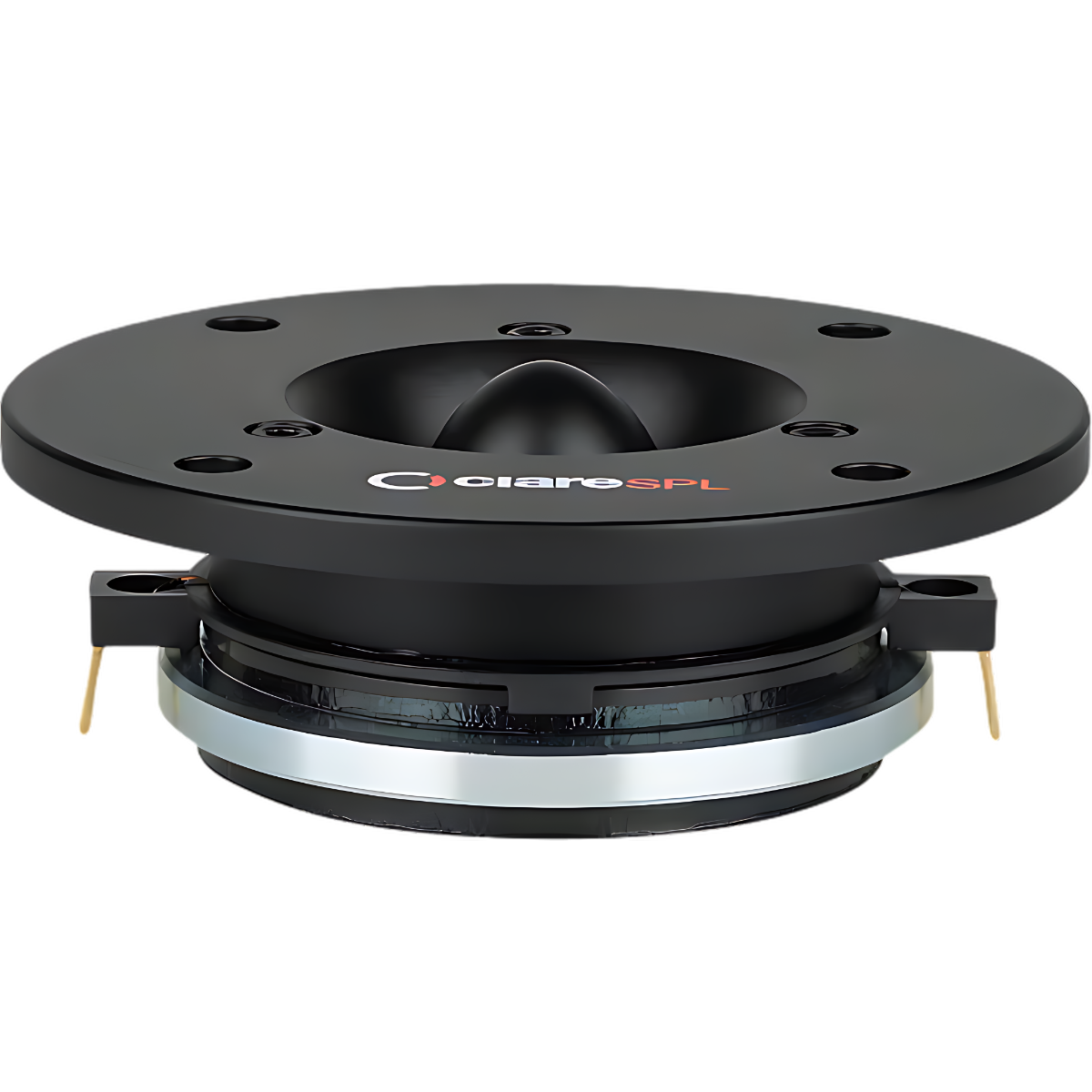

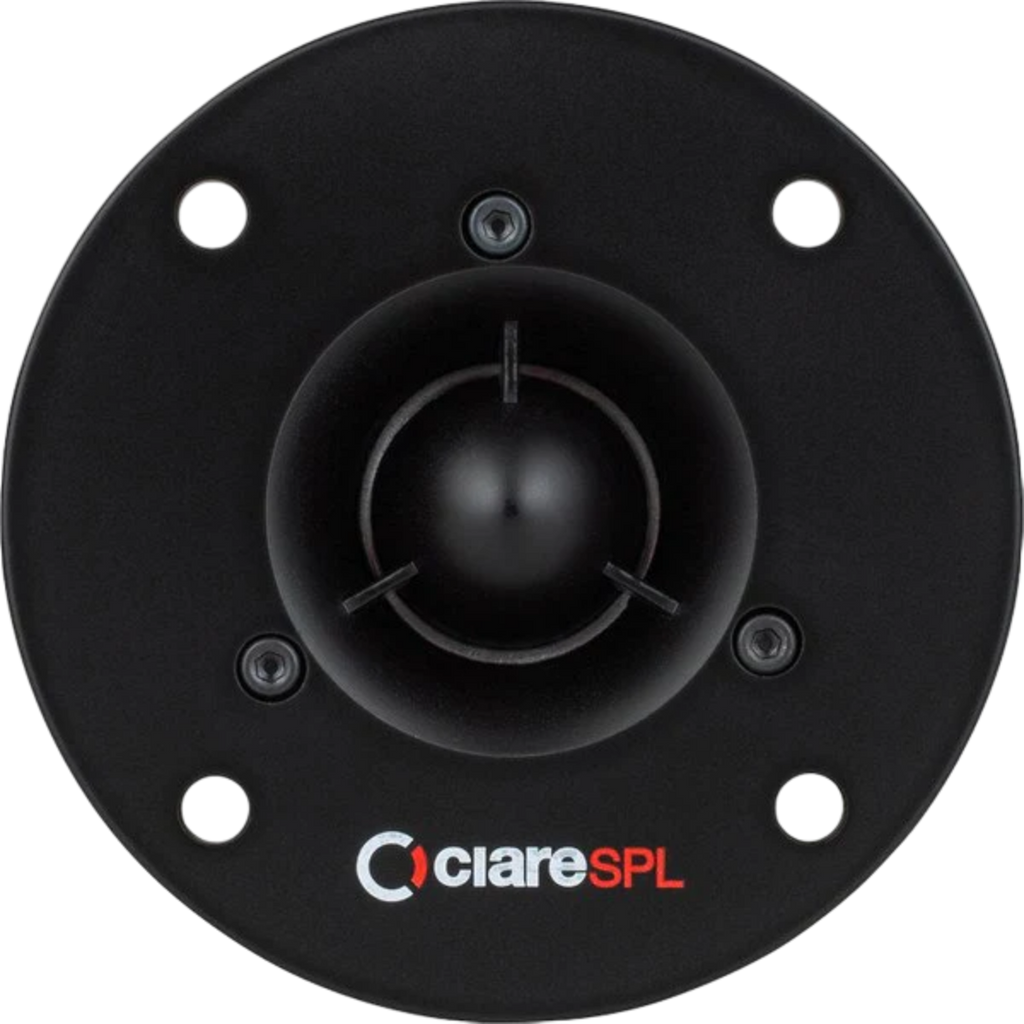

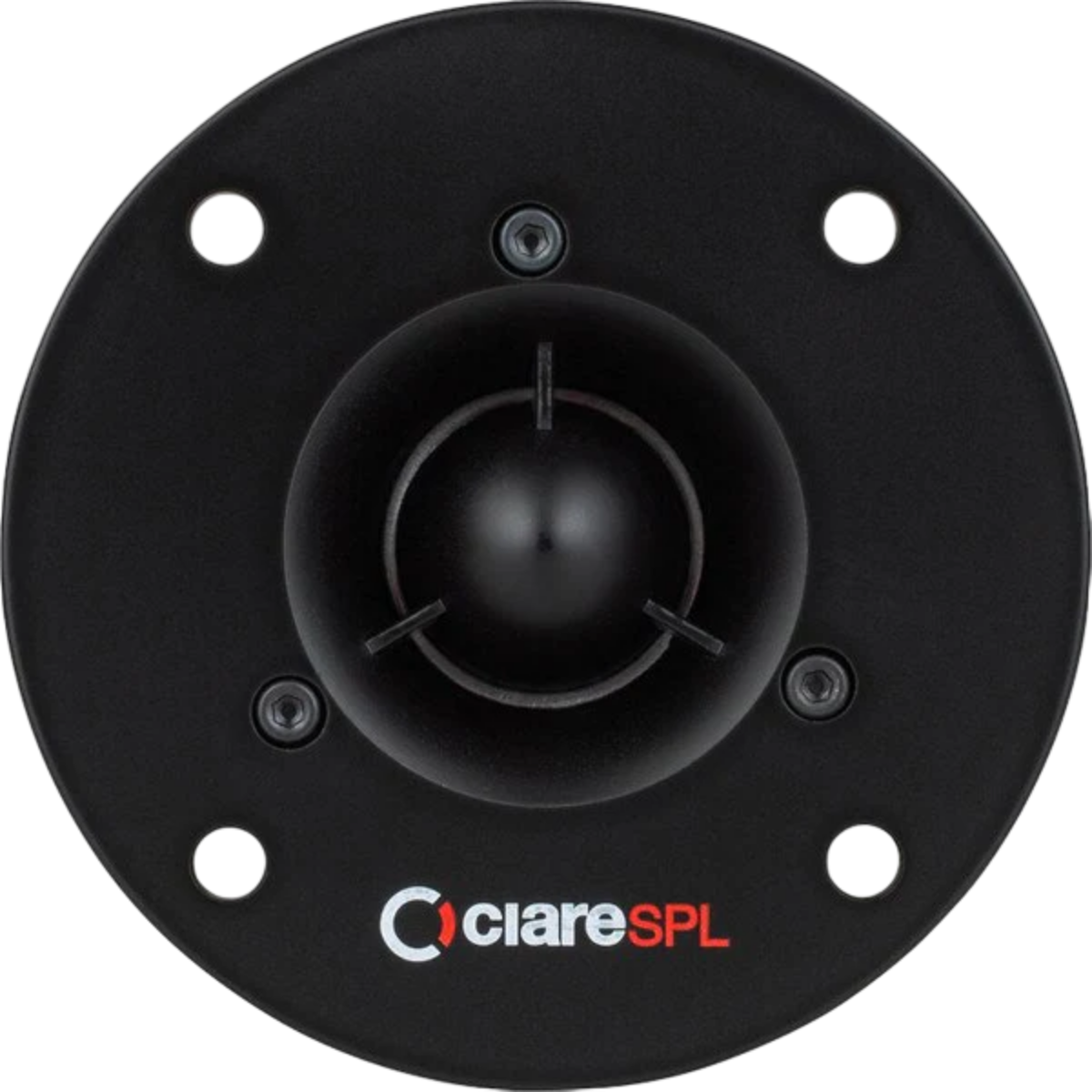

Ciare SPL CT268ND-4 Neodymium Horn Tweeter
Sale unit: Sold individually — one tweeter.
The CT268ND-4 is a compact horn tweeter that combines a neodymium motor with high sensitivity for loud systems where panel space is limited. It is substantially smaller than Ciare's large-format CT38x/CT44x options while still being designed as a dedicated high-frequency driver.
Published Performance
- 4-ohm nominal impedance
- 150W nominal / 300W program
- 105 dB sensitivity
- 4,000–20,000 Hz published frequency range
- 1-inch voice coil
- 64 mm published baffle cutout
- 30 mm published total depth
Ciare's collection card has shown a lower headline wattage than the current technical table; this listing follows the current technical specification table.
Included: one Ciare CT268ND-4 tweeter.
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
