Description

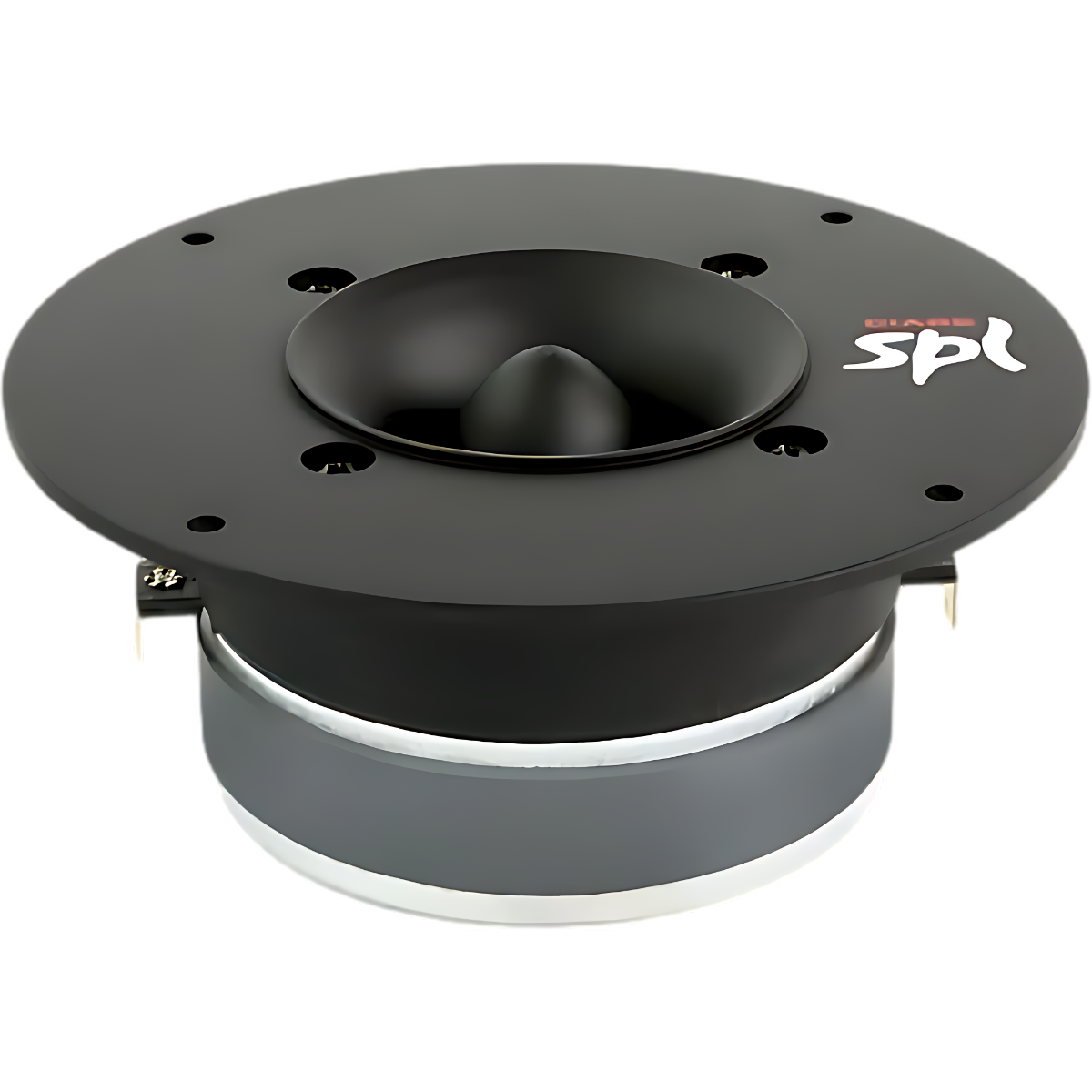

Ciare SPL CT382 Ferrite Horn Tweeter
Sale unit: Sold individually — one tweeter.
The CT382 is a large-format horn tweeter for systems that need efficiency and output more than hidden factory-style packaging. Ciare uses a ferrite motor and 1.5-inch voice coil, with a published 105 dB sensitivity that makes it suitable for keeping up with strong pro-audio midrange sections.
Published Performance
- 6-ohm nominal impedance
- 200W nominal / 400W program
- 105 dB sensitivity
- 4,000–20,000 Hz published frequency range
- 1.5-inch voice coil
- 105 mm published baffle cutout
- 63 mm published total depth
The 6-ohm impedance is intentional. Account for it in the amplifier and crossover plan rather than assuming this is a 4- or 8-ohm tweeter.
Included: one Ciare CT382 tweeter.
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
