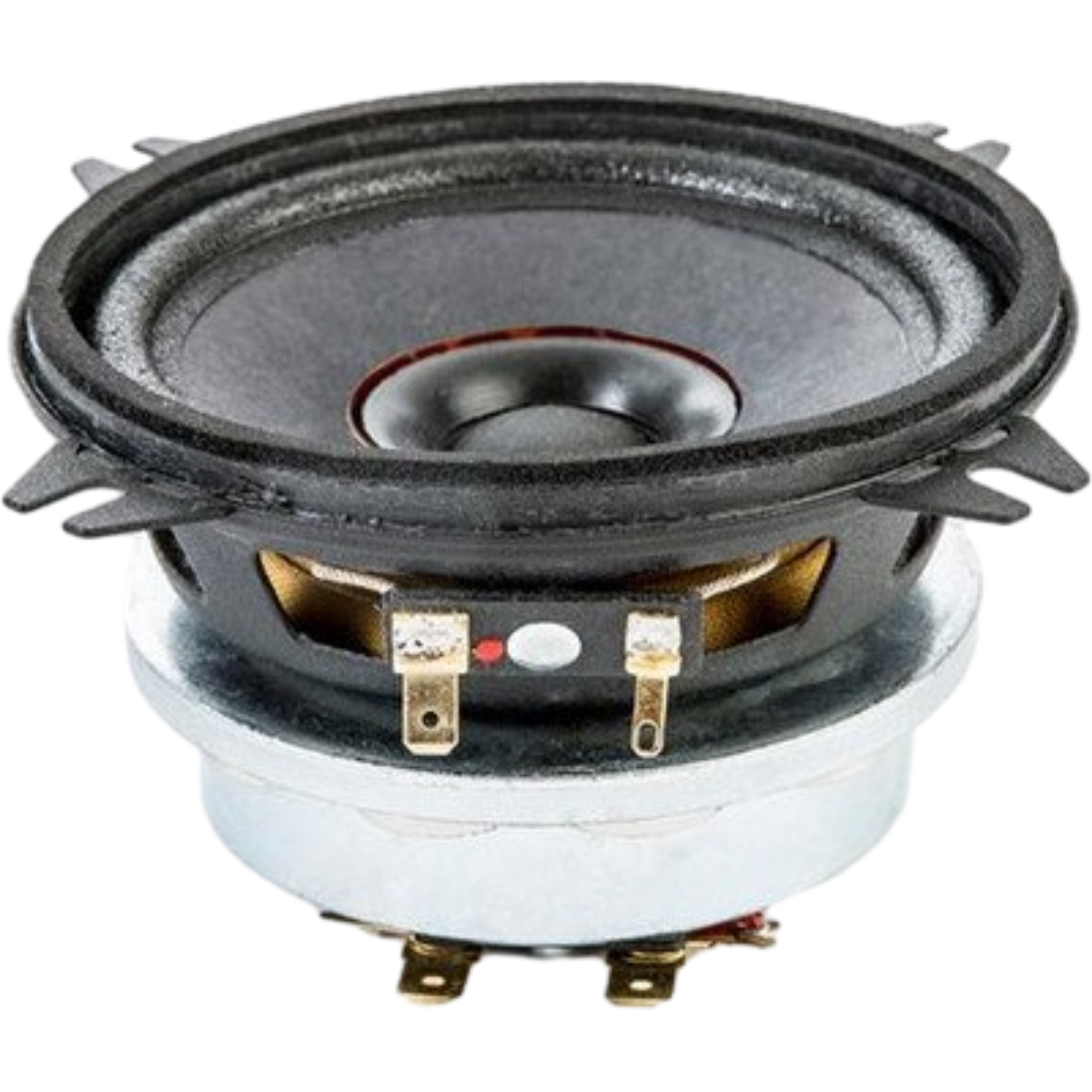

Ciare SPL CXPA-4 4″ Neodymium Coaxial Driver
Sale unit: Sold individually — one coaxial driver.
The CXPA-4 is Ciare’s compact 4-inch neodymium coaxial point-source driver, combining a low-frequency/midrange section with an integrated high-frequency section in a very small footprint. It is aimed at tight locations where a separate midrange and tweeter would be difficult to package.
Verified Specifications
- LF impedance: 8Ω
- HF impedance: 4Ω
- LF voice coil: 1.5 in / 38 mm
- HF voice coil: 0.8 in / 20 mm
- Nominal power: 100 W LF / 10 W HF
- Program power: 200 W LF / 20 W HF
- Sensitivity: 89.2 dB LF / 95 dB HF
- Published ranges: 150–2,000 Hz LF / 2,000–20,000 Hz HF
- Magnet: neodymium
Fitment
- Overall diameter: 101 mm / 3.98 in
- Baffle cutout: 91 mm / 3.58 in
- Overall depth: 54 mm / 2.13 in
Wiring / Crossover Note
The LF and HF sections are electrically separate and have different impedances and power ratings. Plan the crossover and amplification accordingly; this is not simply a two-wire drop-in coaxial.
Included: one Ciare CXPA-4 coaxial driver.
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
