iDatalink Maestro ACC-ABP-HD2 Harley-Davidson Factory Amplifier Bypass Harness

iDatalink MaestroSKU: ACC-ABP-HD2
Authorized Dealer In-Store Only

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details

Description

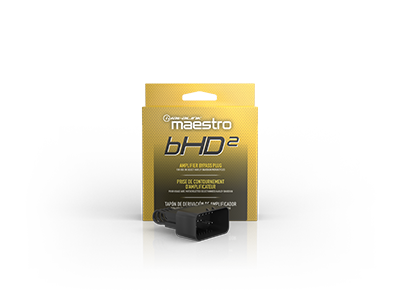

iDatalink Maestro ACC-ABP-HD2 Harley-Davidson Factory Amplifier Bypass Harness

On a 2014+ Harley, replacing the radio and replacing the factory amplifiers are two different jobs. ACC-ABP-HD2 handles the amplifier-bypass side.

Supported Harley audio packages can have multiple factory amplifiers in the system. If the build is moving to aftermarket amplification, those OEM amps have to come out of the signal path cleanly. ACC-ABP-HD2 provides the plug-in bypass connections for supported motorcycles without cutting the factory harness apart.

iDatalink supplies four amplifier-bypass plugs, allowing the kit to handle supported systems equipped with up to four compatible factory amplifiers. The bike may have fewer than four; the actual factory audio package decides how many bypass connections are used.

Radio Integration Does Not Automatically Bypass the Amps

HRN-RR-HD2 can be the correct harness for the 2014+ Harley radio-replacement side and still leave the factory amplifiers as a separate issue. If those amps are being removed, ABP-HD2 is the part that addresses their wiring path.

That separation matters when the parts list is built. A new radio can power up and the Maestro integration can work while the audio system is still incomplete because the factory amplifiers were never properly bypassed.

What It Does—and What It Does Not

ACC-ABP-HD2 preserves the factory wiring while bypassing the supported OEM amplifiers. It is not a DSP, Maestro RR/RR2 module, amplifier-replacement processor or aftermarket amplifier, and it does not provide RCA output or tuning.

The exact motorcycle, year, factory radio, speaker package and factory amplifier count must match before adding it to the system.

Manufacturer Specifications

  • Model: ACC-ABP-HD2
  • Product type: Factory amplifier bypass harness
  • Application: Supported 2014+ Harley-Davidson motorcycles
  • Factory amplifier capacity: Supports bypass of up to four compatible factory amplifiers
  • Included bypass connections: Four amplifier bypass plugs
  • Installation purpose: Remove supported OEM amplifiers from the audio path without cutting the factory harness

Bypass harness only. Maestro interface, radio, DSP, aftermarket amplifiers and other vehicle-specific installation hardware are sold separately.

Manufacturer: iDatalink Maestro

DSP · OEM INTEGRATION

Where this fits in the build

This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.

Plan aroundVerify the source signal and vehicle architecture first.
Match itPlan inputs, outputs, summing, routing and gain structure as one signal path.
Finish itTune after installation, polarity, crossover capability and levels are correct.
