Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Description
iDatalink Maestro SR Vehicle-Specific Radio Replacement T-Harnesses
The Maestro SR module does the interface work; the vehicle-specific HRN-SR harness is what connects that module to the correct factory radio wiring. This is the cleaner route when a supported plug-in harness exists, instead of treating every radio replacement like a universal hardwire job.
This is not a universal year/make selector. The exact vehicle, factory radio and audio architecture still have to match the supported Maestro application. A neighboring year, trim or audio package is not automatically compatible just because the connector family looks similar.
How SMS Uses These
- Match the exact vehicle and factory-radio configuration first.
- Pair the verified HRN-SR vehicle harness with the Maestro SR / ADS-MSR interface.
- Check any required head-unit adapter, camera/USB/antenna retention pieces and other vehicle-specific dependencies before ordering.
- Program and configure the interface for the exact vehicle/radio application rather than using a generic profile.
Important Fitment Rules
- Use the exact SKU returned by the supported vehicle application; do not choose an HRN-SR harness from model year alone.
- Feature retention varies by vehicle and radio. Steering-wheel controls, warning chimes, factory amplifier behavior, camera/USB retention and other features must be checked for the exact configuration.
- HRN-SR-GM3: iDatalink states that factory-amplified applications require the factory amplifier to be bypassed; this harness does not retain that amplifier.
- These are harness variants, not proof that every vehicle within a brand family fits. Confirm exact compatibility for the specific vehicle, factory radio and audio configuration before ordering.
Harness Family
| Model | General Role |
|---|---|
| HRN-SR-AU1 / sAU1 | Audi radio-replacement T-harness |
| HRN-SR-CH1 / sCH1 | Chrysler-family radio-replacement T-harness |
| HRN-SR-CH2 / sCH2 | Chrysler-family radio-replacement T-harness |
| HRN-SR-CH3 / sCH3 | Chrysler / Jeep / Ram / Fiat family radio-replacement T-harness |

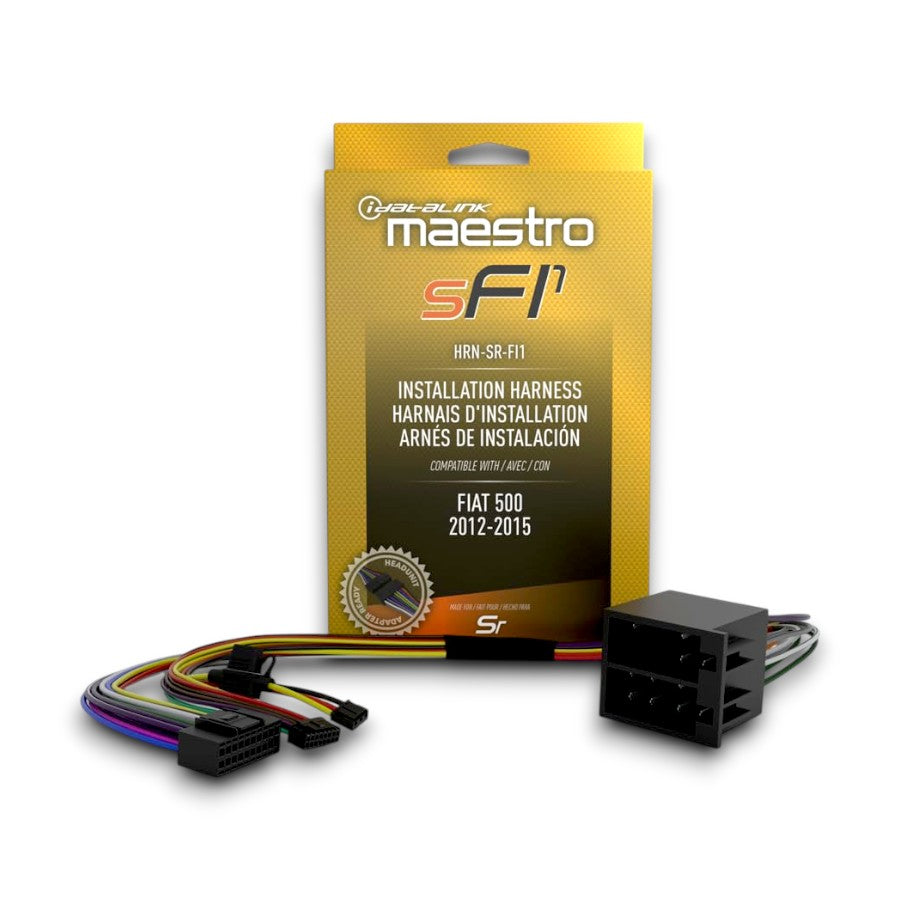

| HRN-SR-FI1 / sFI1 | Fiat 500-family radio-replacement T-harness |
| HRN-SR-FO1 / sFO1 | Ford-family radio-replacement T-harness |
| HRN-SR-FO2 / sFO2 | Ford-family radio-replacement T-harness |
| HRN-SR-FO3 / sFO3 | Ford-family radio-replacement T-harness |

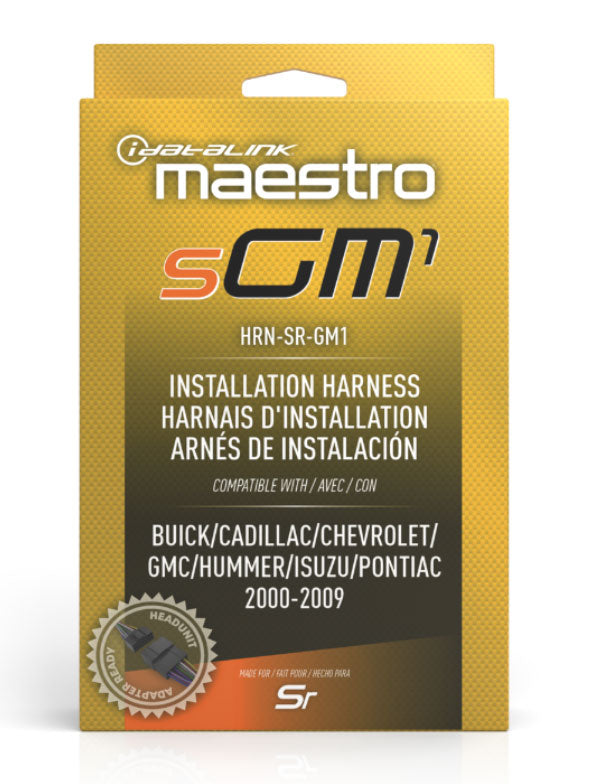

| HRN-SR-GM1 / sGM1 | GM radio-replacement T-harness |
| HRN-SR-GM2 / sGM2 | GM radio-replacement T-harness |
| HRN-SR-GM3 / sGM3 | GM radio-replacement T-harness; factory amp bypass required when amplified |
| HRN-SR-GM4 / sGM4 | GM radio-replacement T-harness |
| HRN-SR-GM5 / sGM5 | GM radio-replacement T-harness |
| HRN-SR-VW1 / sVW1 | Volkswagen / Audi radio-replacement T-harness |
| HRN-SR-VW2 / sVW2 | Volkswagen radio-replacement T-harness |
Manufacturer Specifications
- Manufacturer: iDatalink Maestro / Automotive Data Solutions
- Product family: Maestro SR vehicle-specific radio-replacement T-harnesses
- Interface platform: Maestro SR / ADS-MSR
- Connection type: vehicle-specific T-harness
- Vehicle fitment: conditional by exact vehicle, factory radio and audio architecture; verify before installation
- Programming: application-specific Maestro configuration required
- Included item: selected HRN-SR vehicle harness; interface module and other retention accessories are separate unless explicitly stated for a specific application
