ILL Customz 2-Spot Lug-Style ANL Fuse Block — Older 3D-Printed Version
Running a high-current car-audio system and need two ANL fuse positions in one clean block instead of mounting separate holders all over the amp rack? That is the job this ILL Customz 2-spot block is built for. It keeps two fused circuits together, uses stud-style connections for ring-terminal cable lugs and gives the power section a cleaner, easier-to-service layout.
This is the older 3D-printed version of ILL Customz's 2-spot lug-style design, not the current injection-molded housing. The basic job is the same: two ANL fuse positions, four stud terminals and a clear logo cover over the fuse area. If the build already uses lug-terminated cable, this style makes sense because you are bolting the cable connection down instead of trying to clamp large wire directly into a set-screw block.

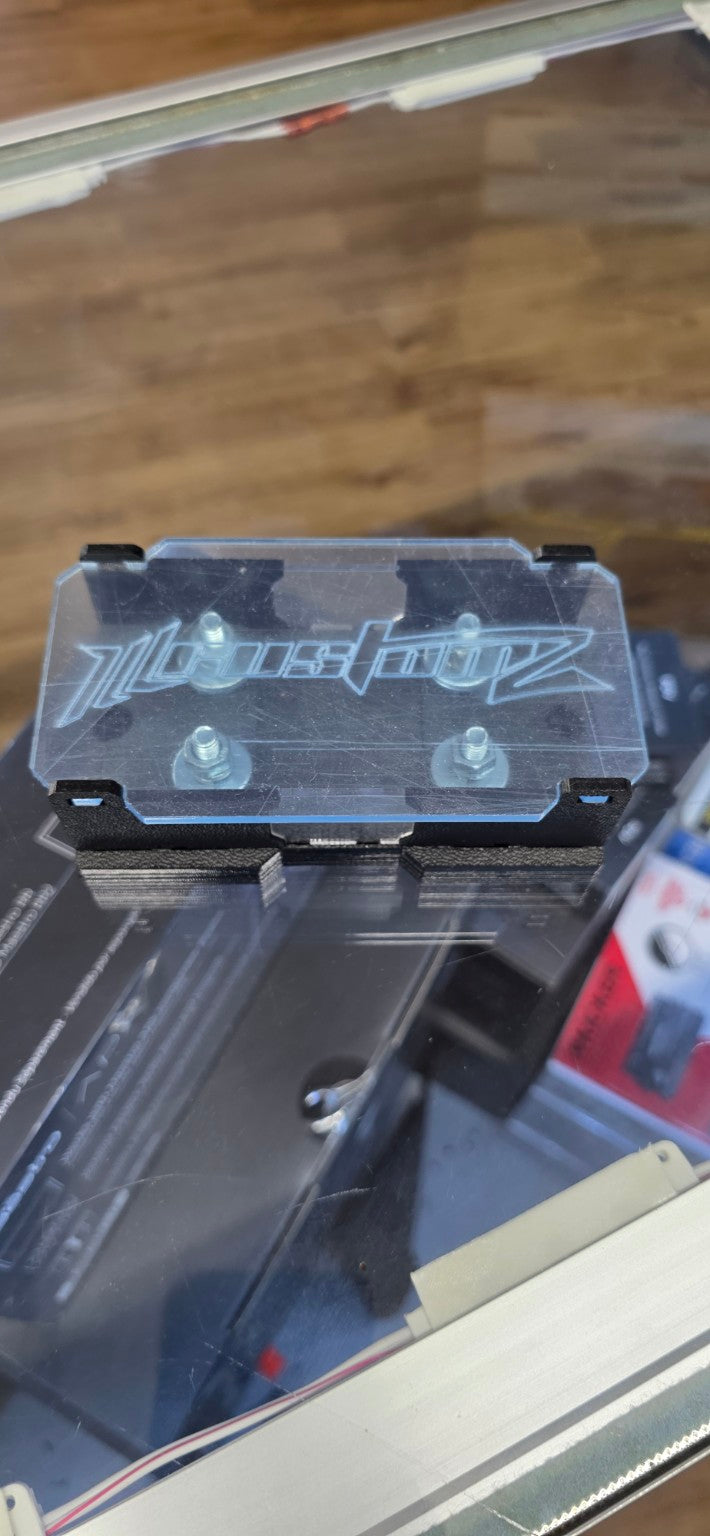

The actual piece has the clear cover's removable protective film still in place. That film can look cloudy or scratched in the photo, but it is there to protect the acrylic surface during handling. ANL fuses and cable lugs are not included, so those need to be selected for the wire size and current requirement of the circuits being protected.
What it will not do: this block does not determine the correct fuse size for the system and it does not replace proper source-side protection on the main power feed. It is also the older 3D-printed housing, so if you specifically want ILL Customz's current injection-molded construction, use the current-production version instead.
Product Details
- Brand: ILL Customz
- Product type: lug-style ANL fuse block
- Fuse positions: 2
- Connection style: stud / ring-terminal lug
- Stud terminals: 4
- Housing: older 3D-printed version
- Cover: clear acrylic with ILL Customz logo
- ANL fuses: not included
- Cable lugs: not included
Condition Notice
Closeout, Open-Box, Display, B-Stock or Used Item
This listing may have limited quantity, cosmetic wear, damaged or missing retail packaging, previous display use, open-box status, B-stock status, or another condition noted on the product page. Review the exact listing description and included accessories before purchasing.
