ILL Customz 4-Spot Lug-Style ANL Fuse Block — Older 3D-Printed Version
Building a larger amp rack and need four separately fused high-current circuits without spreading fuse holders across the whole panel? This 4-spot ILL Customz block puts all four ANL fuse positions in one place, which makes the power section easier to lay out, easier to inspect and easier to service later.
The lug-style design is useful when the system is already using ring-terminal cable ends. Instead of inserting bare cable into set-screw terminals, each circuit bolts down to a stud connection. This older version uses ILL Customz's earlier 3D-printed housing with a clear logo cover rather than the current injection-molded base, but the layout is still built around four ANL fuse positions and eight stud terminals.

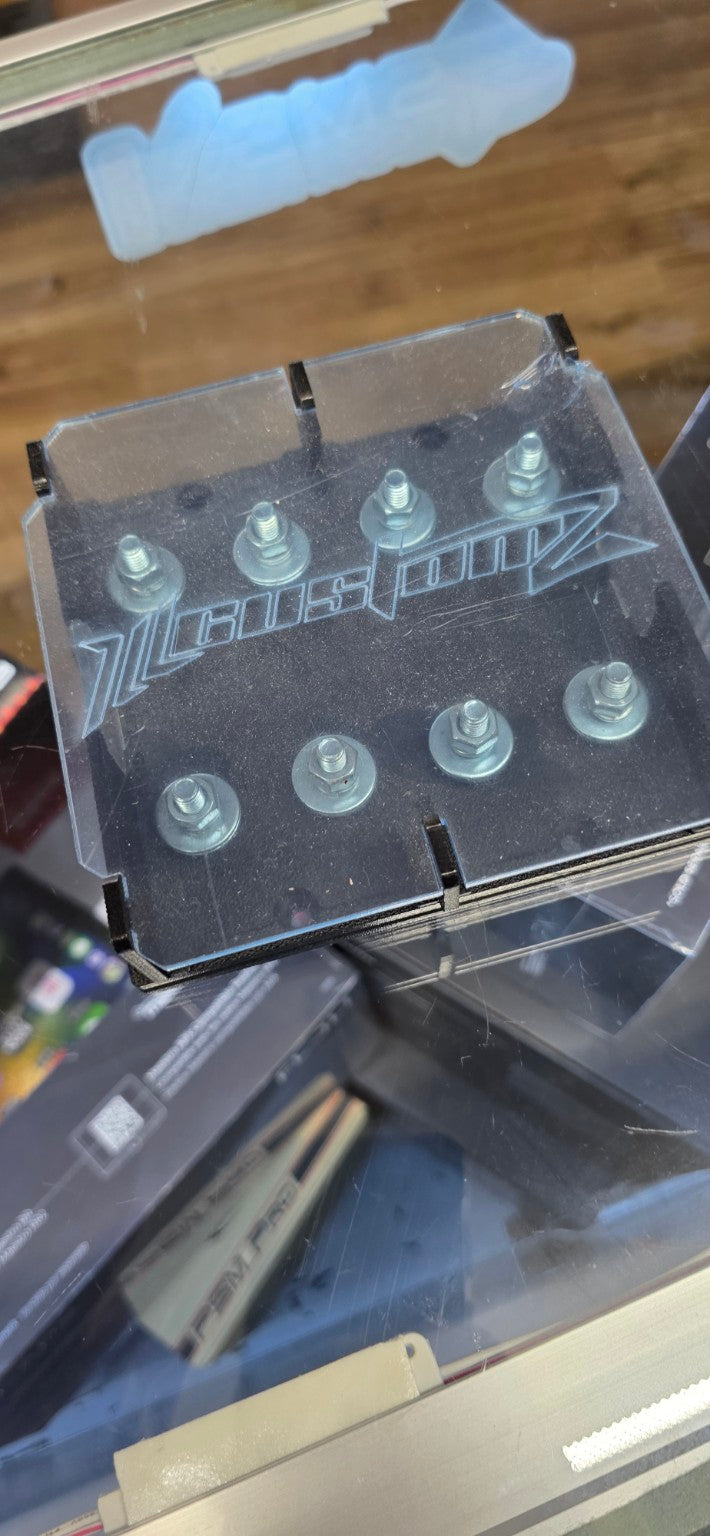

The actual block pictured still has protective film on the clear cover. That film can make the acrylic look cloudy or scratched before it is removed. ANL fuses and cable lugs are not included, so each circuit still needs the correct fuse value and properly sized lug for the wire and equipment it is protecting.
What it will not do: this does not replace the main fuse protecting the feed from the battery, and it does not make four circuits safe just because they share one block. Each branch needs a fuse sized for its own cable and load. If you specifically want the construction used on ILL Customz's current injection-molded fuse blocks, this older 3D-printed version is not that piece.
Product Details
- Brand: ILL Customz
- Product type: lug-style ANL fuse block
- Fuse positions: 4
- Connection style: stud / ring-terminal lug
- Stud terminals: 8
- Housing: older 3D-printed version
- Cover: clear acrylic with ILL Customz logo
- ANL fuses: not included
- Cable lugs: not included
Condition Notice
Closeout, Open-Box, Display, B-Stock or Used Item
This listing may have limited quantity, cosmetic wear, damaged or missing retail packaging, previous display use, open-box status, B-stock status, or another condition noted on the product page. Review the exact listing description and included accessories before purchasing.
