Description
8-Piece / RGB+W / 6W LUX Build-to-Fit
This is not the regular LUX kit. Infinite Offroad labels the Build-to-Fit system “WIRE IN SERIES.” Choose this version when that series-wired routing is the way the custom layout needs to be built. If the regular LUX wiring layout already fits the vehicle cleanly, use the regular LUX kit instead.
Eight pods are the smaller Build-to-Fit layout, but it is already enough to cover more than just four corners. It makes sense when you want separate wheel-well and rocker/center zones without jumping straight to a 12- or 16-piece system.
SMS TAKE
“Build-to-Fit” does not mean universal bolt-on. Pod positions, wire routing, moving-part clearance and future service access still need to be planned around the actual vehicle. The reason to choose this page is the series-wired Build-to-Fit configuration—not because it is automatically better than regular LUX.
SELECTED CONFIGURATION
• 8-piece kit
• RGB+W
• 6W LUX Monster Magnetic pods
• Infinite Offroad Build-to-Fit / “WIRE IN SERIES” configuration
MANUFACTURER SPECS

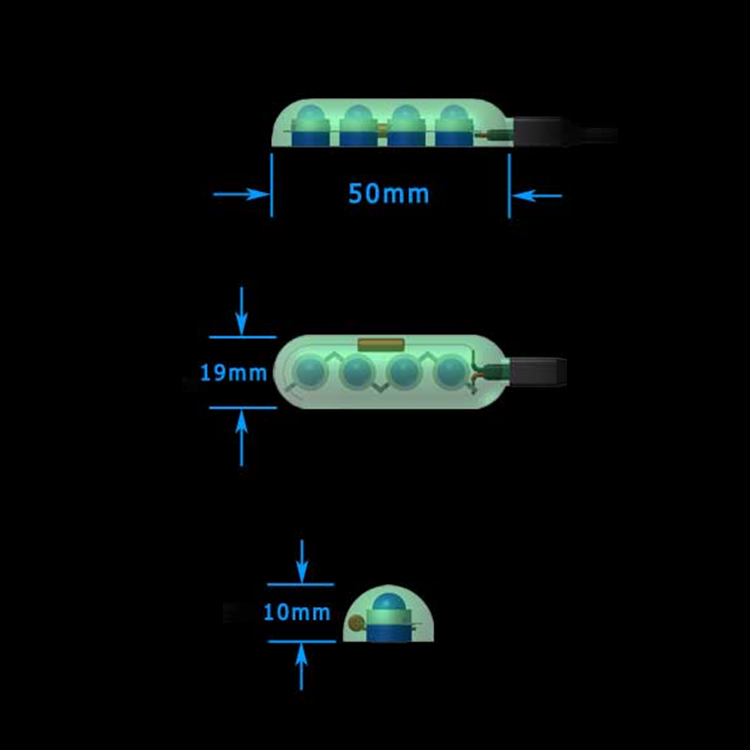

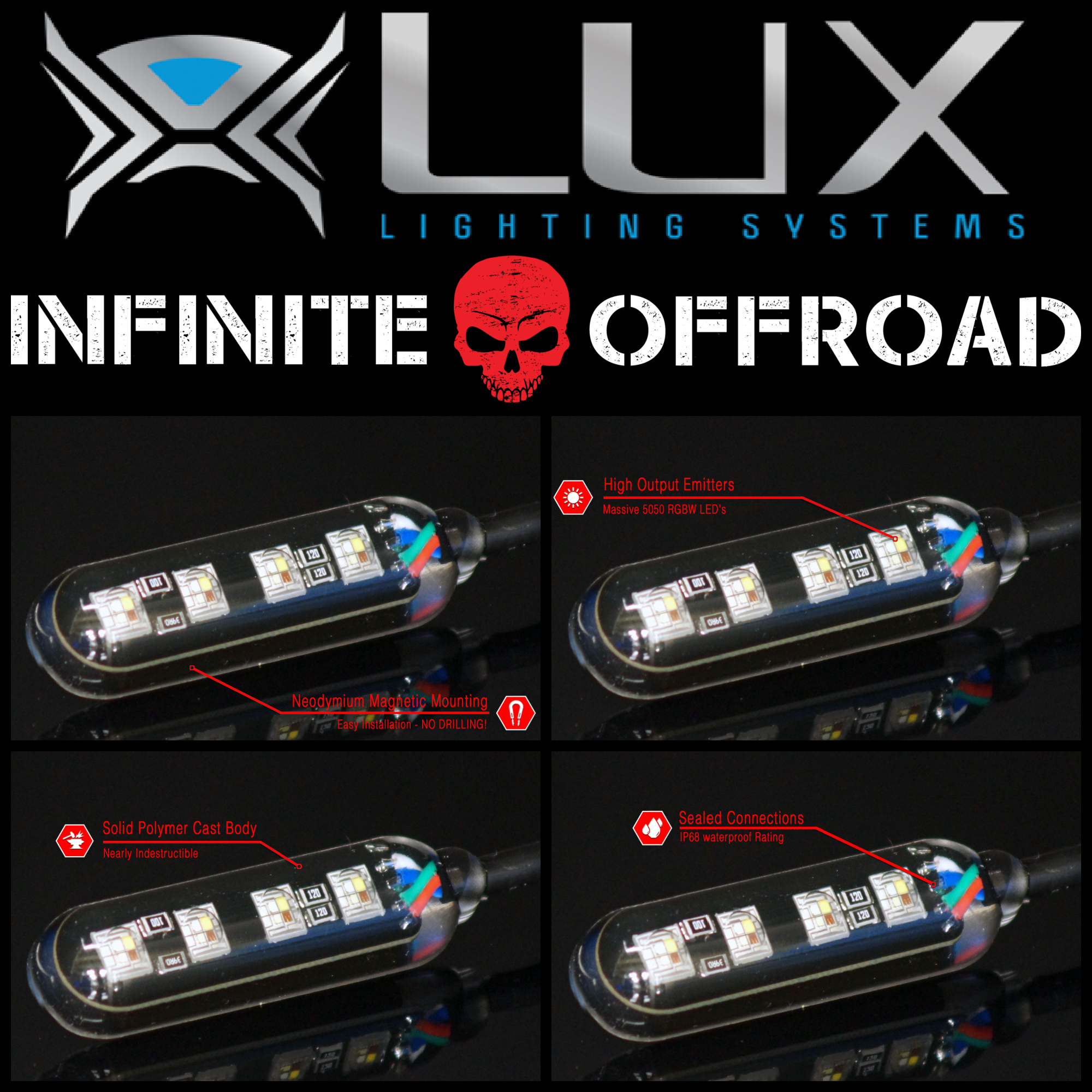

• 6W LUX Monster Magnetic platform
• 8-, 12- and 16-piece Build-to-Fit configurations
• 25-year manufacturer warranty covering any issue, including accidental damage
• BLEDIM Bluetooth app control
• Paired backup RF remote; no line of sight required
• Manufacturer claims a 3x brighter and wider pattern versus competing systems

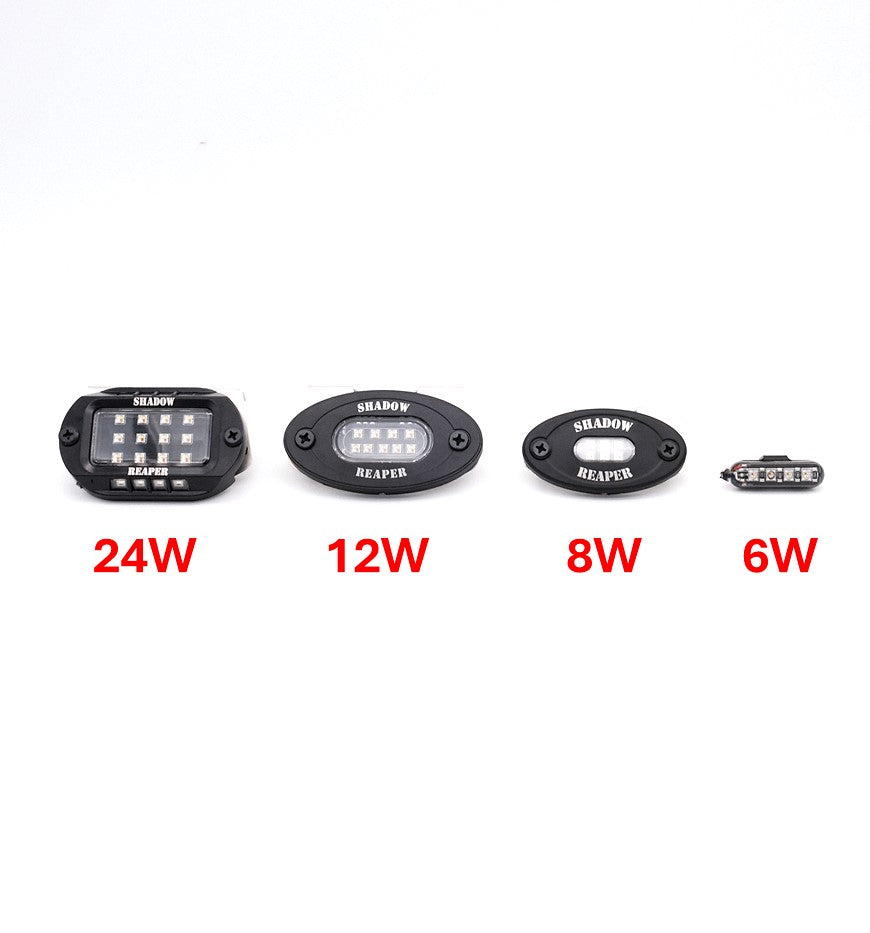

• Manufacturer publishes 4 / 6 / 8 / 12 watts per color per pod depending on product configuration
• Manufacturer publishes 12 / 16 / 24 / 36 emitters per pod depending on product configuration
• IP68 lights
• Ultra-thin side-wire design
• Fully modular add-on components
• Internally sealed controller
• Watertight screw connectors
• Plug-and-play HD strip add-ons
• 12-foot lead on each pod; 5-foot extensions available for pods with no lead

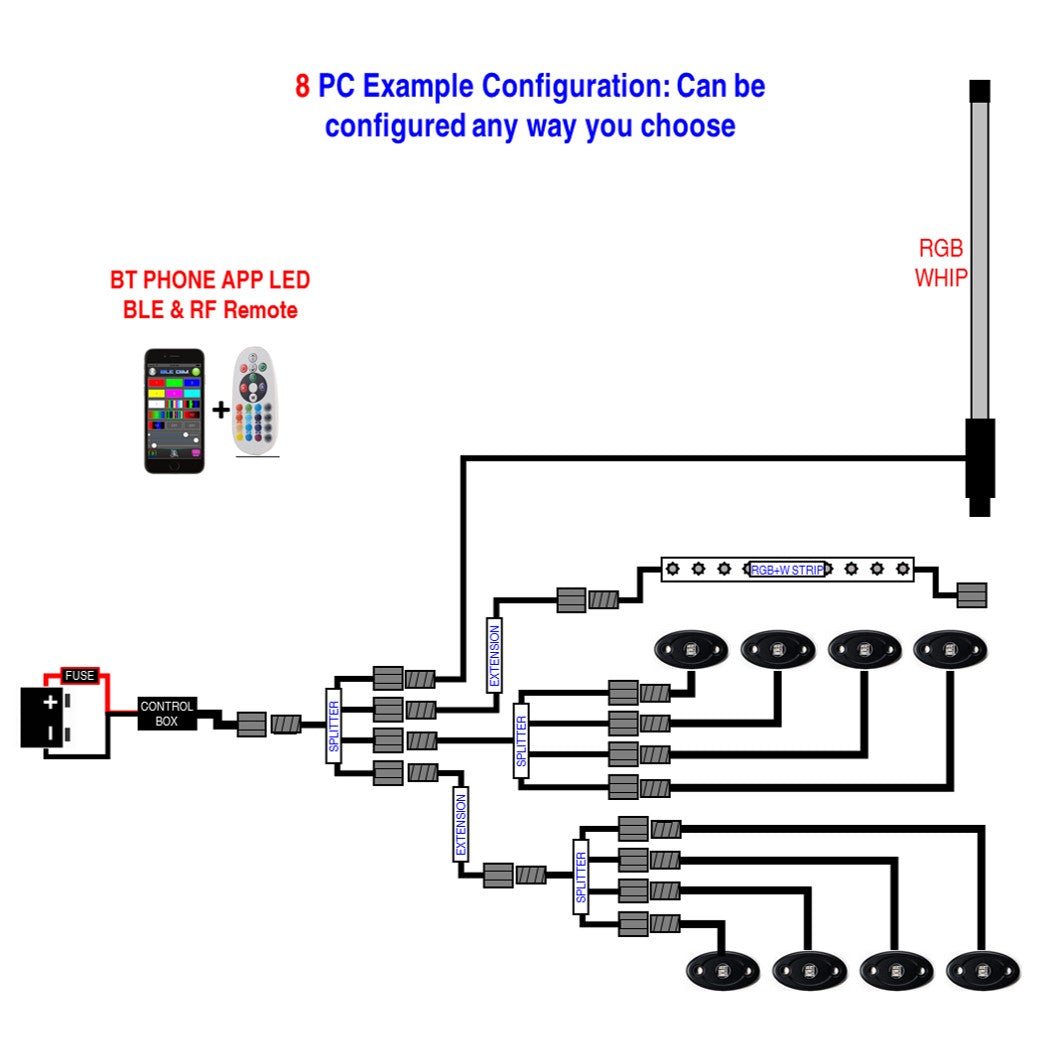

BUILD-TO-FIT CONTROLLER & OVERRIDES
• Connect through the BLEDIM app, not through the phone’s Bluetooth settings
• App handles color/pattern adjustment and on/off control; Infinite says the controller retains the last-used setting after power is cycled
• Blue wire: brake/red override; can force red even when the lights are otherwise off
• White wire: courtesy-white override; can force white from a switch or courtesy-light circuit
• RF remote pair/lock: hold the green power button, remove the controller fuse for 5 seconds, reinstall it, then keep holding the button for 3 seconds
This is not the regular LUX kit. Infinite Offroad labels the Build-to-Fit system “WIRE IN SERIES.” Choose this version when that series-wired routing is the way the custom layout needs to be built. If the regular LUX wiring layout already fits the vehicle cleanly, use the regular LUX kit instead.
Eight pods are the smaller Build-to-Fit layout, but it is already enough to cover more than just four corners. It makes sense when you want separate wheel-well and rocker/center zones without jumping straight to a 12- or 16-piece system.
SMS TAKE
“Build-to-Fit” does not mean universal bolt-on. Pod positions, wire routing, moving-part clearance and future service access still need to be planned around the actual vehicle. The reason to choose this page is the series-wired Build-to-Fit configuration—not because it is automatically better than regular LUX.
SELECTED CONFIGURATION
• 8-piece kit
• RGB+W
• 6W LUX Monster Magnetic pods
• Infinite Offroad Build-to-Fit / “WIRE IN SERIES” configuration
MANUFACTURER SPECS
• 6W LUX Monster Magnetic platform
• 8-, 12- and 16-piece Build-to-Fit configurations
• 25-year manufacturer warranty covering any issue, including accidental damage
• BLEDIM Bluetooth app control
• Paired backup RF remote; no line of sight required
• Manufacturer claims a 3x brighter and wider pattern versus competing systems
• Manufacturer publishes 4 / 6 / 8 / 12 watts per color per pod depending on product configuration
• Manufacturer publishes 12 / 16 / 24 / 36 emitters per pod depending on product configuration
• IP68 lights
• Ultra-thin side-wire design
• Fully modular add-on components
• Internally sealed controller
• Watertight screw connectors
• Plug-and-play HD strip add-ons
• 12-foot lead on each pod; 5-foot extensions available for pods with no lead
BUILD-TO-FIT CONTROLLER & OVERRIDES
• Connect through the BLEDIM app, not through the phone’s Bluetooth settings
• App handles color/pattern adjustment and on/off control; Infinite says the controller retains the last-used setting after power is cycled
• Blue wire: brake/red override; can force red even when the lights are otherwise off
• White wire: courtesy-white override; can force white from a switch or courtesy-light circuit
• RF remote pair/lock: hold the green power button, remove the controller fuse for 5 seconds, reinstall it, then keep holding the button for 3 seconds
VEHICLE / ENVIRONMENT FIT
Where this fits in the build
Vehicle-specific and open-air equipment should be chosen around fitment, environment, placement and the output needed where the system will actually be used.
Plan aroundConfirm vehicle and mounting location.
Match itMatch environmental suitability and efficiency to the installation location.
Finish itPlan amplifier power, wiring and electrical support with the complete system.
