Description
4-Piece / RGB+W / 6W LUX Magnetic
Pick RGB+W when you want the LUX magnetic mounting platform but still want color changing, patterns and a dedicated white function. The point of LUX is the magnetic pod platform and easier access for service; it is not just another wattage option on the standard rock-light page.
Four pods are the clean starting point when you have four main mounting areas. If you want the rocker and center sections filled too, go up in count instead of spacing four lights too far apart.
SMS TAKE
Choose the LUX version because the mounting approach fits the install, then choose pod count around the actual vehicle. We would rather use the right number of magnetic pods in useful locations than sell a larger kit and scatter lights where they do not help.
SELECTED CONFIGURATION
• 4-piece kit
• RGB+W
• 6W LUX Monster Magnetic pods
MANUFACTURER SPECS

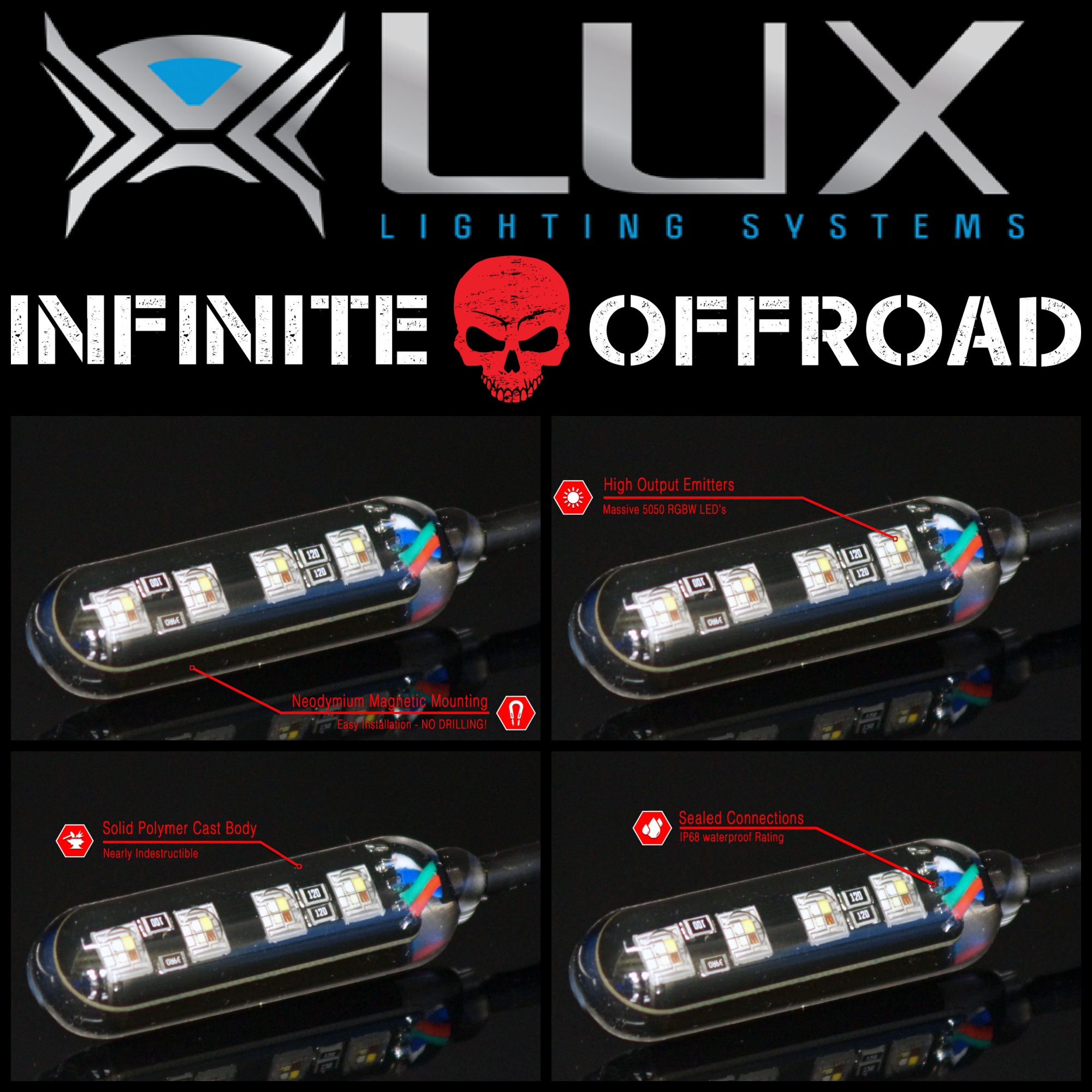

• 6W LUX Monster Magnetic platform
• 25-year manufacturer warranty covering any issue, including accidental damage
• Backup RF remote; no line of sight required
• Manufacturer claims a 3x brighter and wider pattern versus competing systems

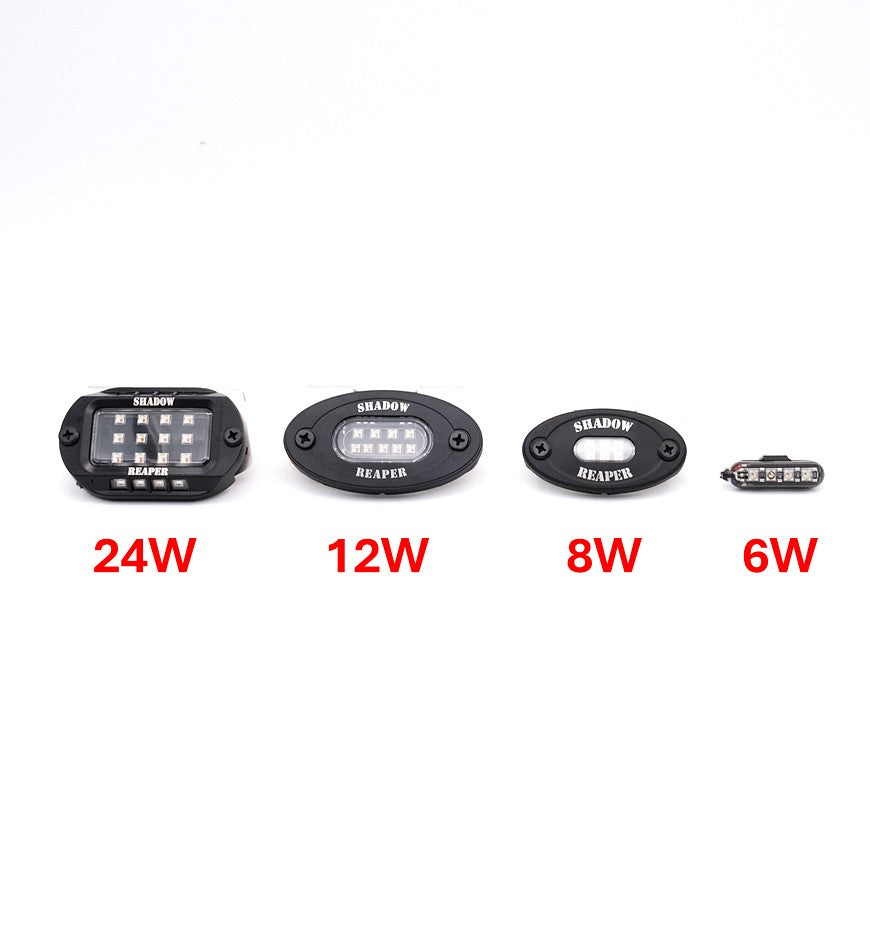

• Manufacturer publishes 4 / 6 / 8 / 12 watts per color per pod depending on product configuration
• Manufacturer publishes 12 / 16 / 24 / 36 emitters per pod depending on product configuration
• IP68 lights
• Ultra-thin side-wire design

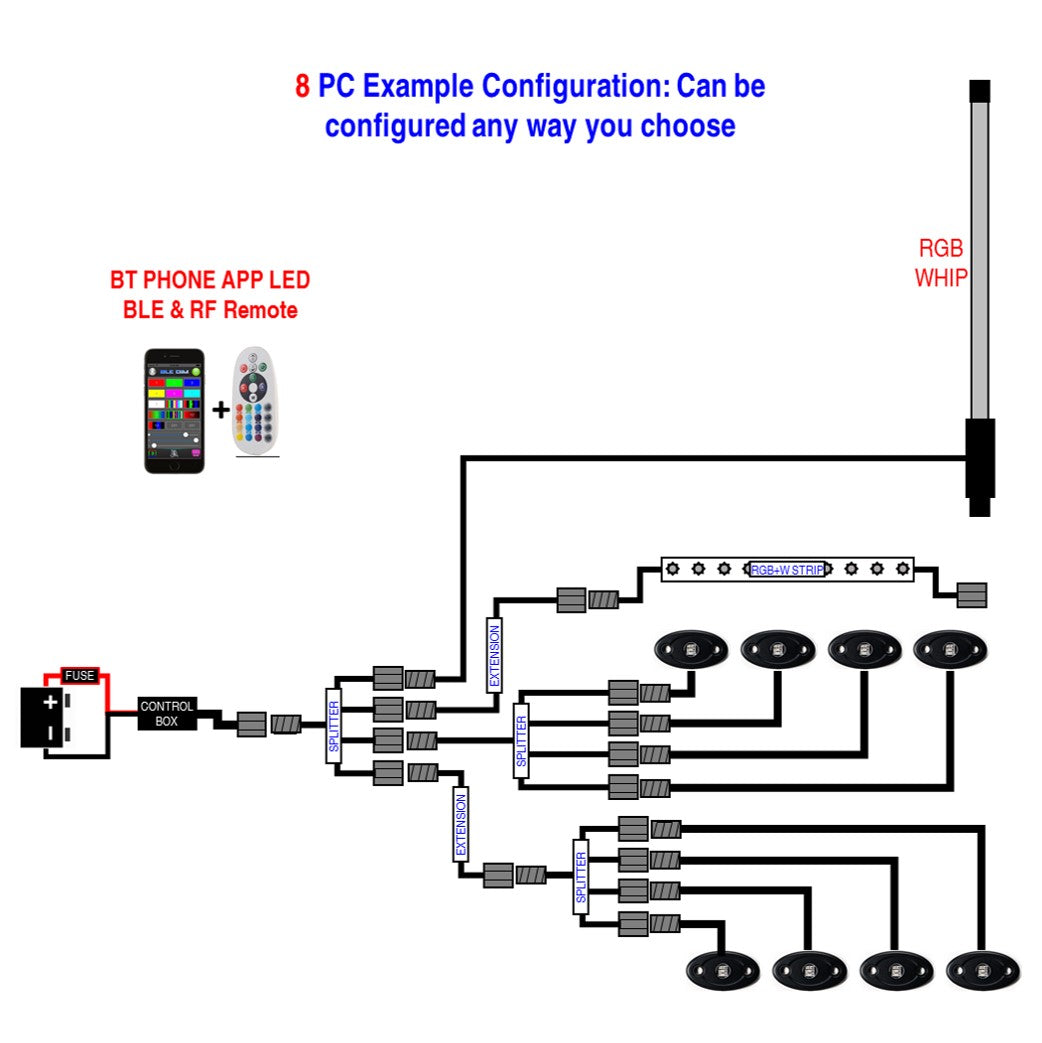

• Fully modular add-on components
• Internally sealed controller
• Watertight screw connectors
• Plug-and-play HD strip add-ons
• 12-foot lead on each pod; 5-foot extensions available for pods with no lead
RGB+W CONTROLLER & OVERRIDES
• Bluetooth control through the BLEDIM app
• Connect through BLEDIM, not through the phone’s Bluetooth settings
• App controls colors, patterns and on/off; Infinite says the controller retains the last-used setting after power is cycled
• Blue wire: brake/red override; can force red even when the lights are otherwise off
• White wire: courtesy-white override; can force white from a switch or courtesy-light circuit
• RF remote pair/lock: hold the green power button, remove the controller fuse for 5 seconds, reinstall it, then keep holding the button for 3 seconds
Pick RGB+W when you want the LUX magnetic mounting platform but still want color changing, patterns and a dedicated white function. The point of LUX is the magnetic pod platform and easier access for service; it is not just another wattage option on the standard rock-light page.
Four pods are the clean starting point when you have four main mounting areas. If you want the rocker and center sections filled too, go up in count instead of spacing four lights too far apart.
SMS TAKE
Choose the LUX version because the mounting approach fits the install, then choose pod count around the actual vehicle. We would rather use the right number of magnetic pods in useful locations than sell a larger kit and scatter lights where they do not help.
SELECTED CONFIGURATION
• 4-piece kit
• RGB+W
• 6W LUX Monster Magnetic pods
MANUFACTURER SPECS
• 6W LUX Monster Magnetic platform
• 25-year manufacturer warranty covering any issue, including accidental damage
• Backup RF remote; no line of sight required
• Manufacturer claims a 3x brighter and wider pattern versus competing systems
• Manufacturer publishes 4 / 6 / 8 / 12 watts per color per pod depending on product configuration
• Manufacturer publishes 12 / 16 / 24 / 36 emitters per pod depending on product configuration
• IP68 lights
• Ultra-thin side-wire design
• Fully modular add-on components
• Internally sealed controller
• Watertight screw connectors
• Plug-and-play HD strip add-ons
• 12-foot lead on each pod; 5-foot extensions available for pods with no lead
RGB+W CONTROLLER & OVERRIDES
• Bluetooth control through the BLEDIM app
• Connect through BLEDIM, not through the phone’s Bluetooth settings
• App controls colors, patterns and on/off; Infinite says the controller retains the last-used setting after power is cycled
• Blue wire: brake/red override; can force red even when the lights are otherwise off
• White wire: courtesy-white override; can force white from a switch or courtesy-light circuit
• RF remote pair/lock: hold the green power button, remove the controller fuse for 5 seconds, reinstall it, then keep holding the button for 3 seconds
VEHICLE / ENVIRONMENT FIT
Where this fits in the build
Vehicle-specific and open-air equipment should be chosen around fitment, environment, placement and the output needed where the system will actually be used.
Plan aroundConfirm vehicle and mounting location.
Match itMatch environmental suitability and efficiency to the installation location.
Finish itPlan amplifier power, wiring and electrical support with the complete system.
