RADIO / OEM FUNCTION FIT
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Plan aroundConfirm dash fitment and the factory features that must remain.
Match itMatch the radio to phone, camera, audio and interface requirements.
Finish itUse the correct vehicle interface instead of sacrificing OEM functions unnecessarily.
Description
CAR1013 — 10.1-Inch Wireless CarPlay / Android Auto Multimedia Receiver
CAR1013 is the Jensen choice when screen size is the priority and the dash can physically support a 10.1-inch adjustable display without blocking vents, climate controls, switches or shifter travel. It gives the same basic phone-integration architecture as CAR813, but the larger panel makes maps and front/rear camera views easier to see.
Choose the 10.1 only after checking the actual dash. Wireless and wired Apple CarPlay/Android Auto, two rear USB inputs, Bluetooth and three front/rear/sub preamp pairs make it a practical source for a basic amplified system, but it is not a DSP and vehicle-specific retention hardware may still be required.
MANUFACTURER SPECIFICATIONS
• Display: 10.1-in capacitive touchscreen, 1024 × 600

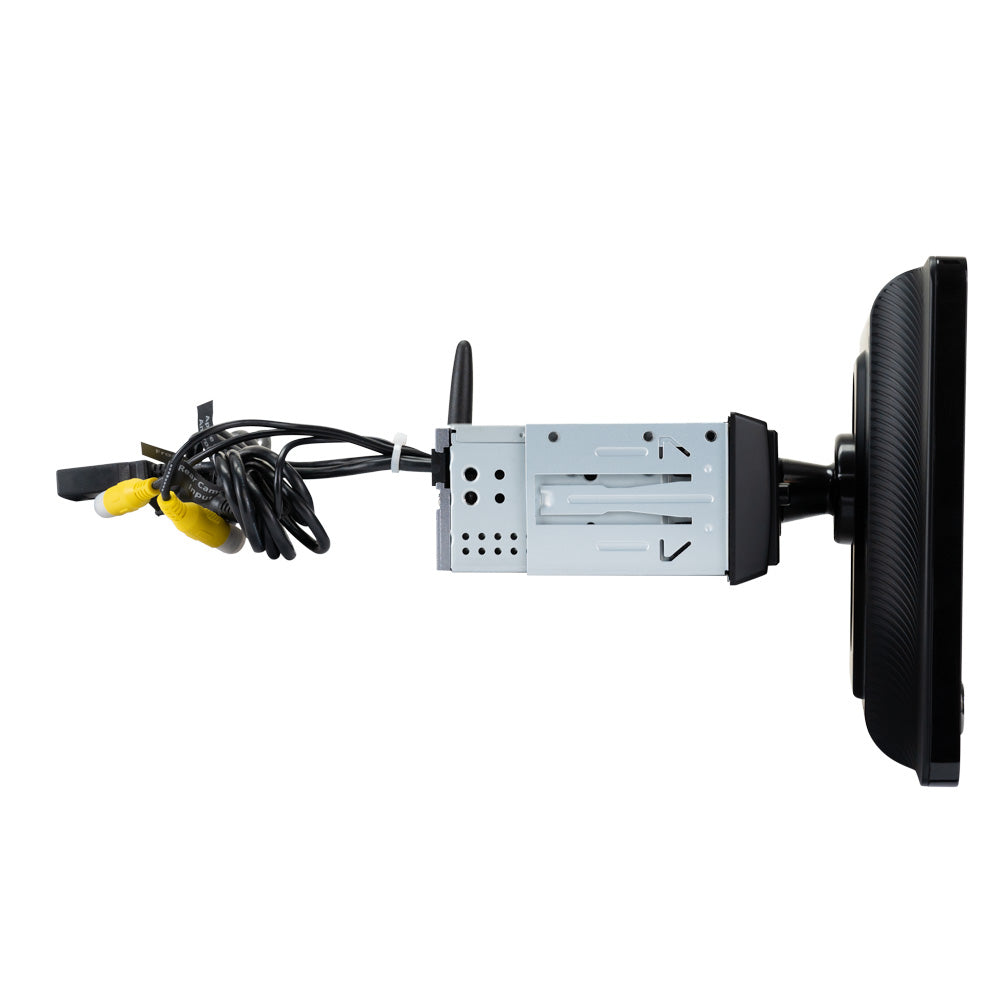

• Screen adjustment: Height, tilt and pivot
• Apple CarPlay: Wireless and wired
• Android Auto: Wireless and wired

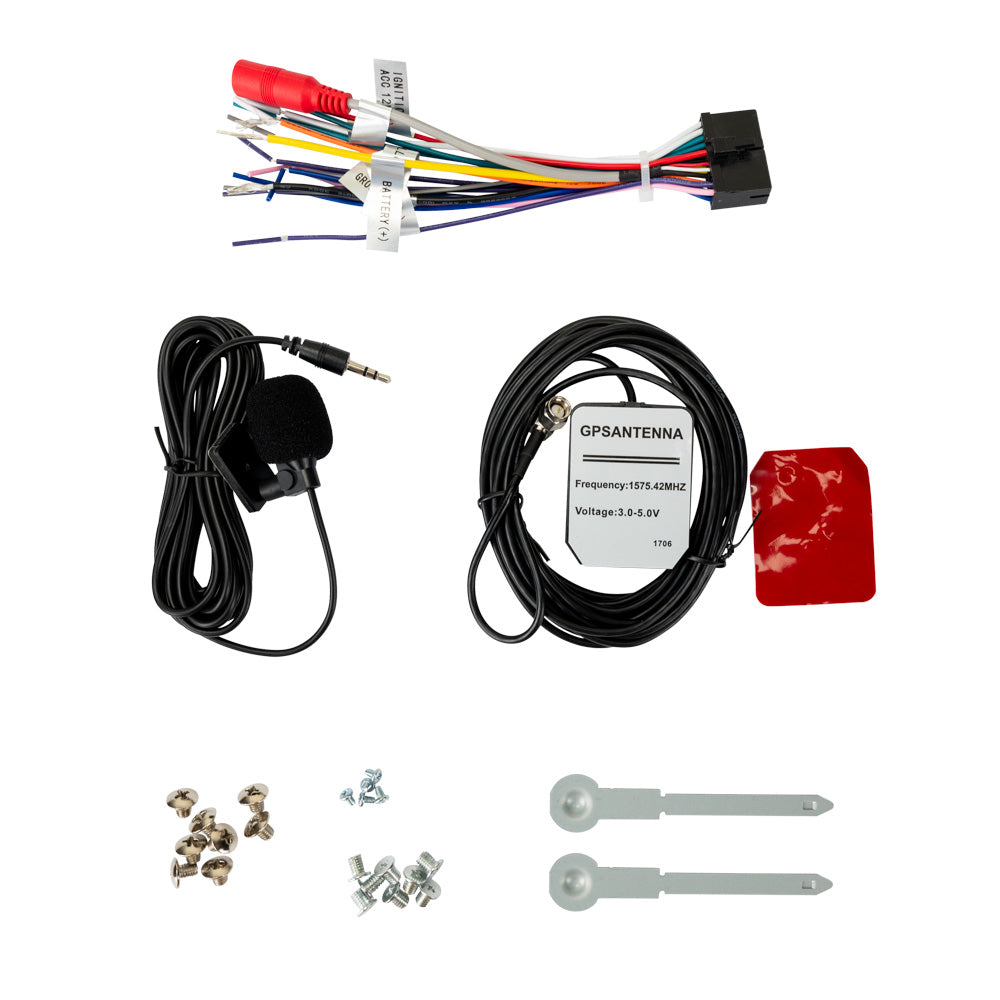

• Bluetooth: Hands-free calling / audio streaming; external microphone included
• USB: 2 rear inputs, 2.1A charging
• Camera inputs: Front and rear
• Preamp outputs: 3 pairs — front, rear and subwoofer
• Audio control: 10-band EQ, 7 preset curves, source-level control, subwoofer level/crossover
• Subwoofer crossover: Off / 50 / 80 / 120 / 160 Hz
• Peak internal amplifier rating: 60W ×4 / 240W peak
• CEA-2006 continuous output: 16W RMS ×4 at 4Ω, <1% THD+N
• Mounting: Compatible 1-DIN or 2-DIN applications with supplied/appropriate mounting hardware
• Chassis depth: 4.5 in
• Warranty: Jensen lists 4-year limited warranty when registered within 60 days
