Jensen CAR1013 10.1-Inch Wireless CarPlay & Android Auto Receiver — Used Shop Display

Jensen CAR1013 10.1-Inch Wireless CarPlay & Android Auto Receiver — Used Shop Display

USED SHOP DISPLAY — This listing is for one Jensen CAR1013 receiver from our shop display.

Want a larger view of navigation, music and camera video without building a custom tablet-style dash? The CAR1013 pairs a 10.1-inch floating touchscreen with wireless or wired Apple CarPlay and Android Auto. It makes sense when the vehicle has room around the radio opening for the larger panel and you want phone integration, camera inputs and amplifier connections in one receiver.

The value here is the used shop-display unit. The features below describe the Jensen CAR1013 model. Photos are manufacturer reference images, not photos of this specific used unit. They do not document its cosmetic condition or included accessories. Contact SMS Car Audio before ordering for current unit photos, included harnesses, microphone and mounting hardware, and any applicable warranty details.

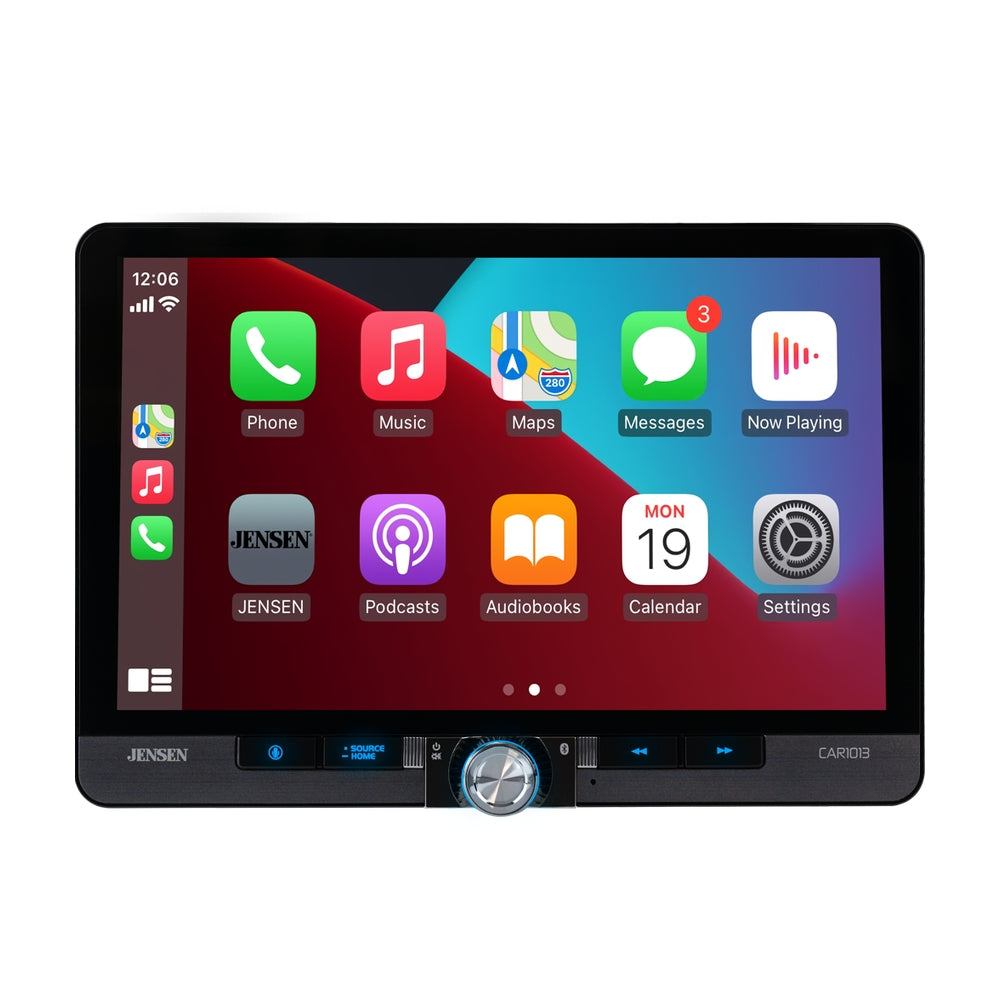

Wireless CarPlay and Android Auto

Connect a compatible iPhone or Android phone wirelessly or through USB for supported navigation, calls, messages and music apps. Bluetooth also supports hands-free calling and audio streaming. Navigation comes from the compatible phone and its apps. The CAR1013 uses an external-microphone connection for calls; confirm the microphone supplied with this display unit before installation.

A Large Screen Still Needs the Right Fit

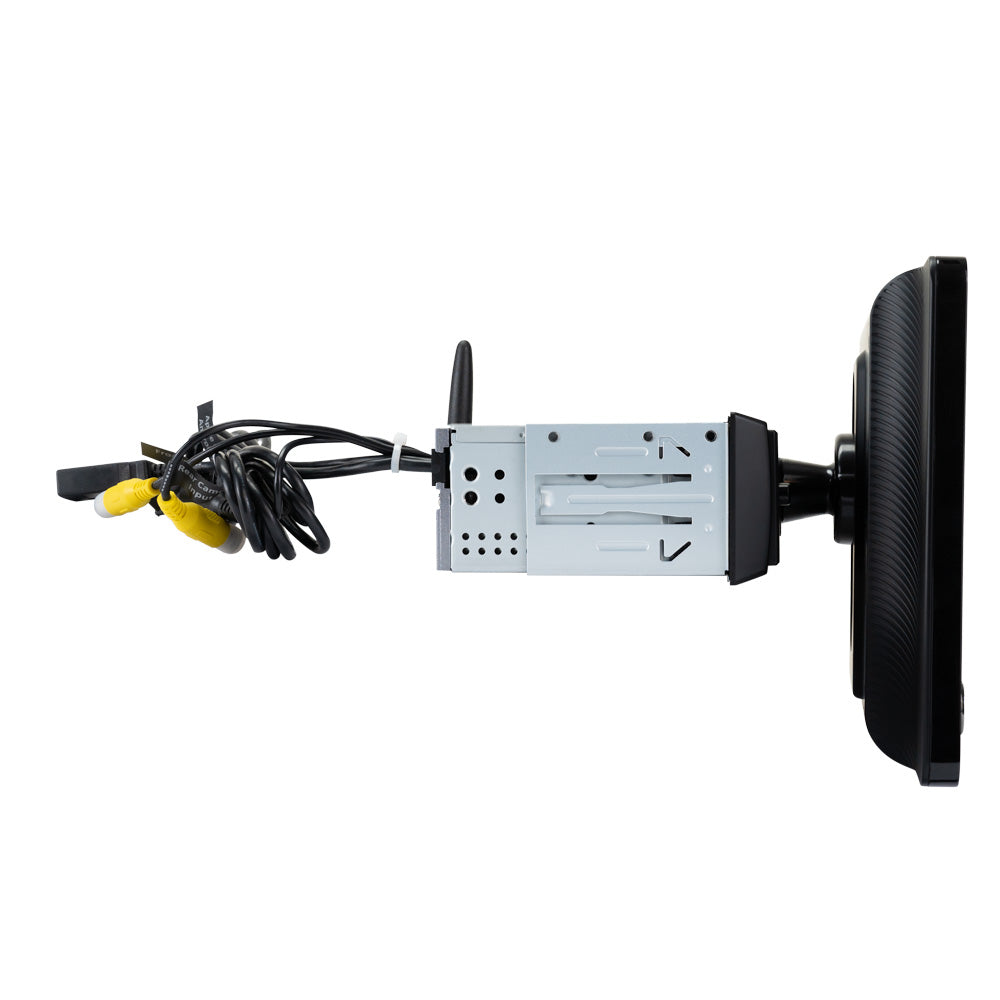

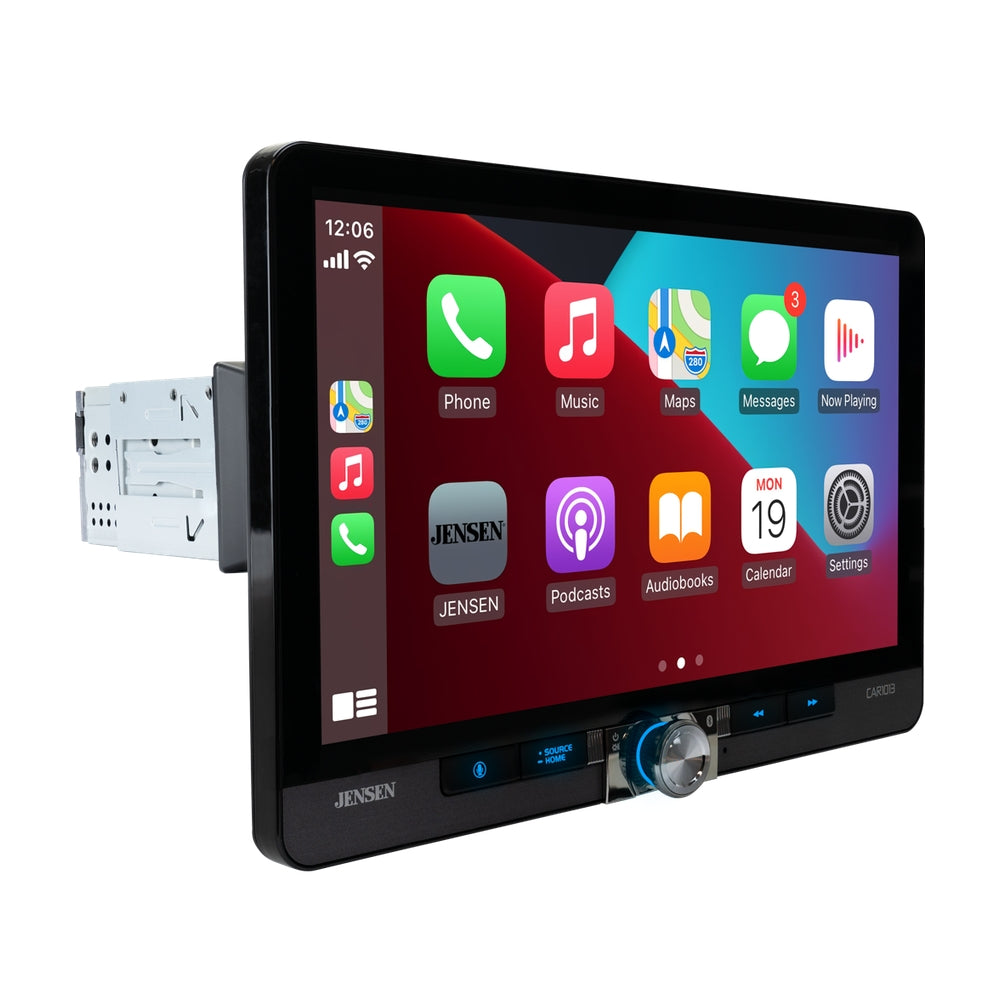

The 10.1-inch capacitive display adjusts for height, tilt and pivot. The receiver uses a single-DIN chassis and supports compatible double-DIN installations with the appropriate mounting adapter and dash hardware. Check the screen against vents, climate controls, switches and the shifter path before choosing it. The printable Jensen fitting guide below is a useful starting point.

Vehicle-specific dash kits, wiring interfaces, antenna adapters, steering-wheel-control adapters, factory-amplifier interfaces and camera-retention parts may be required. The receiver's screen adjustment does not replace a proper fitment check.

Camera Inputs and System Expansion

Dedicated front and rear camera inputs make this a useful upgrade for trucks, SUVs and daily drivers. A rear AV input supports an additional compatible source. Cameras and vehicle-integration components are separate equipment.

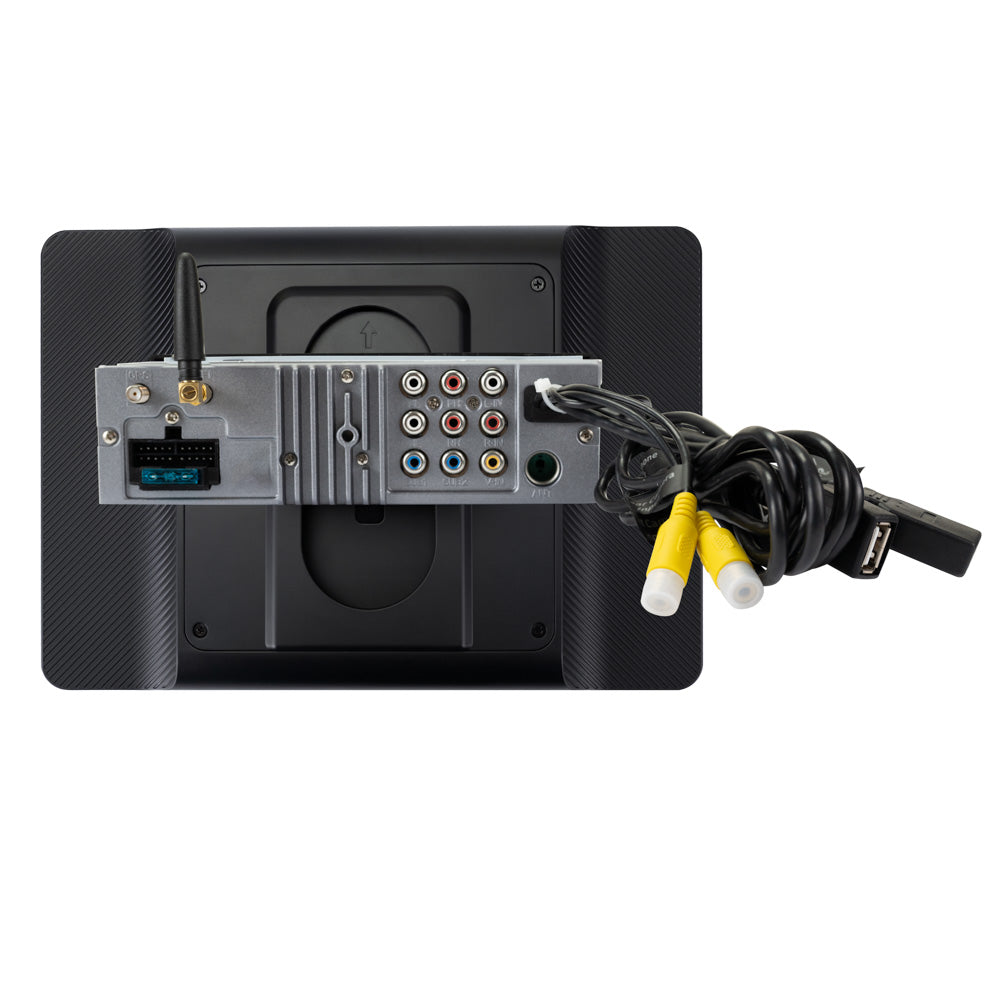

Three pairs of RCA preamp outputs provide front, rear and subwoofer connections for external amplifiers. The 10-band EQ, seven preset EQ curves, source-level adjustment and subwoofer controls cover the basics for setting up the system. The selectable subwoofer low-pass filter offers Off, 50, 80, 120 or 160 Hz settings.

Jensen lists 60 watts × 4 peak output, or 240 watts peak total. The owner's manual lists 16 watts RMS × 4 at 4 ohms and less than 1% THD+N. Use the RMS specification when planning speaker power; peak output is not a continuous-power rating.

Manufacturer Specifications

• Brand / model: Jensen CAR1013
• Condition of this listing: Used shop display
• Receiver type: Digital multimedia receiver; no CD/DVD mechanism
• Display: 10.1-inch capacitive touchscreen, 1024 × 600 resolution
• Display adjustment: Height, tilt and pivot
• Apple CarPlay: Wireless and wired with a compatible iPhone
• Android Auto: Wireless and wired with a compatible Android phone
• Bluetooth: Hands-free calling and audio streaming
• Voice control: Push-to-talk access to a compatible phone's voice assistant
• USB: Two rear USB inputs; up to 2.1A charging
• USB audio playback: MP3 and FLAC
• Radio: AM/FM with 30 presets
• Camera inputs: Front and rear
• Additional input: Rear AV input
• Preamp outputs: Three pairs of RCA outputs for front, rear and subwoofer
• Audio controls: 10-band EQ, seven preset curves and source-level volume control
• Subwoofer control: Level adjustment and selectable Off/50/80/120/160 Hz low-pass crossover
• Peak amplifier output: 60W × 4 / 240W total
• Manual CEA-2006 power specification: 16W RMS × 4 at 4 ohms, less than 1% THD+N
• Steering-wheel controls: Supported with an appropriate vehicle-specific adapter
• Illumination / background: Six preset colors and three selectable wallpapers
• Vehicle electrical system: 12V DC, negative ground

Manuals and Fitment Files

• Jensen CAR1013 owner's manual (PDF)
• Jensen CAR1013 quick-start guide (PDF)
• Jensen 10.1-inch printable screen fitting guide (PDF)

Send SMS Car Audio your vehicle's year, make, model and factory audio setup before ordering if you want help checking the radio, screen clearance and required integration parts.
