RADIO / OEM FUNCTION FIT
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
Plan aroundConfirm dash fitment and the factory features that must remain.
Match itMatch the radio to phone, camera, audio and interface requirements.
Finish itUse the correct vehicle interface instead of sacrificing OEM functions unnecessarily.
Description

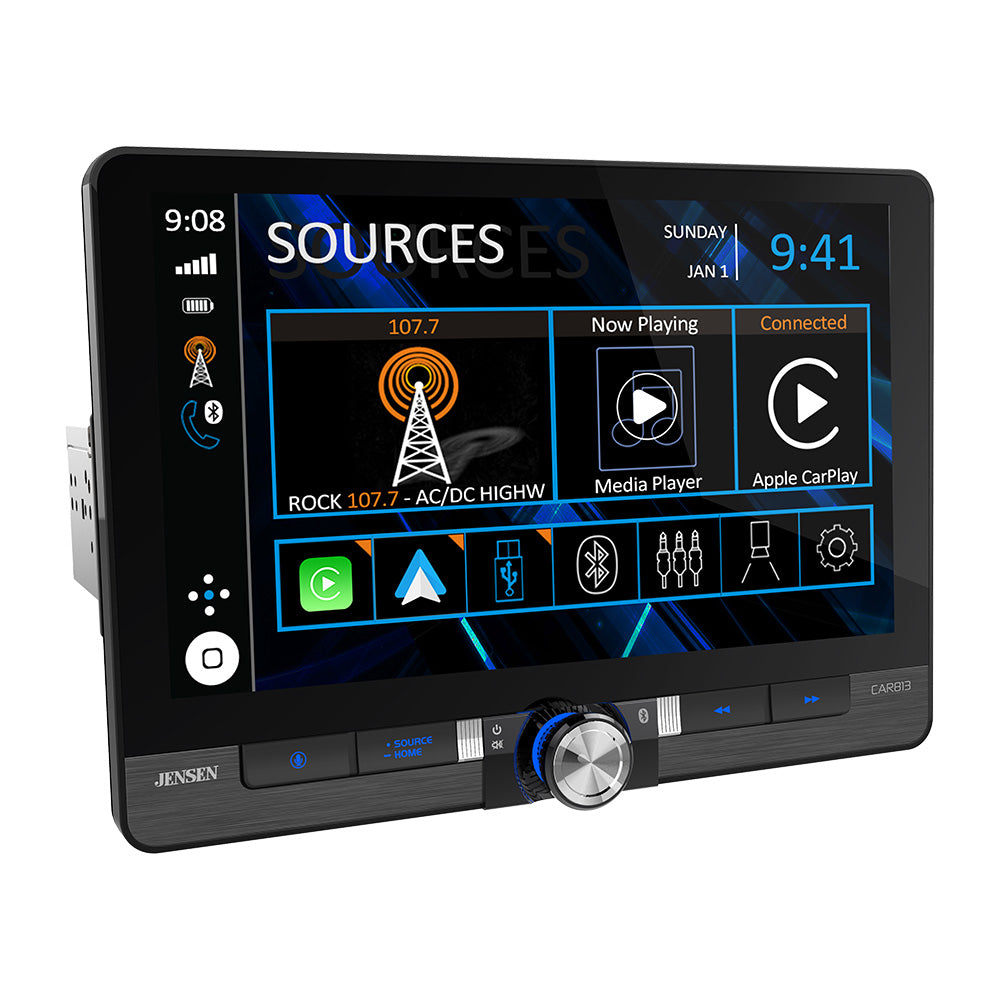

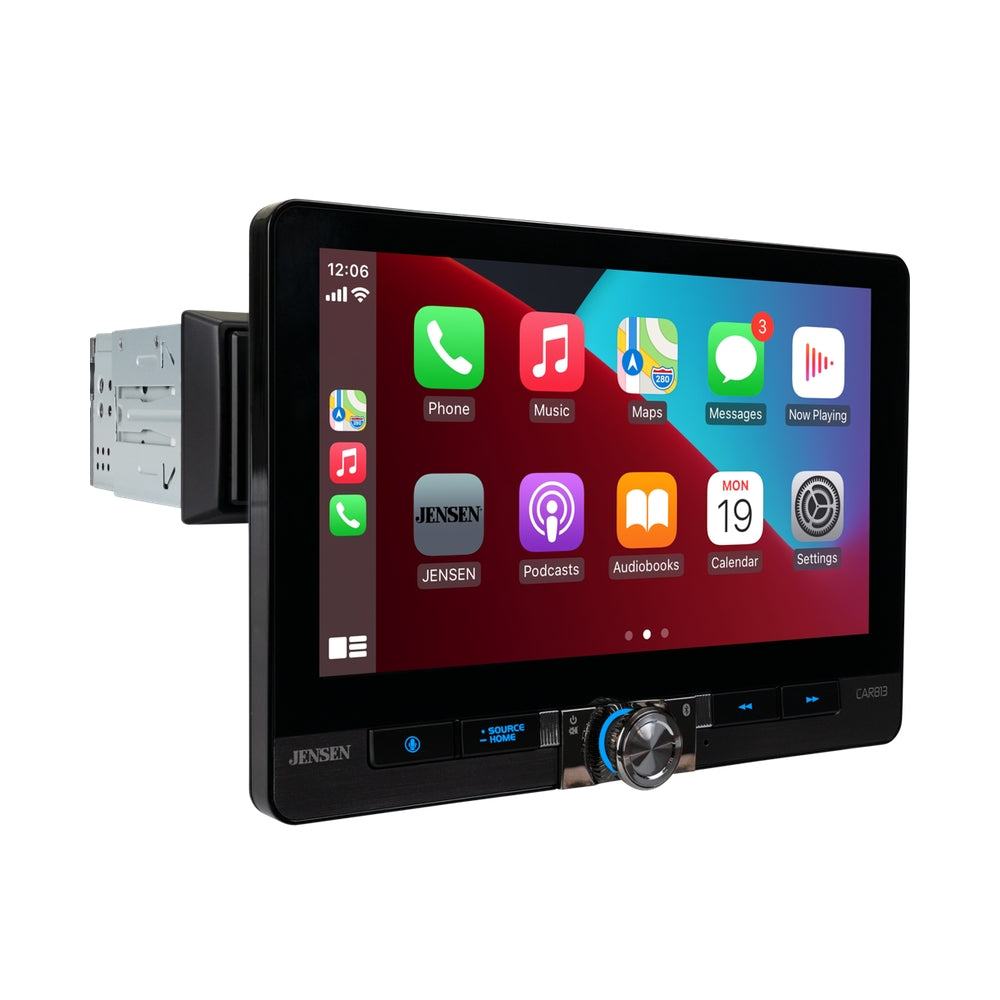

CAR813 — 8-Inch Wireless CarPlay / Android Auto Multimedia Receiver
CAR813 is the practical Jensen floating-screen choice when the customer wants modern phone integration but a 10.1-inch panel would crowd the dash. The 8-inch adjustable display gives up screen area versus CAR1013 but is easier to package around factory vents, HVAC controls and shifter movement.
Choose CAR813 when clean physical fit matters more than maximum display size. Wireless/wired Apple CarPlay and Android Auto, front/rear camera inputs, Bluetooth and three front/rear/sub preamp pairs make it a useful replacement-radio source, while complex factory amplified systems may still require a dedicated integration interface.
MANUFACTURER SPECIFICATIONS

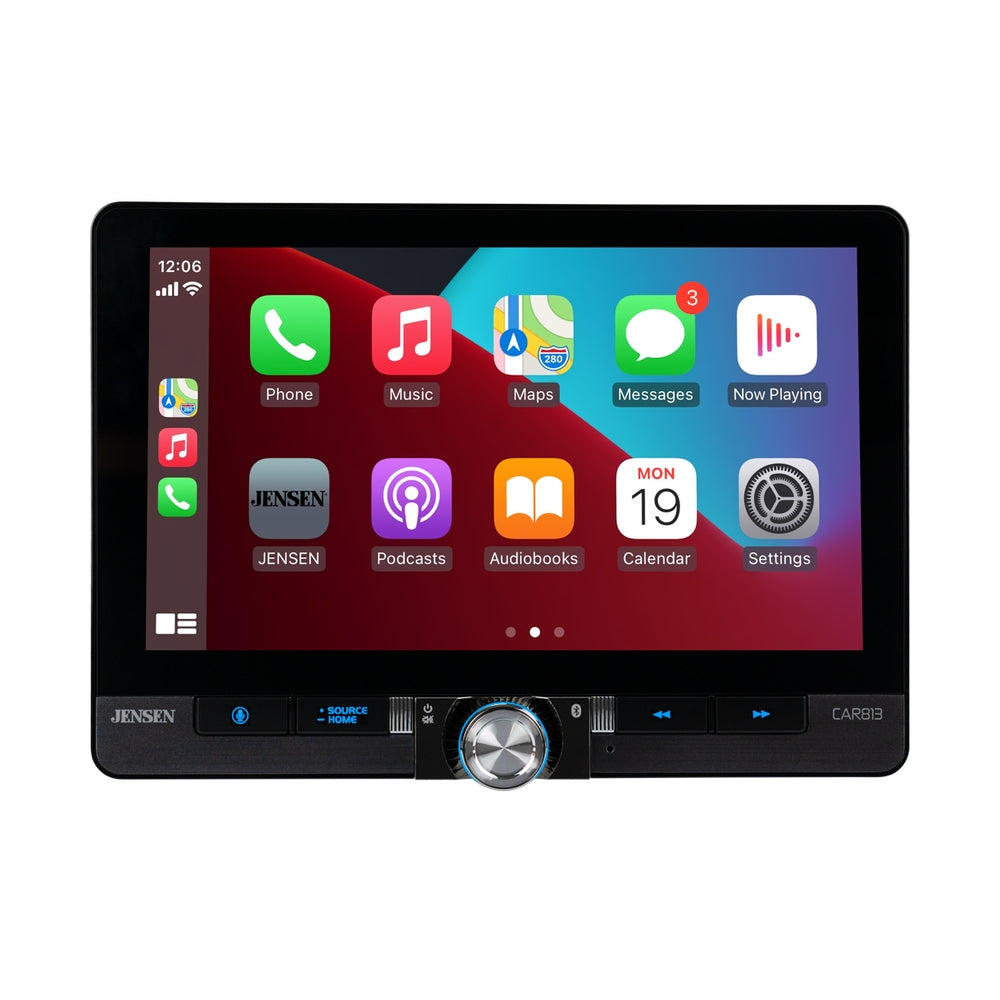

• Display: 8-in touchscreen, 1024 × 600
• Screen adjustment: Height, tilt and pivot
• Apple CarPlay: Wireless and wired
• Android Auto: Wireless and wired

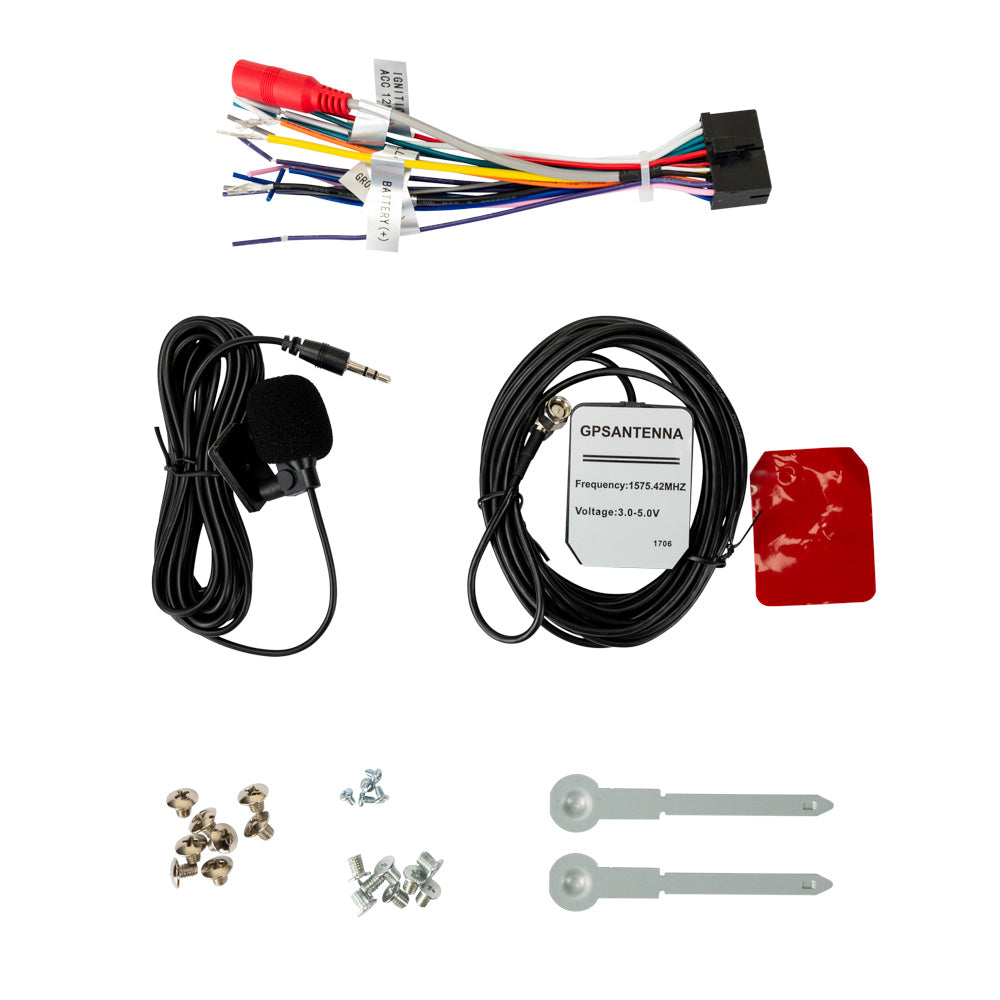

• Bluetooth: Hands-free calling / streaming; external microphone included
• USB: 2 rear inputs, 2.1A charging
• Camera inputs: Front and rear

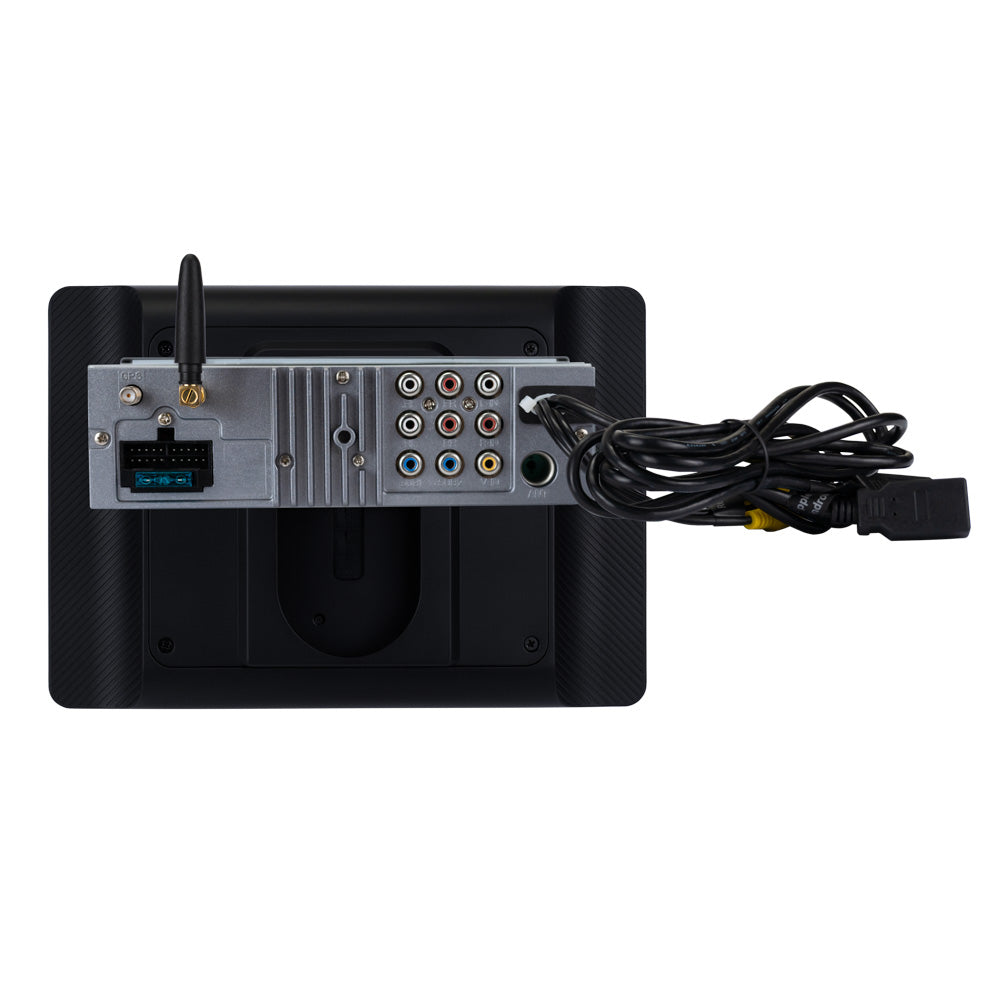

• Preamp outputs: 3 pairs — front, rear and subwoofer
• Audio control: 10-band EQ, 7 preset curves, source-level control, subwoofer gain/crossover
• Subwoofer crossover: Off / 50 / 80 / 120 / 160 Hz
• Peak internal amplifier rating: 60W ×4 / 240W peak
• CEA-2006 manual output: 16W RMS ×4 at 4Ω, ≤1% THD+N

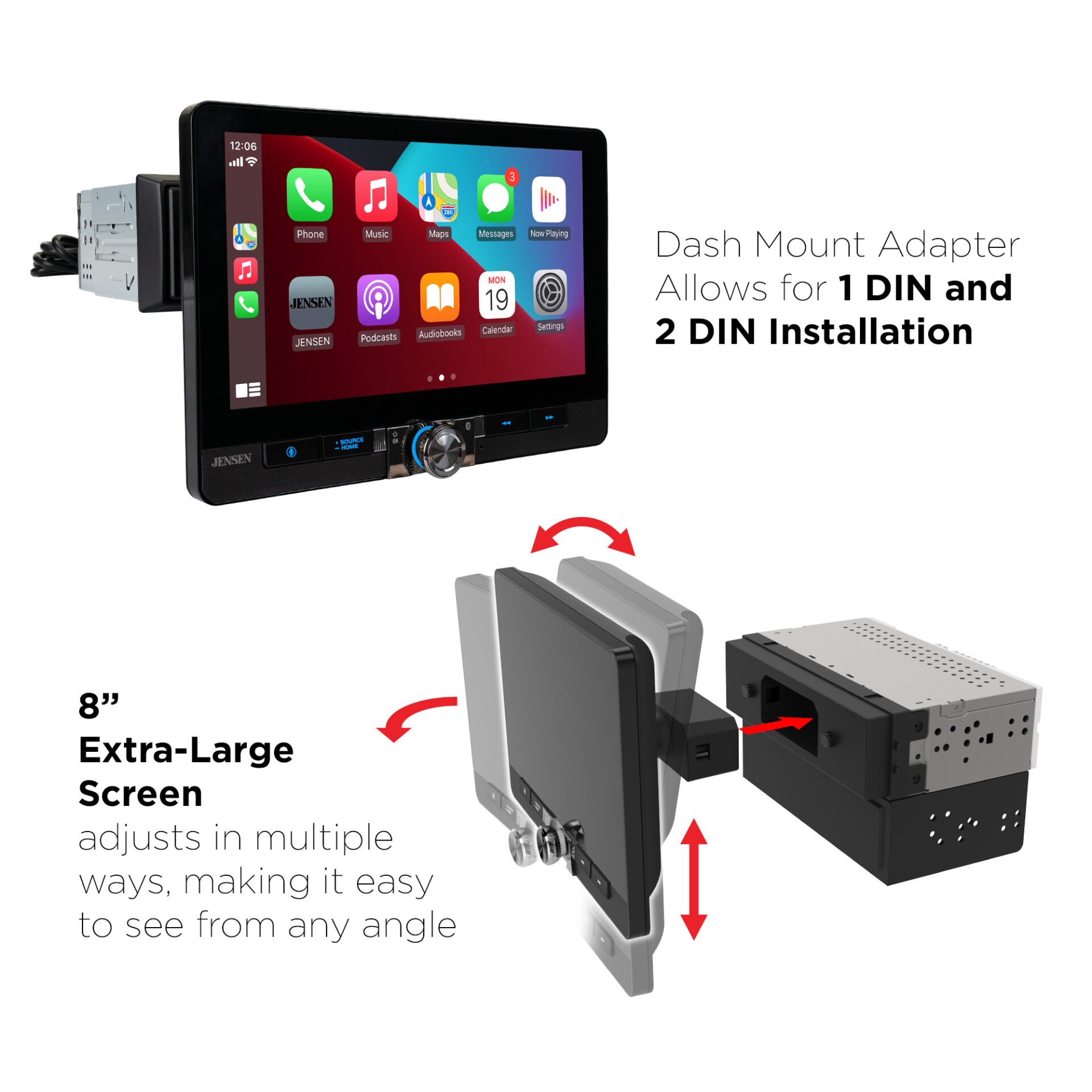

• Mounting: Compatible 1-DIN or 2-DIN applications
• Chassis depth: 4.5 in
CAR813 is the practical Jensen floating-screen choice when the customer wants modern phone integration but a 10.1-inch panel would crowd the dash. The 8-inch adjustable display gives up screen area versus CAR1013 but is easier to package around factory vents, HVAC controls and shifter movement.
Choose CAR813 when clean physical fit matters more than maximum display size. Wireless/wired Apple CarPlay and Android Auto, front/rear camera inputs, Bluetooth and three front/rear/sub preamp pairs make it a useful replacement-radio source, while complex factory amplified systems may still require a dedicated integration interface.
