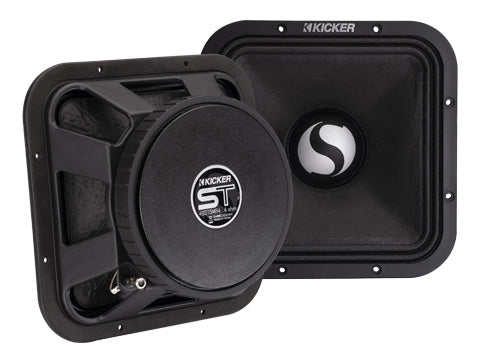

KICKER ST9MR 9-inch square PA midrange speakers pair

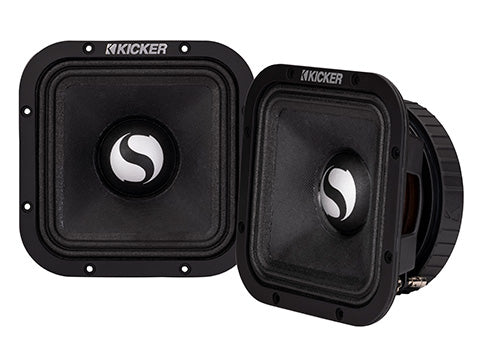

KICKER ST7MR 7-inch square PA midrange speakers pair
Hover over the image to zoom Tap the image to zoom
KICKER ST9MR 9-inch square PA midrange speakers pairKICKER ST7MR 7-inch square PA midrange speakers pair

KICKER ST-Series Square PA Midrange Speakers — 7 & 9-Inch

KickerSKU: 49ST9MR4
Authorized Dealer In-Store Only
Exact speaker dimensions — KICKER ST9MR4
Overall frame (W × H)9 × 9 in (229 × 229 mm)
Baffle cutout (rounded-square W × H)7-13/16 × 7-13/16 in (199 × 199 mm)
Mounting depth3-9/16 in (91 mm)
Cutout is the rounded-square opening the speaker needs. Overall frame is the full outside width and height. They are different measurements.Cutout corners are R1-1/8 in (29 mm). The 4-ohm and 8-ohm ST9 versions use the same physical fit. SMS matches impedance to the amplifier and complete system.

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details

Description

Choose ST9MR4 when the build can fit the larger 9-inch square PA midrange and the amplifier/speaker count calls for a 4-ohm driver. The 9-inch is the bigger-output/greater-cone-area choice over ST7 when space allows. The 4-ohm and 8-ohm versions are wiring/load options—not sound-quality grades—so select impedance around the total number of speakers and the amplifier's safe final load.
SPEAKER SYSTEM FIT

Where this fits in the build

Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.

Authorized Dealer — In-Store Purchase
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
