Where this fits in the build
Vehicle-specific and open-air equipment should be chosen around fitment, environment, placement and the output needed where the system will actually be used.
Description

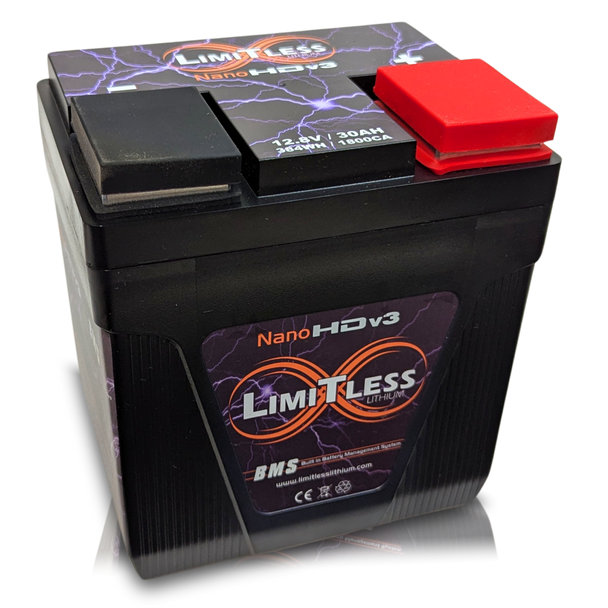

If a motorcycle or powersports audio system is running out of electrical reserve, the answer is not automatically to squeeze a full-size automotive battery into the build. The Limitless Lithium Nano-HDv3 is a compact 30Ah battery built specifically for motorcycle and powersports applications where cranking ability, audio reserve and packaging all matter.
Limitless positions the Nano-HDv3 for motorcycle and powersports applications. The charging architecture and voltage still need to be confirmed for the exact application before installation.
30Ah in a Compact Powersports Package
Limitless publishes 30Ah capacity, 1,800 cranking amps and 1,350 cold-cranking amps for the Nano-HDv3. The battery measures roughly 6.46 inches wide, 6.89 inches deep and 5.04 inches tall at about 10.36 pounds, so it gives a motorcycle or powersports build substantial electrical capability without the footprint of a conventional automotive battery.
That compact size is especially useful on audio-equipped motorcycles where saddlebags and fairings are already being shared by amplifiers, speakers, wiring and other hardware. The battery still needs a mechanically secure mounting location with protected terminals and properly supported cable.
Audio Support Depends on the Charging System
The useful current figures are the battery's published 400-amp output for 30 seconds and 800-amp burst output for 10 seconds, measured from a 14.8-volt starting point. Those numbers help explain why the Nano can support short high-current audio demand, but the battery still has to be recharged correctly between those demands.
Music duty cycle, amplifier efficiency, voltage, impedance and the charging system all change how much current the system actually uses. Battery capacity, charging capability and the rest of the electrical system still have to be planned together.
14.8V Maximum Charge Voltage and BMS Protection
Limitless publishes a 13.1–13.4V resting range and a 14.8V maximum charging voltage. Charging strategy matters. This is not a battery we pair with any charger or charging source just because the connector fits.
The Nano-HDv3 includes an internal battery management system. Limitless states that the BMS is designed to disconnect the battery if voltage rises above 15.3V or falls below 10V. That protection helps protect the cells, but it is not a substitute for correct system design. A charging source that repeatedly pushes the battery outside its intended range is still the wrong match.
Built-In Distribution Block
The V3 battery adds a built-in distribution block, which is useful on a motorcycle where connection space is limited and several system feeds may need to leave the battery area cleanly. It can simplify the physical layout, but main-circuit fuse protection, cable sizing and grounding still have to be designed around the actual current load.
When We Would Choose It
The Nano-HDv3 makes sense when the build is a compatible motorcycle or powersports application, space is limited, and the audio/electrical load justifies more reserve than the stock battery can provide. Charging voltage, current path, mounting and the rest of the electrical system still need to match the battery before installation.
Manufacturer Specifications
- Brand: Limitless Lithium
- Model: Nano-HDv3
- Application: Motorcycle and powersports
- Capacity: 30Ah
- Resting voltage: 13.1–13.4V
- Maximum charge voltage: 14.8V
- Cranking amps: 1,800A
- Cold-cranking amps: 1,350A
- Published 30-second output: 400A, starting at 14.8V
- Published 10-second burst output: 800A, starting at 14.8V
- Battery management: Built-in BMS
- BMS voltage protection: Designed to disconnect above 15.3V or below 10V
- Distribution: Built-in distribution block
- Dimensions: Approximately 6.46 W x 6.89 D x 5.04 H in
- Weight: Approximately 10.36 lb
- BCI group: Group 30
- Warranty: 1 year standard; Limitless lists a 2-year extension when registered within the required registration period
