PAC AP4-FD21 AmpPRO 4 amplifier integration interface for Ford Sony and B&O amplified systems
Hover over the image to zoom Tap the image to zoom
PAC AP4-FD21 AmpPRO 4 amplifier integration interface for Ford Sony and B&O amplified systems

PAC AmpPRO 4 — Ford Sony / B&O Amplifier Integration — AP4-FD21

PACSKU: AP4-FD21
Authorized Dealer In-Store Only
Collections:Car Audio DSP, OEM Integration & Signal ControlFord Truck & Bronco Audio, Enclosures & FitmentPAC OEM Integration, AmpPRO & LocPROShop Audio & Fitment by VehicleShop Current Car Audio & Build Gear

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details
DSP · OEM INTEGRATION

Where this fits in the build

This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.

Plan aroundVerify the source signal and vehicle architecture first.
Match itPlan inputs, outputs, summing, routing and gain structure as one signal path.
Finish itTune after installation, polarity, crossover capability and levels are correct.
DSP & OEM Integration Ask SMS About This Product

Description

PAC AP4-FD21 AmpPRO 4 Ford Sony / B&O Amplifier Integration

FD21 is for the Ford systems that sit between the older Sony architecture and the newer A2B B&O platforms. The factory radio stays, but we stop building the upgrade after the factory amplifier has already shaped the signal.

AP4-FD21 provides front, rear and non-fading/subwoofer preamp outputs for the aftermarket DSP or amplifiers while retaining the supported factory controls and vehicle audio functions. The new system gets a clean signal foundation without asking the customer to give up SYNC or the factory interface.

Factory volume, fade, balance, bass, mid and treble remain integrated in supported applications, along with SYNC, Bluetooth audio and warning chimes. That makes FD21 useful when the build is a real front/rear/subwoofer amplifier upgrade rather than a simple bass add-on.

The Factory Amplifier Decides the Fit

PAC validates FD21 on specific Sony and B&O systems. For example, PAC notes that certain 2018–2019 Super Duty trucks can be compatible with either supported Sony or B&O equipment, while 2019+ Mustang applications require the supported B&O system. An amplified but unbadged analog Mustang system is not the same architecture and is not covered just because it has a factory amplifier.

Confirm the actual factory audio package and amplifier instead of ordering from year/model alone. Older Sony systems can belong on FD11, while newer A2B B&O systems move to FD31 or FD32.

Build the Rest of the System From the Right Signal

The 5V RMS analog outputs can feed aftermarket amplifiers directly or go into a DSP for crossover, EQ, time alignment and routing. APH-FD01 can provide the factory speaker-wiring return path on supported applications. If the downstream equipment accepts optical, the optional APA-TOS1 can provide a 48 kHz / 24-bit TOSLINK output.

Manufacturer Specifications

  • Model: AP4-FD21
  • Product type: PAC AmpPRO 4 amplifier integration interface
  • Application: Select Ford vehicles with compatible data-bus-controlled Sony and specified B&O amplified systems
  • Outputs: Front, rear and non-fading/subwoofer preamp outputs
  • Maximum analog output: 5V RMS
  • Factory controls retained: Volume, fade, balance, bass, mid and treble in supported applications
  • Supported factory audio retained: SYNC, Bluetooth audio and warning chimes
  • Sub-level control: Included remote controller
  • Digital option: Optional APA-TOS1 TOSLINK output
  • Speaker wiring option: Optional APH-FD01 where applicable

Included

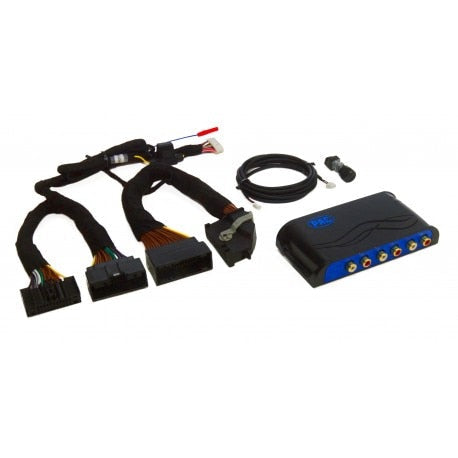

  • AP4-FD21 AmpPRO module
  • 24-pin and 54-pin MS-CAN / dual-MS-CAN vehicle harnessing
  • Bass / sub-level knob and harness
  • Manufacturer documentation

Manufacturer: PAC
