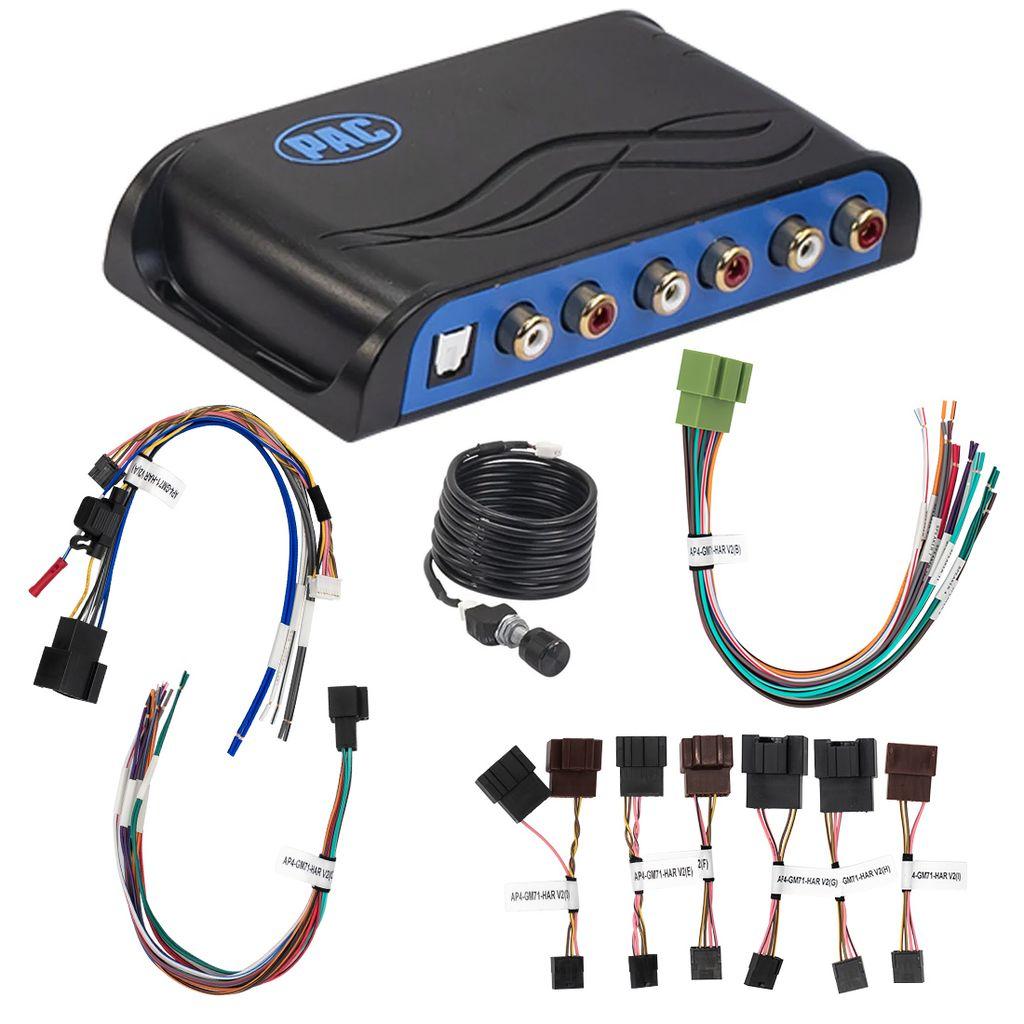

PAC AP4-GM71 AmpPRO 4 amplifier integration interface for 2019 and newer GM Bose systems
Hover over the image to zoom Tap the image to zoom
PAC AP4-GM71 AmpPRO 4 amplifier integration interface for 2019 and newer GM Bose systems

PAC AmpPRO 4 — 2019+ GM Bose Amplifier Integration — AP4-GM71

PACSKU: AP4-GM71
Authorized Dealer In-Store Only
Collections:Car Audio DSP, OEM Integration & Signal ControlChevrolet & GMC Audio, Enclosures & FitmentPAC OEM Integration, AmpPRO & LocPROShop Audio & Fitment by VehicleShop Current Car Audio & Build Gear

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details
DSP · OEM INTEGRATION

Where this fits in the build

This is a system-control or DSP component. The correct choice depends on the signal path, channel count, routing, retained features and the rest of the amplifier and speaker plan.

Plan aroundVerify the source signal and vehicle architecture first.
Match itPlan inputs, outputs, summing, routing and gain structure as one signal path.
Finish itTune after installation, polarity, crossover capability and levels are correct.
DSP & OEM Integration Ask SMS About This Product

Description

PAC AP4-GM71 AmpPRO 4 2019+ GM Bose Ethernet Amplifier Integration

GM moved the newer Bose systems onto an Ethernet-based digital audio network. GM71 is the AmpPRO interface for the supported vehicles where the factory Bose amplifier needs to come out of that network cleanly.

AP4-GM71 extracts the audio from the vehicle’s digital architecture and provides front, rear and non-fading/subwoofer outputs for the aftermarket system while keeping the factory radio and supported vehicle audio functions in place. The new DSP or amplifiers get a usable signal foundation without being stacked behind the factory Bose amplifier.

That is the key distinction from GM61. GM61 works with the older MOST50 Bose architecture and keeps the supported factory amplifier connected for communication. GM71 belongs to the newer Ethernet system, and the factory Bose amplifier cannot remain in the supported installation. PAC includes the amplifier-bypass harness because the new system is replacing that stage.

Analog and Optical Are Both Built In

GM71 provides 5V RMS front, rear and non-fading/subwoofer analog outputs for a conventional amplifier or DSP input. It also includes a variable two-channel TOSLINK optical output. If the processor accepts optical, the digital handoff is already part of the interface rather than something we add with a separate APA-TOS1.

Factory volume, fade, balance, bass, mid and treble remain integrated in supported applications. PAC also retains warning chimes, navigation prompts, Bluetooth audio and telematics audio where equipped, so replacing the factory amplifier does not mean stripping the vehicle of the audio functions tied to the original system.

Fitment Comes From the Network, Not the Bose Badge

A 2019+ Chevrolet, GMC or Cadillac with Bose is not automatically a GM71 vehicle. The exact year, model, infotainment architecture and factory amplifier all have to match PAC’s application data.

PAC also calls out connector selection during installation. The data-wire positions have to match the correct factory connector; using the wrong connector can leave the system with no audio even when the rest of the harness appears to fit.

Manufacturer Specifications

  • Model: AP4-GM71
  • Product type: PAC AmpPRO 4 Ethernet-audio amplifier integration interface
  • Application: Select 2019+ General Motors vehicles with compatible Bose Ethernet audio
  • Signal extraction: Vehicle digital data network
  • Factory amplifier: Cannot be retained in supported GM71 installations
  • Speaker connection: Amplifier-bypass harness included
  • Analog outputs: Front, rear and non-fading/subwoofer preamp outputs
  • Maximum analog output: 5V RMS
  • Digital output: Variable two-channel TOSLINK optical output included
  • Factory controls retained: Volume, fade, balance, bass, mid and treble in supported applications
  • Supported retained audio: Warning chimes, navigation prompts, Bluetooth audio and telematics audio
  • Sub-level control: Included remote controller

Manufacturer: PAC
