PAC AmpPRO SUB — Ford Factory-Amplified Subwoofer Integration — APSUB-FD21

PACSKU: APSUB-FD21
Authorized Dealer In-Store Only
Collections:Car Audio DSP, OEM Integration & Signal ControlFord Truck & Bronco Audio, Enclosures & FitmentPAC OEM Integration, AmpPRO & LocPROShop Audio & Fitment by VehicleShop Current Car Audio & Build Gear

Authorized dealer · In-store only

In-Store Only — We’ll Help You Get the Right One

This product is not available for online purchase or shipping. Call or text us and we’ll make sure you’re getting the right one—whether you’re picking it up over the counter or having SMS install it for you. All purchases are completed in-store at SMS Car Audio.

Call 504-289-8127 Text 504-289-8127 Send Project Details
BASS SYSTEM FIT

Where this fits in the build

The subwoofer is only one part of the bass system. Enclosure volume and alignment, final impedance, amplifier power, vehicle space and electrical support all affect the result.

Plan aroundChoose the bass target and usable space first.
Match itMatch the enclosure to the driver instead of treating the box as an afterthought.
Finish itMatch final load, amplifier and electrical support to the complete bass plan.
Custom Bass & Enclosures Ask SMS About This Product

Description

PAC APSUB-FD21 AmpPRO SUB Ford Factory-Amplified Subwoofer Integration

If the Ford system only falls short in the low end, we do not need to turn a subwoofer upgrade into a full front/rear amplifier replacement.

APSUB-FD21 gives the aftermarket subwoofer amplifier a controlled non-fading low-frequency signal while keeping the supported factory radio and factory-amplified cabin-speaker system in place. That is the clean answer when the customer likes the rest of the system and simply wants more authority below it.

The Factory Audio Package Still Decides Fitment

Many supported applications use Ford’s Sony system, but PAC’s coverage is more specific than the badge suggests. Certain 2018–2019 Super Duty applications can use supported Sony or B&O systems, while supported 2019+ Mustang applications require the compatible B&O system.

An amplified Ford with an unbadged analog amplifier is not automatically an APSUB-FD21 vehicle. Confirm the actual factory amplifier and audio architecture before ordering instead of assuming any powered Ford system belongs on this interface.

Why the SUB Version Makes Sense

APSUB-FD21 provides variable low-frequency output up to 5V RMS and includes the remote level controller for bass adjustment after the system is tuned. PAC also allows supported OE bass center-frequency selection so the new sub stage follows the factory-radio bass behavior more naturally.

The important limitation is also the reason to buy it: the output is subwoofer-only. If the build needs full-range signal for front/rear amplification or DSP, AP4-FD21 is the correct full-system interface instead.

Manufacturer Specifications

  • Model: APSUB-FD21
  • Product type: PAC AmpPRO SUB subwoofer amplifier integration interface
  • Application: Select Ford vehicles with compatible data-bus-controlled factory-amplified audio
  • Purpose: Add an aftermarket subwoofer amplifier while retaining the supported factory radio/audio system
  • Output: Variable non-fading subwoofer preamp output
  • Maximum output: 5V RMS
  • Frequency use: Low-frequency/subwoofer output only; not a full-range AP4 replacement
  • Adjustment: Customizable supported OE bass center-frequency selection
  • Installation: Vehicle-specific plug-and-play connection
  • Sub-level control: Included remote controller

Included

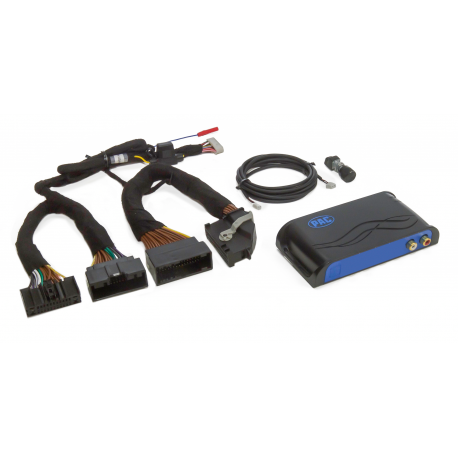

  • APSUB-FD21 interface
  • Vehicle-specific harness
  • Flush-mount sub-level controller
  • Manufacturer documentation

Manufacturer: PAC
