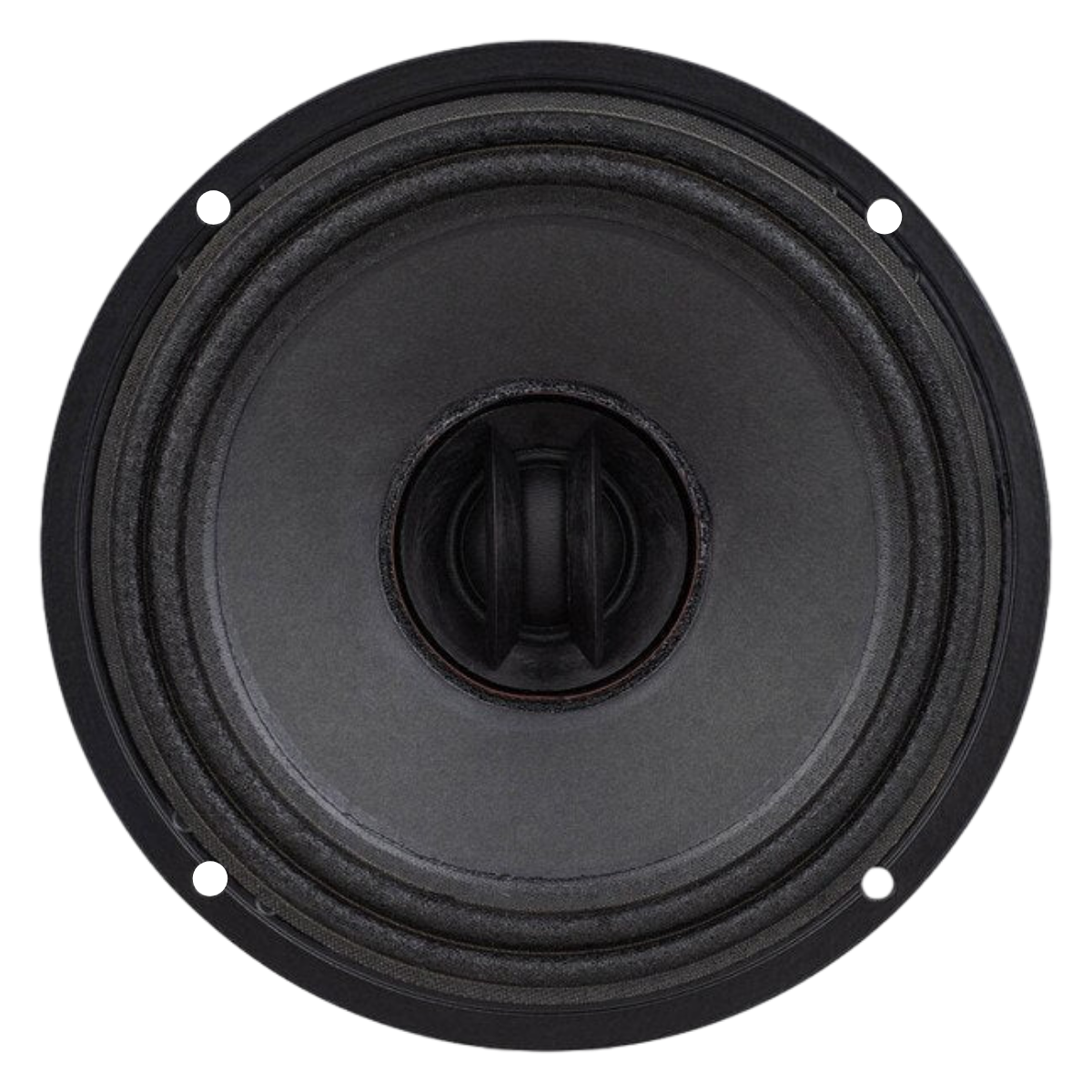

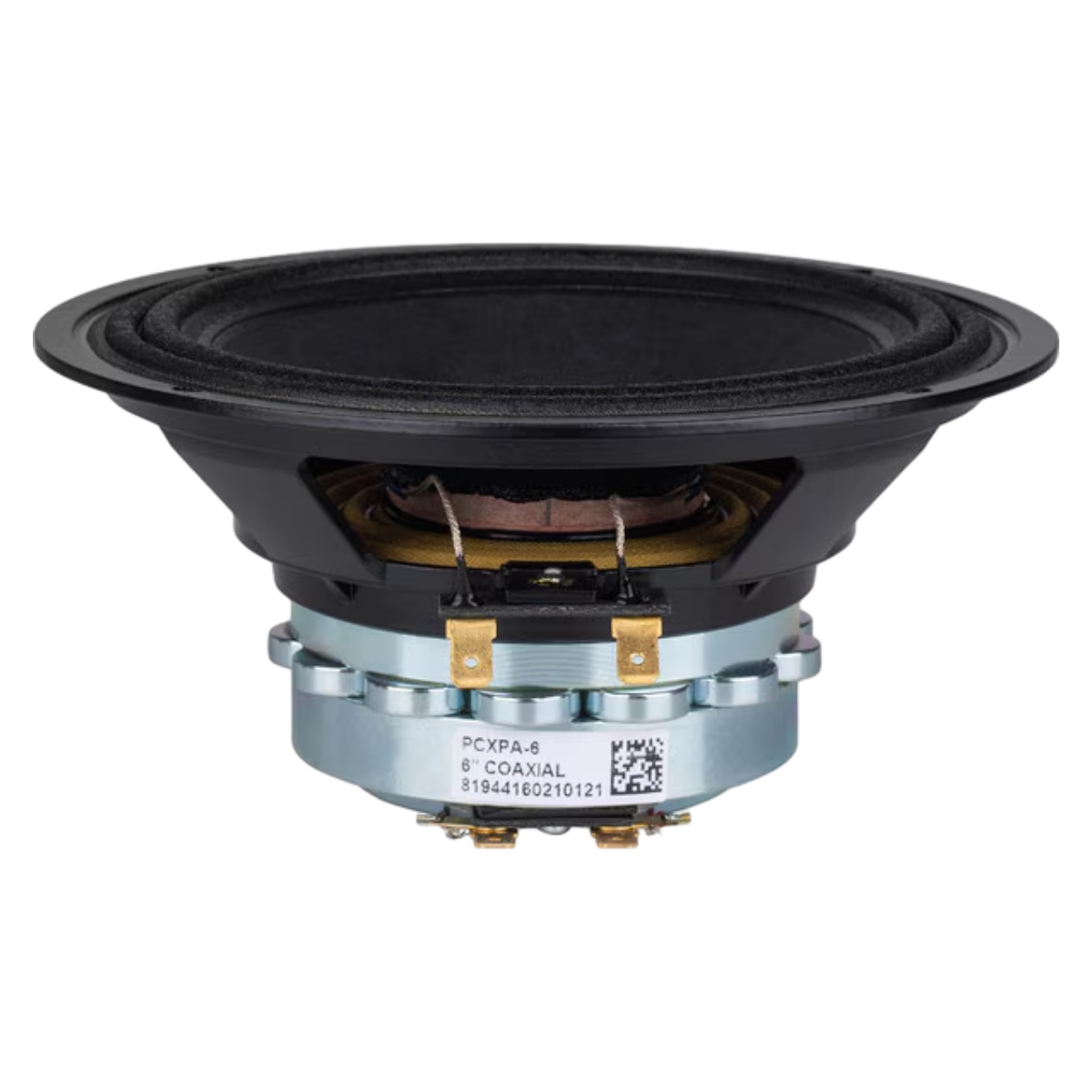

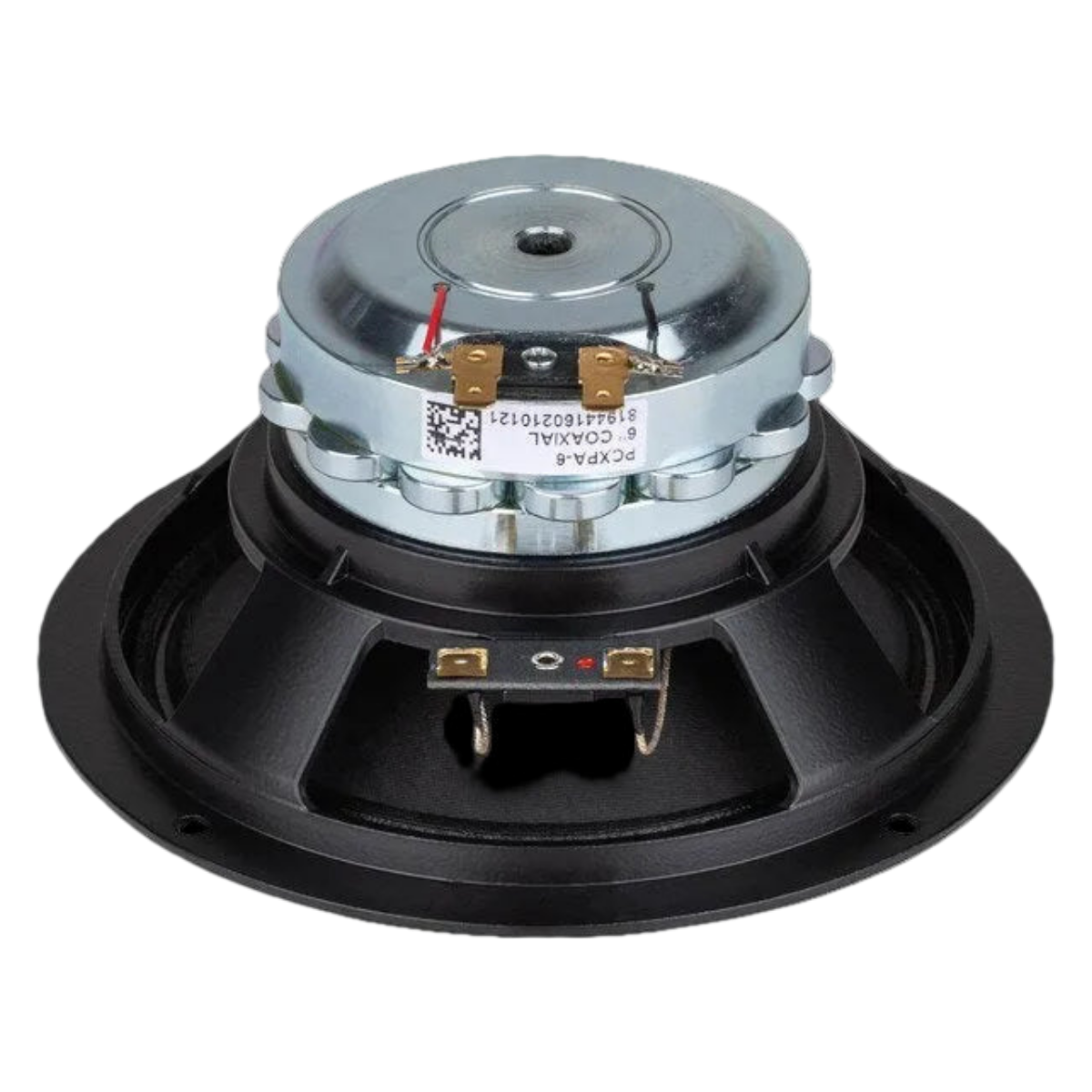

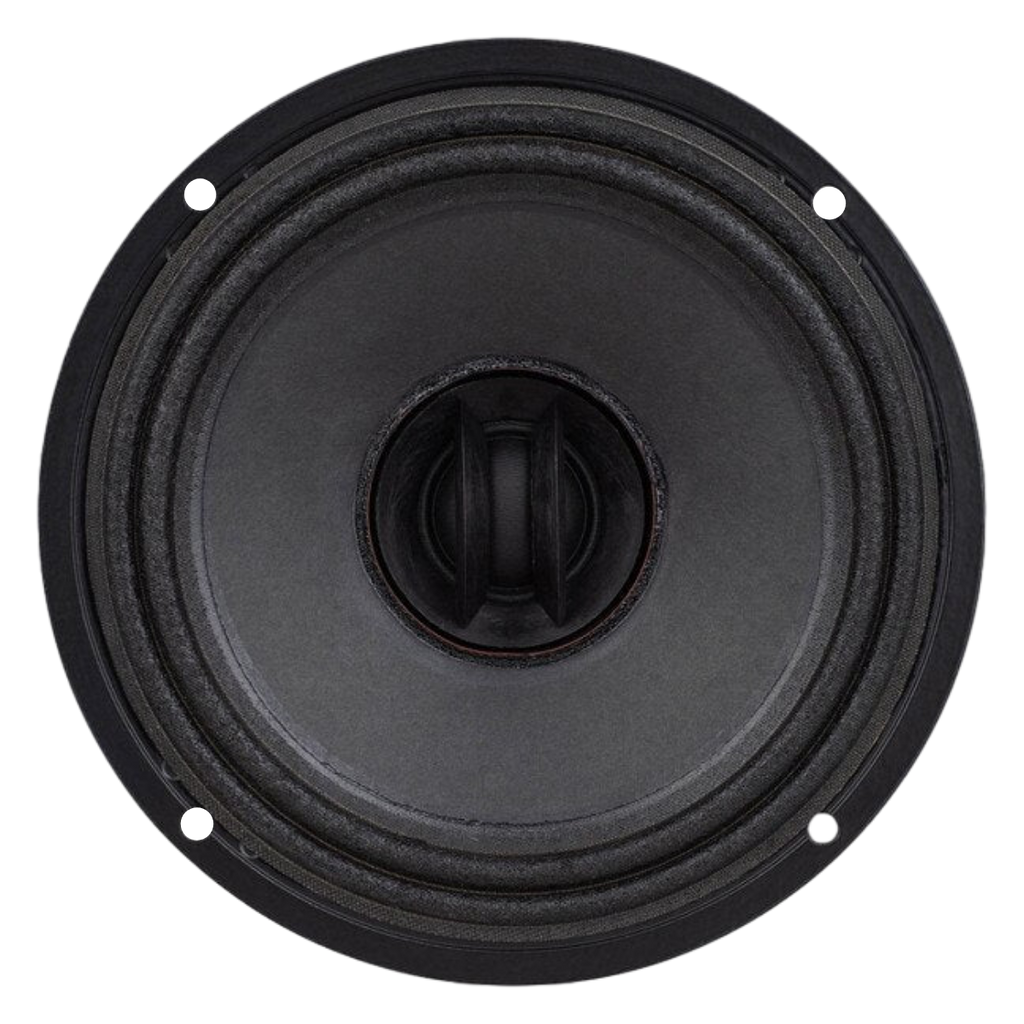

Ciare SPL PCXPA-6 6.5″ Neodymium Coaxial Driver
Sale unit: Sold individually — one coaxial driver.
The PCXPA-6 packages a 6.5-inch neodymium low-frequency section and a coaxially mounted 1-inch high-frequency compression driver into one point-source assembly. It is built for compact high-output systems where coherent midrange/high-frequency coverage matters.
Verified Specifications
- LF impedance: 8Ω
- HF impedance: 4Ω
- LF voice coil: 2 in / 50 mm
- HF voice coil: 1 in / 26 mm
- Nominal power: 150 W LF / 10 W HF
- Program power: 300 W LF / 20 W HF
- Sensitivity: 94.8 dB LF / 95 dB HF
- Published ranges: 80–2,000 Hz LF / 2,000–20,000 Hz HF
- Magnet: neodymium
Fitment
- Overall diameter: 165 mm / 6.50 in
- Baffle cutout: 147 mm / 5.79 in
- Overall depth: 75 mm / 2.95 in
- Bolt circle: 154 mm / 6.06 in
Wiring / Crossover Note
The LF and HF sections are electrically separate and have different impedances and power ratings. They require the correct crossover/filtering and amplification strategy; do not treat this as a conventional single-input coaxial speaker unless the system includes the required crossover network.
Included: one Ciare PCXPA-6 coaxial driver.
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
