Description

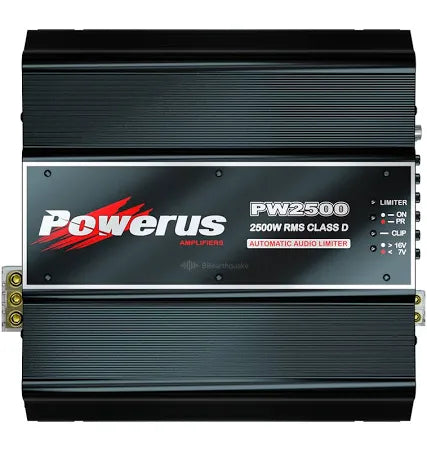

Powerus PW2500 0.5-Ohm Full-Range Monoblock Amplifier
If you are building a serious low-impedance system, the amplifier cannot be the part you choose first and figure out the electrical later. The PW2500 in this 0.5-ohm version is made for systems that are intentionally wired down low and have the charging, battery capacity, power cable and fuse protection to support it. This is not the easy default for a basic daily-driver sub stage; it is the version you choose when the whole system is being built around a heavy current demand.
Powerus publishes 3,010 watts RMS at 12.6 volts and 3,930 watts RMS at 14.4 volts at the rated 0.5-ohm load. The useful part is not just the peak number—it is knowing what comes with it. Published current demand is 120 amps under musical use and as much as 318 amps with a 40 Hz sine signal, so this amplifier belongs in a vehicle with real electrical support rather than stock charging and undersized cable.
The PW2500 is also a full-range monoblock, not a bass-only amp. Its published response extends from 5 Hz to 45 kHz, with adjustable high-pass and low-pass filtering, variable boost and Powerus's variable-threshold limiter. That gives an installer more flexibility than a conventional sub-only mono amp, although the 0.5-ohm version still makes the most sense in a purpose-built high-output system where the speaker load and electrical design are known before the amp is powered up.
For a normal 1-ohm or 2-ohm daily system, we would rather use an amplifier version matched to that final load than buy the 0.5-ohm model just because the power number looks bigger. The advantage here is the ability to run the correct low-impedance configuration when the driver wiring actually calls for it—not forcing a low load onto an electrical system that was never built for it.
What it will not do: the PW2500 will not make up for weak voltage, undersized wiring, poor grounding or an incorrect final speaker impedance. Its wide 7–16 volt operating range does not mean voltage drop is harmless. A system capable of drawing this much current needs proper alternator and battery support, correctly sized OFC power and ground cable, appropriate fuse protection, solid ventilation and gain setup based on the actual system.
Manufacturer Specifications
- Model: PW2500
- Configuration: 1-channel full-range monoblock
- Rated amplifier impedance: 0.5 ohm
- RMS output at rated 0.5-ohm load: 3,010 W at 12.6 V
- RMS output at rated 0.5-ohm load: 3,930 W at 14.4 V
- Supply voltage: 7–16 V DC
- Resting current consumption: 1.35 A
- Published musical current consumption: 120 A
- Maximum published consumption at 40 Hz sine: 318 A
- Efficiency: 75%
- Input impedance: 22 kΩ
- Input sensitivity: 0.25–6 V
- Total harmonic distortion: 0.1%
- Signal-to-noise ratio: greater than 90 dB
- Damping factor: greater than 1000 at 40 Hz / 12.6 V / 2 ohms
- Frequency response: 5 Hz–45 kHz (-3 dB)
- Low-pass crossover: 80 Hz–20 kHz
- High-pass crossover: 5–200 Hz
- Boost gain: 0–18 dB
- Variable boost frequency: 28–400 Hz
- Limiter: Variable-threshold limiter
- Dimensions: 70 × 280 × 260 mm
- Weight: 3.9 kg
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
