Description

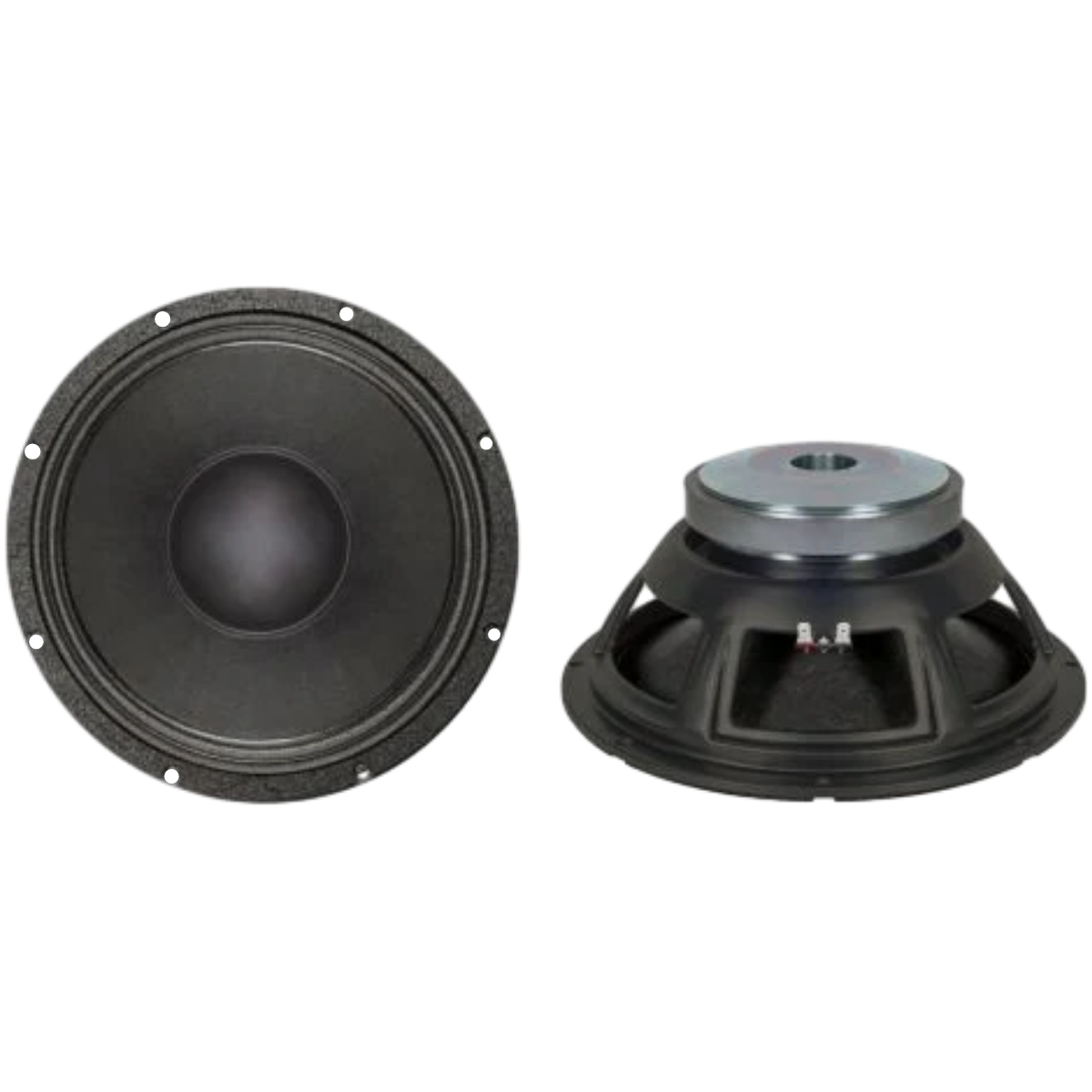

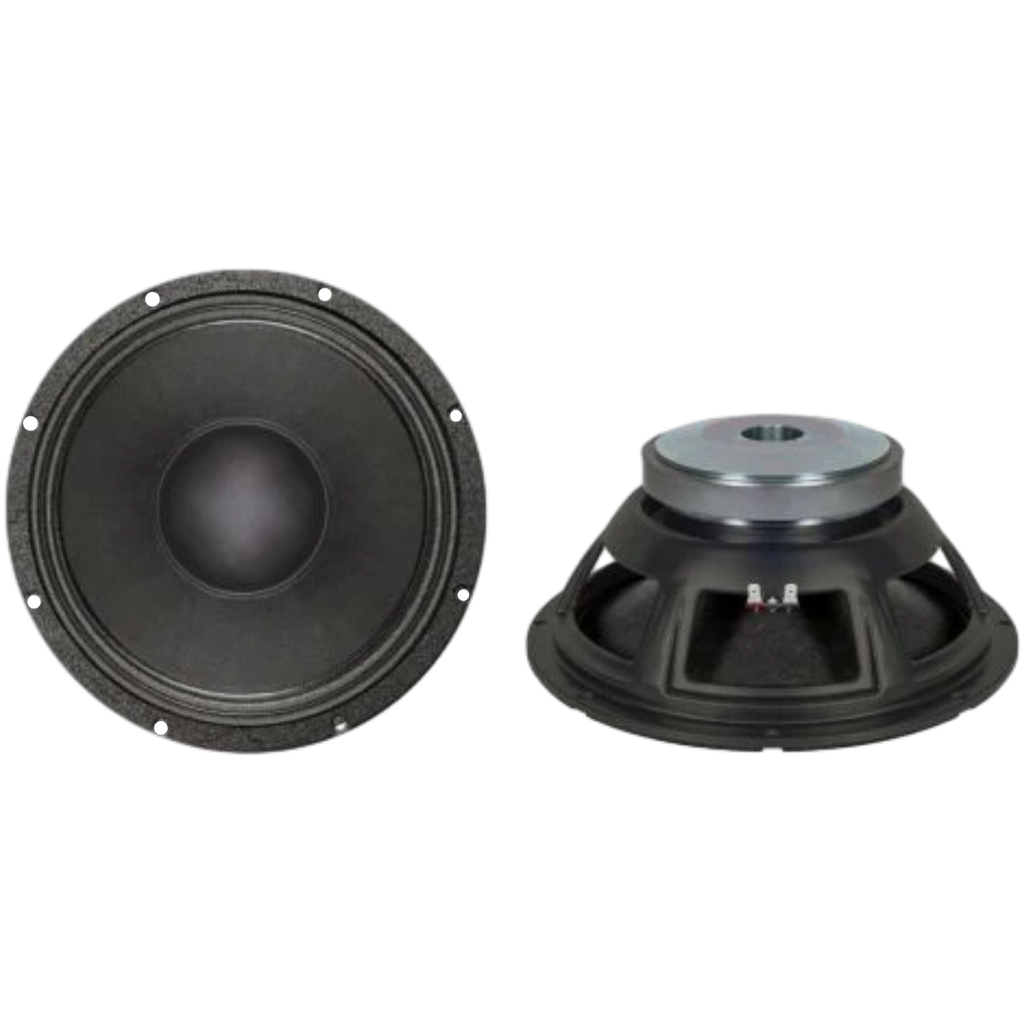

Ciare SPL PWA12.64 12-Inch High-Output Woofer
Sale unit: Sold individually — one speaker.
The PWA12.64 combines 12-inch cone area with a 2.5-inch voice coil for efficient lower-midbass duty. It sits below the PWA12.75 in thermal capacity, making it a different driver rather than a cosmetic variant.
Published Specs
- 8Ω nominal impedance
- 300W nominal / 600W program
- 97.8 dB sensitivity
- 50–3,000 Hz frequency range
- 2.5-inch voice coil
Use a reinforced baffle and verify rear airspace and crossover behavior before finalizing a 12-inch door or pod build.
Included: one Ciare PWA12.64.
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
