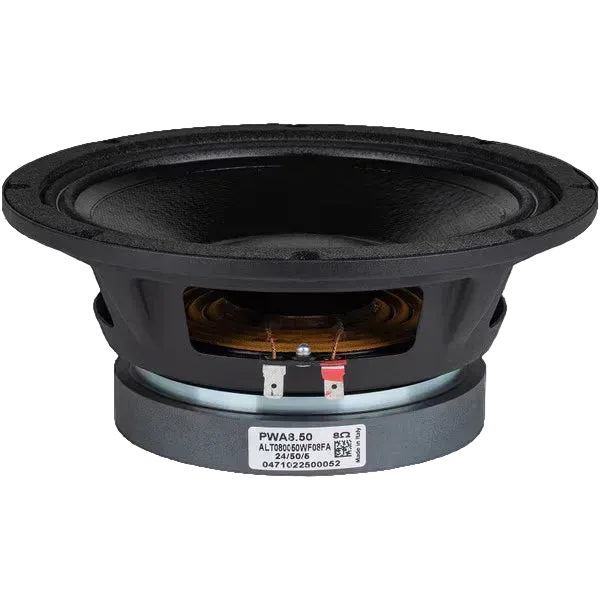

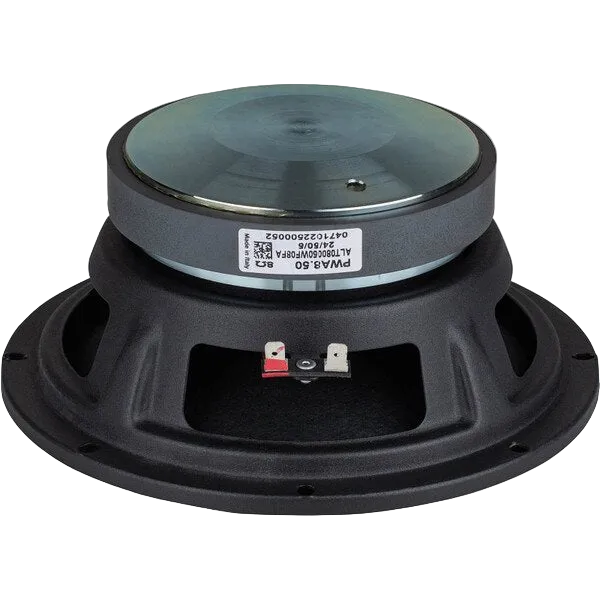

Ciare SPL PWA8.50 8-Inch Woofer
Sale unit: Sold individually — one speaker.
The PWA8.50 is an efficient 8-inch ferrite woofer with a 2-inch voice coil. It is a practical middle ground between compact 5/6-inch drivers and Ciare's larger 10/12-inch PWA models.
Published Specs
- 8Ω nominal impedance
- 250W nominal / 500W program
- 95 dB sensitivity
- 70–2,500 Hz frequency range
- 2-inch voice coil
- 186 mm cutout / 96 mm total depth
Choose crossover points around the mounted response and intended midbass output.
Included: one Ciare PWA8.50.
SPEAKER SYSTEM FIT
Where this fits in the build
Speaker choice should follow the listening goal and the location it has to work in. Factory replacement, sound quality, loud daily and high-output builds have different priorities.
Plan aroundConfirm mounting location, depth, cutout and usable bandwidth.
Match itMatch efficiency and power needs to the output target.
Finish itPlacement, sealing, crossover and tuning determine how the driver performs in the vehicle.
