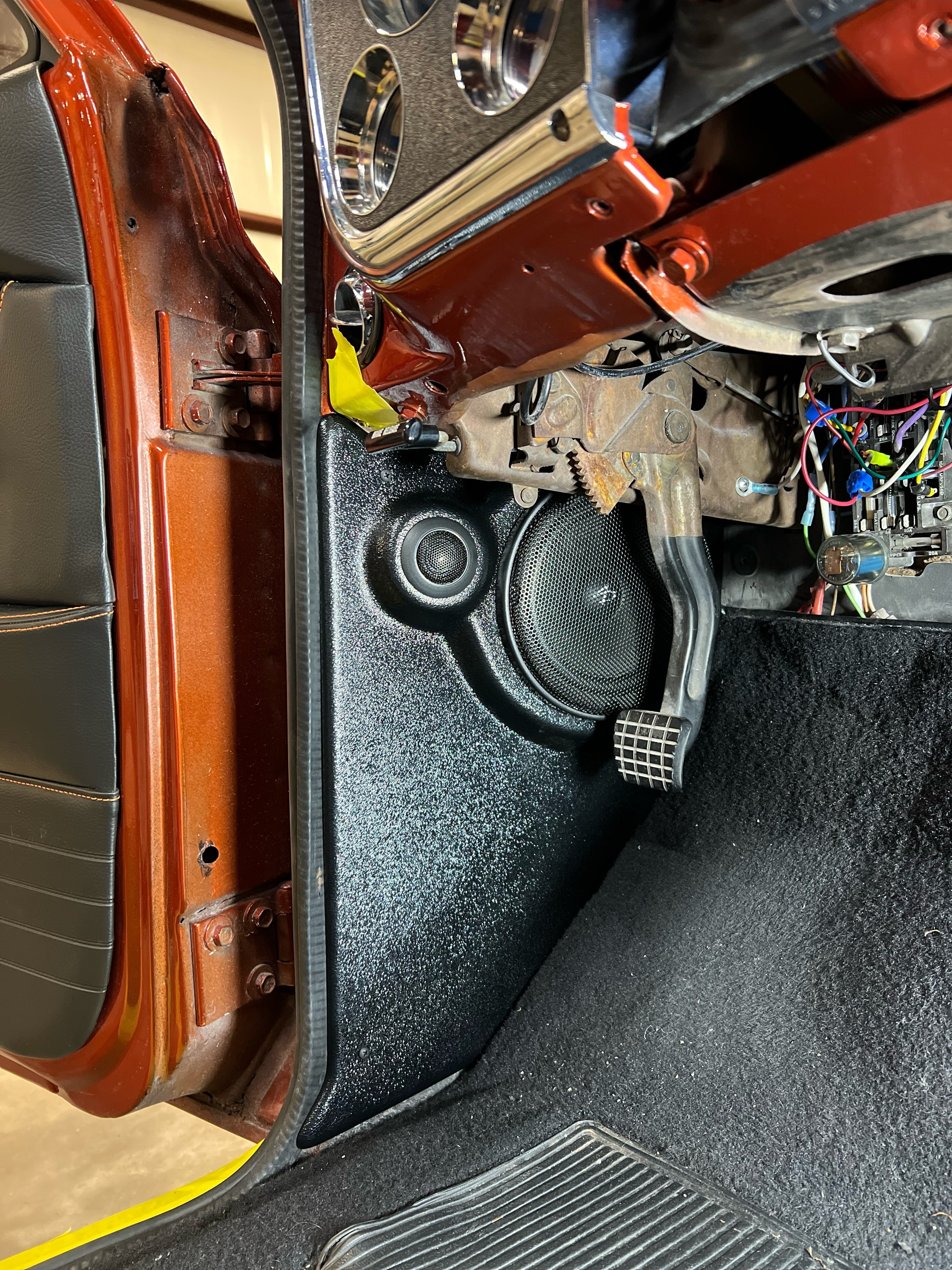

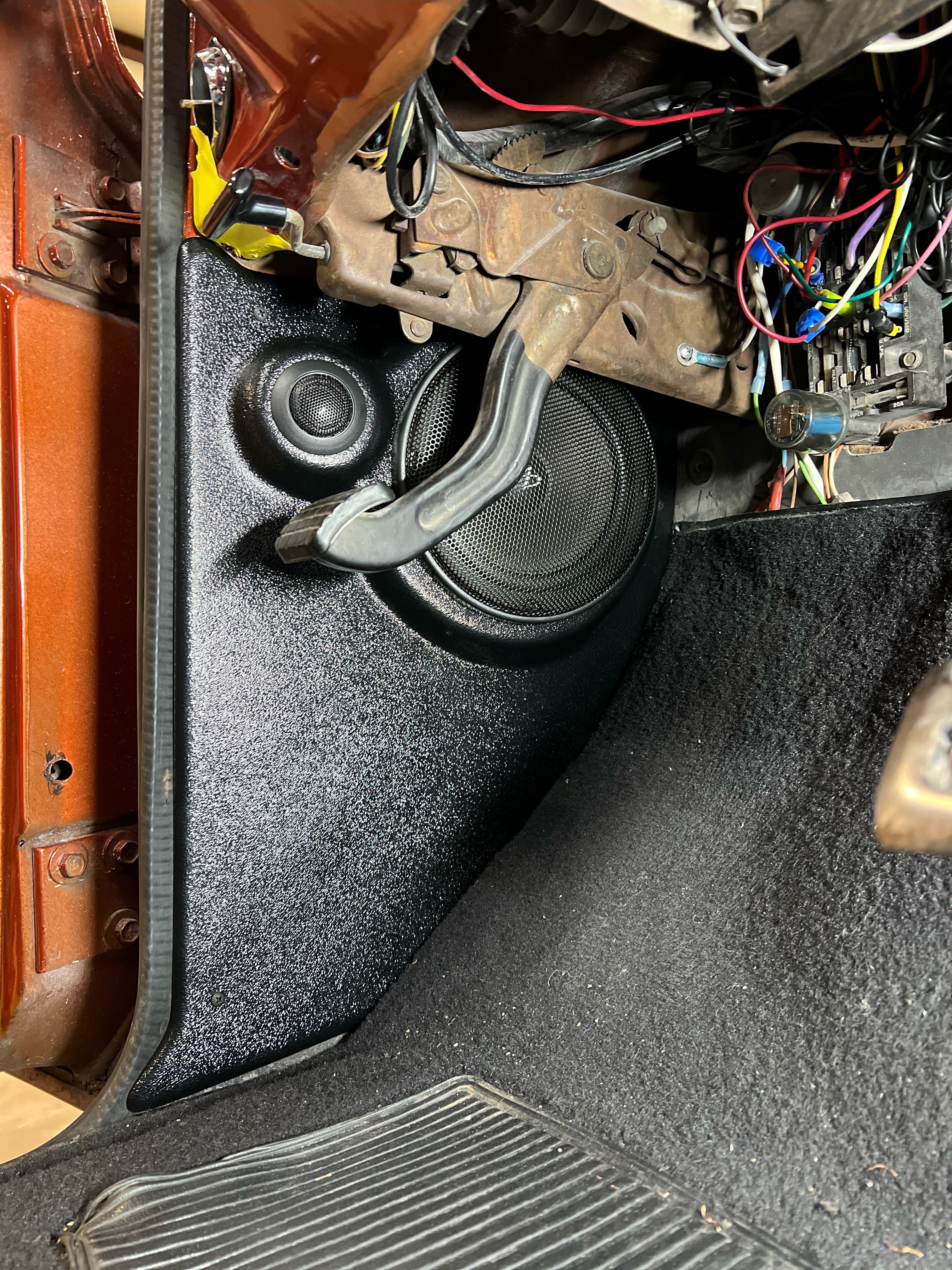

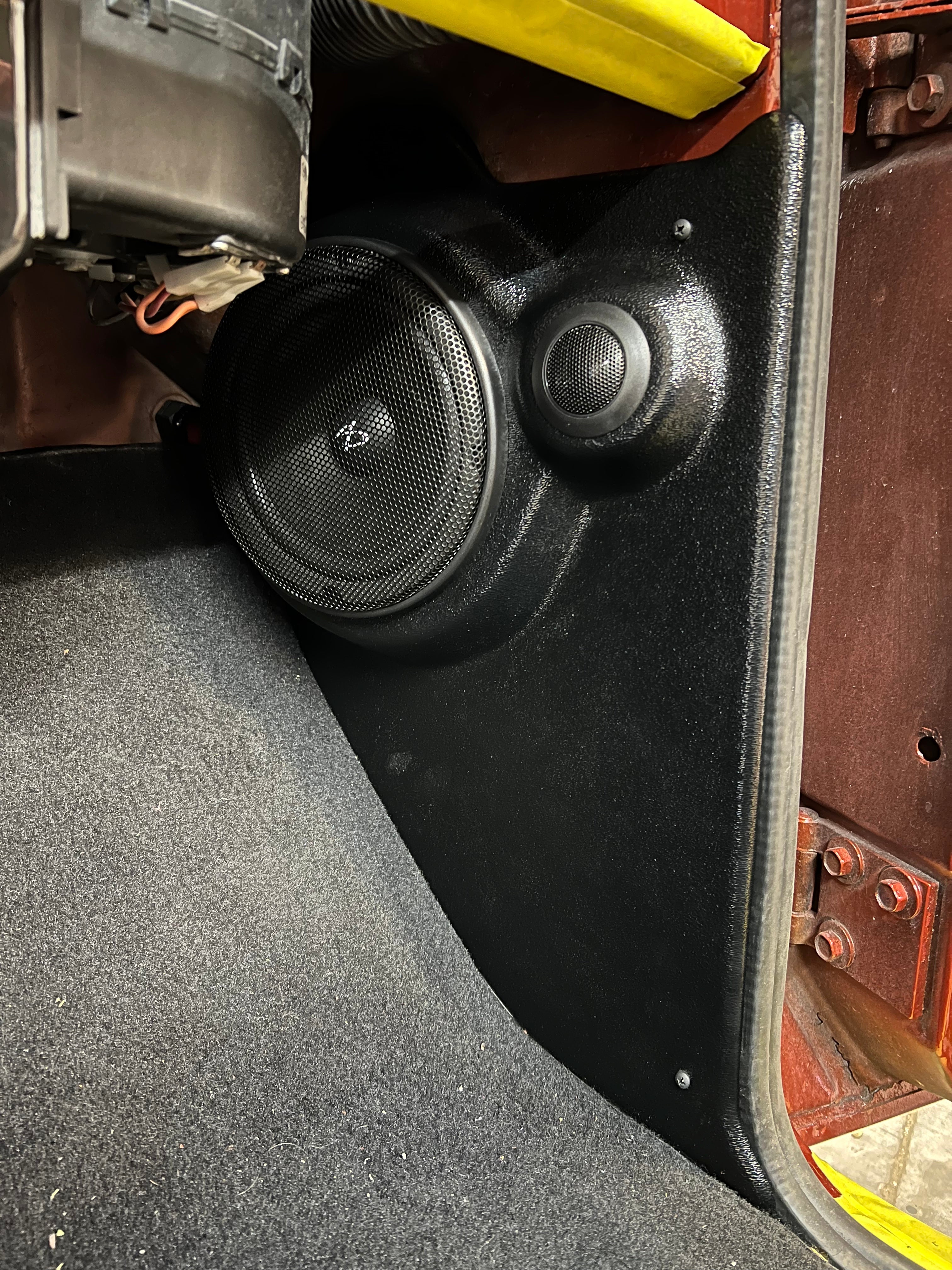

The QLogic Q-Forms QLK-1020 is a pair of vehicle-specific 6.5-inch kick-panel speaker enclosures for 1967–1972 Chevrolet and GMC C/K-series trucks and related Blazer, Jimmy, Suburban and Carryall applications. The panels were designed to avoid interference with the floor-mounted high-beam switch and parking-brake pedal.
Installation requires removal of the factory fresh-air vents and associated hardware. Maximum speaker mounting depth is 2.25 inches without modifying the cab. The panels do not fit vehicles equipped with Vintage Air aftermarket A/C; other aftermarket A/C systems require independent fitment verification.
Specifications
| Model | QLK-1020 |
|---|---|
| Sold as | Driver-side and passenger-side pair |
| Speaker size | 6.5-inch |
| Maximum mounting depth | 2.25 inches without cab modification |
| Vehicle fitment | Chevrolet C10, C20 and C30 1967–1972; Chevrolet K5 Blazer 1969–1972; Chevrolet Suburban C10 1967–1972; GMC K5 Jimmy 1969–1972; GMC C1500, C2500 and C3500 1967–1972; GMC Carryall 1967–1972 |
| Confirmed or measured speaker fits | Audio Dynamics CS614; Audiofrog G60S; Audiofrog GS60/GS10; Ground Zero GZIC 650FX; Kicker 46CSS654 |
| Factory-control clearance | Designed not to interfere with the floor-mounted high-beam switch or parking-brake pedal |
| Required modification | Remove factory fresh-air vents and associated hardware |
| Aftermarket A/C compatibility | Does not fit Vintage Air; other brands require independent validation |
| Included | Mounting fasteners, hardware, trim pieces and complete installation instructions |
| Speakers included | No |
Features
- Purpose-built for 1967–1972 Chevrolet and GMC C/K truck interiors.
- Positions 6.5-inch speakers low and forward for improved front-stage placement.

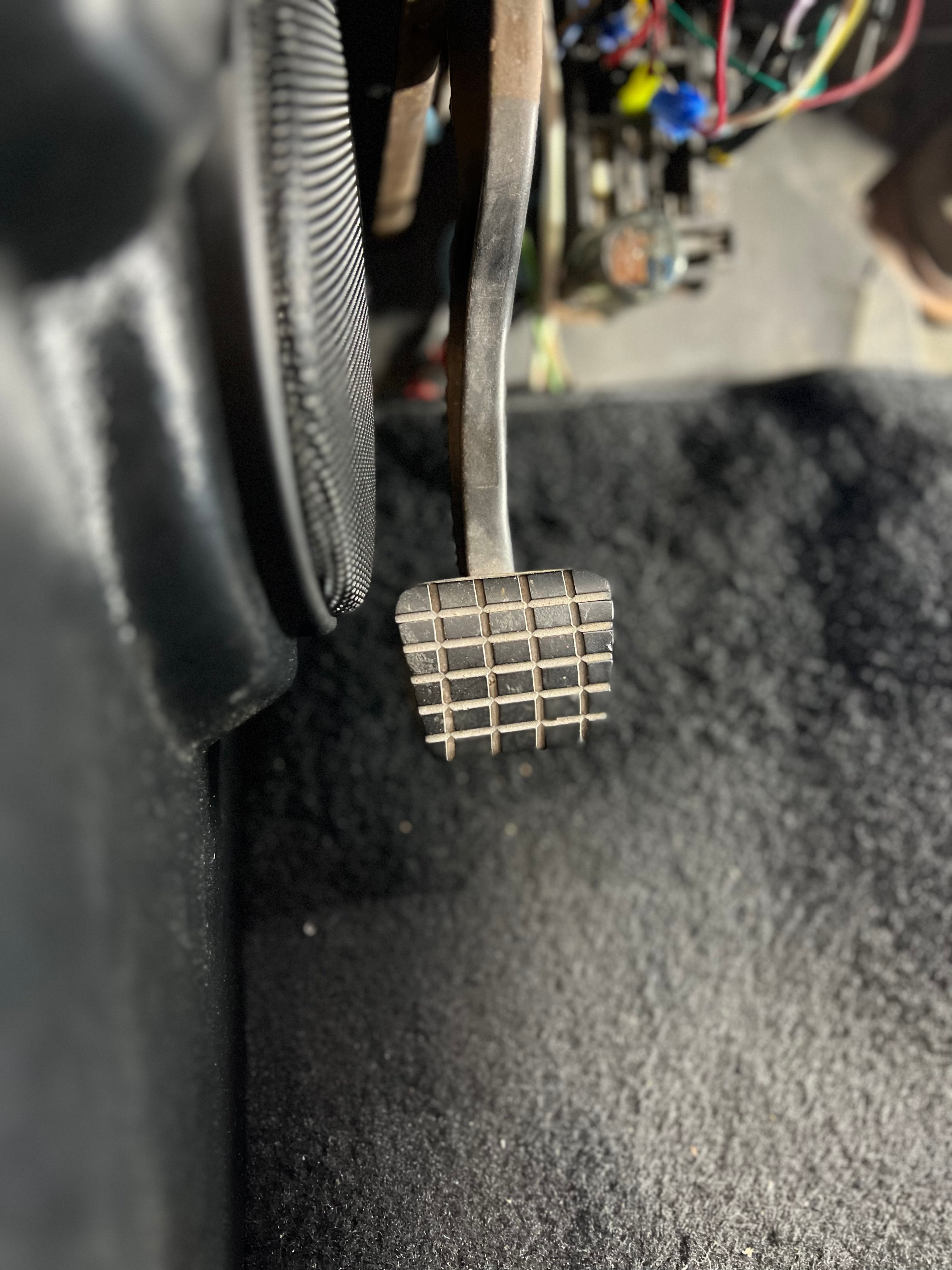

- Designed to clear the floor-mounted dimmer switch and parking-brake pedal.
- Published 2.25-inch depth limit supports speaker compatibility checks.
- Five confirmed or measurement-verified component-speaker options are listed.
- Required mounting hardware, trim pieces and complete instructions are included.
- Installation removes the original fresh-air vents and is not compatible with Vintage Air A/C systems.
- Speakers shown in manufacturer images are for illustration and are not included.
