Description
QL-C1JGC110A01 — Grand Cherokee ZJ / Black 01

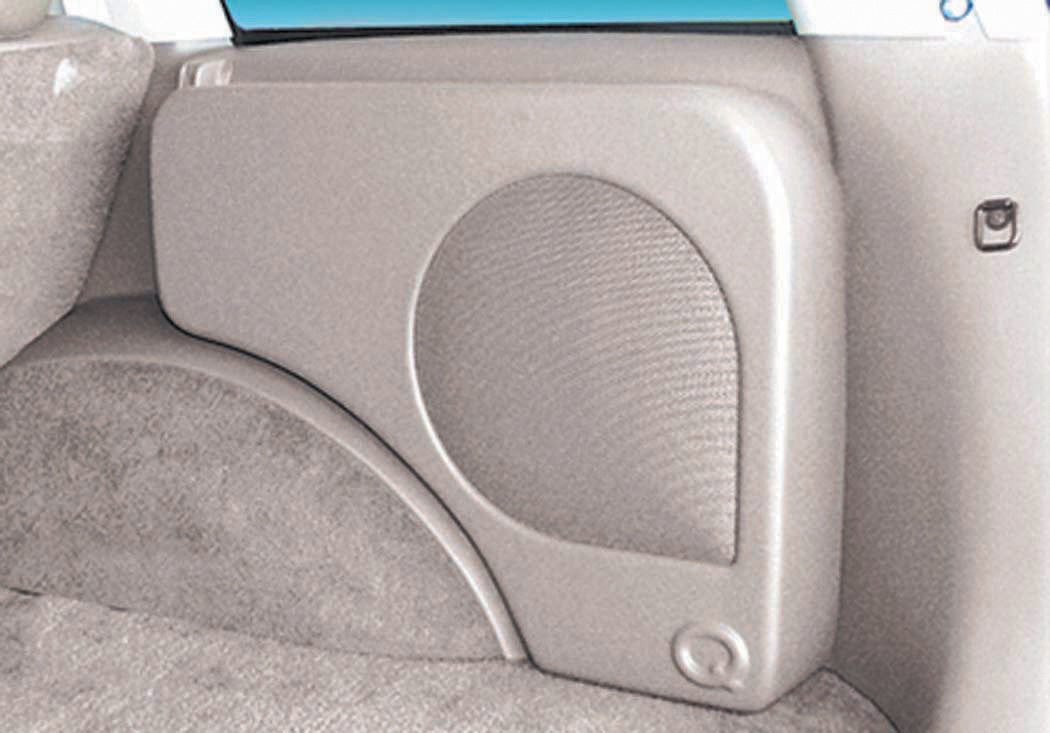

Black is the neutral finish for the 1993–1998 Grand Cherokee ZJ passenger-side rear-quarter enclosure. It is the easiest color to blend into a darker cargo area while keeping the box shaped around the Jeep instead of taking over the floor.
The enclosure holds one 10 in 0.65 cu. ft. sealed. Q-Logic publishes 6-5/8 in. depth with 5- or 6-in. magnet diameter and 6-1/2 in. with 7-in. diameter. Q-Logic lists JL Audio 10W3 as a known-fit example. No grille is available. Subwoofer not included.
Black is the neutral finish for the 1993–1998 Grand Cherokee ZJ passenger-side rear-quarter enclosure. It is the easiest color to blend into a darker cargo area while keeping the box shaped around the Jeep instead of taking over the floor.
The enclosure holds one 10 in 0.65 cu. ft. sealed. Q-Logic publishes 6-5/8 in. depth with 5- or 6-in. magnet diameter and 6-1/2 in. with 7-in. diameter. Q-Logic lists JL Audio 10W3 as a known-fit example. No grille is available. Subwoofer not included.
BASS SYSTEM FIT
Where this fits in the build
The subwoofer is only one part of the bass system. Enclosure volume and alignment, final impedance, amplifier power, vehicle space and electrical support all affect the result.
Plan aroundChoose the bass target and usable space first.
Match itMatch the enclosure to the driver instead of treating the box as an afterthought.
Finish itMatch final load, amplifier and electrical support to the complete bass plan.
