Description

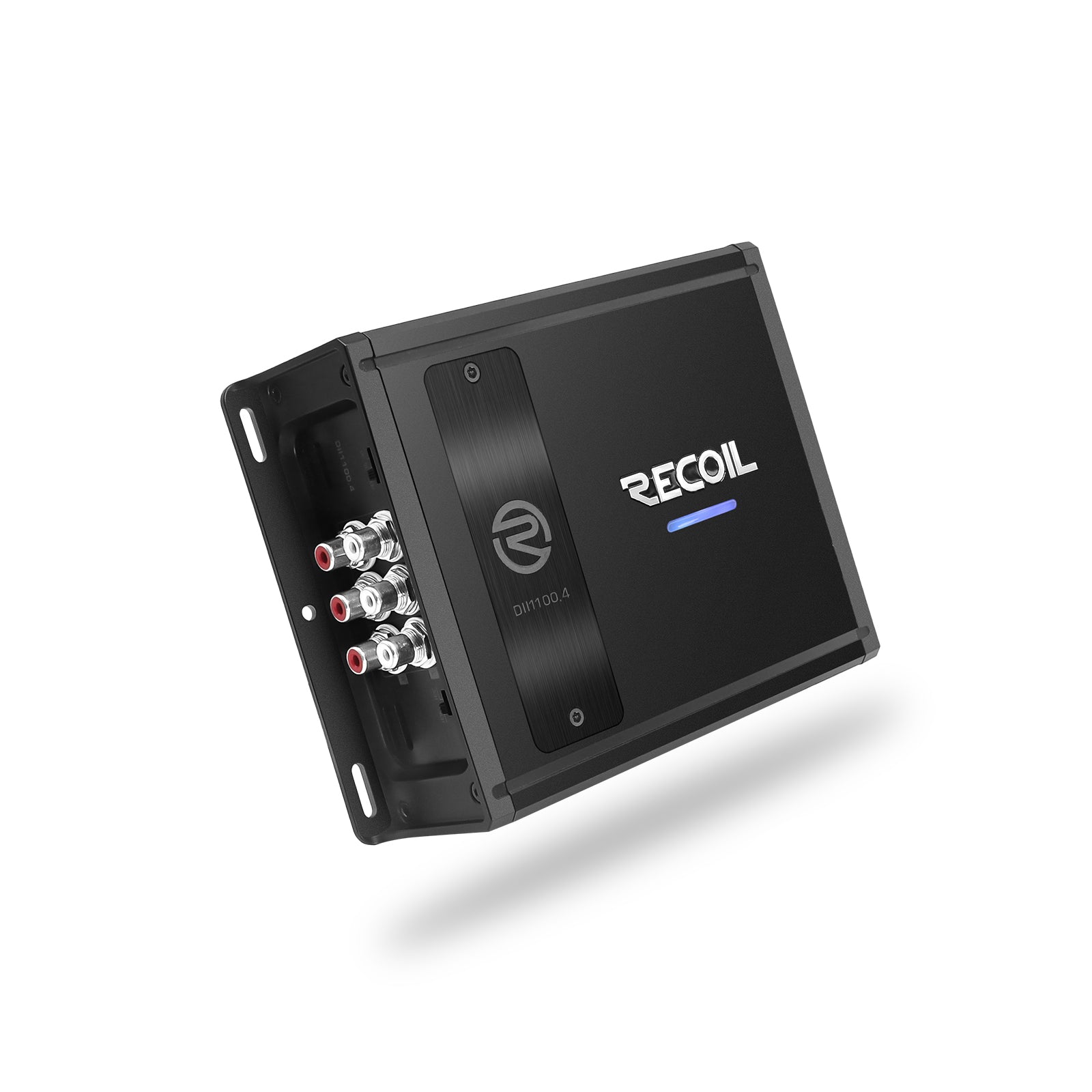

The Recoil Audio DII1100.4 is a compact four-channel Class-D full-range amplifier designed to power front and rear speakers, multiple pro-audio drivers or an active two-way system. Its onboard crossover controls support system configuration without requiring every filter to be handled by an external processor.
The amplifier carries a published 1,100-watt model rating, accepts approximately 200 mV to 6 V input signal and provides selectable LPF, full-range and HPF operation. Its compact chassis measures approximately 8.66 by 4.72 by 1.77 inches.
Specifications
| Model | DII1100.4 |
|---|---|
| Amplifier type | Four-channel full-range amplifier |
| Amplifier class | Class D |
| Channels | 4 |

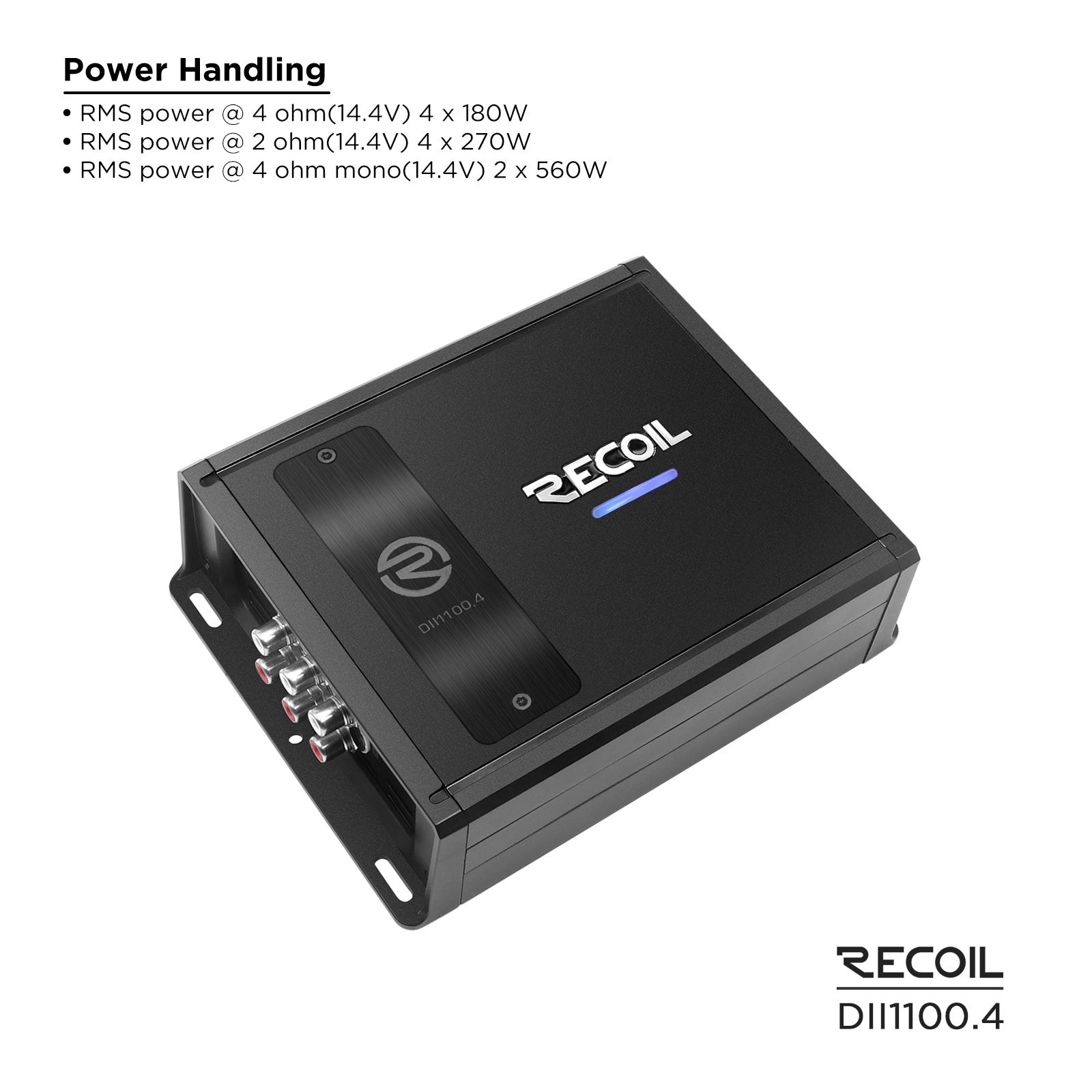

| Published model power rating | 1,100 watts |
| Input sensitivity | Approximately 200 mV–6 V |
| High-pass filter | 10 Hz–2 kHz |
| Low-pass filter | 50 Hz–20 kHz |
| Crossover modes | LPF / Full / HPF |
| Frequency response | 10 Hz–20 kHz |
| Dimensions | 8.66 x 4.72 x 1.77 inches |
| Published RMS output by impedance | Not listed in the current manufacturer record |
Features
- Four full-range channels support front/rear or active speaker systems.
- Compact Class-D chassis reduces installation footprint.
- Wide input-sensitivity range supports many source units and processors.

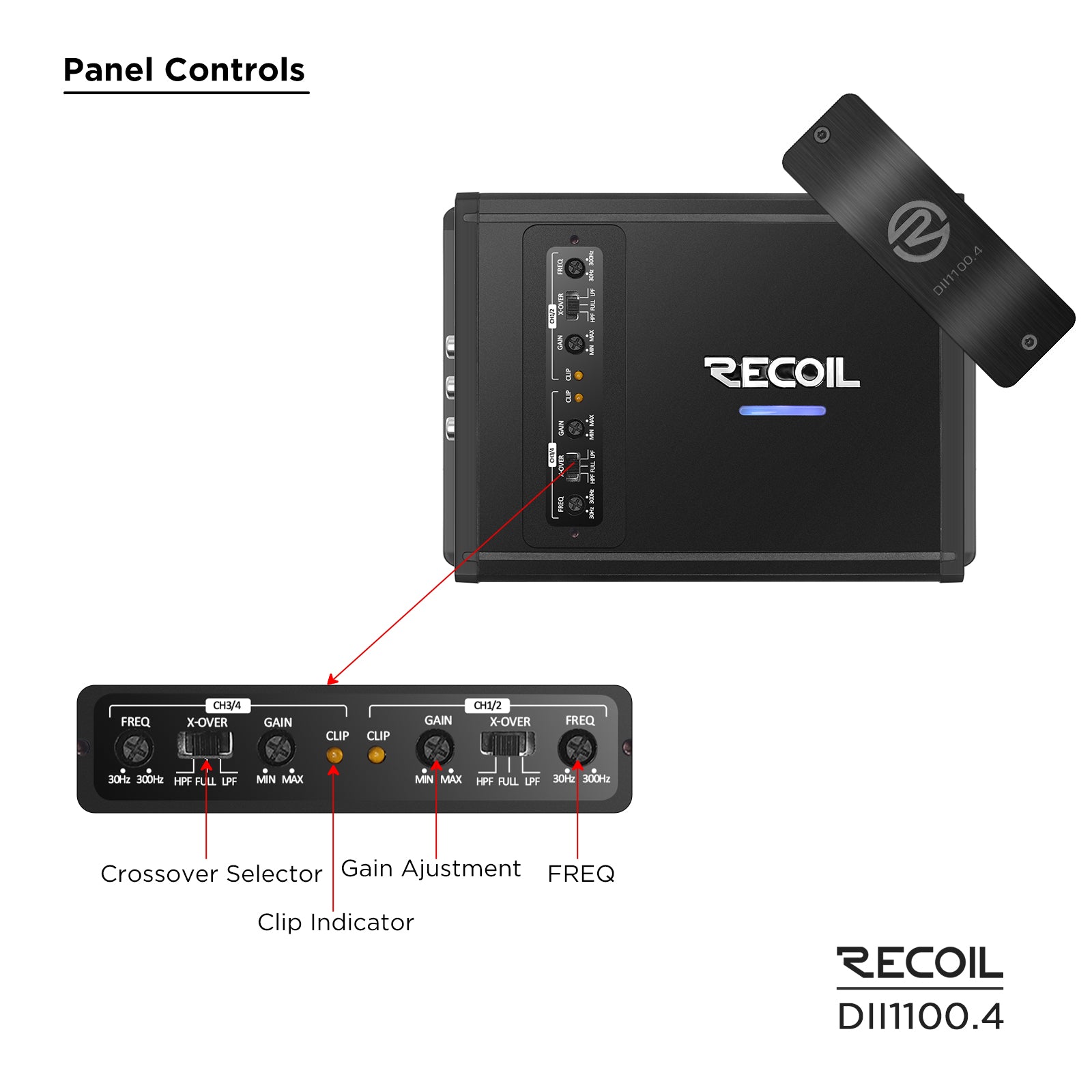

- Selectable LPF, full-range and HPF modes support flexible system layouts.
- Onboard filters can divide frequency duties between speaker groups.

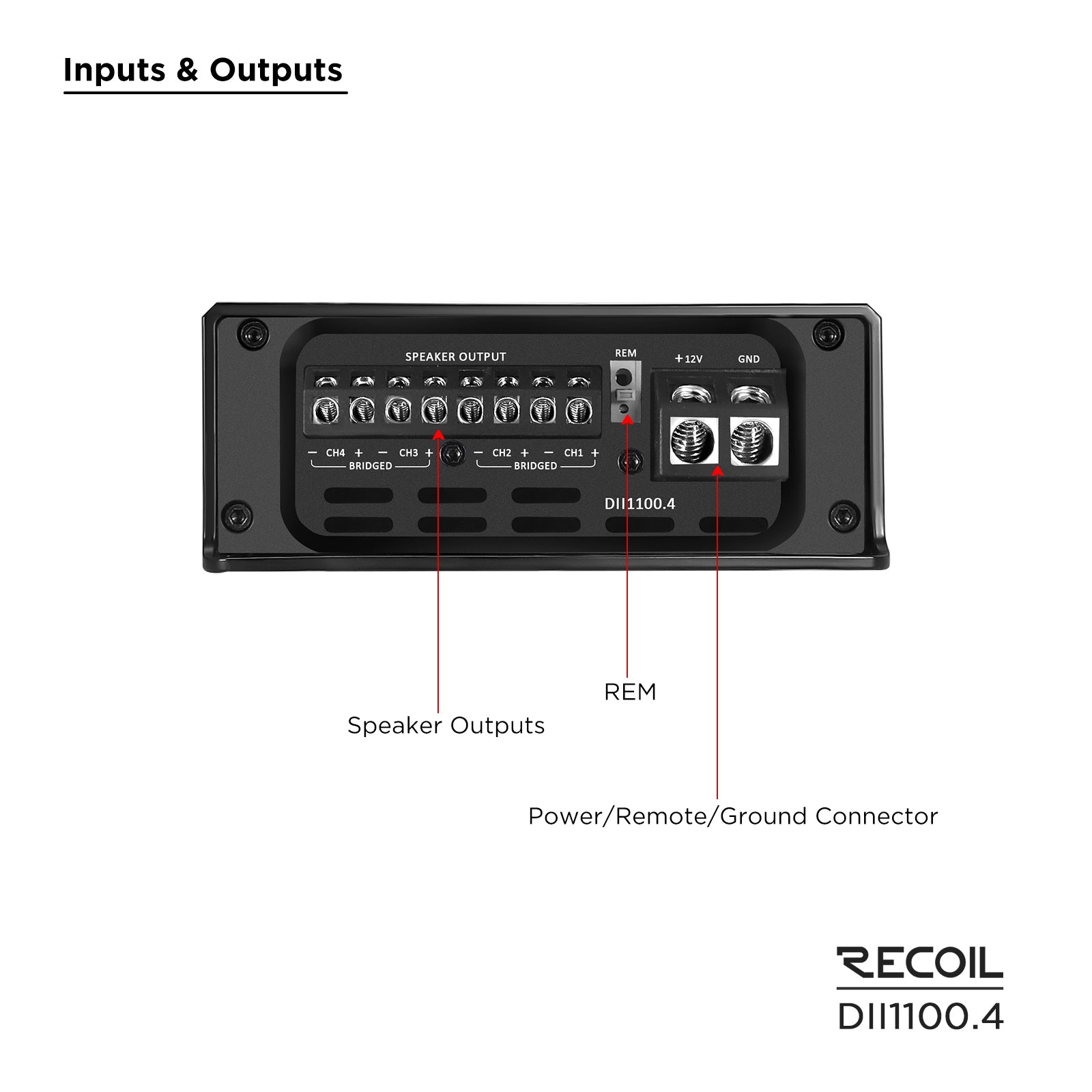

- Requires correctly sized power, ground and fuse protection.
- Speaker impedance and amplifier loading must be confirmed before wiring.
