Description
DII1400.4 — High-Power 4-Channel Amplifier — 310W x4 @ 2Ω
Choose DII1400.4 when four independent channels need more output than DII1100.4 but the system does not require the 1-ohm-per-channel capability of DII2000.4. It is a strong fit for high-power component, mid-bass and pro-audio drivers that can actually use roughly 200–300 watts per channel.
SMS would use this as the upper end of the conventional 2-ohm four-channel DII architecture. At 4 ohms it makes 210 watts per channel; at 2 ohms it makes 310. Bridging gives 620 watts per 4-ohm load. If the speaker layout creates 1-ohm stereo channels, move to DII2000.4 instead of assuming this model can safely run below its published load.
MANUFACTURER SPECIFICATIONS
• 210W RMS x4 @ 4Ω
• 310W RMS x4 @ 2Ω
• 620W RMS x2 bridged @ 4Ω
• Full-range Class-D architecture

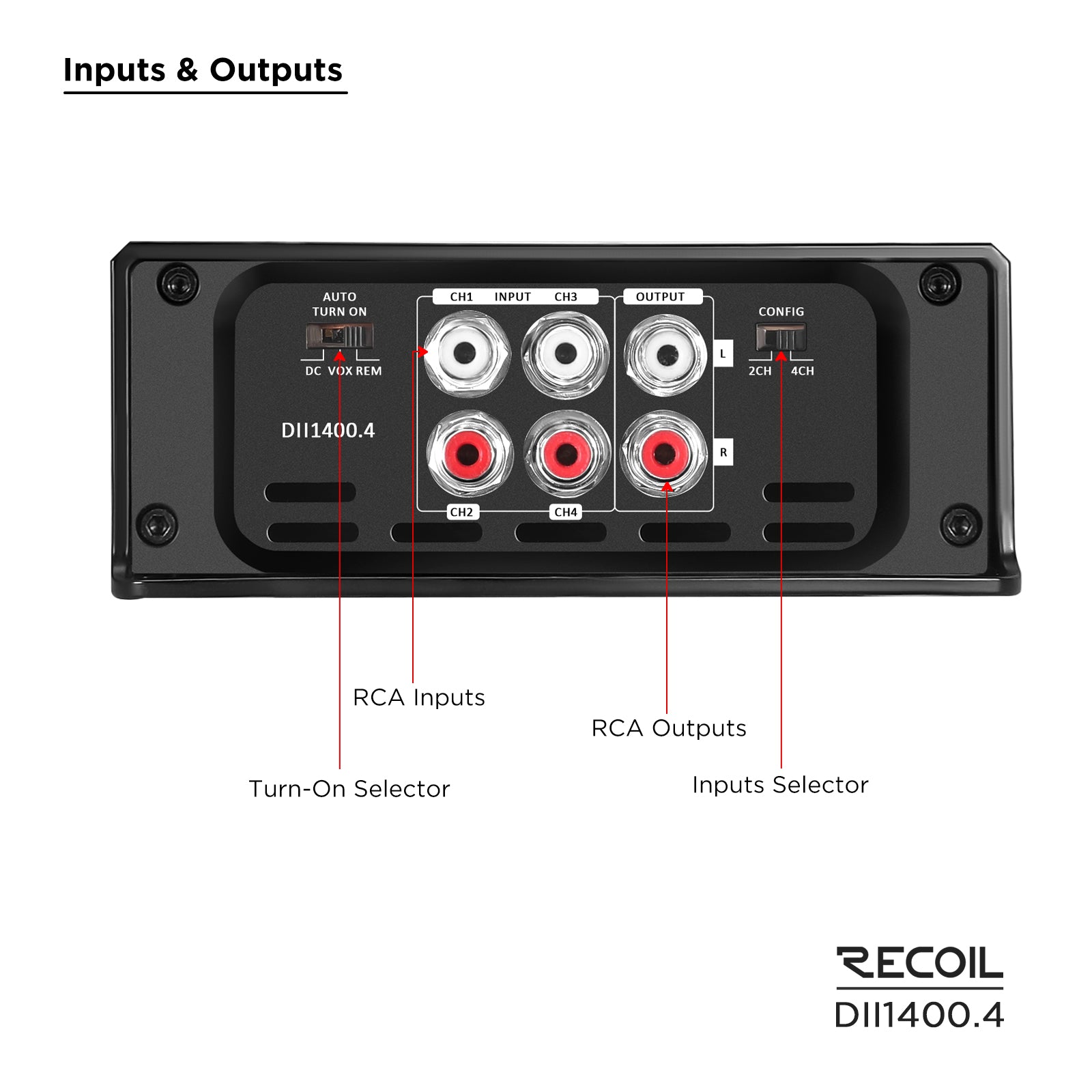

• High-level and RCA signal support

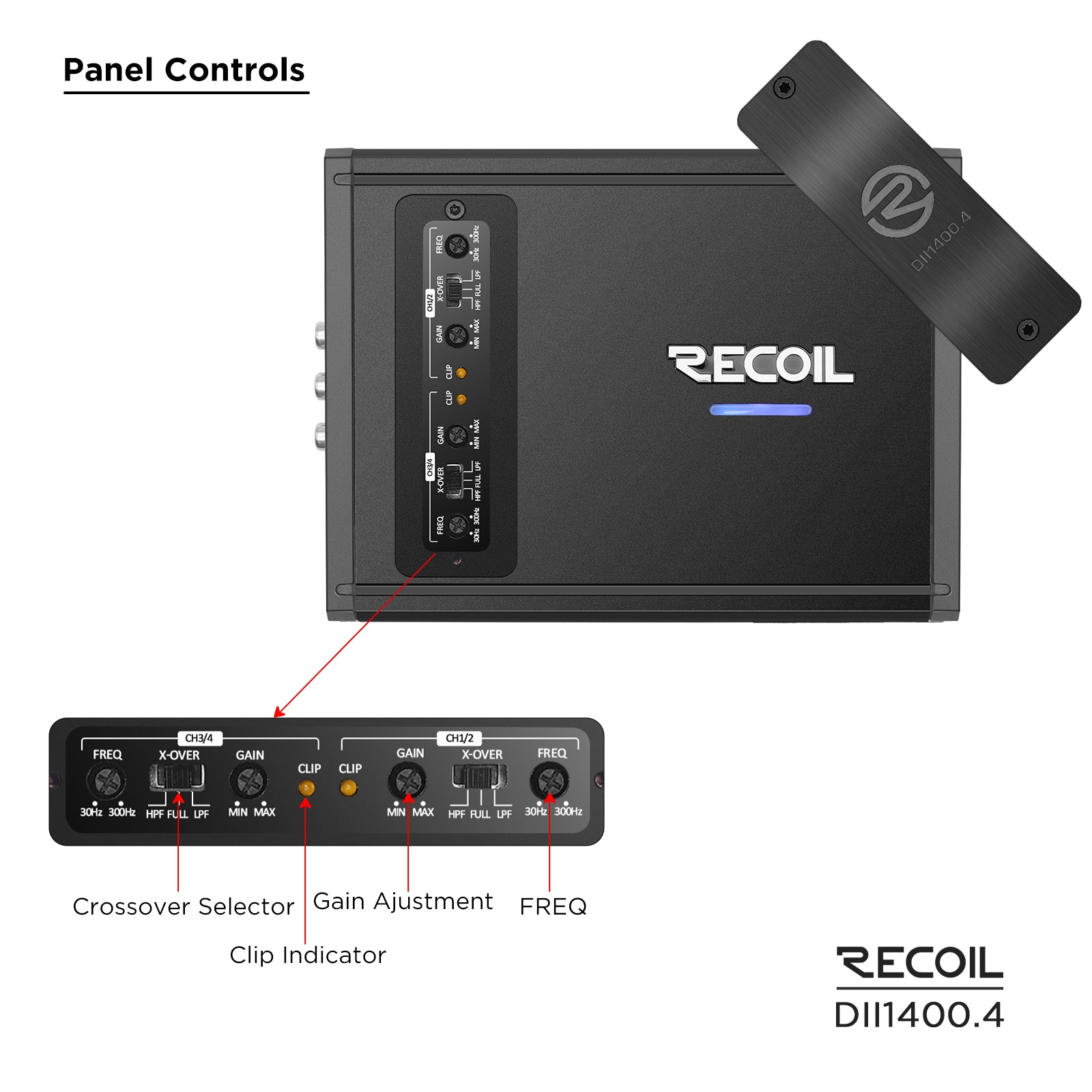

• Selectable crossover operation
Choose DII1400.4 when four independent channels need more output than DII1100.4 but the system does not require the 1-ohm-per-channel capability of DII2000.4. It is a strong fit for high-power component, mid-bass and pro-audio drivers that can actually use roughly 200–300 watts per channel.
SMS would use this as the upper end of the conventional 2-ohm four-channel DII architecture. At 4 ohms it makes 210 watts per channel; at 2 ohms it makes 310. Bridging gives 620 watts per 4-ohm load. If the speaker layout creates 1-ohm stereo channels, move to DII2000.4 instead of assuming this model can safely run below its published load.
MANUFACTURER SPECIFICATIONS
• 210W RMS x4 @ 4Ω
• 310W RMS x4 @ 2Ω
• 620W RMS x2 bridged @ 4Ω
• Full-range Class-D architecture
• High-level and RCA signal support
• Selectable crossover operation
AMPLIFIER SYSTEM FIT
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
Plan aroundMatch usable channels and power to the actual speakers and load.
Match itPlan signal processing and gain structure before chasing wattage.
Finish itHigher output may require charging, battery and wiring upgrades.
