Description

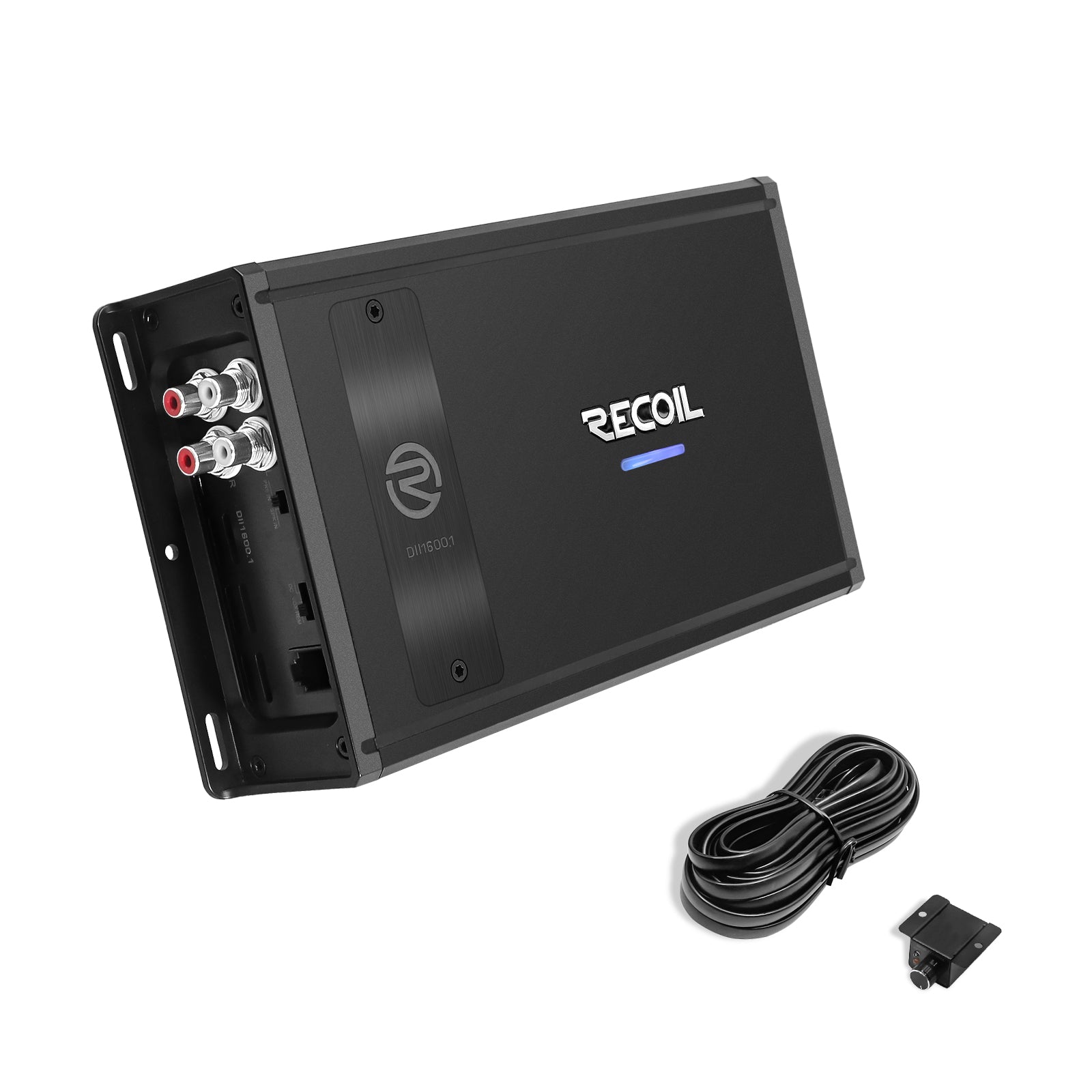

The Recoil DII1600.1 is an ultra-compact Class-D monoblock amplifier for compatible subwoofer systems with a 2-ohm or 4-ohm final load.

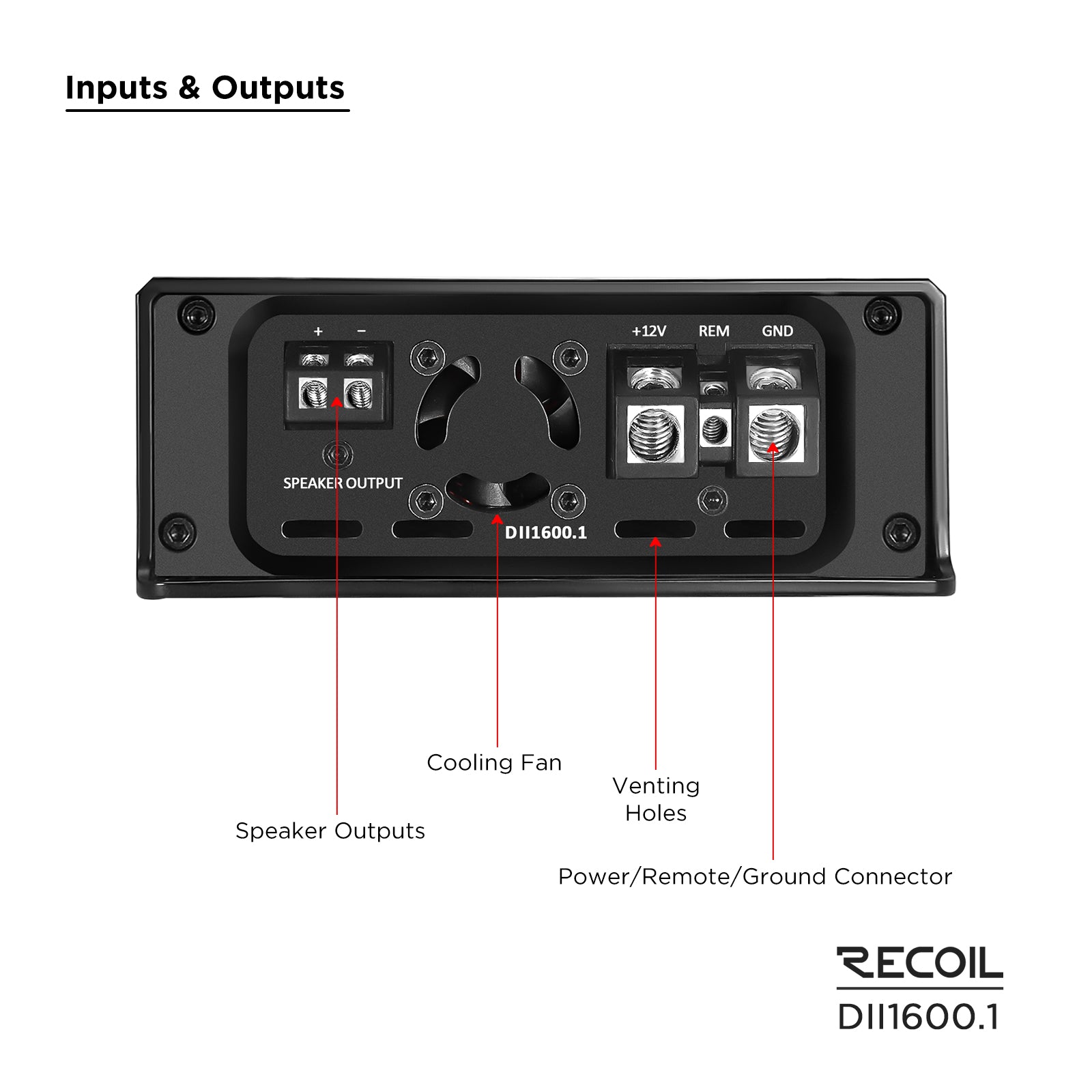

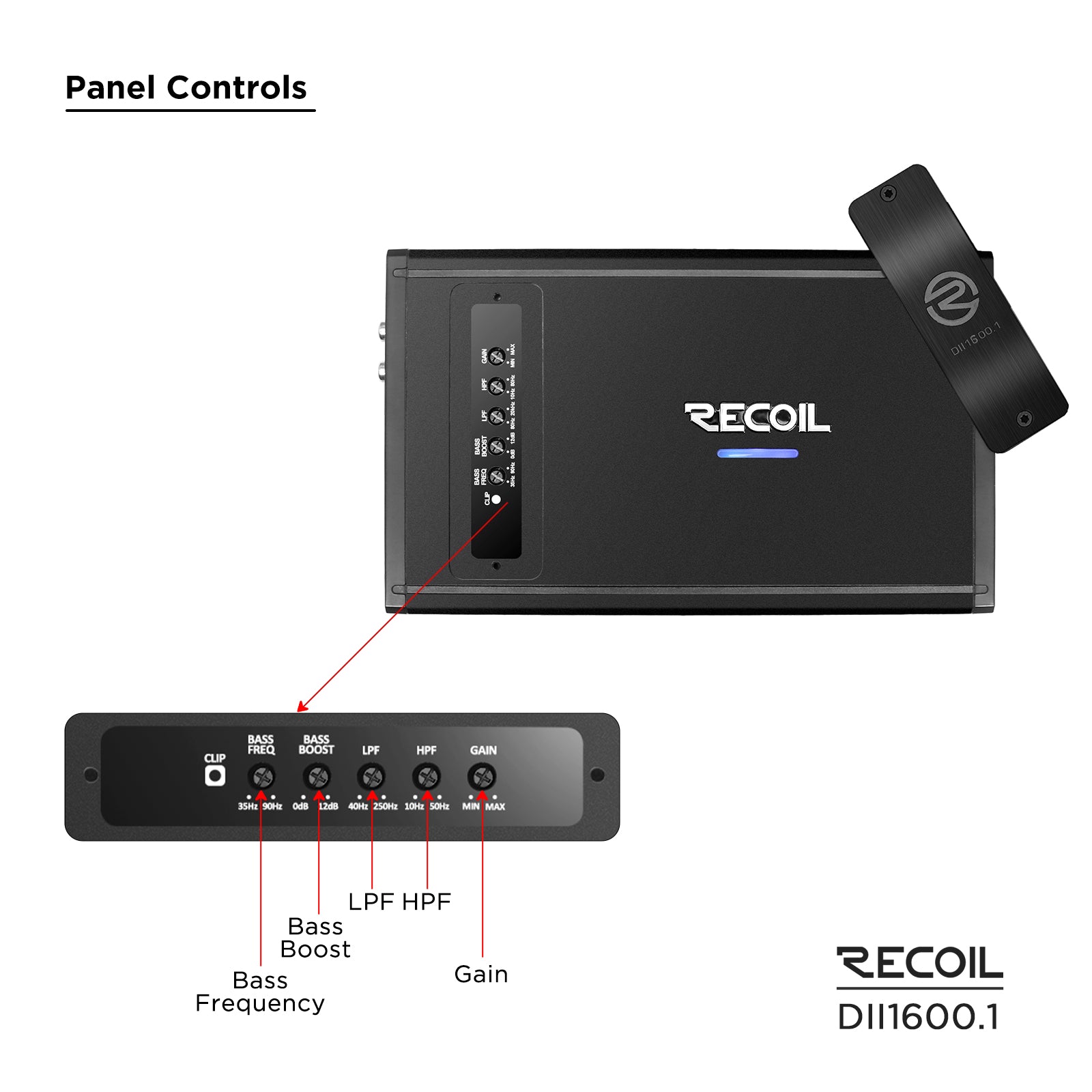

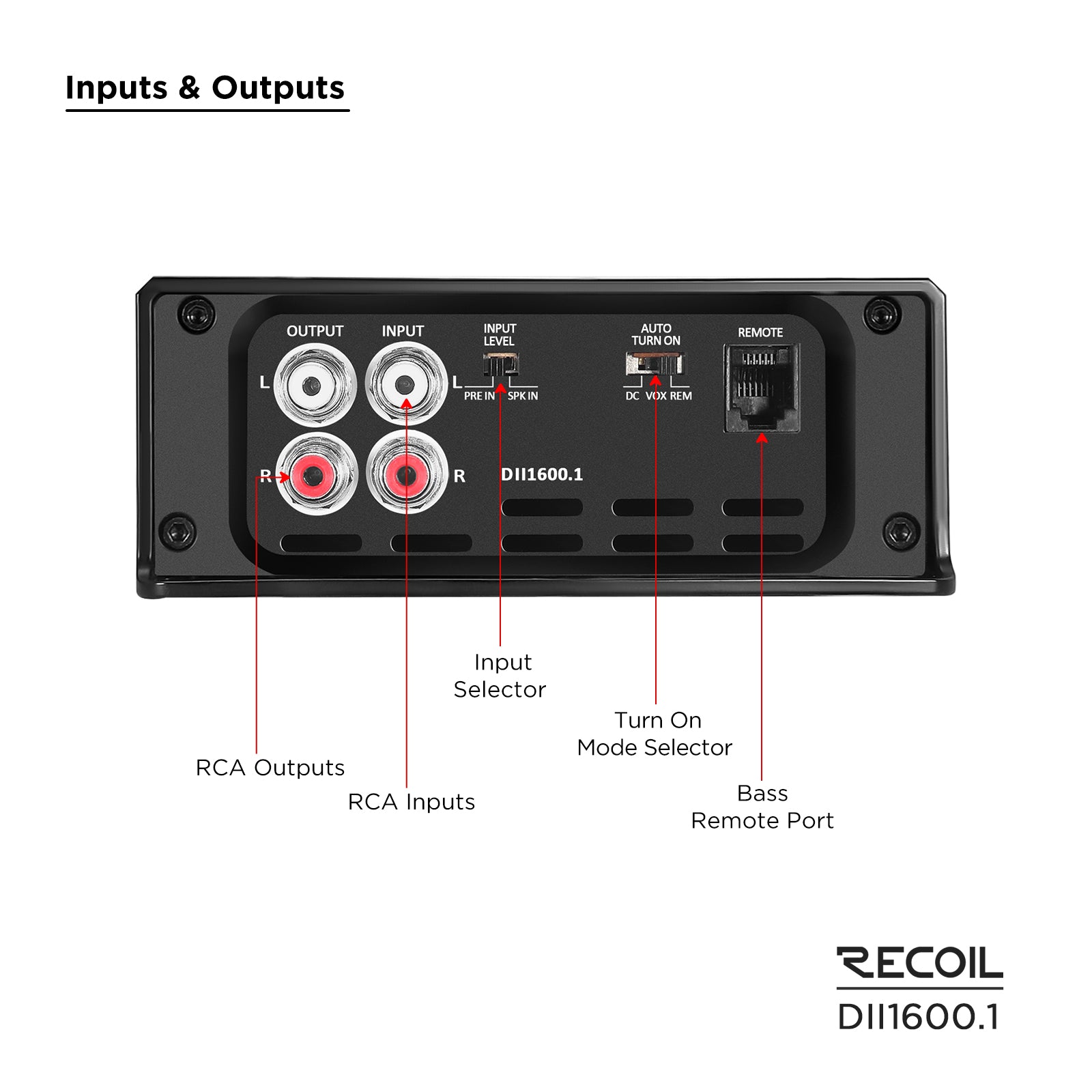

Recoil rates the amplifier at 850 watts RMS at 4 ohms and 1,600 watts RMS at 2 ohms, with a 3,200-watt maximum rating. It includes a conformal-coated circuit board, RCA-level and speaker-level inputs, selectable turn-on modes, pass-through RCA outputs, a bass remote, and top-mounted controls.
Specifications
| Model | DII1600.1 |
|---|---|
| Amplifier class | Class D |
| Channels | 1 |

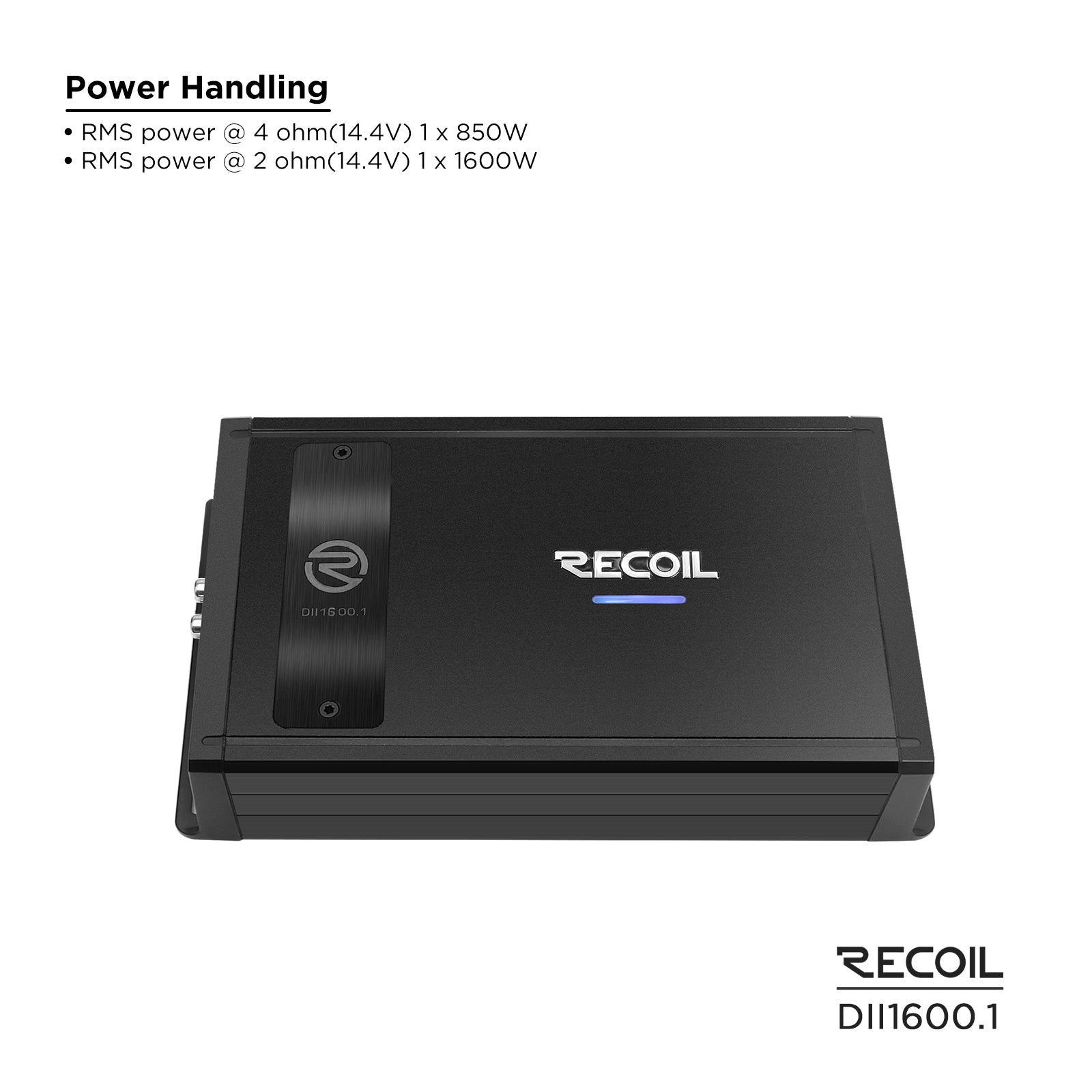

| RMS power at 4 ohms | 850 watts × 1 |
| RMS power at 2 ohms | 1,600 watts × 1 |
| Maximum power | 3,200 watts |
| Minimum impedance | 2 ohms |
| Frequency response | 10 Hz–24 kHz |
| Signal-to-noise ratio | 85 dB |
| Efficiency at 4 ohms | 78% |
| Input sensitivity | 0.25–12 volts |
| High-pass filter | 10–80 Hz |
| Low-pass filter | 80 Hz–20 kHz |
| Bass boost | 0–12 dB |
| Bass remote | Included |
| Fuse rating | 120 amps |

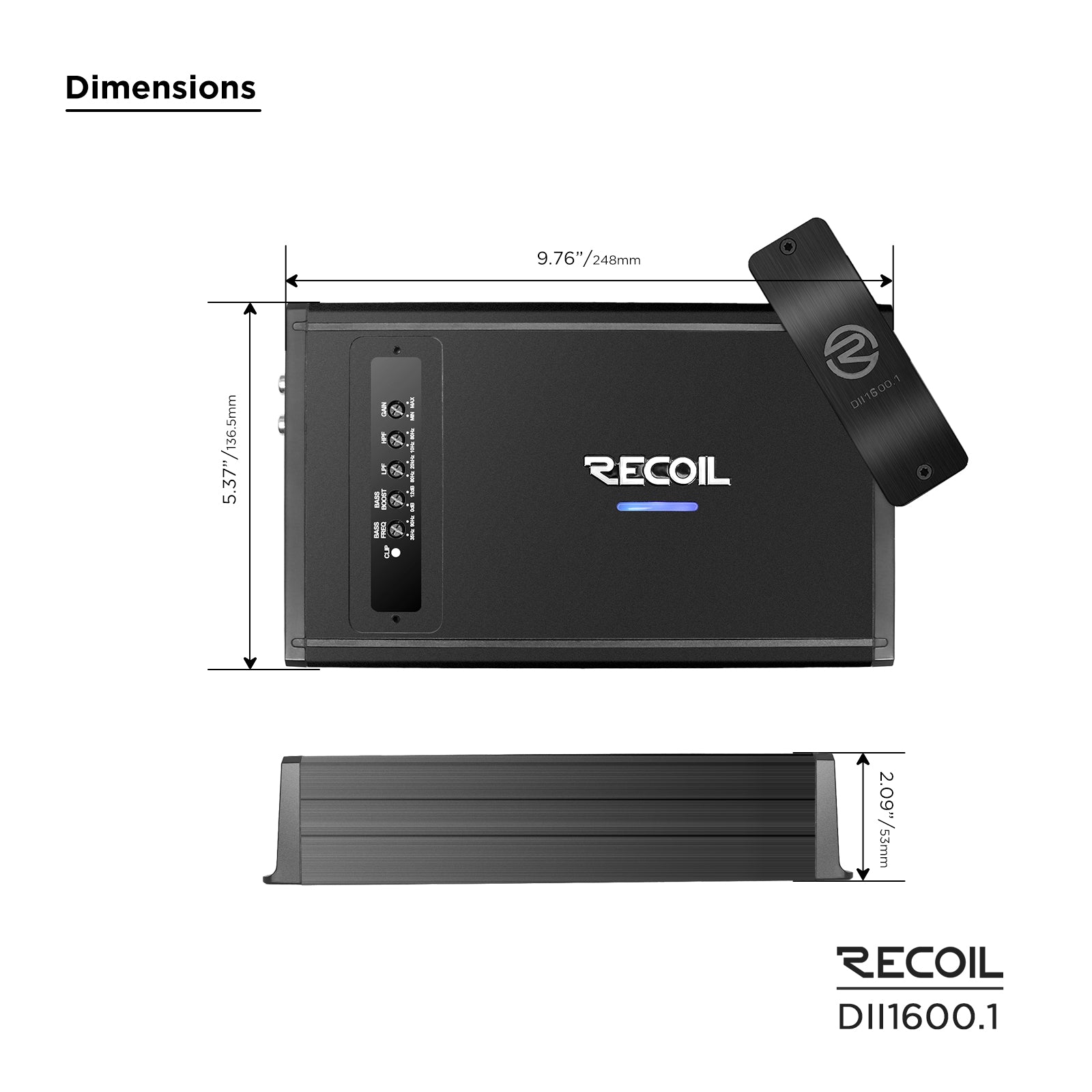

| Dimensions | 9.76 × 5.37 × 2.09 inches |
Confirm final subwoofer impedance, enclosure design, cable size, fuse location, battery reserve, alternator output, and operating voltage before installation.
