Description

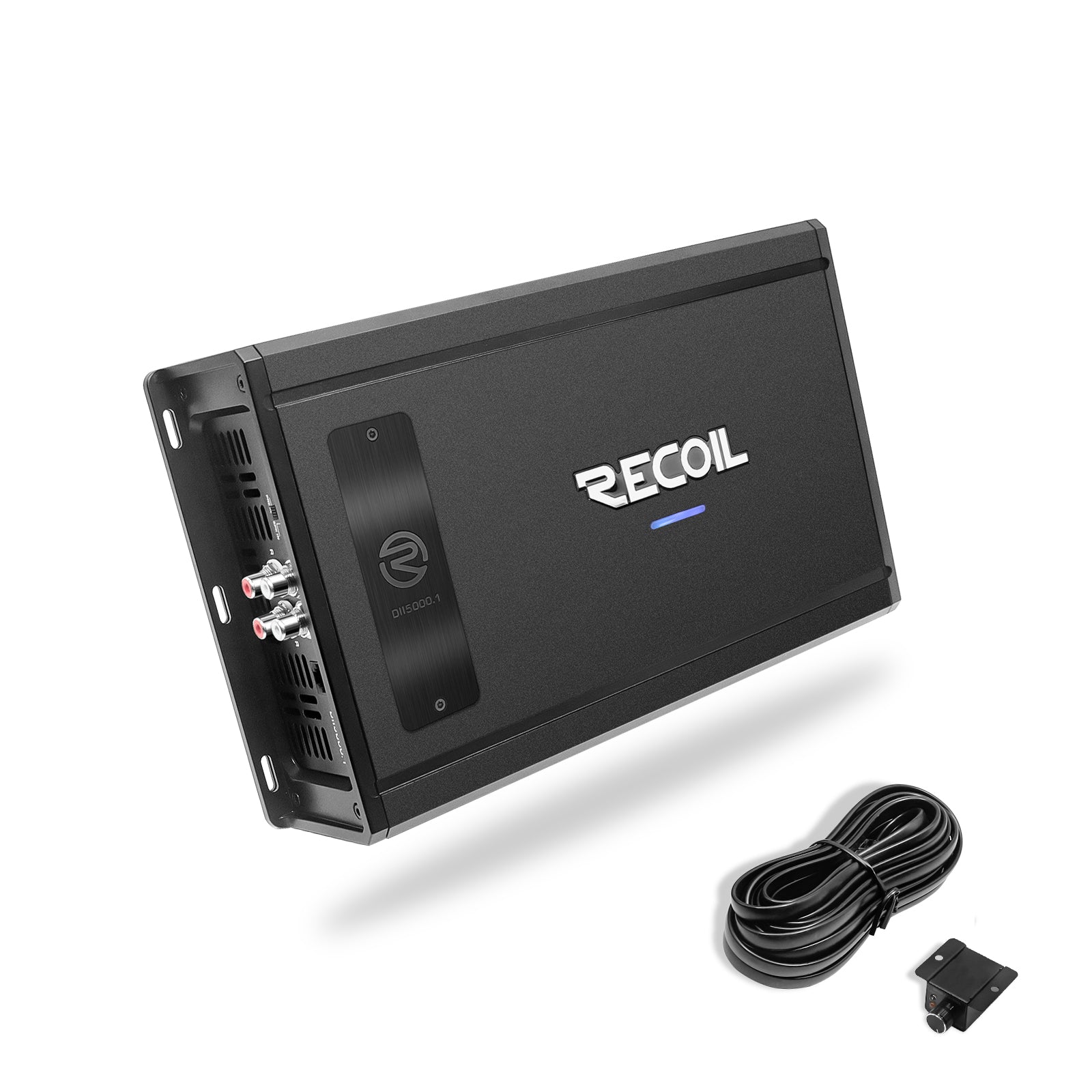

The Recoil DII5000.1 is a high-output Class-D monoblock amplifier for subwoofer systems operating at a compatible 1-, 2-, or 4-ohm final load.

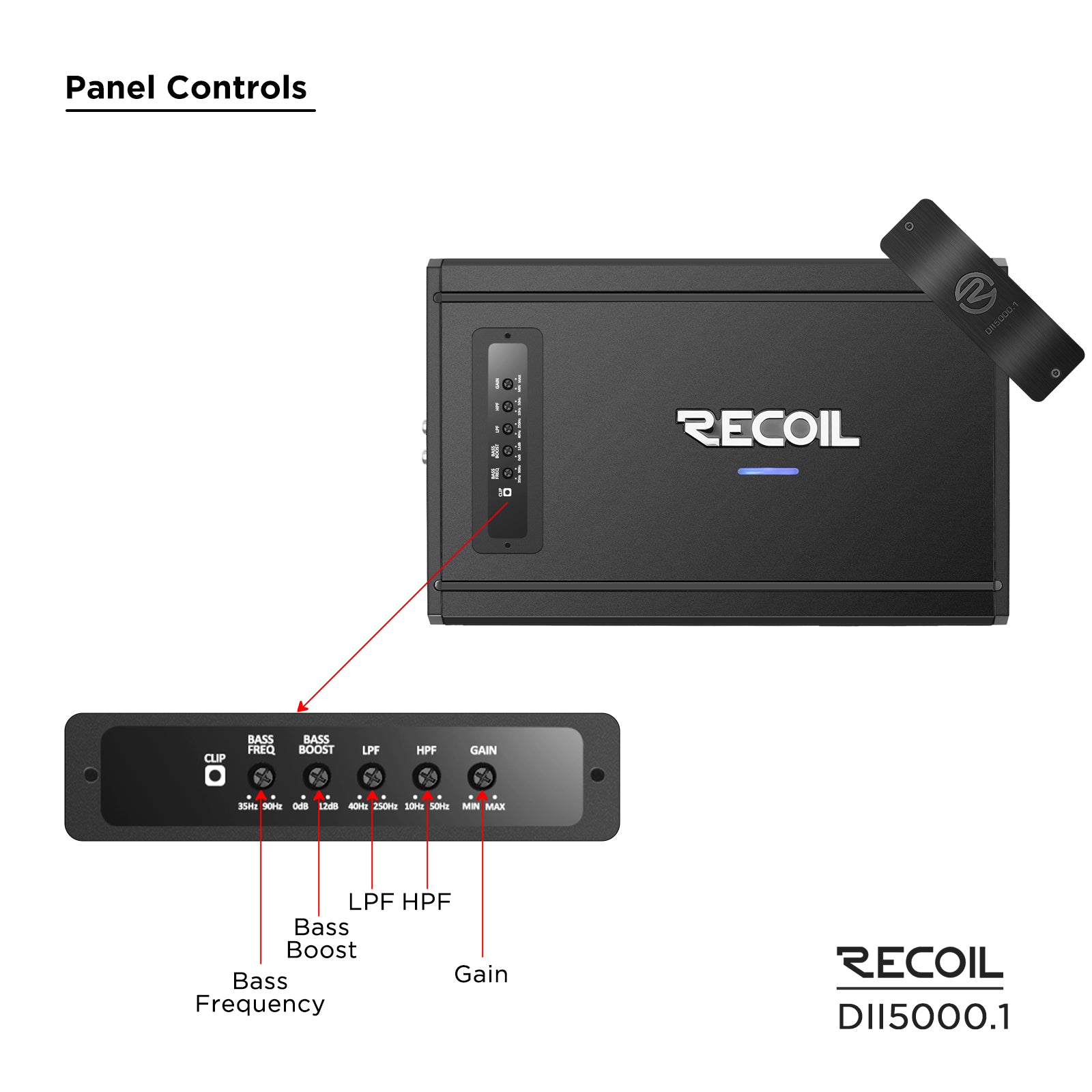

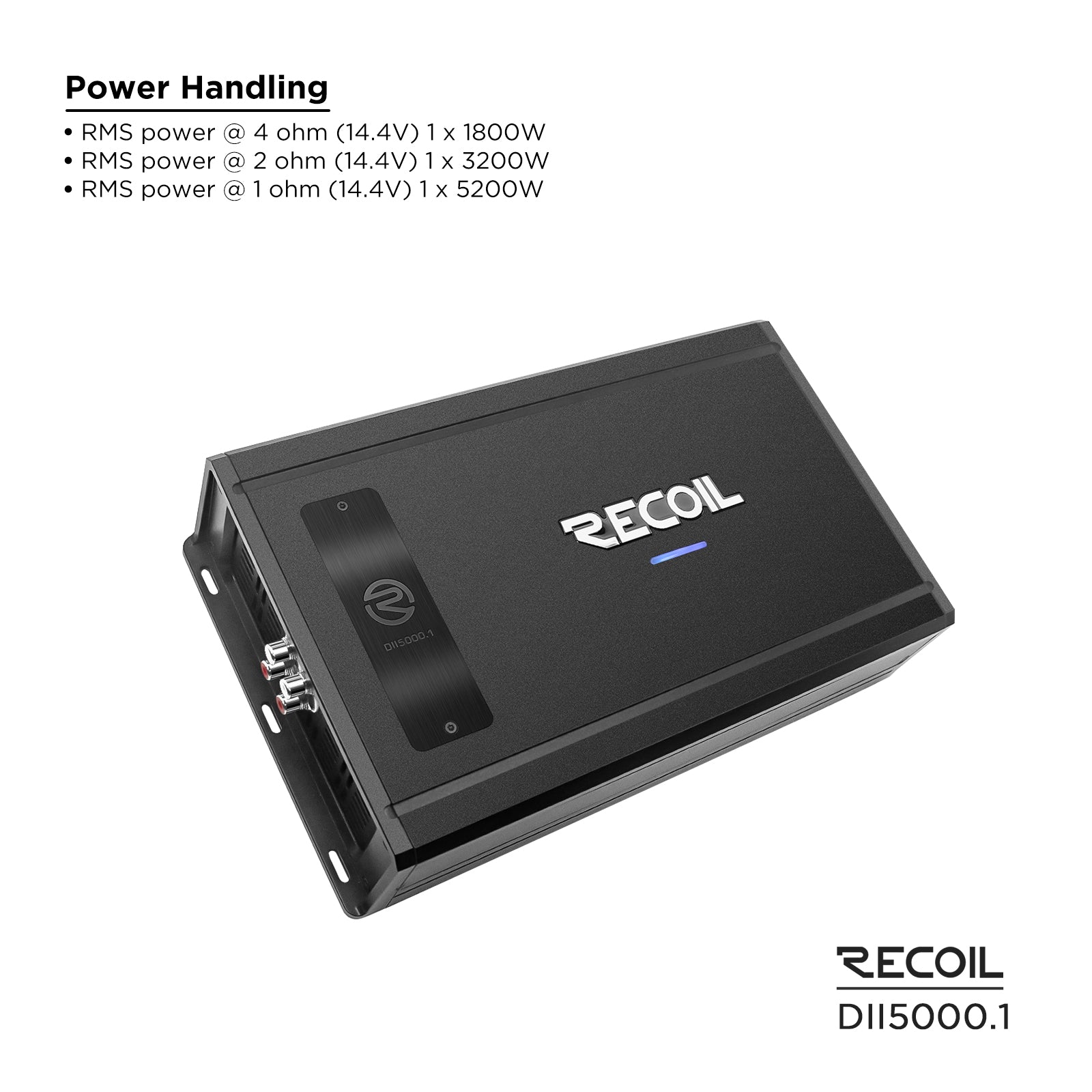

Recoil rates the amplifier at 1,800 watts RMS at 4 ohms, 3,180 watts RMS at 2 ohms, and 5,200 watts RMS at 1 ohm. It includes adjustable low-pass and high-pass filters, bass boost, a bass remote, clip indication, and a published 350-amp fuse requirement.
Specifications
| Model | DII5000.1 |
|---|---|
| Amplifier class | Class D |
| Channels | 1 |
| RMS power at 4 ohms | 1,800 watts × 1 |
| RMS power at 2 ohms | 3,180 watts × 1 |
| RMS power at 1 ohm | 5,200 watts × 1 |
| Operating voltage | 9–16 volts |
| Idle current | 2.2 amps |
| Frequency response | 10–275 Hz |
| Signal-to-noise ratio | 99 dB |
| THD+N at 1 watt | Less than 0.1% |
| Low-level input sensitivity | 1.2–13 volts |
| High-level input sensitivity | 0.2–3.3 volts |
| Bass boost | 0–16 dB |
| High-pass filter | 10–53 Hz |
| Low-pass filter | 48–275 Hz |
| Bass remote | Included |
| Clip indication | 1% |
| Fuse rating | 350 amps |

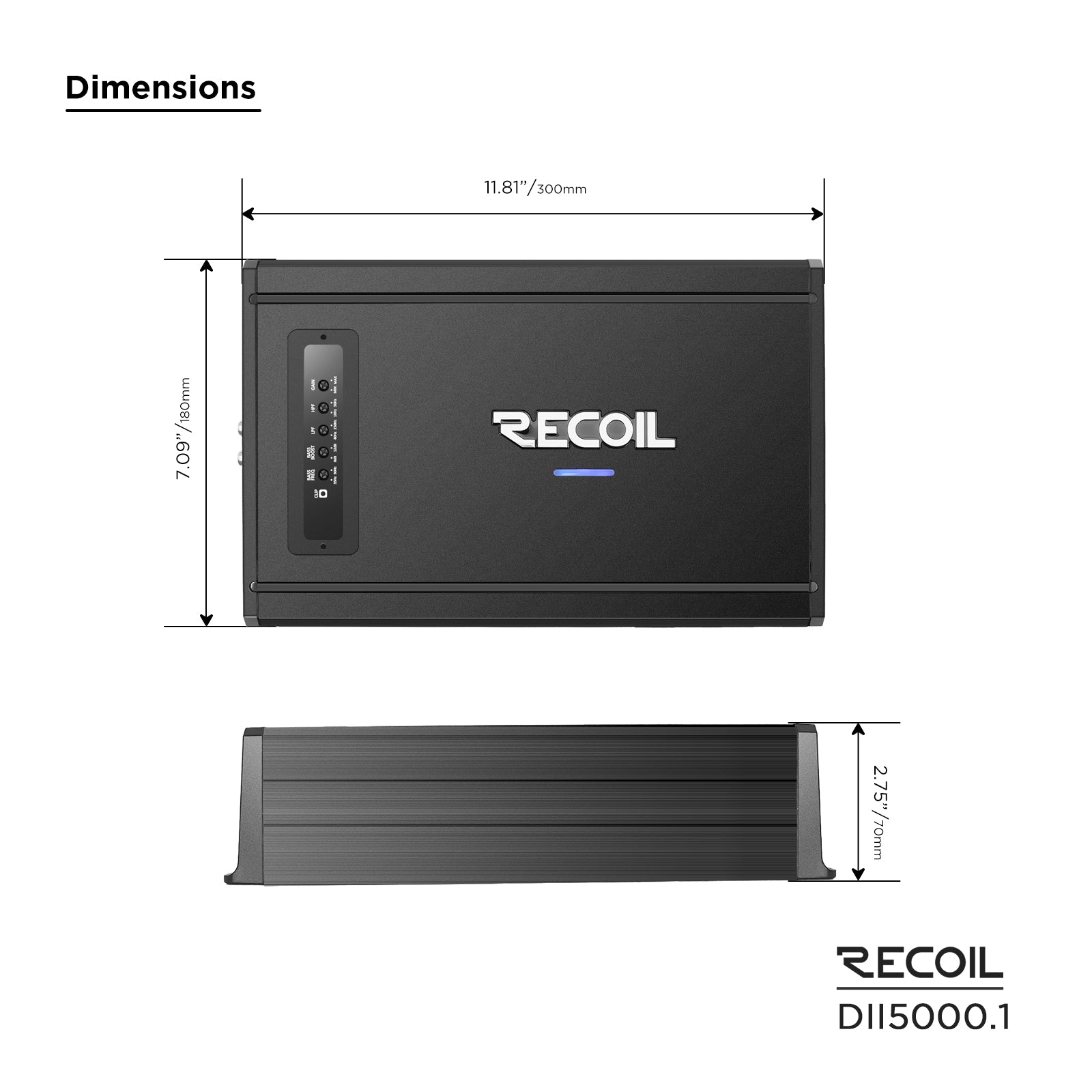

| Dimensions | 11.85 × 7.09 × 2.7 inches |
Confirm final subwoofer impedance, enclosure design, subsonic protection, cable and fuse sizing, battery reserve, alternator output, and operating voltage before installation.
