Description

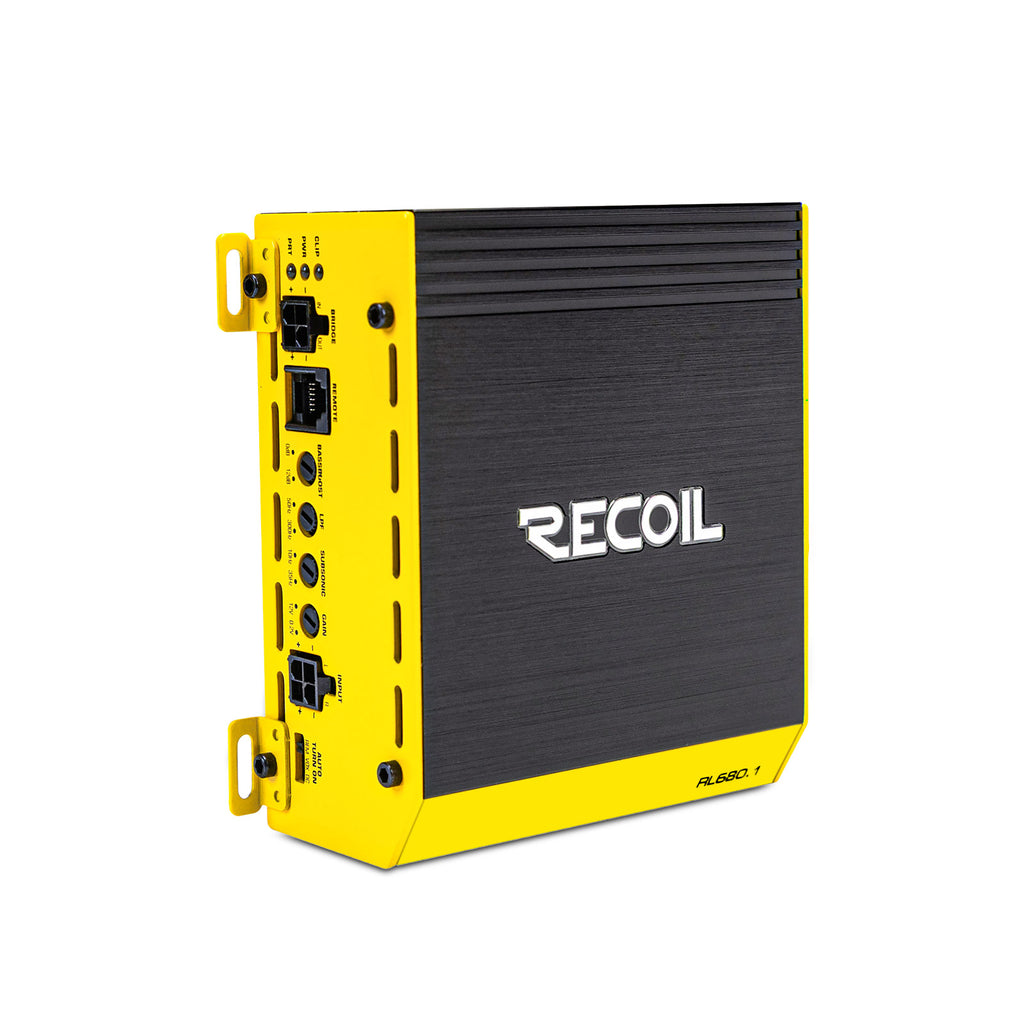

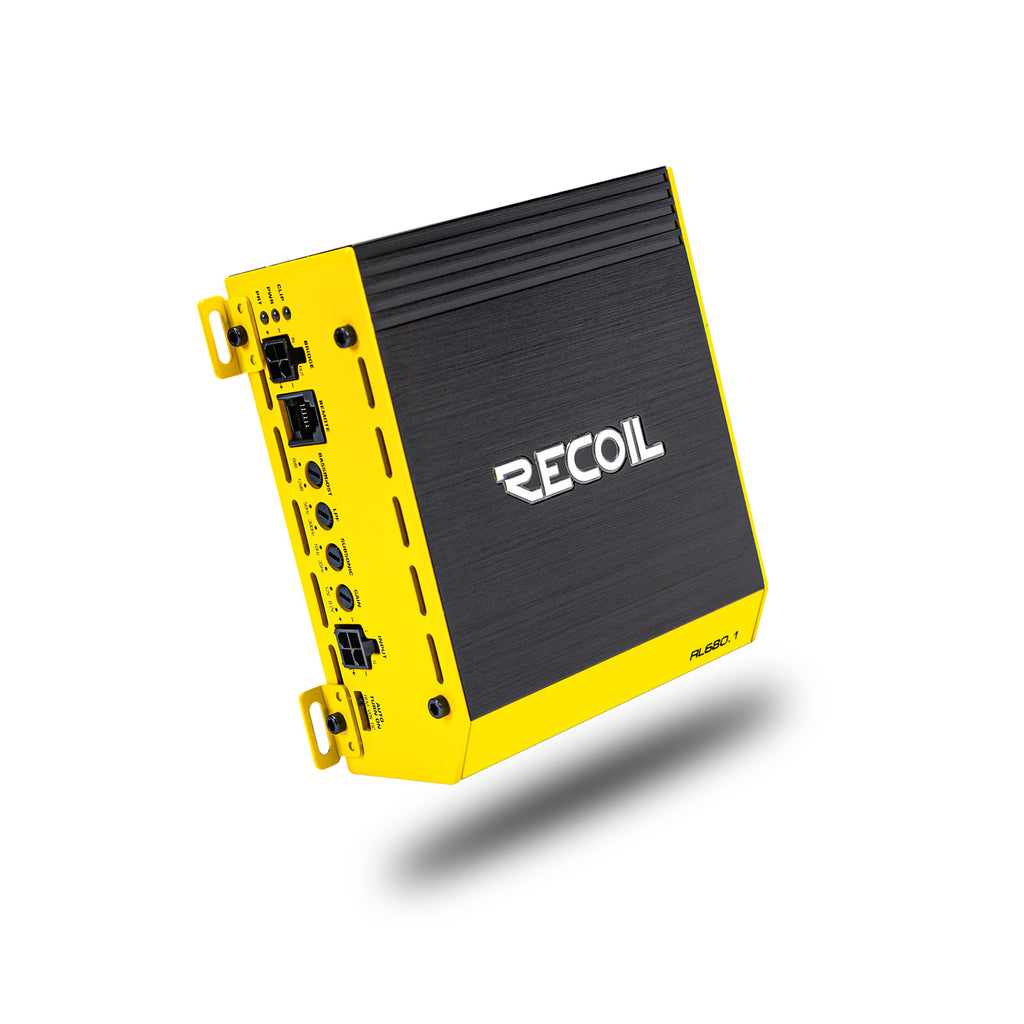

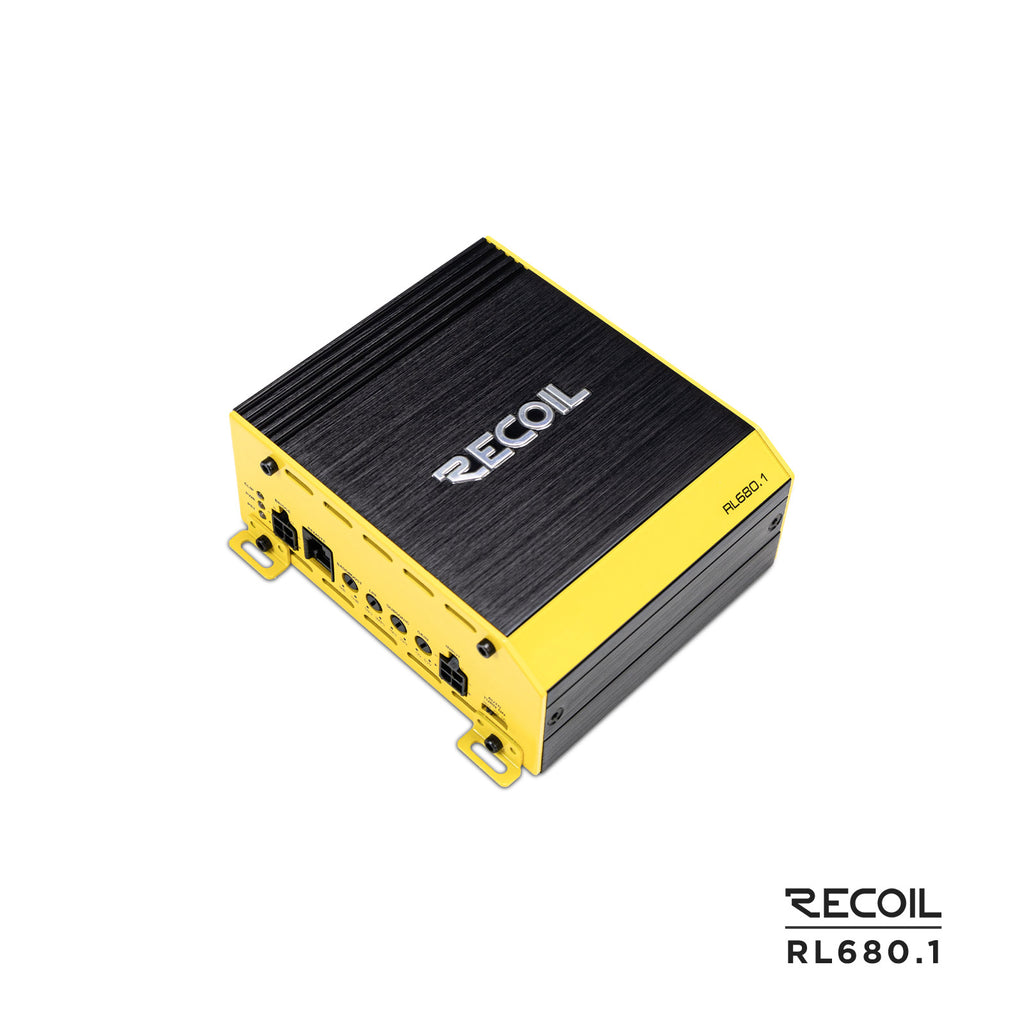

The Recoil Audio RL680.1 is a compact Class-D monoblock amplifier designed for subwoofer systems that need useful low-frequency power from a very small chassis. It is stable down to 1 ohm and includes adjustable low-pass, subsonic, and bass-boost controls for system integration.
At 14.4 volts, the amplifier is rated for 680 watts by one channel at 1 ohm, 500 watts by one at 2 ohms, and 260 watts by one at 4 ohms. Its wide 220 mV to 12 V low-level input range supports integration with many aftermarket source units and processors.
Specifications
| Model | RL680.1 |
|---|---|
| Amplifier type | Compact monoblock subwoofer amplifier |
| Amplifier class | Class D |
| Channels | 1 |

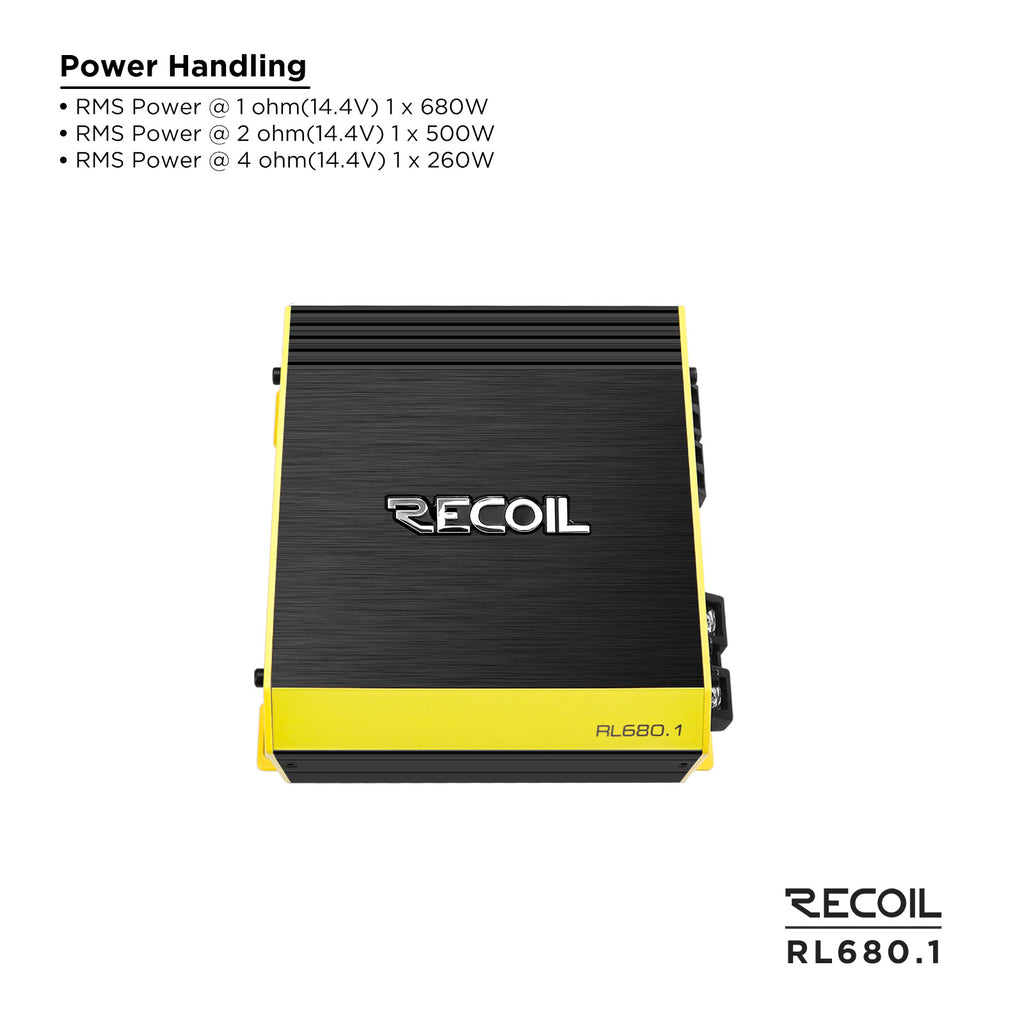

| RMS output at 1 ohm | 680 watts x 1 at 14.4 volts |
| RMS output at 2 ohms | 500 watts x 1 at 14.4 volts |
| RMS output at 4 ohms | 260 watts x 1 at 14.4 volts |
| Operating voltage | 9–16 volts |
| Frequency response | 10 Hz–300 Hz |
| Signal-to-noise ratio | 94 dB |
| THD+N at 1 watt | 0.23% |
| Low-level input sensitivity | 220 mV–12 V |

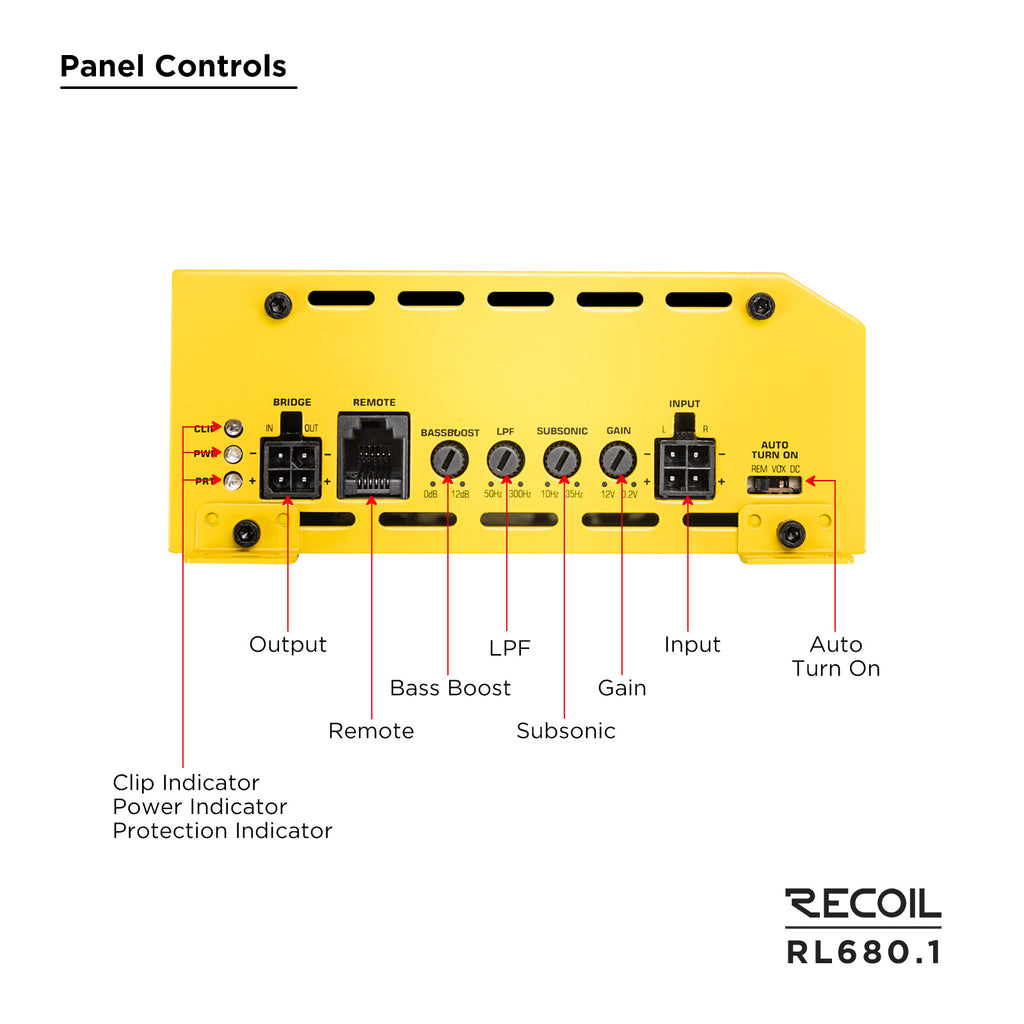

| Bass boost | 0–12 dB |
| Subsonic filter | 10 Hz–35 Hz |
| Low-pass filter | 50 Hz–300 Hz |
| Bass remote | Included |
| Fuse rating | 40 A |

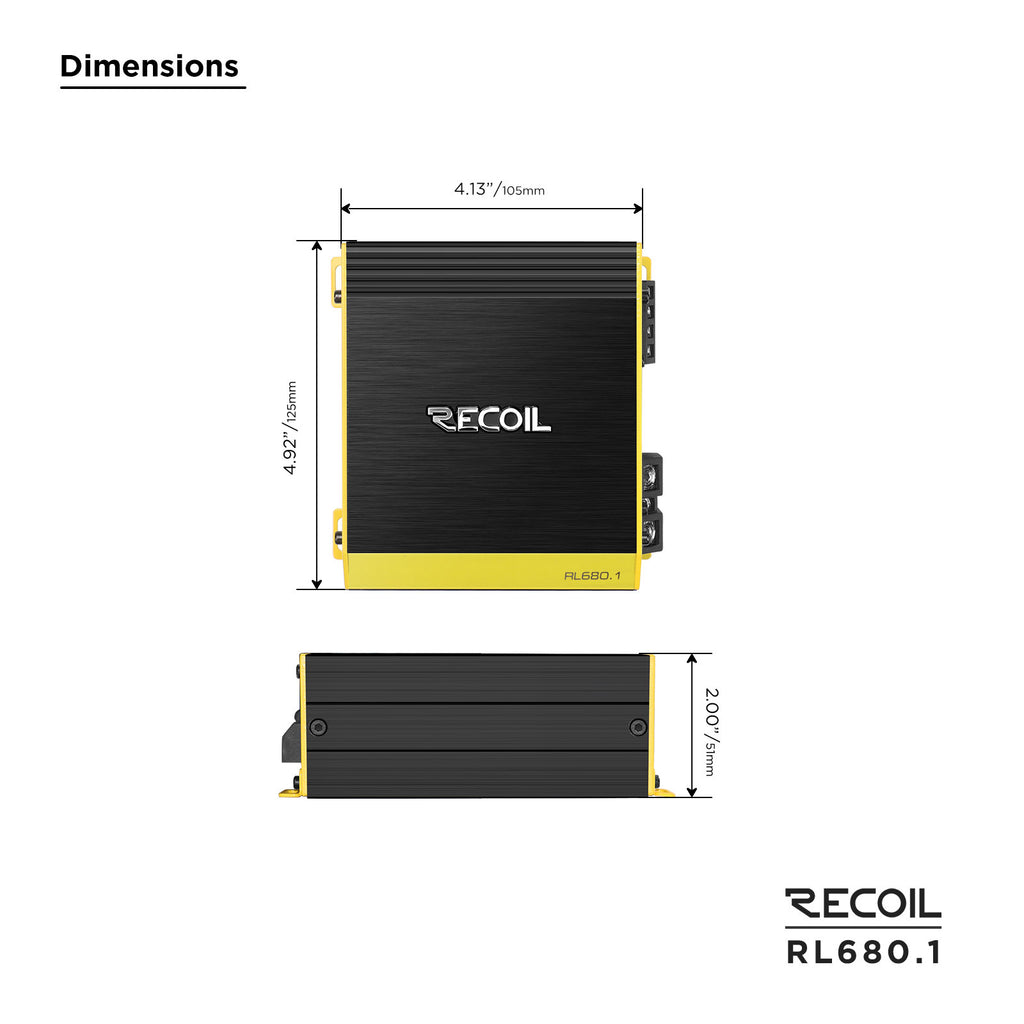

| Dimensions | 4.13 x 4.92 x 2 inches / 105 x 125 x 51 mm |
Features
- Compact Class-D chassis fits space-conscious installations.
- 1-ohm stability supports compatible single- and multi-subwoofer wiring.
- Adjustable subsonic filter helps protect vented subwoofer systems below enclosure tuning.
- Adjustable low-pass filter controls the upper frequency delivered to the subwoofer.

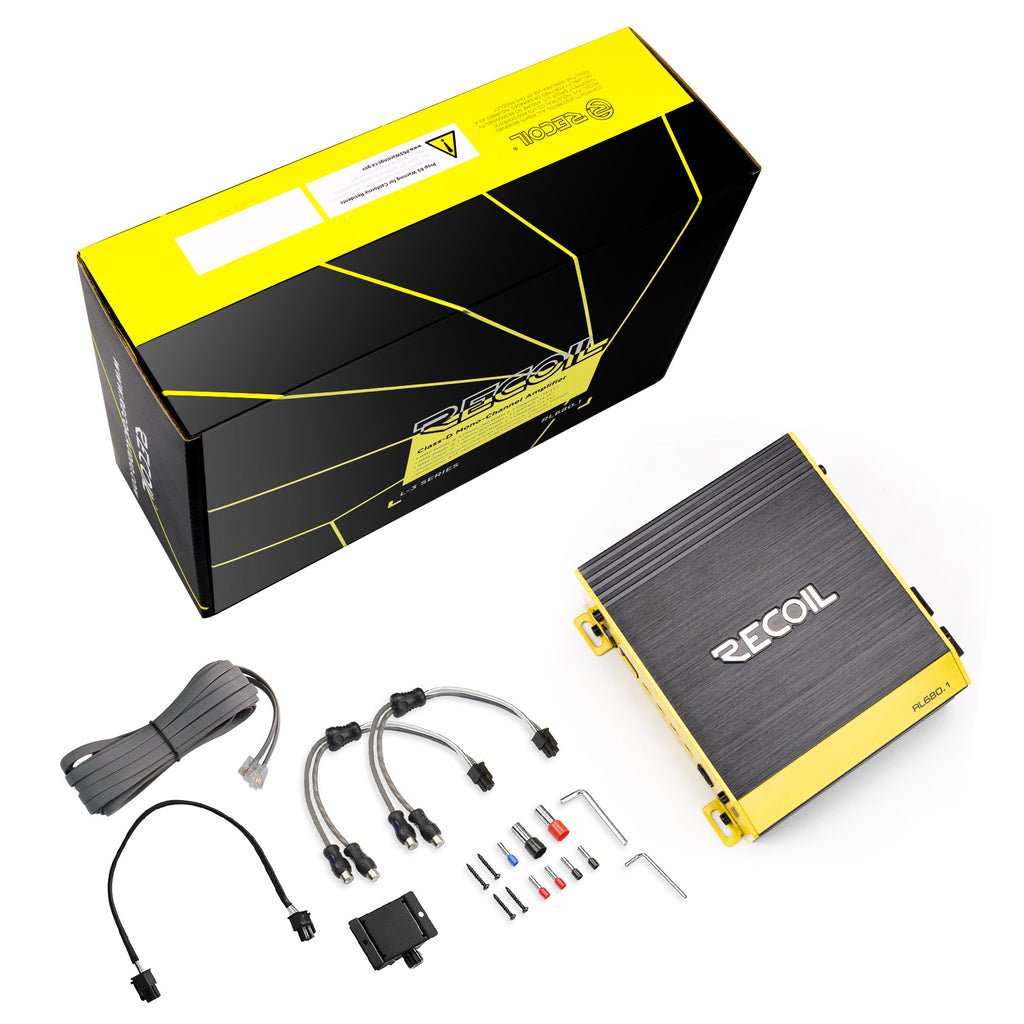

- Included bass remote provides convenient level adjustment from the listening position.
- Wide input-sensitivity range supports many source units and processors.

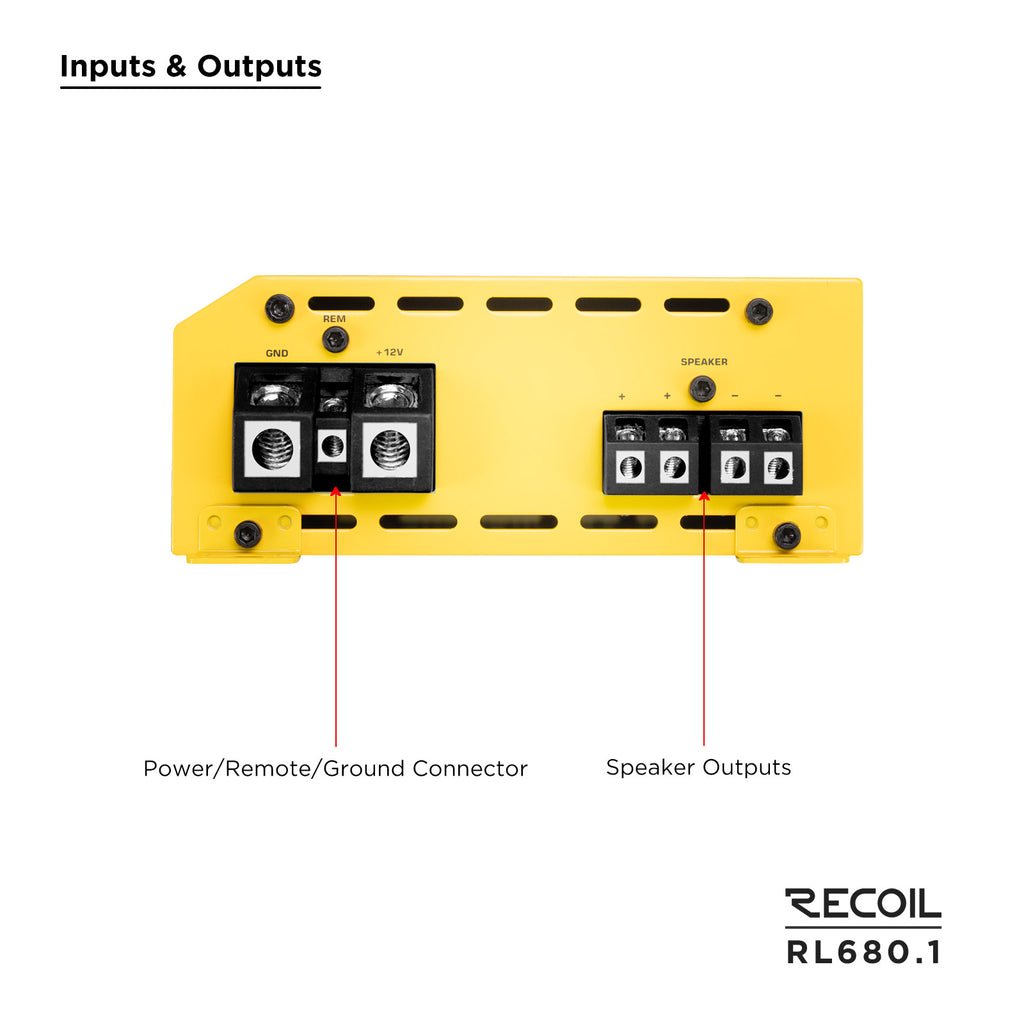

- Requires correctly sized power, ground, fuse protection, and adequate electrical support.
