Description
Description

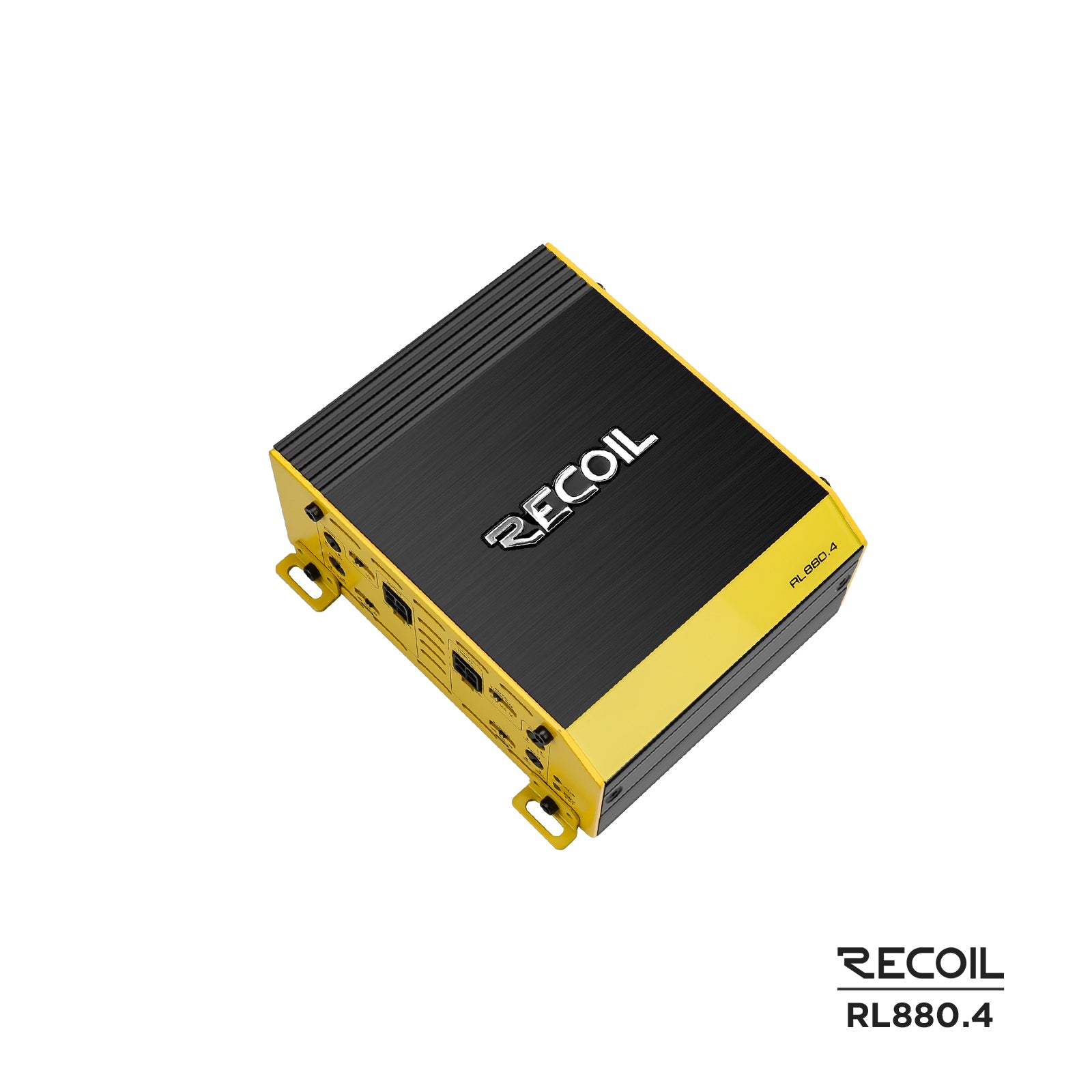

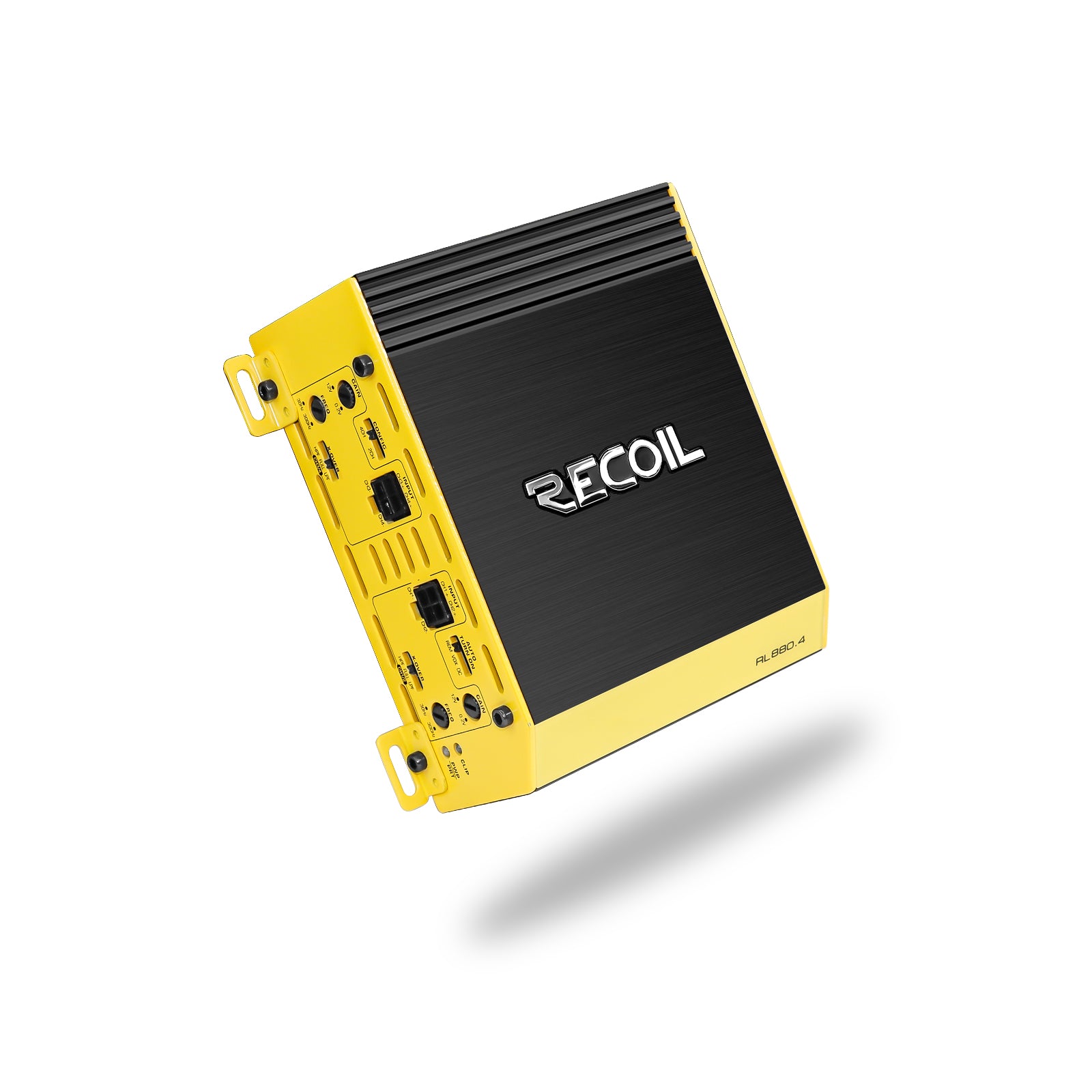

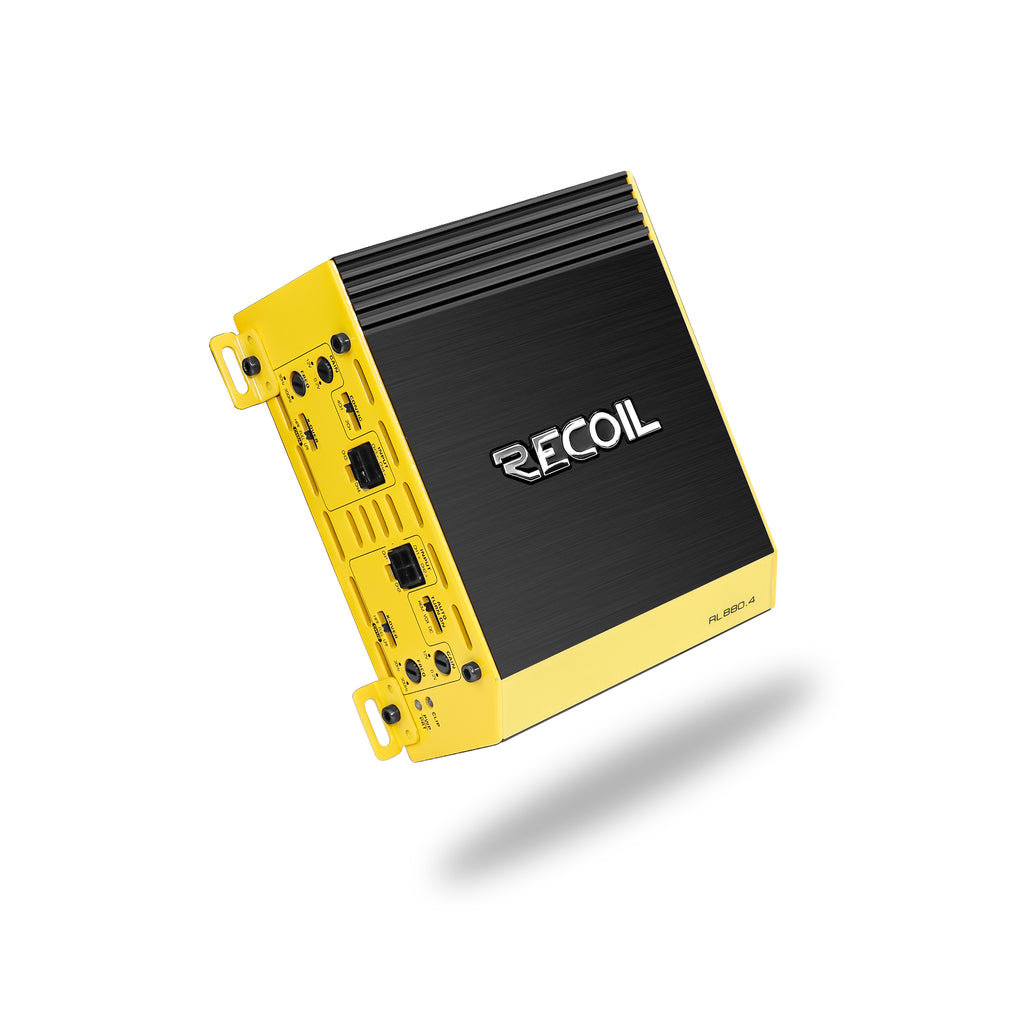

The Recoil Audio RL880.4 is a compact L-3 Series four-channel full-range amplifier designed for front and rear speaker systems, multiple pro-audio drivers, or compatible active configurations. Its bridgeable channel layout can provide four stereo outputs or two higher-power bridged channels.

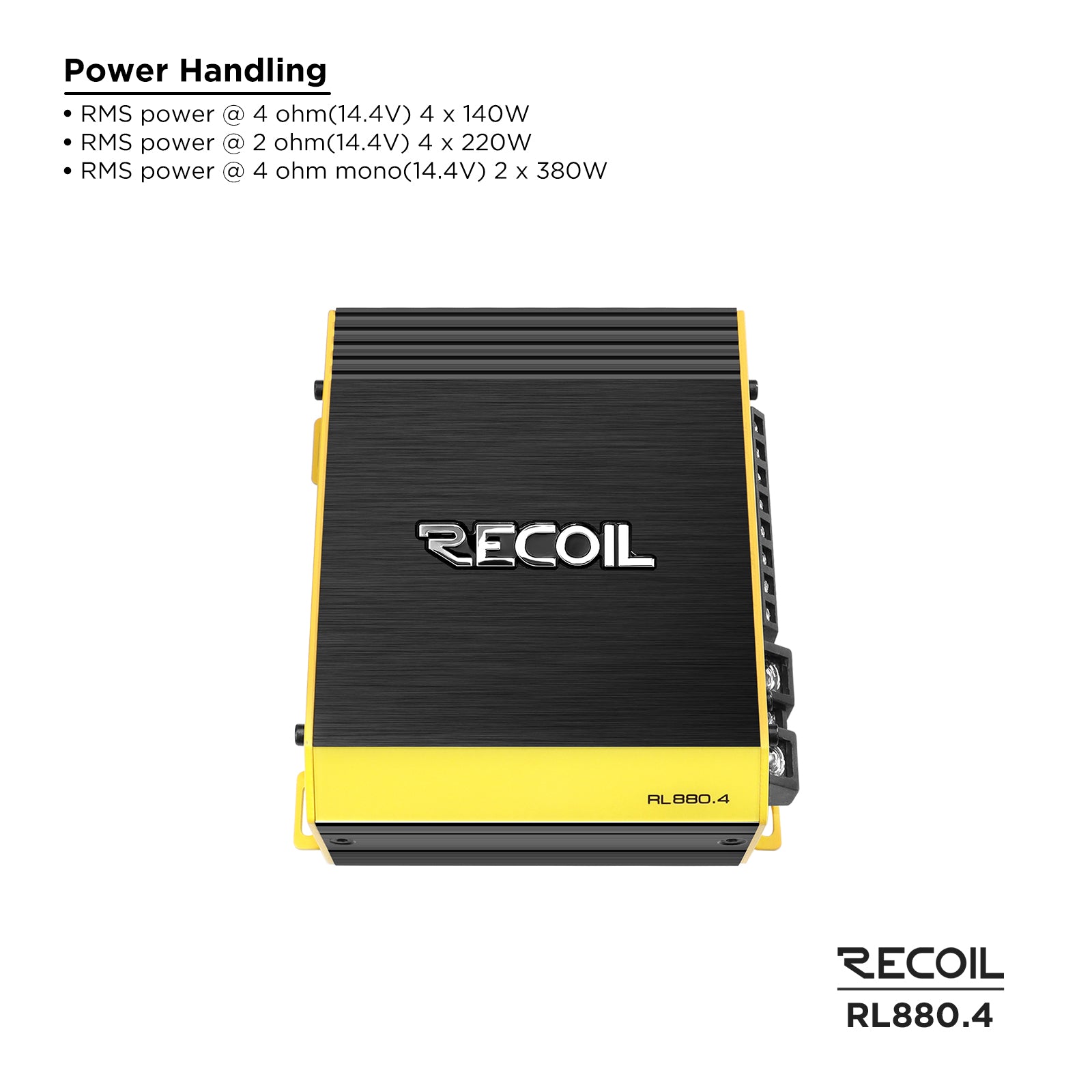

The amplifier is rated for 140 watts by four channels at 4 ohms, 220 watts by four at 2 ohms, and 380 watts by two channels bridged at 4 ohms. Selectable high-pass, low-pass, and full-range modes support flexible system integration.
Specifications
| Model | RL880.4 |
|---|---|
| Series | L-3 Series |
| Amplifier type | Four-channel full-range amplifier |
| Channels | 4 |
| Output at 4 ohms | 140 watts x 4 |
| Output at 2 ohms | 220 watts x 4 |
| Bridged output at 4 ohms | 380 watts x 2 |
| Crossover modes | High-pass, low-pass, and full-range |

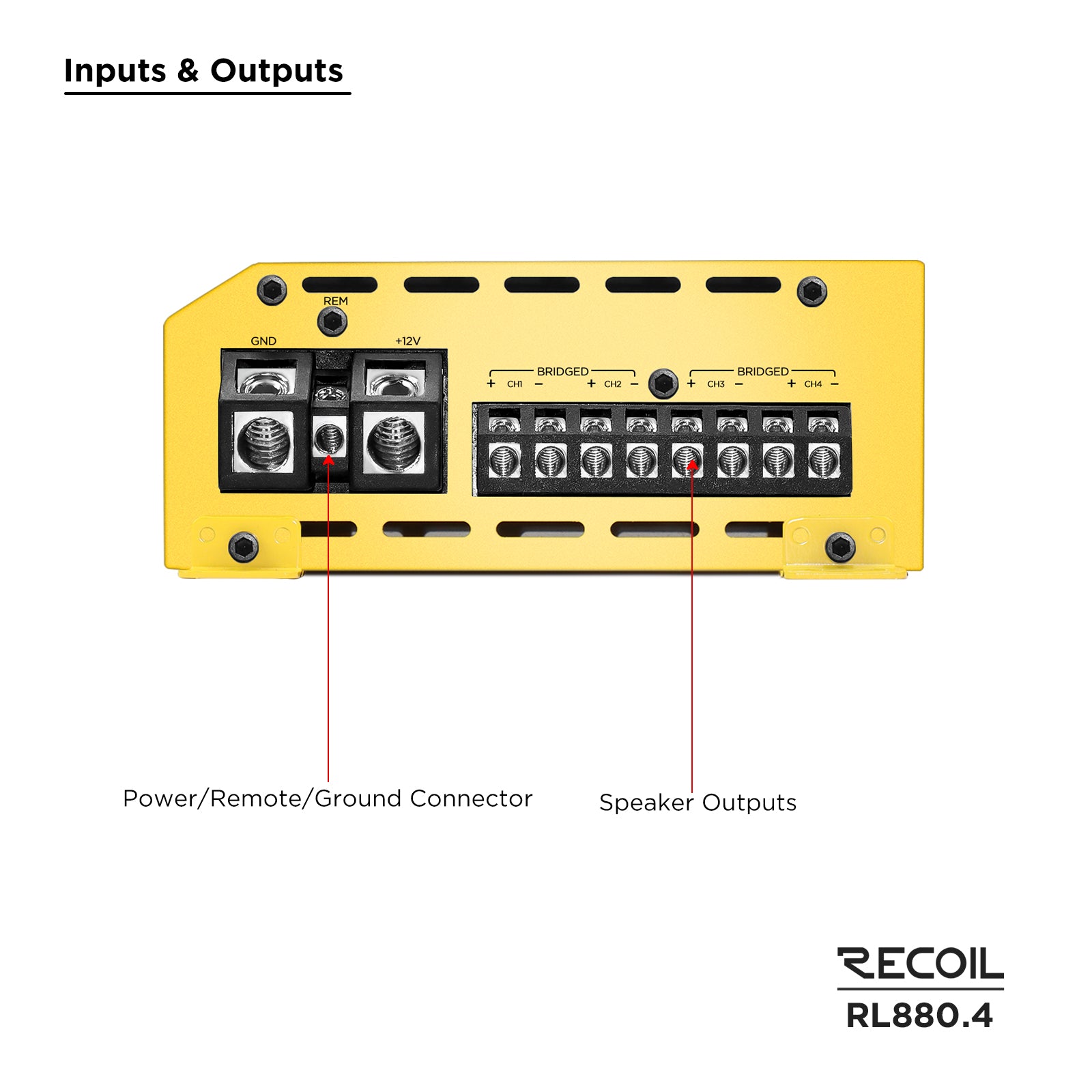

| Inputs | RCA and speaker-level |
| Clip indicator | Yes |
| Protection | Thermal, voltage, and short-circuit protection |

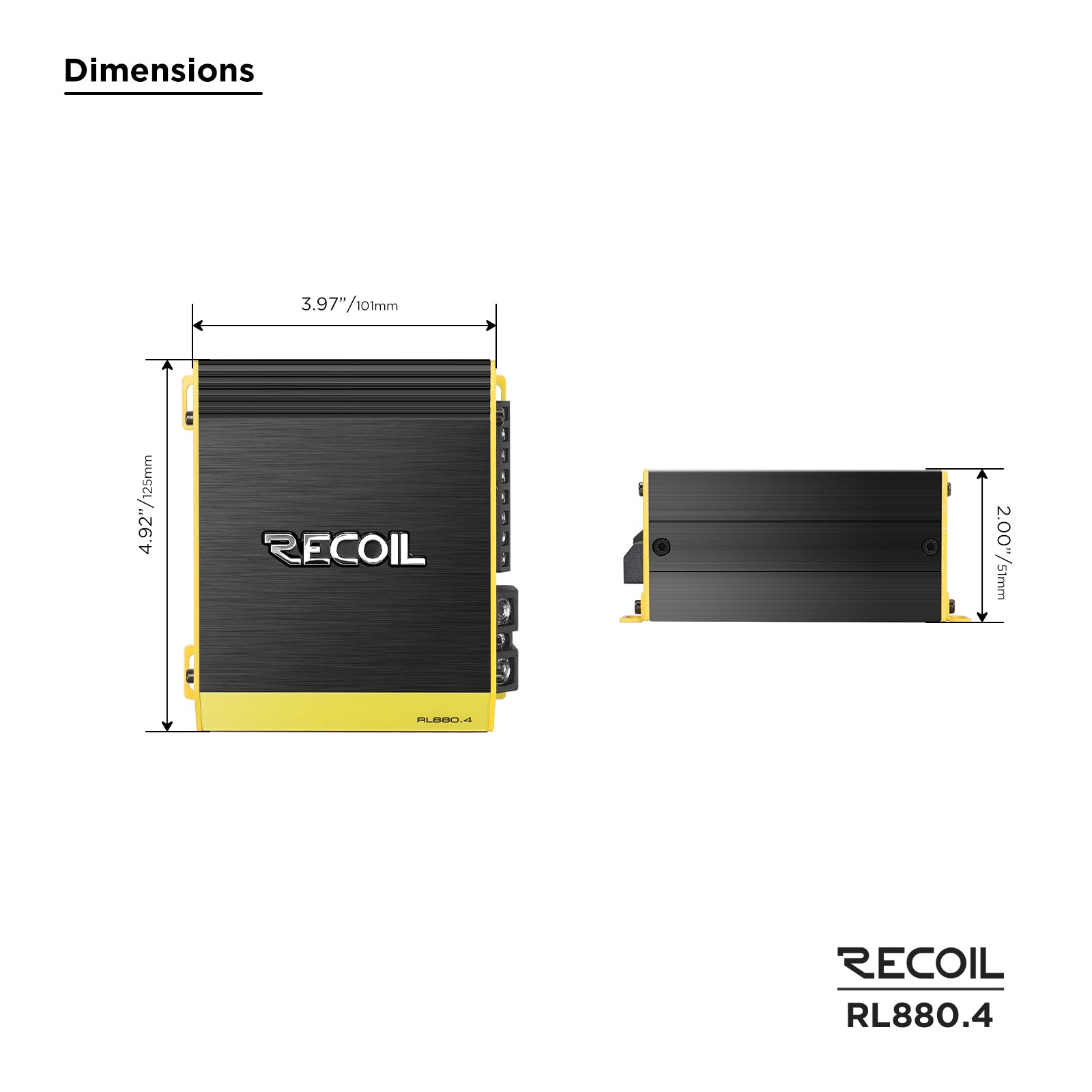

| Dimensions | 3.98 x 4.92 x 2.01 inches |
| Published amplifier class | Not listed in the current manufacturer record |
| Published frequency response and input sensitivity | Not listed in the current manufacturer record |
Features
- Compact four-channel chassis supports limited-space installations.
- 140 watts x 4 at 4 ohms and 220 watts x 4 at 2 ohms provide flexible speaker-system power.
- Bridgeable output supports compatible higher-power two-channel layouts.

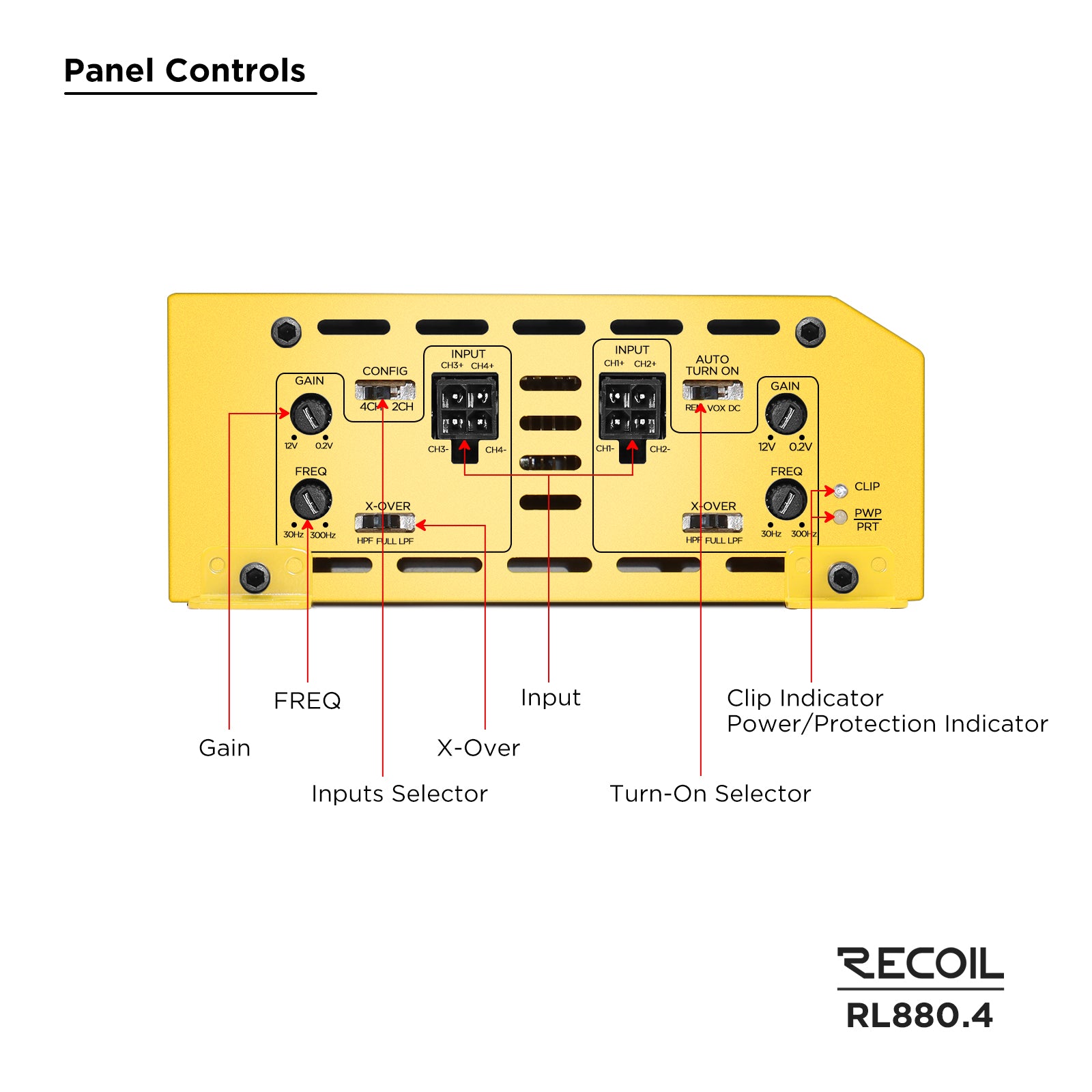

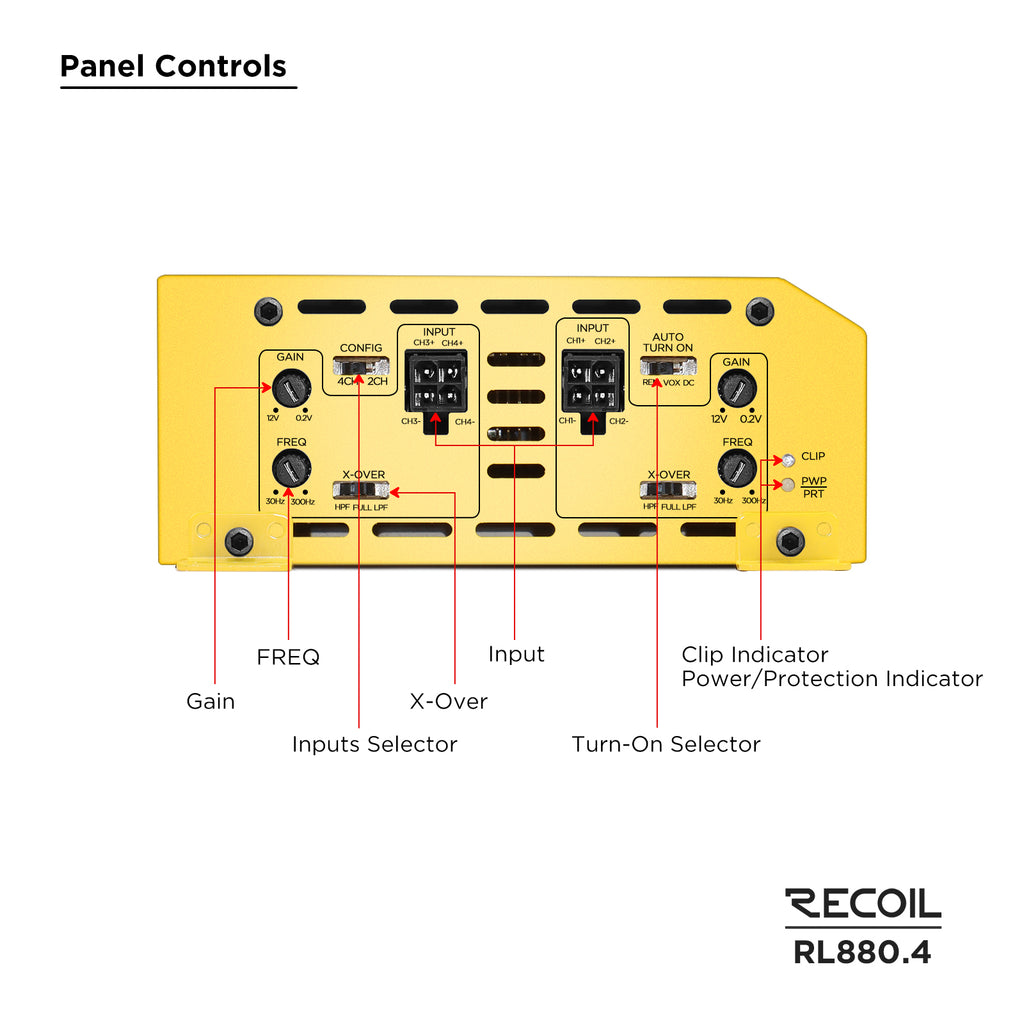

- Selectable HPF, LPF, and full-range modes support multiple system configurations.
- RCA and speaker-level inputs simplify integration with aftermarket or factory sources.
- Clip indicator assists with amplifier setup.
- Thermal, voltage, and short-circuit protection monitor operating conditions.
