Description

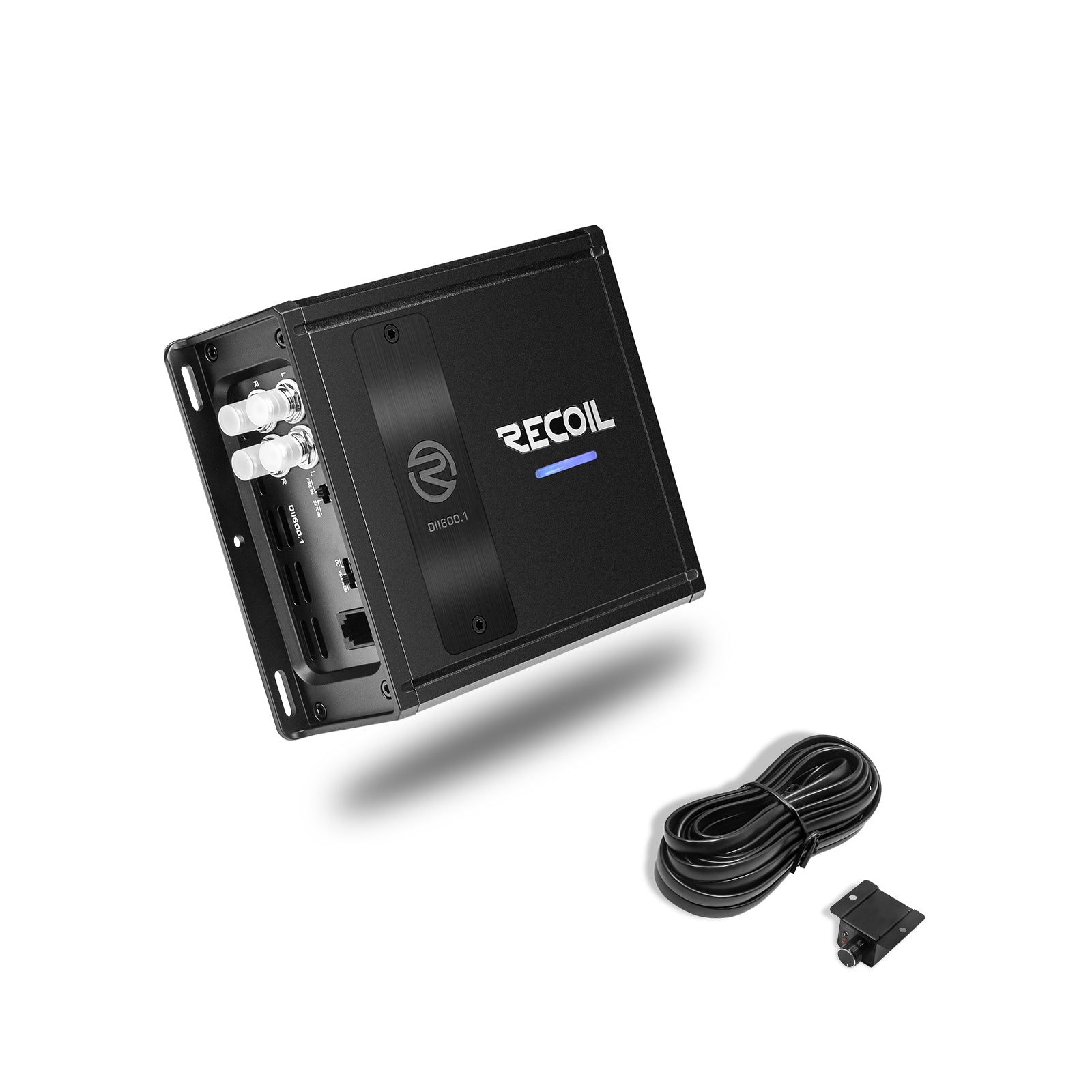

DII600.1 — Compact Mono Amplifier — 700W RMS @ 1Ω
Choose the DII600.1 when the bass stage needs useful 1-ohm power but packaging matters more than chasing a four-digit model number. It is a good fit for a single efficient subwoofer or a modest dual-sub system whose final wiring lands at 1, 2 or 4 ohms.

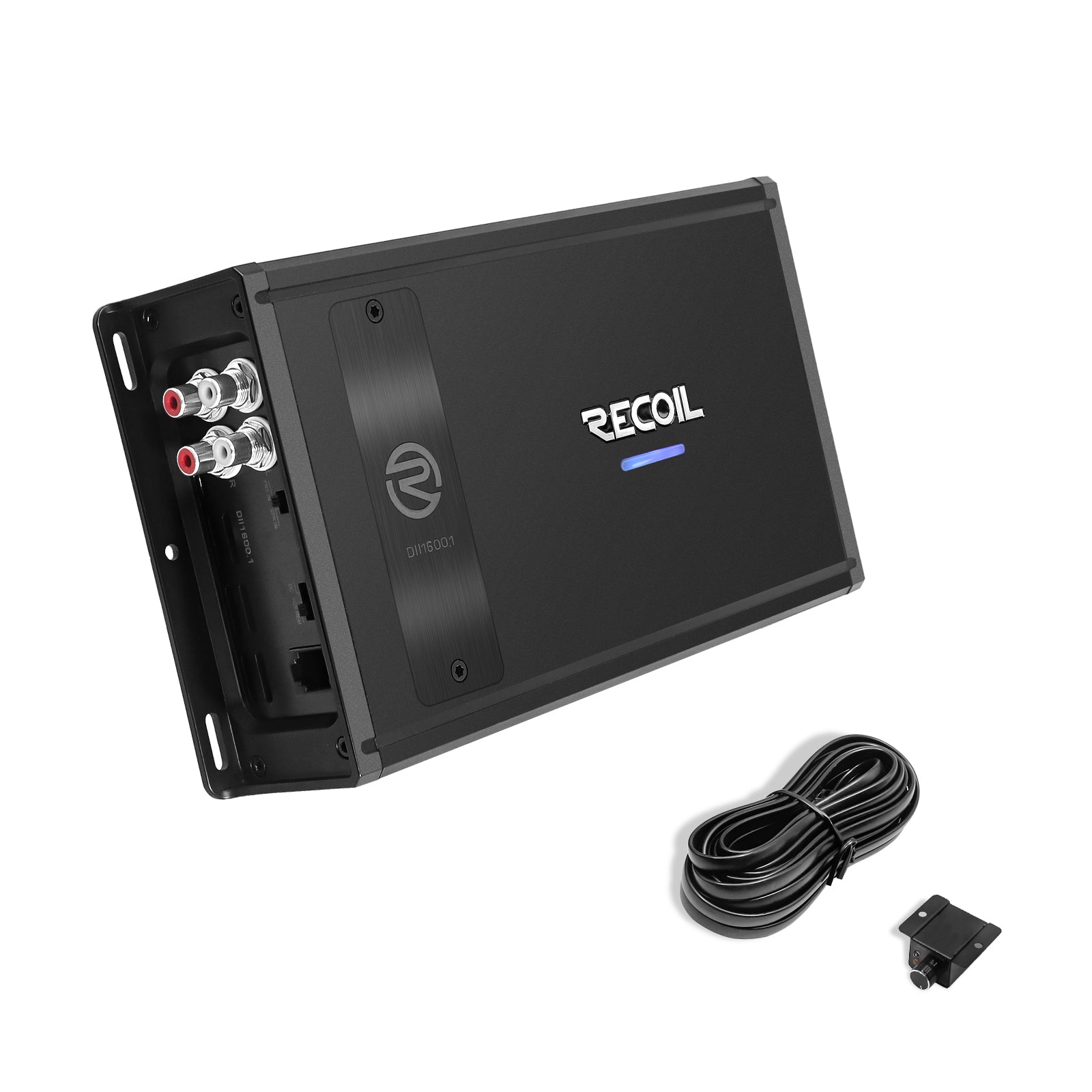

SMS would use it when roughly 700 watts at 1 ohm is enough for the actual sub stage. If the woofer system naturally lands at 2 ohms and needs closer to 1,000 watts, DII1000.1 makes more sense. If the subs need substantially more power at 1 ohm, move up to DII1600.1 instead of running the 600.1 at its limit.
MANUFACTURER SPECIFICATIONS
• 265W RMS x1 @ 4Ω
• 465W RMS x1 @ 2Ω
• 700W RMS x1 @ 1Ω
• Frequency response: 10 Hz–250 Hz
• S/N: 100 dB
• Input sensitivity: 0.25–12V
• HPF/subsonic: 10–50 Hz
• LPF: 40–250 Hz
• Bass boost: 0–12 dB
• Remote bass control included
• Fuse rating: 50A
• Dimensions: 6.73 x 5.37 x 2.09 in
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
