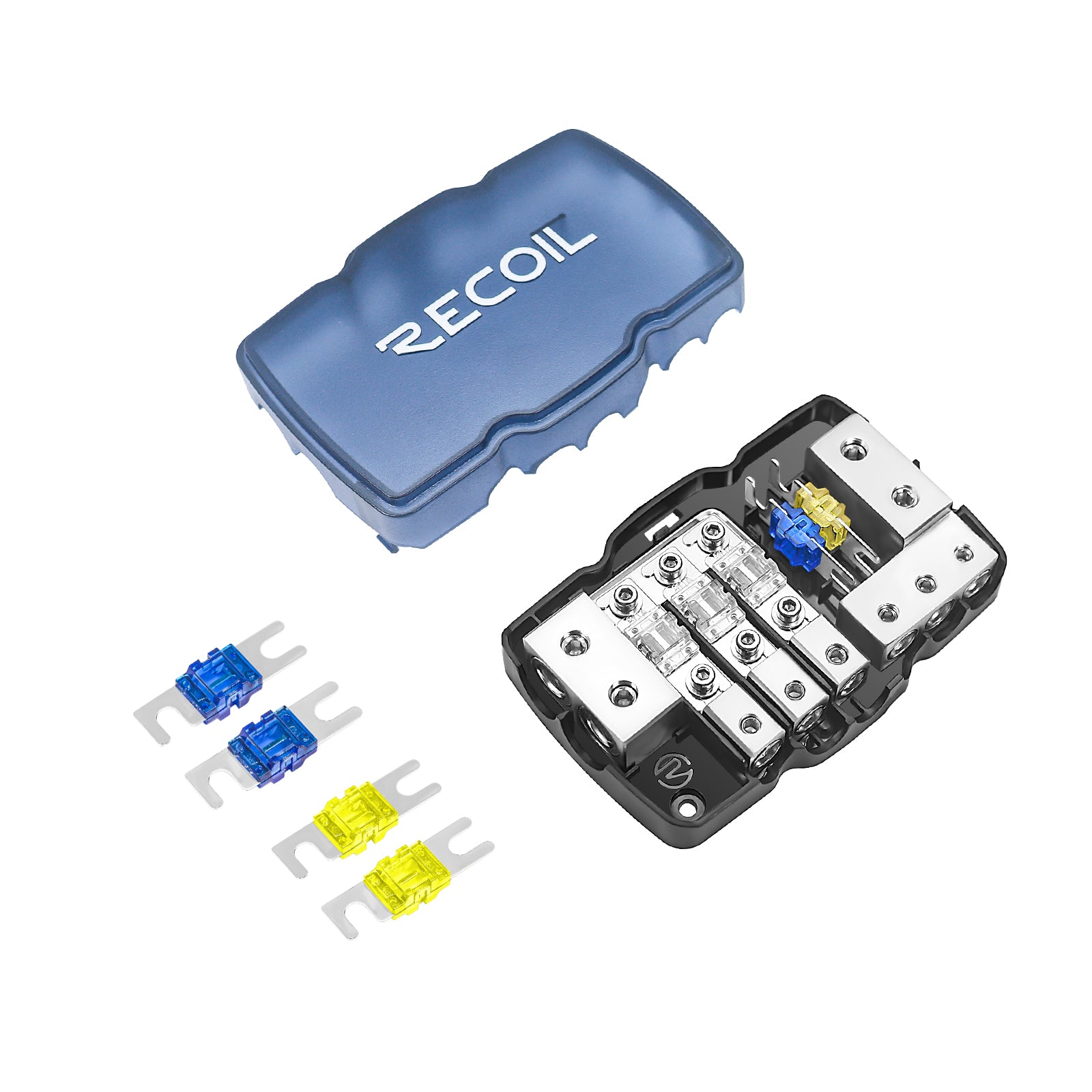

Recoil MPG3 3-way Mini-ANL fused power and ground distribution block

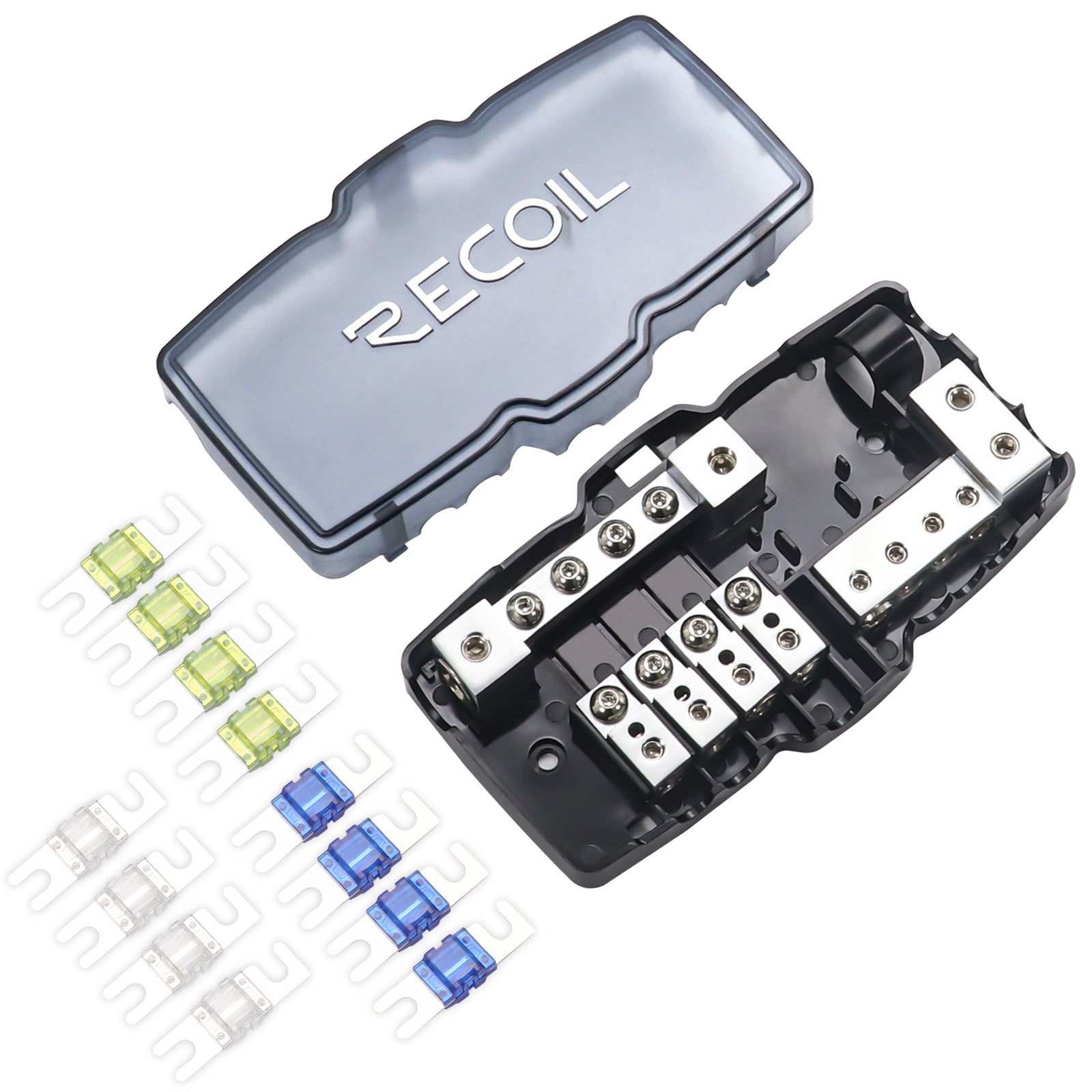

Recoil MPG4 4-way Mini-ANL fused power and ground distribution block
Recoil MPG2 2-Way Mini-ANL Fused Power and Ground Distribution Block

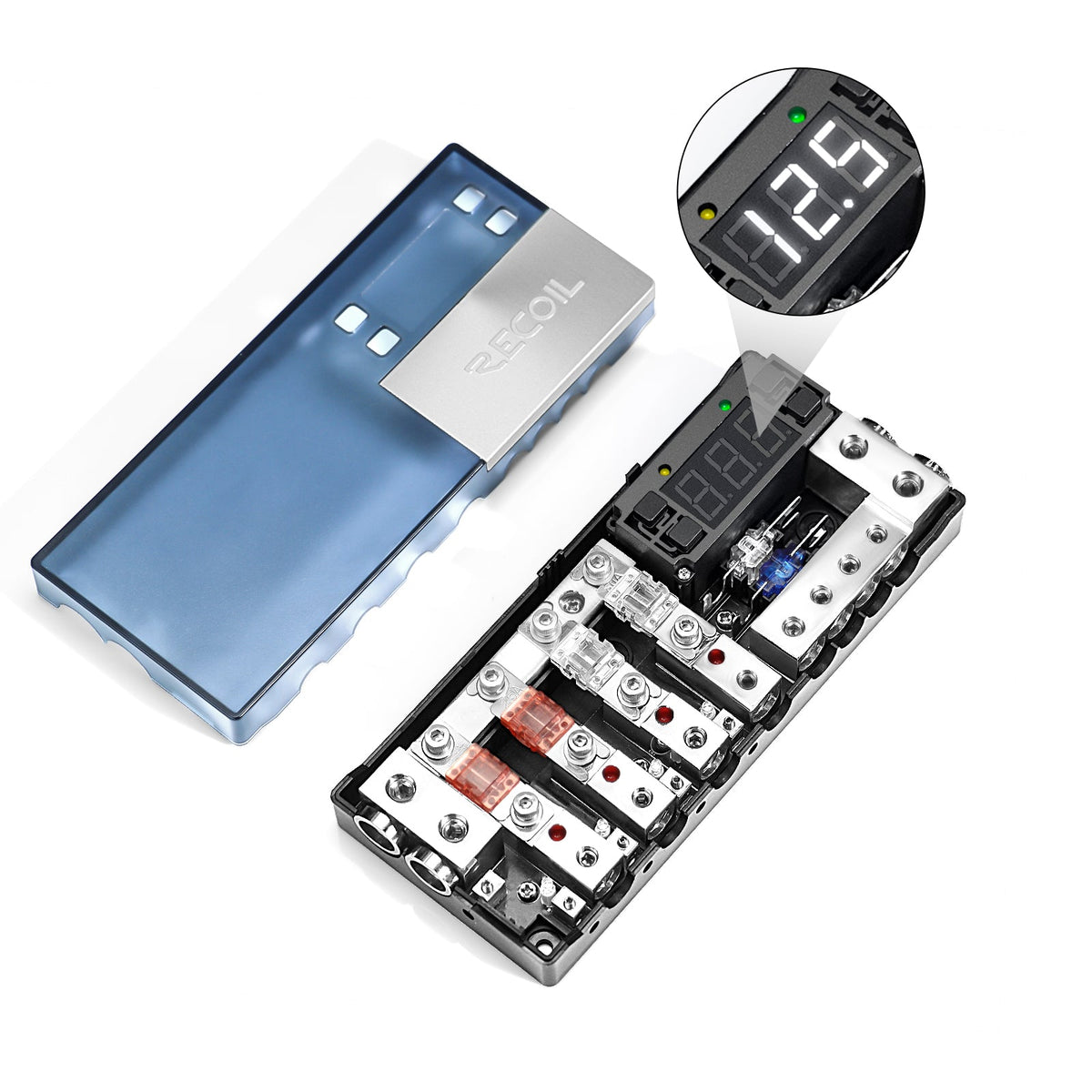

Recoil S-MPG4 smart 4-way fused power and ground distribution block
Hover over the image to zoom Tap the image to zoom
Recoil MPG3 3-way Mini-ANL fused power and ground distribution blockRecoil MPG4 4-way Mini-ANL fused power and ground distribution blockRecoil MPG2 2-Way Mini-ANL Fused Power and Ground Distribution BlockRecoil S-MPG4 smart 4-way fused power and ground distribution block

Recoil MPG2, MPG3, MPG4 & S-MPG4 Fused Power & Ground Distribution Blocks

Recoil AudioSKU: MPG2
No reviews
More options are right below Don’t see the one you want? You’re still in the right spot.

The one showing now is just what’s selected. There are 4 choices on this page.

Tap the selector box below. It’ll show you the whole list. Pick the one you want and the page will switch to it.

4 choices — tap the selector below to see them all ↓
Price:
$36.00

Shipping is calculated at checkout.

Description

MPG2 — 2-Way Fused Power & Ground Distribution Block

MPG2 is for a two-device rack where you want protected positive distribution and matching ground distribution in one coordinated assembly. Each side accepts one 0/2/4-AWG input and provides two 4/8-AWG outputs.

SMS would choose MPG2 when two branches are all the system needs. It keeps the rack cleaner than mixing a fused positive block with a separate unrelated ground block. Select each Mini-ANL fuse for the actual branch circuit.

MANUFACTURER SPECIFICATIONS
• Positive/ground architecture: 2-way
• 1 × 0/2/4-AWG input per section
• 2 × 4/8-AWG outputs per section
• Includes 60A, 80A, 100A Mini-ANL assortment
• Forged/machined brass construction
