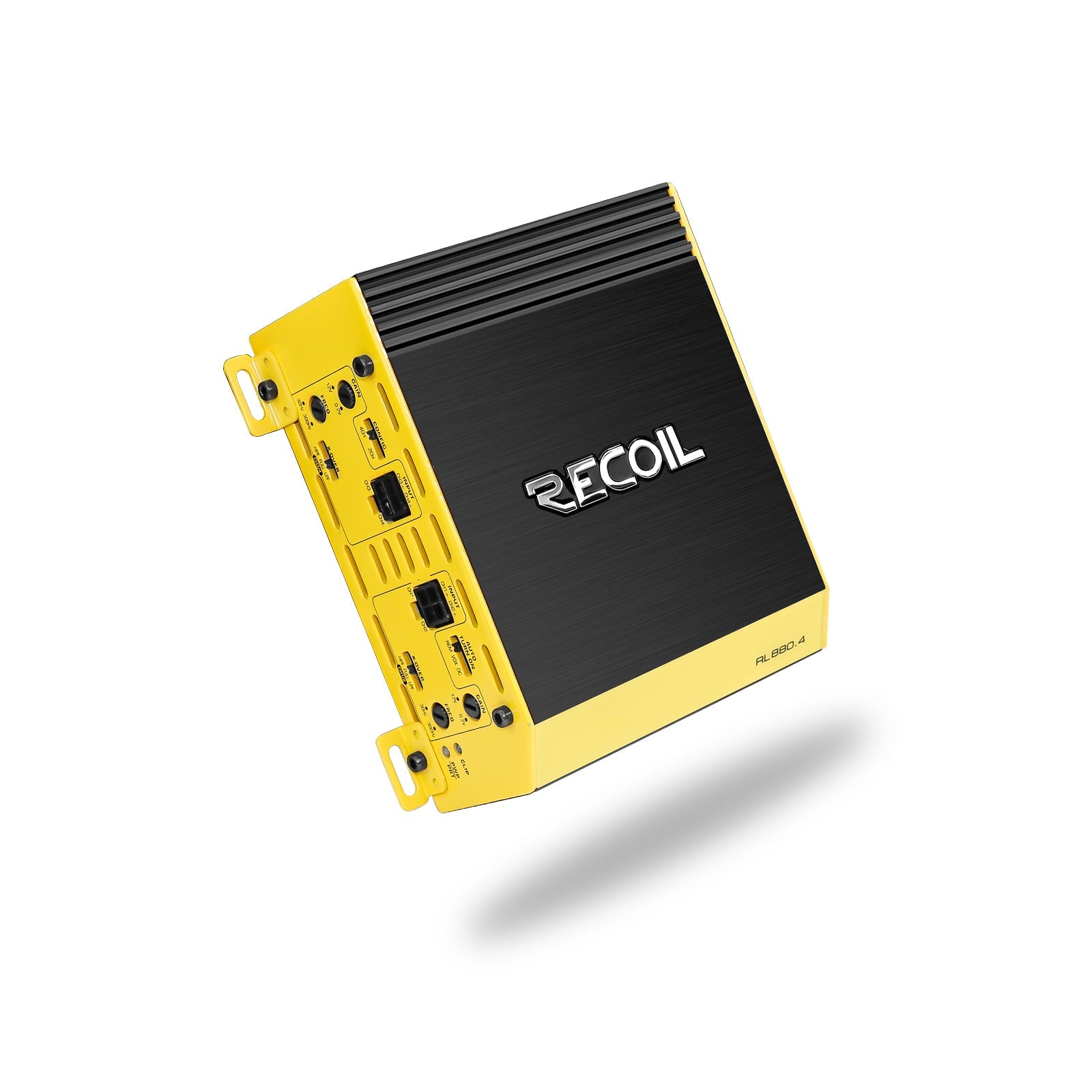

RL880.4 — L-3 4-Channel Amplifier — 220W x4 @ 2Ω
RL880.4 is the next move when RL680.4 is a little short for the speaker stage but the system still does not need the 300W-per-channel output of RL1200.4. It is a strong match for higher-power component sets, dedicated mid-bass and moderate pro-audio systems.
SMS would use it around 4-ohm speakers that want about 140 watts each or 2-ohm loads that can use 220 watts. Bridged output reaches 380 watts per 4-ohm load. The independently adjustable 30–300 Hz filters handle basic protection/range control, but a DSP is still the better tool for complex active tuning.
MANUFACTURER SPECIFICATIONS
• 140W RMS x4 @ 4Ω
• 220W RMS x4 @ 2Ω
• 380W RMS x2 bridged @ 4Ω
• HPF / LPF: 30–300 Hz
• S/N: 89.7 dB
• THD+N: <0.3% @ 1W
• Clip indication: 1%
• Dimensions: 3.97 x 4.92 x 2.00 in
Where this fits in the build
An amplifier should be chosen around the channels, load, speaker or subwoofer plan, available electrical support and how hard the system needs to play.
