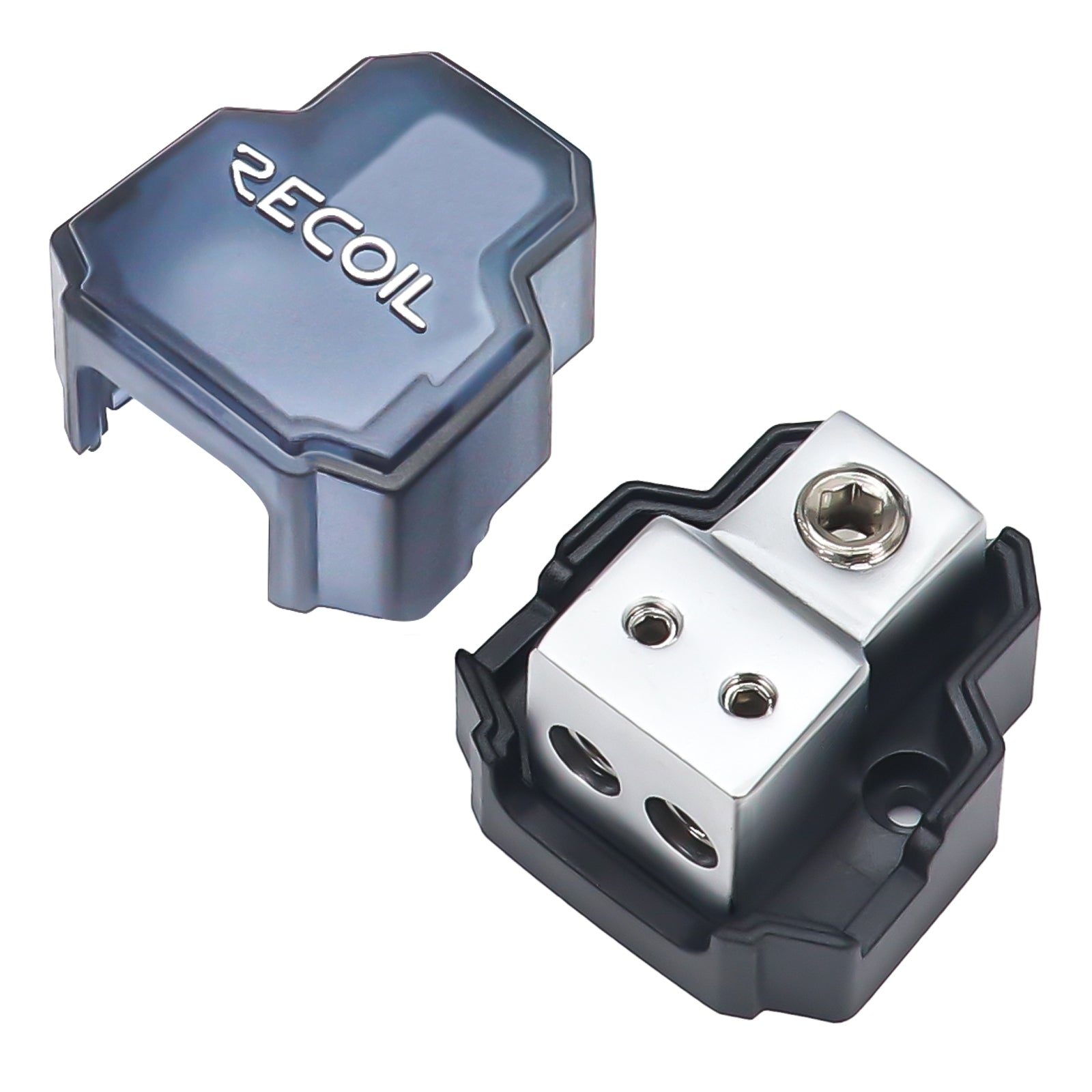

SDB12 — Mini Distribution Block — 1 Input / 2 Outputs
SDB12 is the compact two-way splitter for smaller amplifier and processor racks where a full-size DB block wastes space. One 4/8-AWG input becomes two 8/10-AWG branches, making it useful after a larger upstream distribution point or in modest systems that do not need 0-AWG cable at the rack.
SMS would use it for a two-device power or ground split where the branch wire sizes match the equipment. It is unfused, so positive-side protection still has to be handled correctly upstream or with separate branch fusing.
MANUFACTURER SPECIFICATIONS
• Quantity: Single block
• Input: 1 × 4/8 AWG
• Outputs: 2 × 8/10 AWG
• Forged/machined brass
• Satin-chrome finish
• High-temperature polycarbonate housing
• Unfused power or ground distribution
