Description

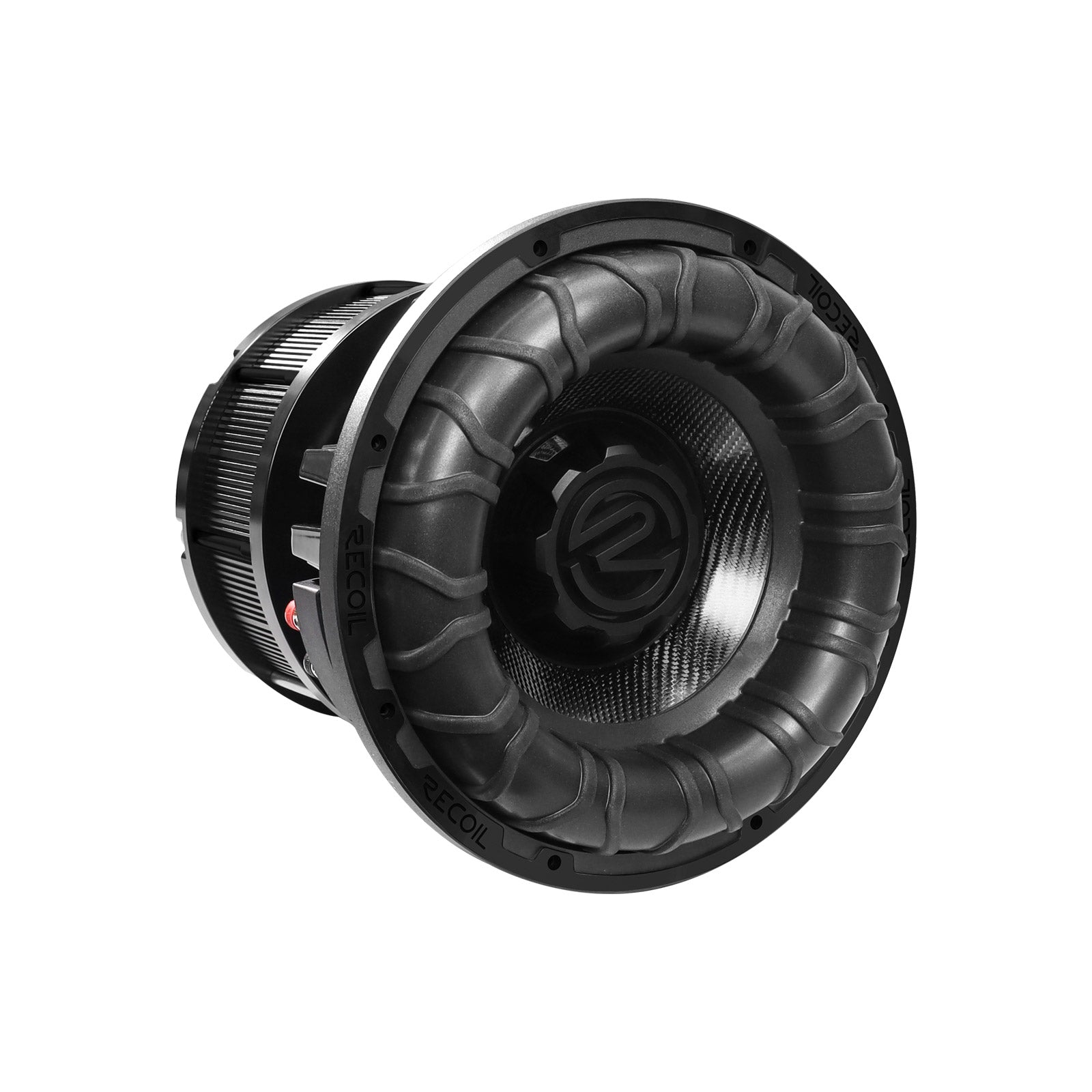

SPL12D1 — 12-Inch Competition Subwoofer — DVC 1Ω — 2500W RMS
SPL12D1 is the 12-inch competition choice for a system intentionally designed around a very low final load or a multi-sub wiring plan. One D1 woofer can be wired to 0.5Ω or 2Ω, so amplifier stability has to be settled before this coil version is ordered.
SMS would choose the 12 when the build needs the SPL motor/coil platform but enclosure volume and baffle area are tighter than a comparable 15-inch system. A 0.5-ohm parallel connection should only be used with an amplifier explicitly rated for that load. This is a high-output vented-box driver, not a sealed-box daily woofer.
MANUFACTURER SPECIFICATIONS
• 12-inch competition subwoofer
• Dual 1Ω voice coils
• 2500W RMS / 5000W peak
• 3-inch / 76.5 mm dual voice-coil architecture
• 6K woven carbon-fiber cone platform
• 418 oz ferrite magnet assembly
• Aluminum frame
• WideRidge surround
• High-output vented motor cooling
• One D1 sub wires to 0.5Ω parallel or 2Ω series
SPL12D1 is the 12-inch competition choice for a system intentionally designed around a very low final load or a multi-sub wiring plan. One D1 woofer can be wired to 0.5Ω or 2Ω, so amplifier stability has to be settled before this coil version is ordered.
SMS would choose the 12 when the build needs the SPL motor/coil platform but enclosure volume and baffle area are tighter than a comparable 15-inch system. A 0.5-ohm parallel connection should only be used with an amplifier explicitly rated for that load. This is a high-output vented-box driver, not a sealed-box daily woofer.
MANUFACTURER SPECIFICATIONS
• 12-inch competition subwoofer
• Dual 1Ω voice coils
• 2500W RMS / 5000W peak
• 3-inch / 76.5 mm dual voice-coil architecture
• 6K woven carbon-fiber cone platform
• 418 oz ferrite magnet assembly
• Aluminum frame
• WideRidge surround
• High-output vented motor cooling
• One D1 sub wires to 0.5Ω parallel or 2Ω series
BASS SYSTEM FIT
Where this fits in the build
The subwoofer is only one part of the bass system. Enclosure volume and alignment, final impedance, amplifier power, vehicle space and electrical support all affect the result.
Plan aroundChoose the bass target and usable space first.
Match itMatch the enclosure to the driver instead of treating the box as an afterthought.
Finish itMatch final load, amplifier and electrical support to the complete bass plan.
