Soundstream SS.1824 — 7-Inch 2018–2024 Polaris Slingshot Head Unit
The SS.1824 is the right kind of Slingshot radio upgrade because it solves the vehicle-integration problem at the same time it adds modern features. Instead of putting a universal touchscreen in the dash and then chasing trim, camera and steering-wheel-control parts, Soundstream builds the package around the 2018–2024 Slingshot factory radio location.

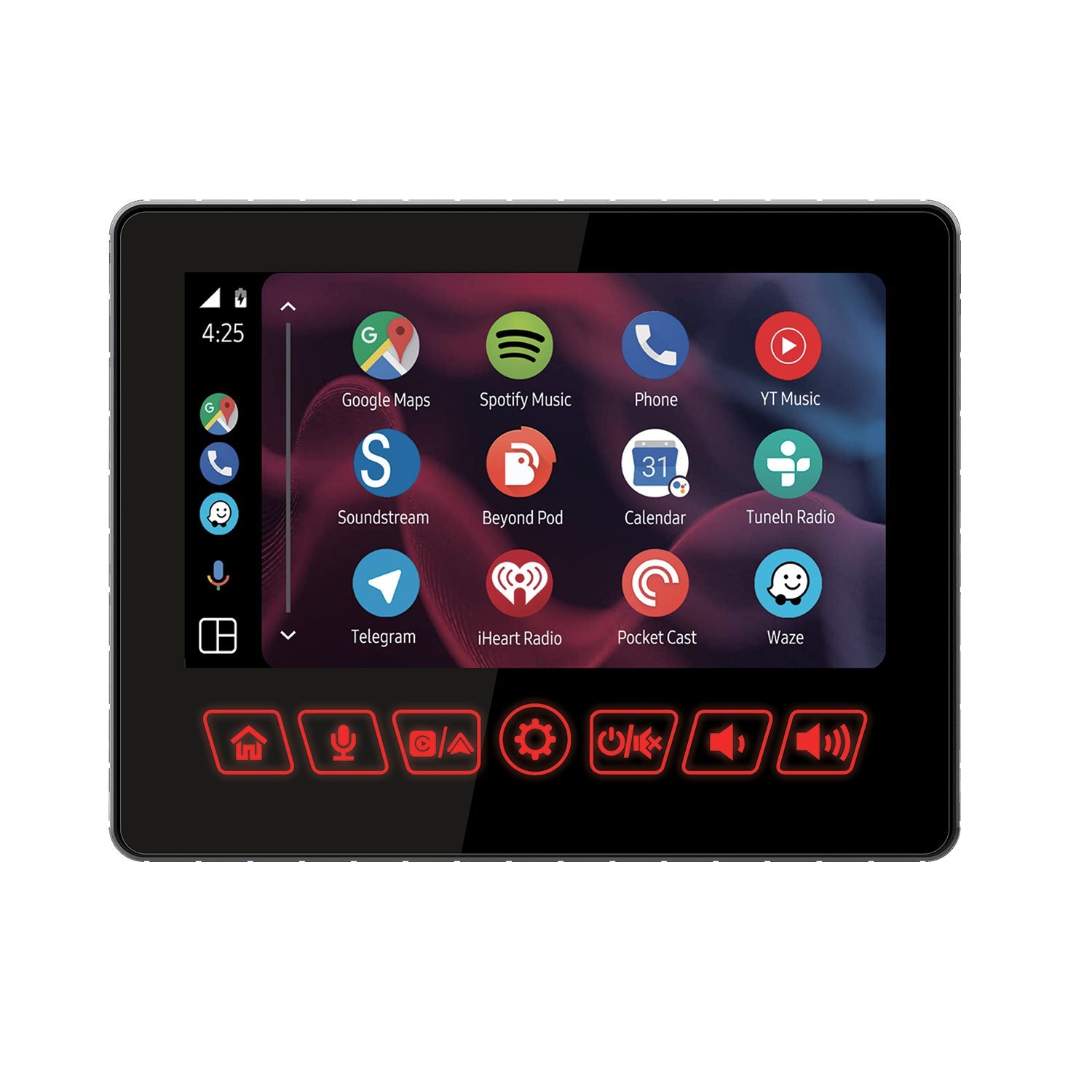

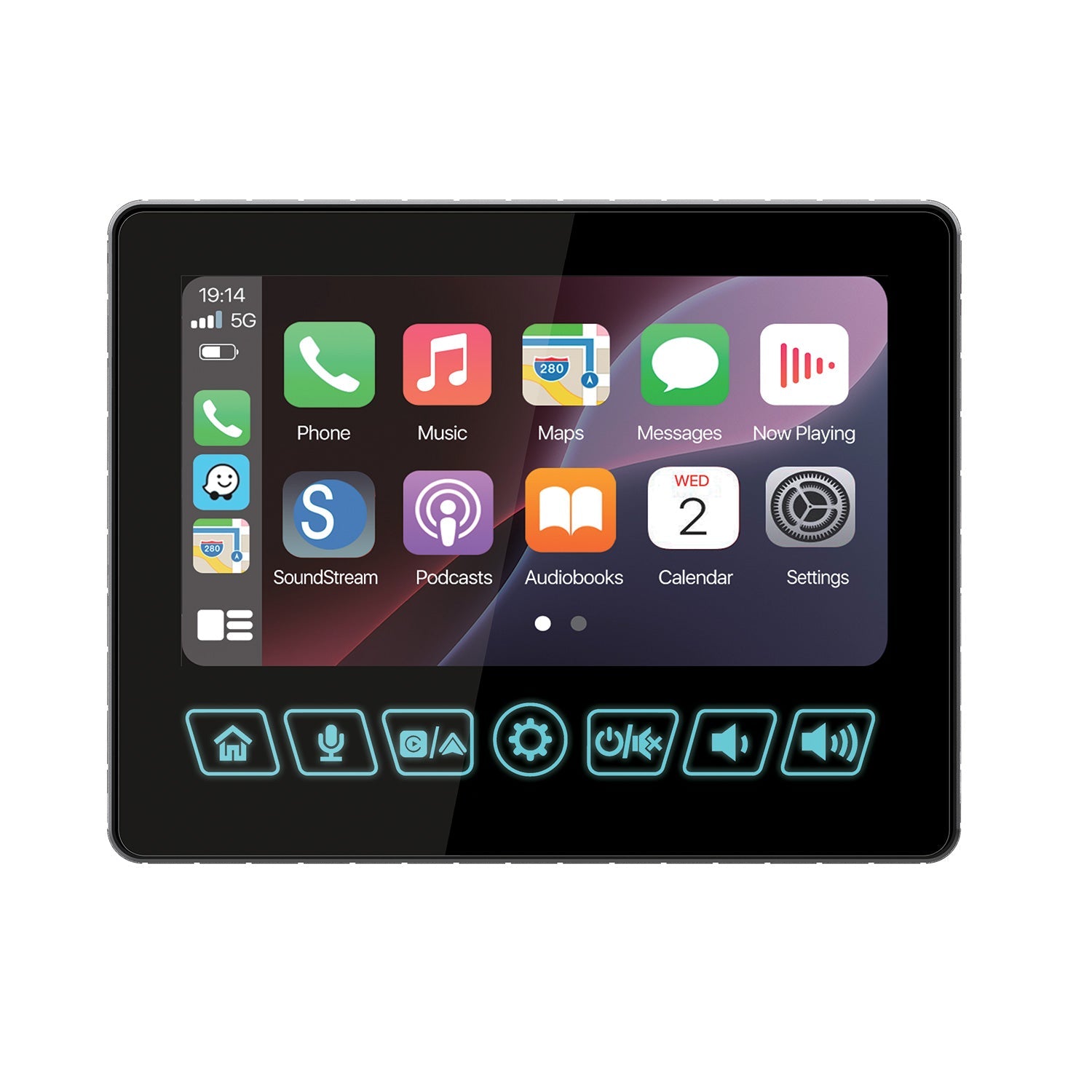

Wireless Apple CarPlay and Android Auto handle navigation, calls, messages and music on the 7-inch optically bonded QLCD. Soundstream publishes a 1000-nit backlight and IPX5 faceplate, which matter in an open-cockpit vehicle where glare and weather exposure are part of normal use. The factory rear-view camera is retained with an on-screen shortcut, and the steering-wheel-control interface is included.

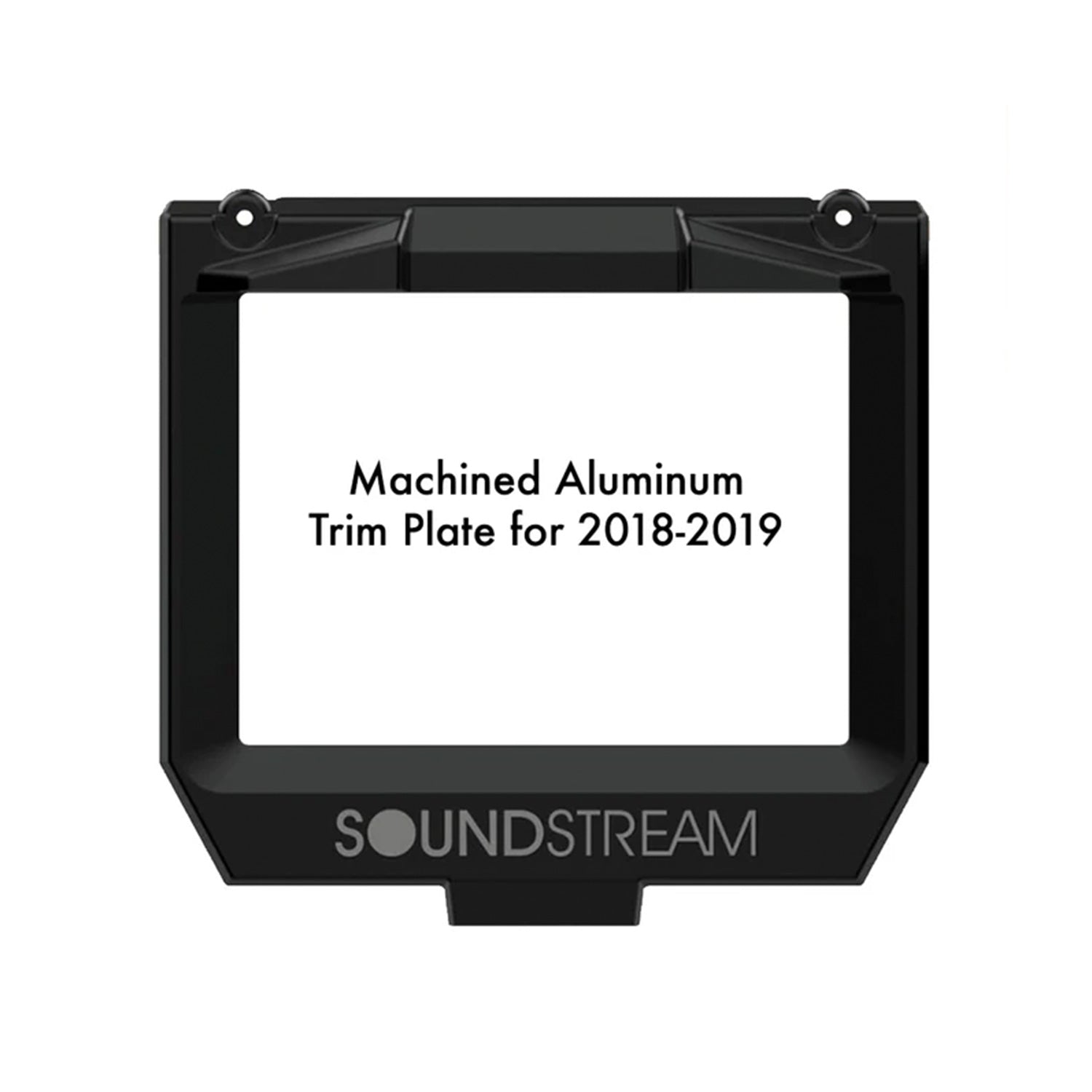

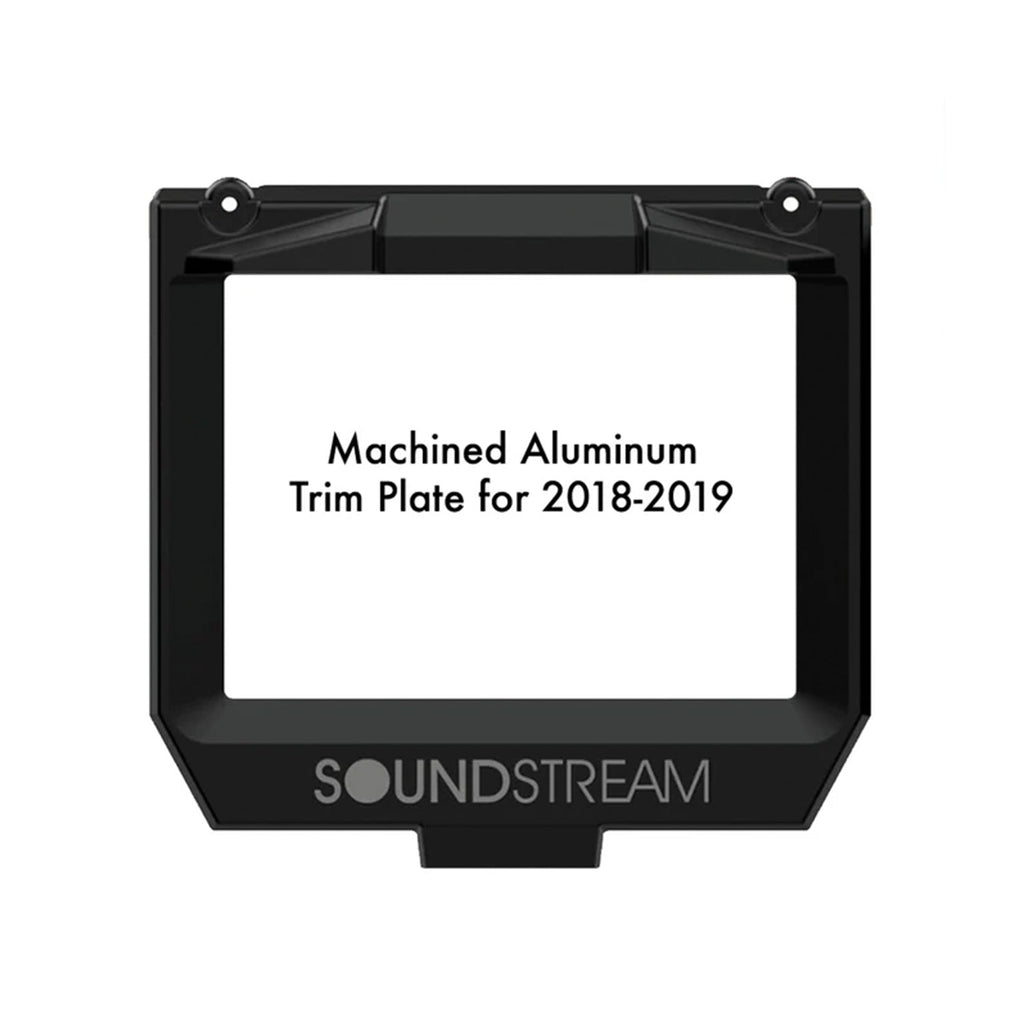

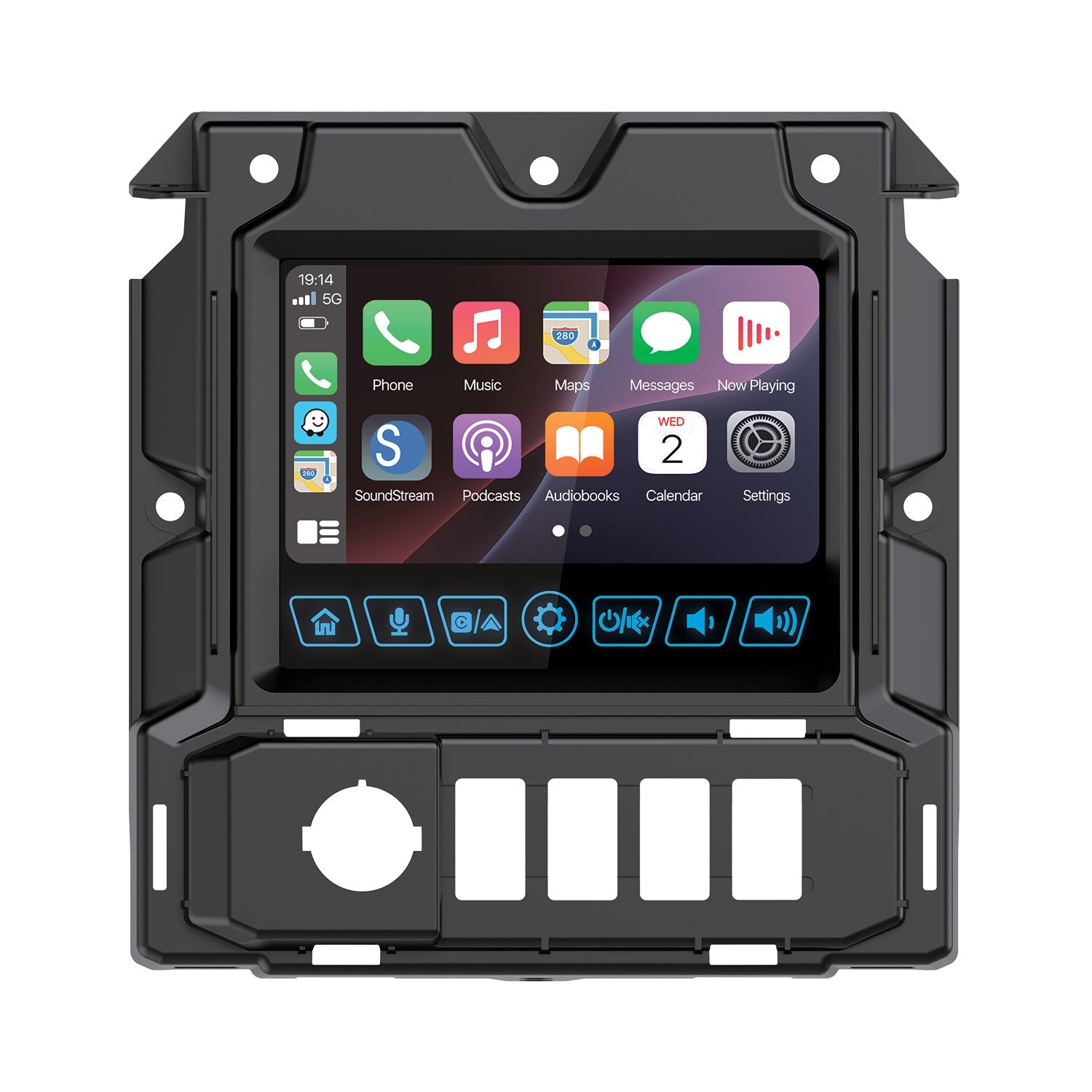

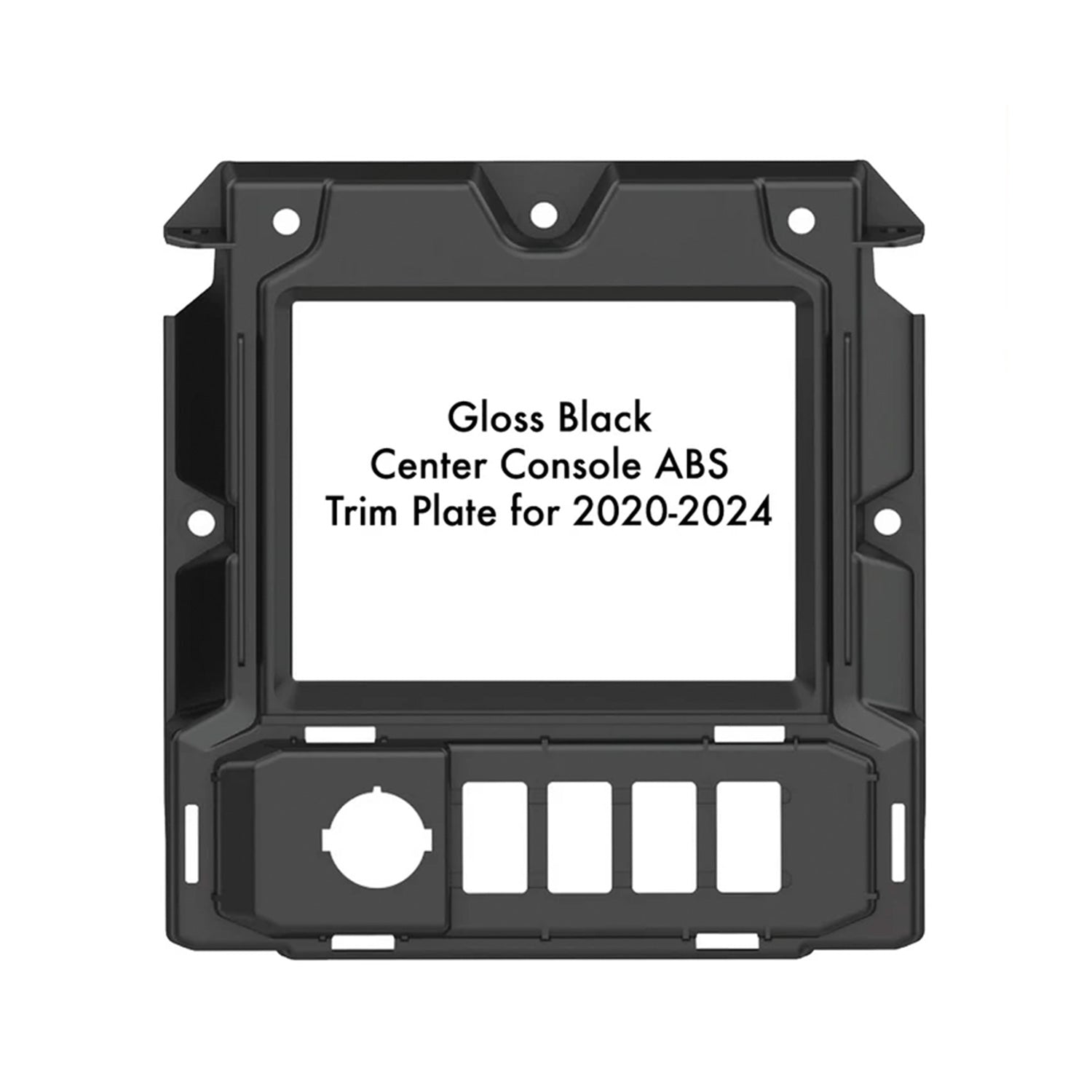

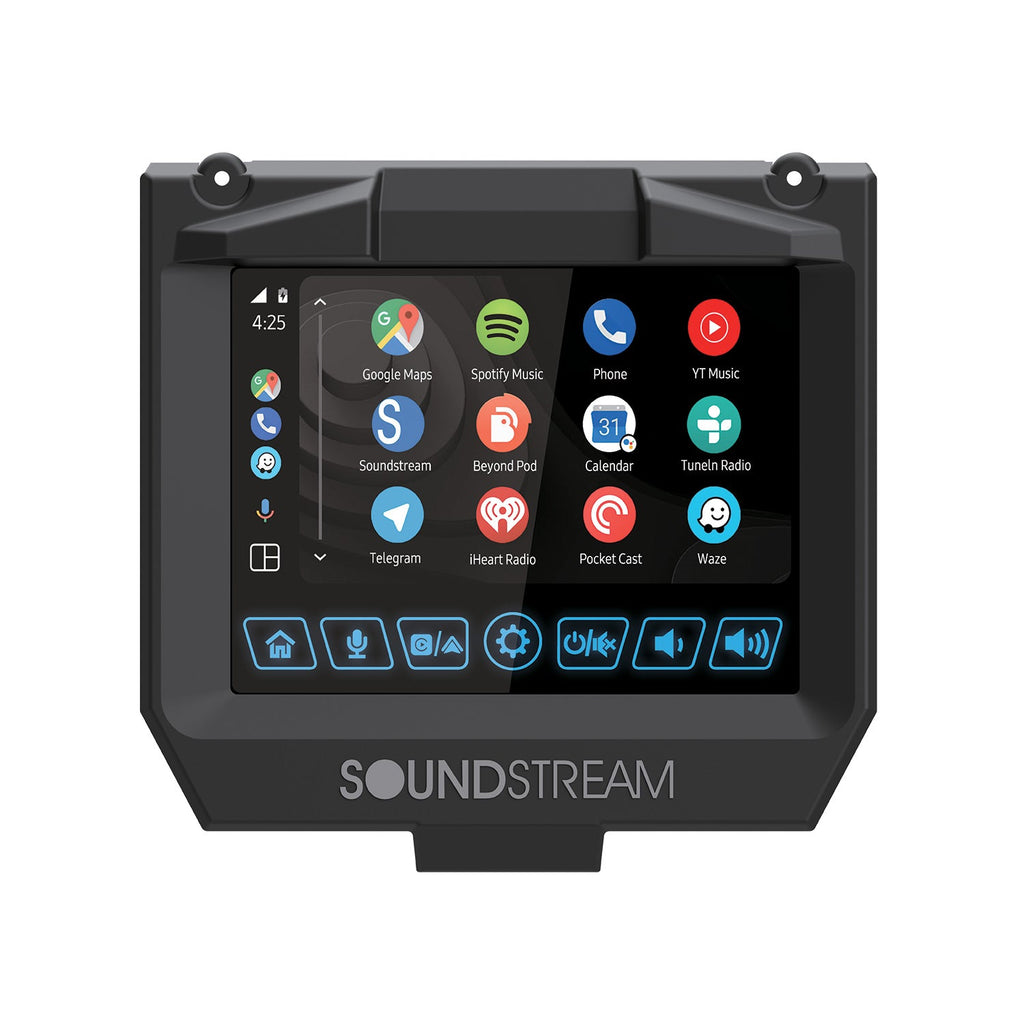

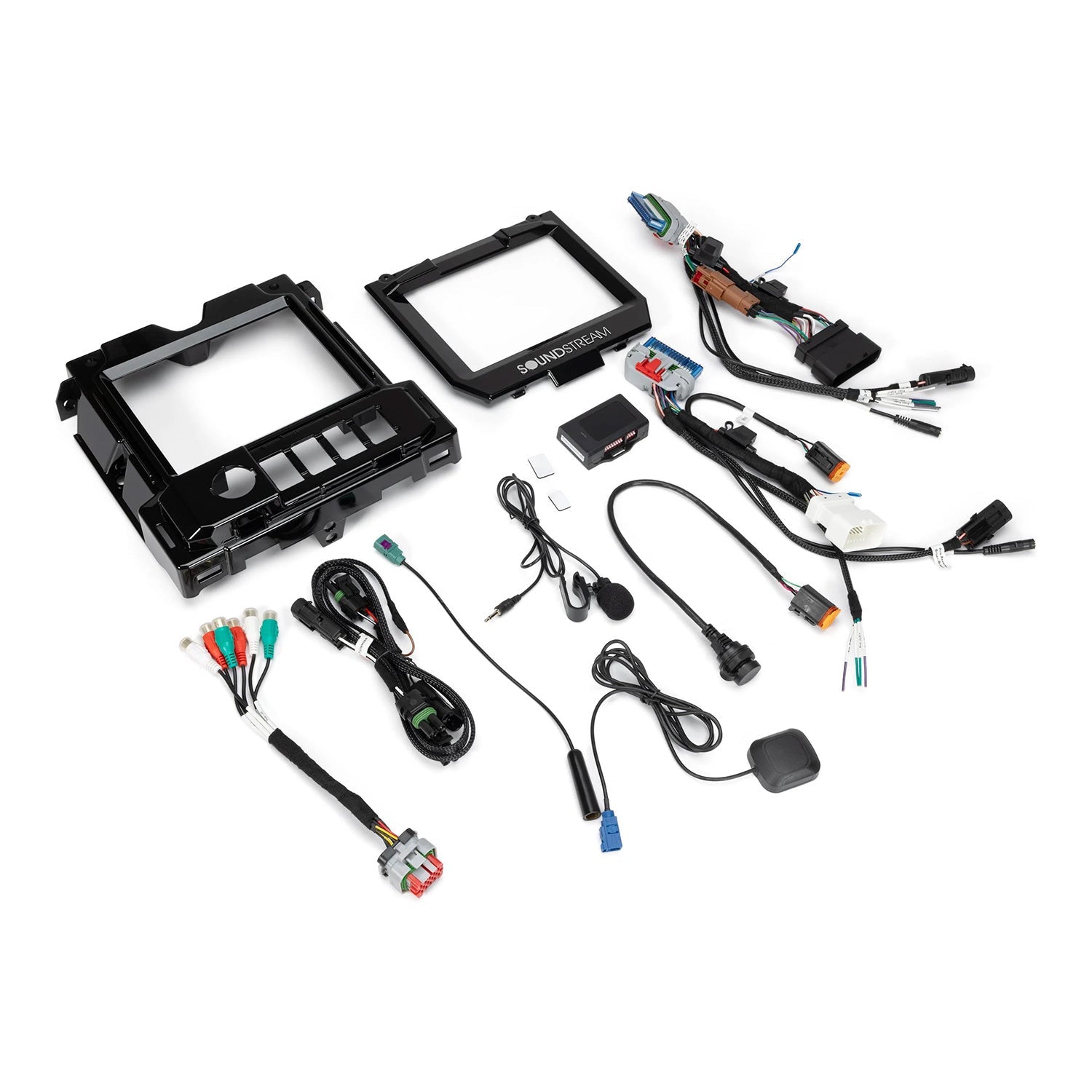

The model-year split is already accounted for. Soundstream provides the appropriate trim solution for 2018–2019 and 2020–2024 Slingshots. The later 2020–2024 applications retain the OEM USB and antenna connections; 2018–2019 models use the supplied USB and radio-antenna adapters.
For a larger audio system, the SS.1824 provides 5-volt front/rear/subwoofer RCA outputs, a 16-band EQ and active 12 dB crossovers, including low-pass and subsonic control for the subwoofer path. The built-in four-channel Class A/B amplifier is 2-ohm stable, but the RCA/tuning section is the reason this radio works well ahead of external Slingshot amplifiers.
Manufacturer Specifications
• Application: 2018–2024 Polaris Slingshot
• Display: 7-inch optically bonded QLCD capacitive touchscreen with RGB keys
• Backlight: 1000 nit
• Weather protection: IPX5 faceplate
• Apple CarPlay / Android Auto: Wireless
• Bluetooth: Audio playback and control

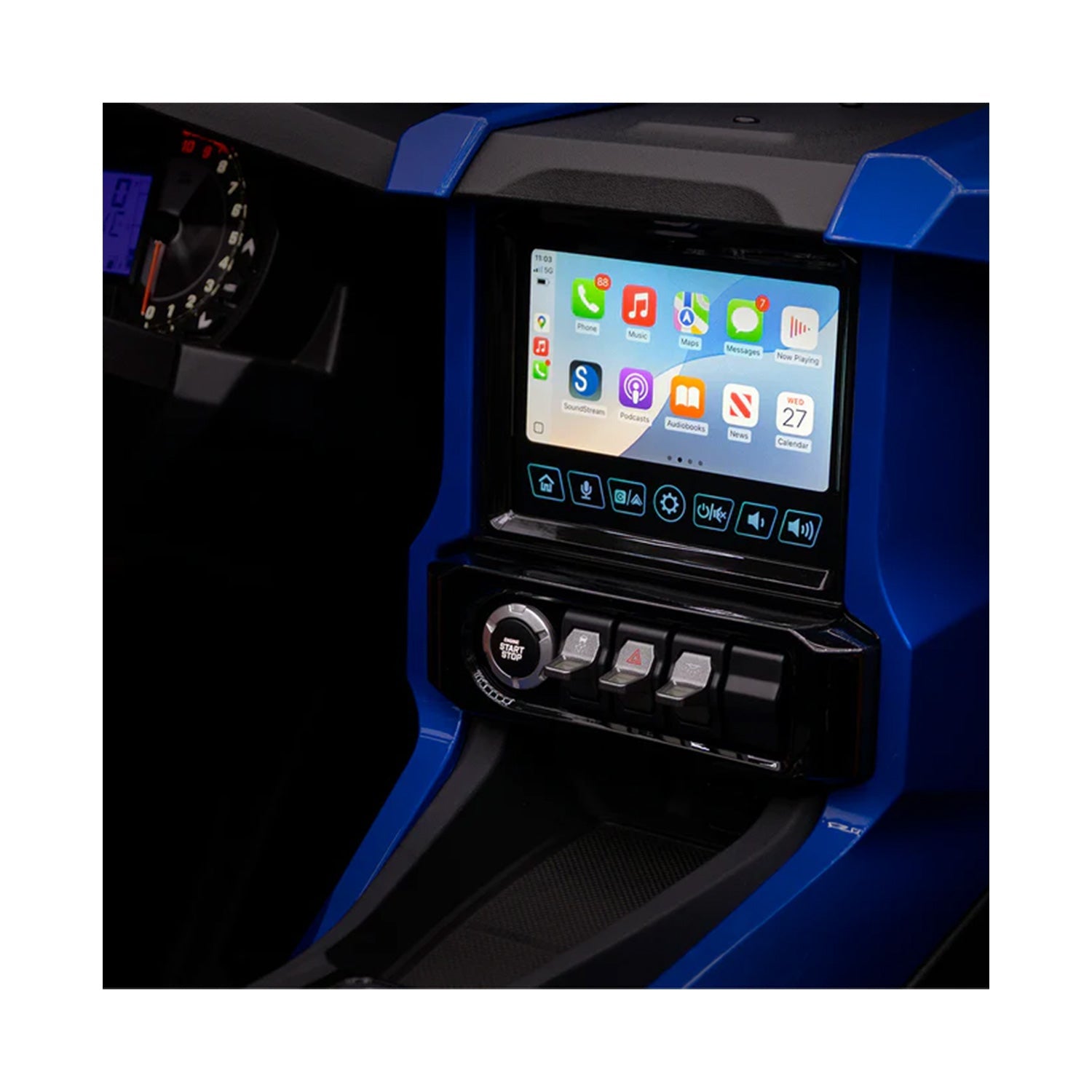

• Installation: Exact-fit OEM location; factory mounting hardware retained
• Trim: 2018–2019 and 2020–2024 solutions included
• 2018–2019: USB and radio-antenna adapters included
• 2020–2024: OEM USB and antenna connections retained
• Steering-wheel controls: Plug-and-play interface module included
• Factory rear camera: Retained with on-screen shortcut
• External microphone: Included with wind muffler
• DSP: 16-band EQ; active 12 dB front/rear/sub crossovers; sub LPF/subsonic

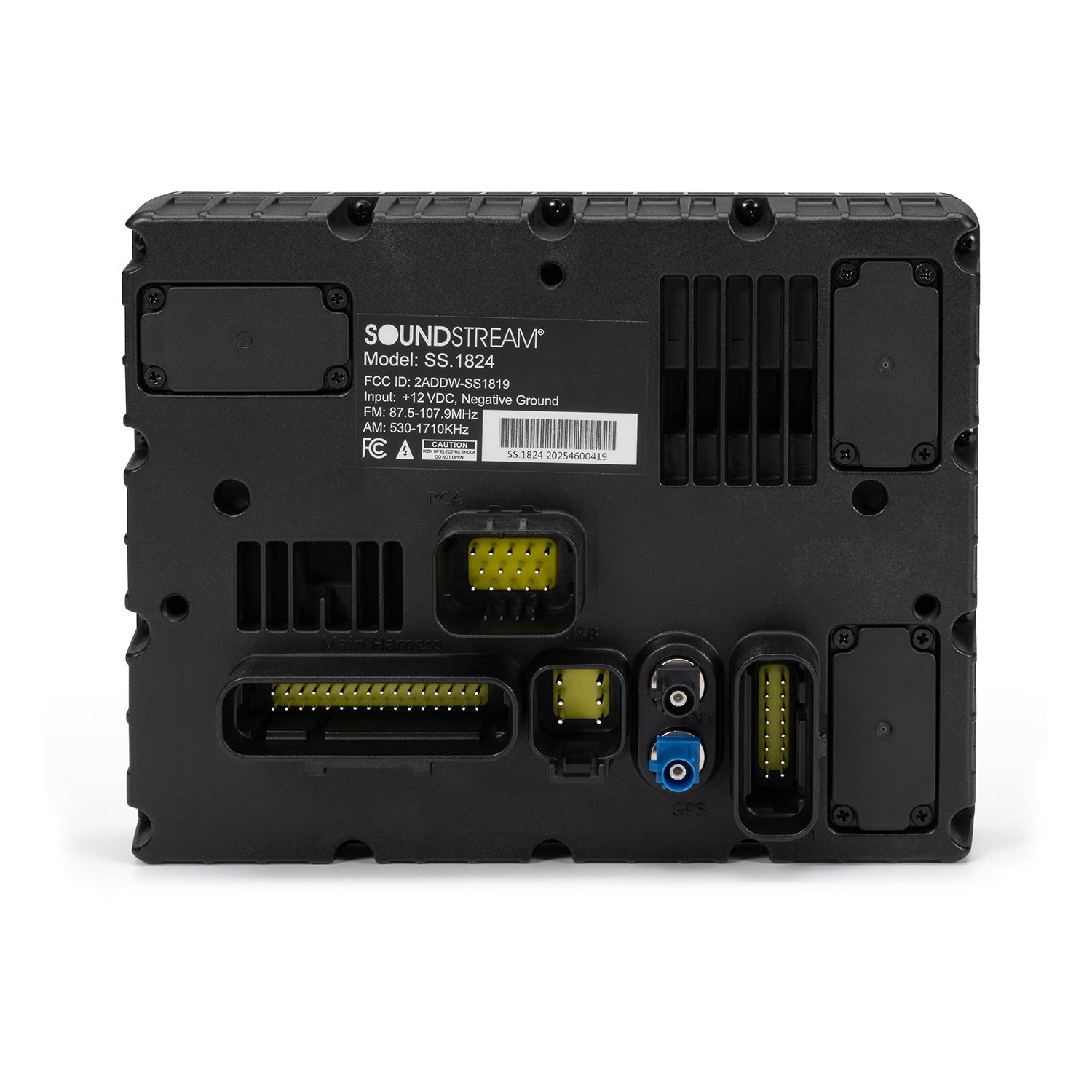

• Preamp outputs: 5 V front, rear and subwoofer RCA
• Built-in amplifier: 4-channel Class A/B, 2-ohm stable
Where this fits in the build
The source unit has to fit more than the dash opening. Steering-wheel controls, factory cameras, amplified audio, chimes, USB, vehicle settings and data integration can change the correct installation path.
