TPI A296 AC/DC Clamp-On Current Probe — Unused Shop Inventory
Measure high-current AC and DC circuits without opening the wire connection. The TPI A296 current clamp adapter converts current to a millivolt signal that a compatible digital multimeter or oscilloscope can read. It is useful for charging-system diagnostics, alternator-output checks, large DC loads and general electrical troubleshooting.

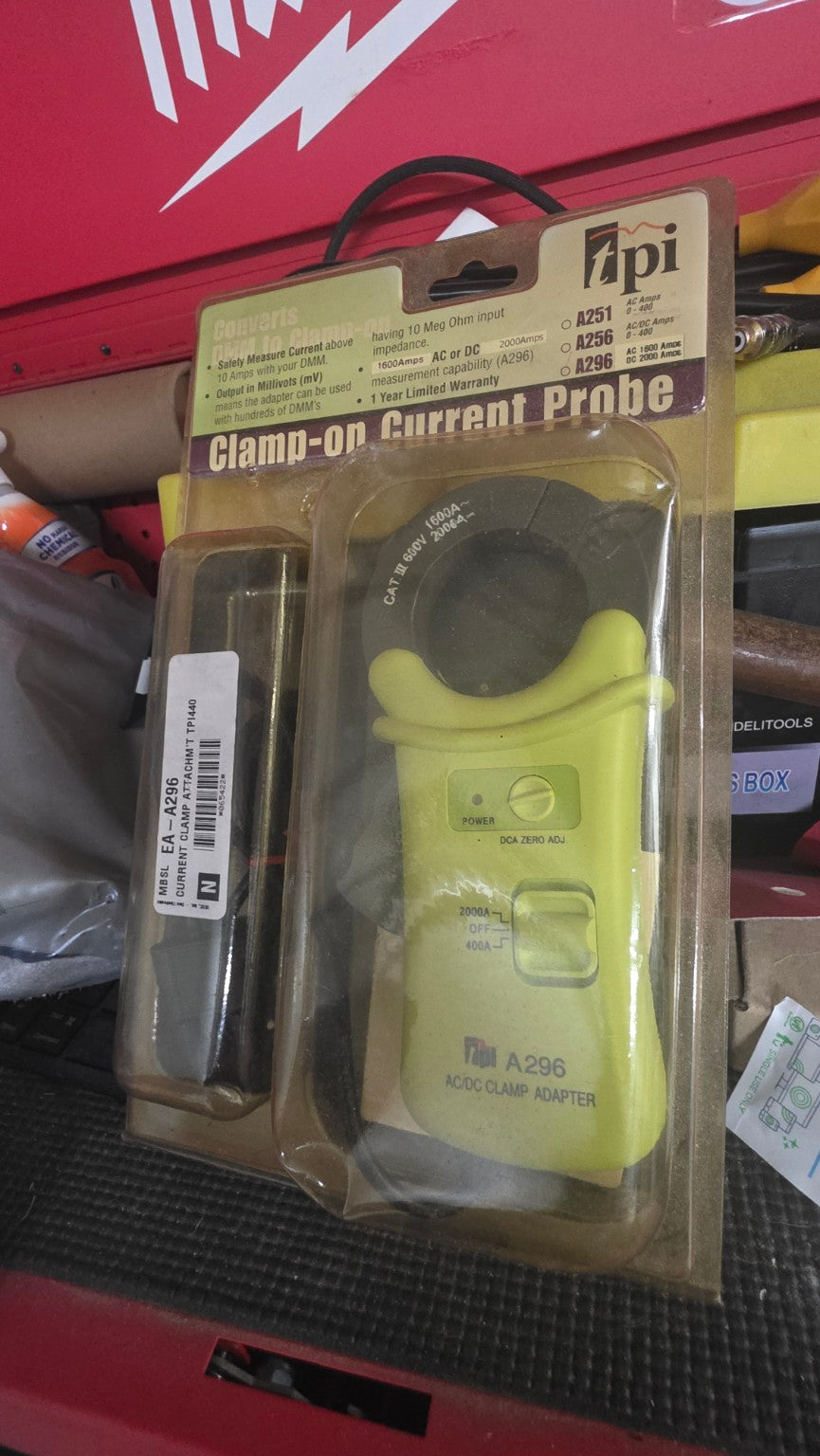

Condition: unused shop stock. One genuine A296 in its original retail packaging, as photographed at SMS Car Audio. The package has visible shelf/storage wear. The adapter has not been put into service, and no recent accuracy verification or calibration has been performed.
Technical Specifications
- AC current range: 0–1,600 A
- DC current range: 0–2,000 A
- Selectable ranges: 400 A / 2,000 A with DC zero adjustment
- Output scaling: 1 mV per 1 A
- Manufacturer-rated accuracy: ±1% of reading at 0–400 A; ±1.5% at 0–2,000 A
- Maximum conductor diameter: 1.34 in. (34 mm)
- Output lead: 48 in. (1.2 m), dual banana plugs
Meter Compatibility — Read Before Ordering
The A296 is an adapter, not a standalone ammeter. It needs a compatible DMM or oscilloscope with a 2,000 mV (2 V) AC/DC measurement range, a 10 MΩ input impedance and standard 19 mm-spaced input jacks. Select the proper meter function for AC versus DC current; clamp around one conductor at a time rather than an entire positive/negative cable pair.
Exactly What Is Included
One unused TPI A296 current clamp adapter in the original shelf-worn package pictured. No multimeter is included. This is one remaining clearance unit; no new calibration certificate or manufacturer warranty is promised.
For technical confirmation, consult the TPI A296 manufacturer specifications. Browse more SMS Car Audio clearance and test equipment.
