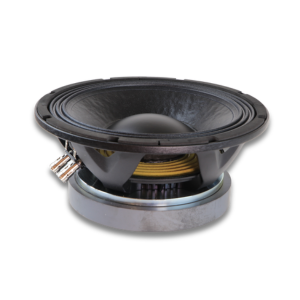

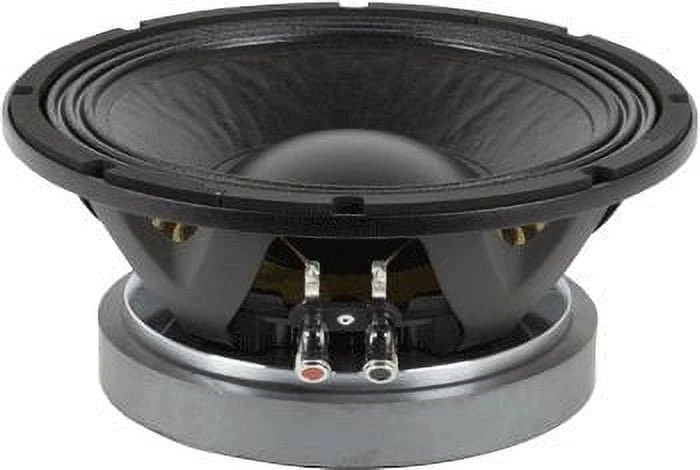

The Beyma POWER10iX is a high-excursion 10-inch ferrite low-frequency loudspeaker offered in 4-ohm and 8-ohm versions. It is designed for compact, high-output mobile and professional-style systems, with the impedance selected to match the amplifier and system wiring plan.
The POWER10iX is rated for 500 watts AES, with a large 3-inch voice coil, 13 mm Xmax and a published response from 40 Hz to 3.3 kHz. It requires a properly modeled enclosure, suitable amplification and protective high-pass and low-pass filtering.
Specifications
| Model | POWER10iX |
|---|---|
| Nominal diameter | 10 inches |
| Impedance options | 4 ohms or 8 ohms |
| AES power handling | 500 watts |
| Sensitivity | 90 dB, 2.83 V / 1 m |
| Frequency range | 40 Hz–3,300 Hz |
| Voice-coil diameter | 3 inches |
| Xmax | 13 mm |
| Magnet | Ferrite |
| System requirement | Modeled enclosure with appropriate crossover and high-pass protection |
Features
- High-excursion 10-inch platform for bass and midbass applications.
- Available in 4-ohm and 8-ohm versions for flexible system wiring.
- 13 mm Xmax supports substantial cone travel.
- Large 3-inch voice coil provides thermal capacity and motor control.
- Published 40 Hz–3.3 kHz bandwidth supports flexible system integration.
- Ferrite motor provides a robust conventional magnetic structure.
- Requires correct enclosure modeling and protective filtering.
