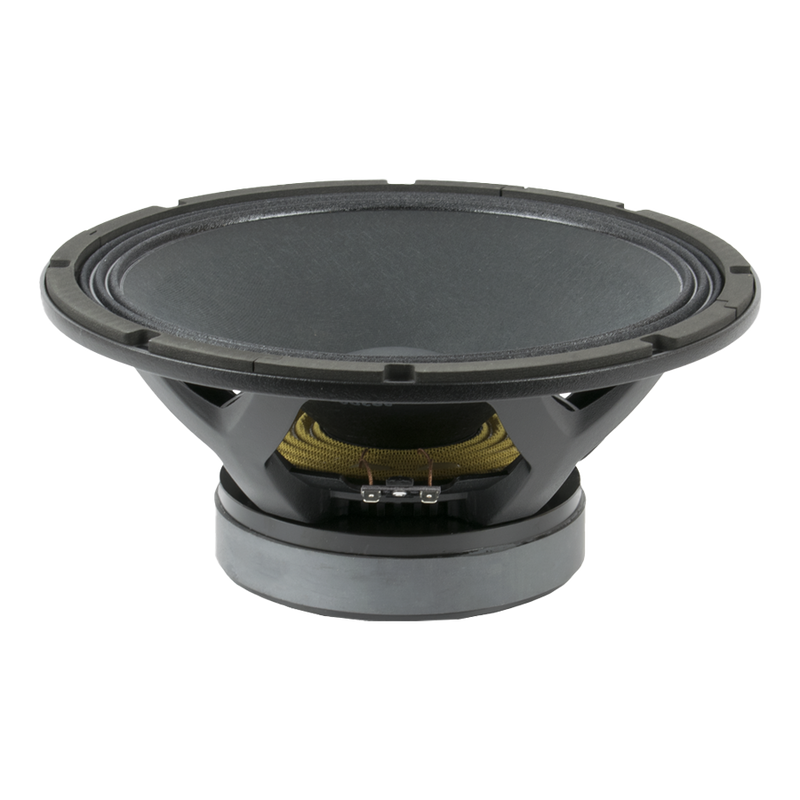

The Beyma PRO12MC is a 12-inch, 4-ohm ferrite midrange and midbass loudspeaker designed for strong upper-bass, lower-midrange and vocal output. Its large cone area and high sensitivity make it suitable for professional-style mobile systems, custom speaker walls and open-air applications.
The driver is rated for 500 watts AES, with 97 dB sensitivity and a published response from 65 Hz to 5 kHz. Its 2.5-inch voice coil and 7.6 mm excursion support substantial output when correctly enclosed and filtered.
Specifications
| Model | PRO12MC |
|---|---|
| Nominal diameter | 12 inches |
| Rated impedance | 4 ohms |
| AES power handling | 500 watts |
| Sensitivity | 97 dB, 2.83 V / 1 m |
| Frequency range | 65 Hz–5,000 Hz |
| Voice-coil diameter | 2.5 inches |
| Xmax | 7.6 mm |
| Magnet | Ferrite |
| System requirement | Suitable enclosure or rear chamber with band-pass crossover protection |
Features
- Large 12-inch cone area provides substantial midbass and vocal output.
- 500-watt AES rating supports high-output operation.
- 97 dB sensitivity provides efficient acoustic projection.
- 2.5-inch voice coil provides thermal capacity for sustained use.
- 7.6 mm Xmax supports strong upper-bass displacement.
- 4-ohm impedance works with common mobile-audio amplifiers.
- Requires suitable enclosure loading and crossover protection.
