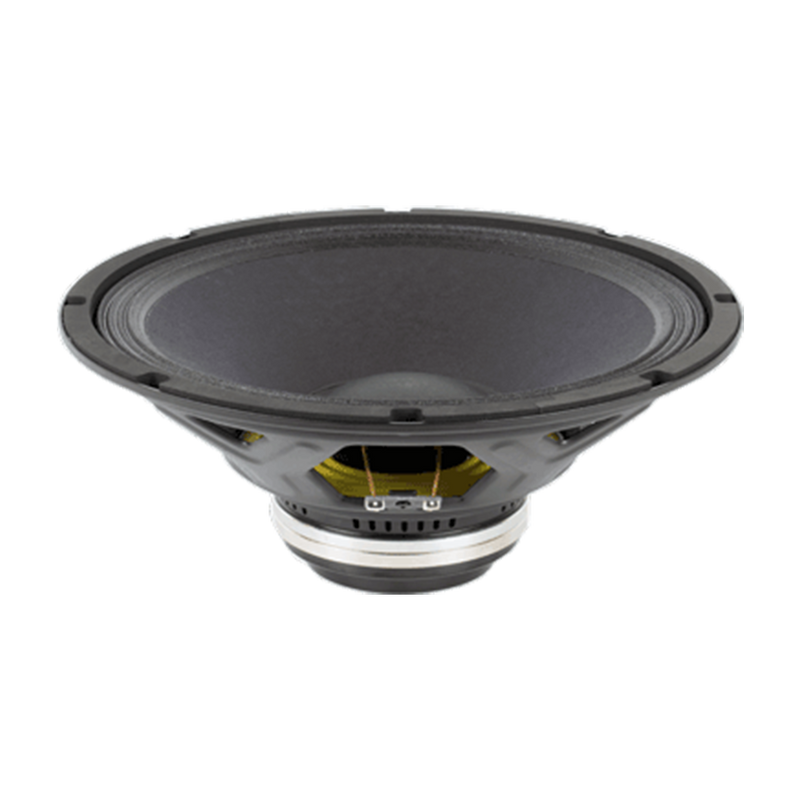

The Beyma PRO12MND is a 12-inch, 4-ohm neodymium midrange and midbass loudspeaker designed for very high acoustic output with reduced motor weight. Its 101 dB sensitivity, large 4-inch voice coil and broad response make it suitable for professional-style mobile systems, speaker walls and open-air installations.
The driver is rated for 700 watts AES and provides a published response from 50 Hz to 4 kHz. It requires suitable enclosure loading, amplifier power and protective filtering.
Specifications
| Model | PRO12MND |
|---|---|
| Nominal diameter | 12 inches |
| Rated impedance | 4 ohms |
| AES power handling | 700 watts |
| Sensitivity | 101 dB, 2.83 V / 1 m |
| Frequency range | 50 Hz–4,000 Hz |
| Voice-coil diameter | 4 inches |
| Xmax | 8 mm |
| Magnet | Neodymium |
| System requirement | Suitable enclosure, amplifier matching and band-pass crossover protection |
Features
- Very high 101 dB sensitivity for substantial acoustic output.
- 700-watt AES rating supports high-power systems.
- Large 4-inch voice coil provides significant thermal capacity.
- Neodymium motor reduces weight compared with a comparable ferrite design.
- 8 mm Xmax supports strong midbass displacement.
- Published 50 Hz–4 kHz response supports flexible system integration.
- Requires correct enclosure loading and crossover protection.
