Description

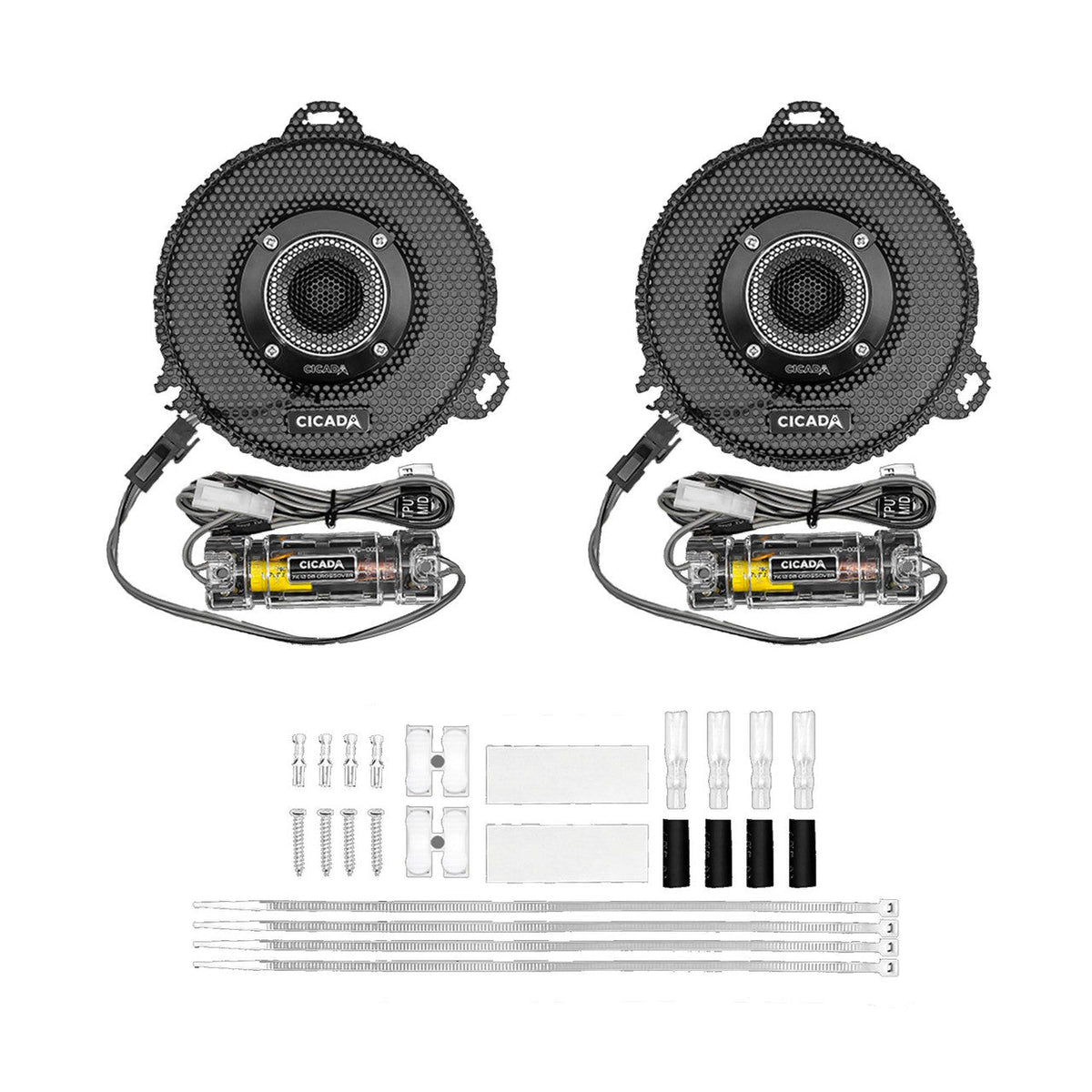

CHDSGGTK — 2014–2023 Street Glide Fairing Grilles + RR075T Tweeter Kit
Choose CHDSGGTK when the 2014–2023 Street Glide front stage needs a separate high-frequency driver in the factory-style fairing grille instead of asking a coaxial speaker to handle everything. The kit combines Street Glide-specific grilles with the RR075T tweeter platform, so the horn location is already built into the grille instead of being fabricated into the fairing later.
Use it with a dedicated 6.5-inch mid-bass/component front stage when the customer wants stronger high-frequency projection at riding speed. If the system already has RR075T tweeters, buy the grille-only CHDSGGT instead. If the front speaker is already a horn-loaded coaxial with enough top-end output, adding another tweeter may not be the right system choice.
MANUFACTURER DETAILS
• Fitment: 2014–2023 Harley-Davidson Street Glide
• Street Glide-specific replacement grilles with RR075T provisions

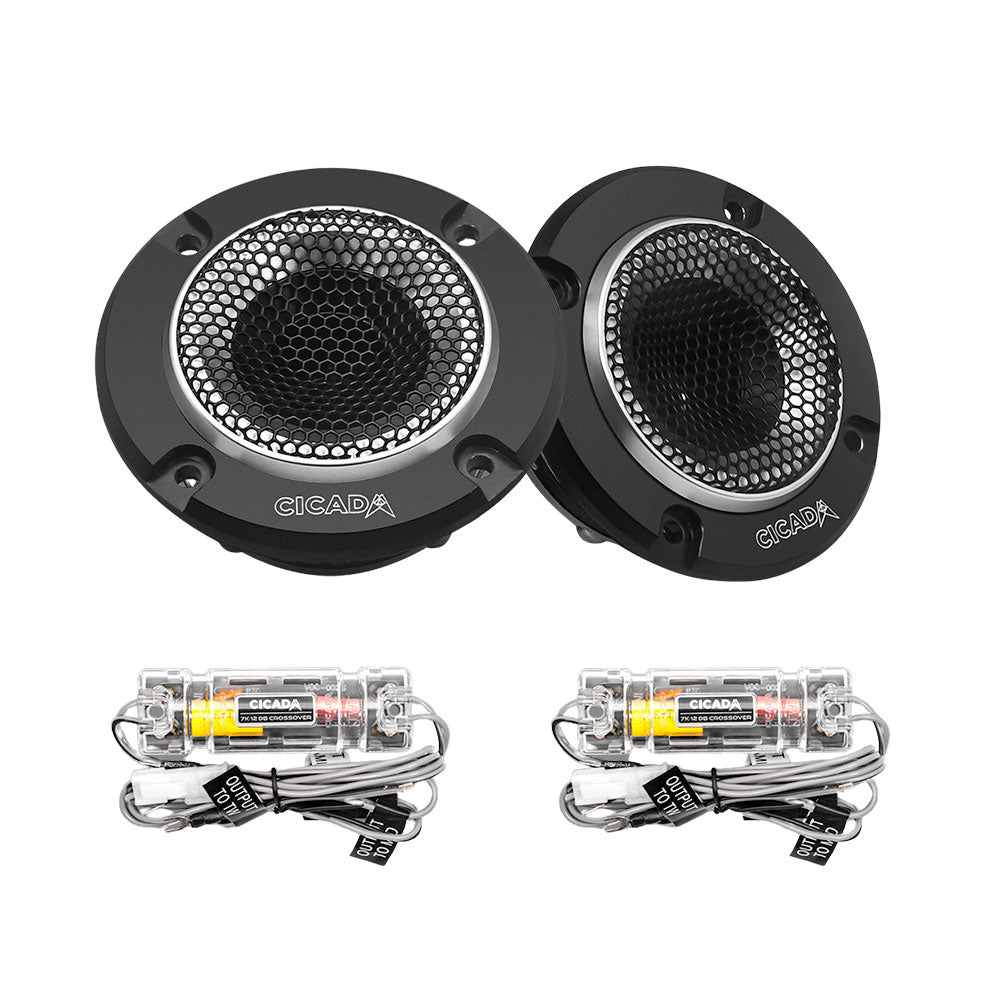

• RR075T tweeters: 4Ω, 50W RMS / 100W max per tweeter
• N35 neodymium motor
• 1.0-inch aluminum diaphragm / high-temperature voice coil
• Frequency response: 2 kHz–20 kHz ±5 dB
• RR075T mounting depth: 1.13 in / 28.9 mm
• RR075T mounting diameter: 2.0 in / 50 mm
• 12 dB @ 7 kHz external crossover architecture
• Tweeter kit is intended to work with a separate mid-bass/front speaker section
• Exact kit model: CHDSGGTK
Choose CHDSGGTK when the 2014–2023 Street Glide front stage needs a separate high-frequency driver in the factory-style fairing grille instead of asking a coaxial speaker to handle everything. The kit combines Street Glide-specific grilles with the RR075T tweeter platform, so the horn location is already built into the grille instead of being fabricated into the fairing later.
Use it with a dedicated 6.5-inch mid-bass/component front stage when the customer wants stronger high-frequency projection at riding speed. If the system already has RR075T tweeters, buy the grille-only CHDSGGT instead. If the front speaker is already a horn-loaded coaxial with enough top-end output, adding another tweeter may not be the right system choice.
MANUFACTURER DETAILS
• Fitment: 2014–2023 Harley-Davidson Street Glide
• Street Glide-specific replacement grilles with RR075T provisions
• RR075T tweeters: 4Ω, 50W RMS / 100W max per tweeter
• N35 neodymium motor
• 1.0-inch aluminum diaphragm / high-temperature voice coil
• Frequency response: 2 kHz–20 kHz ±5 dB
• RR075T mounting depth: 1.13 in / 28.9 mm
• RR075T mounting diameter: 2.0 in / 50 mm
• 12 dB @ 7 kHz external crossover architecture
• Tweeter kit is intended to work with a separate mid-bass/front speaker section
• Exact kit model: CHDSGGTK
OPEN-AIR / MOTORCYCLE / POWERSPORTS FIT
Where this fits in the build
These speakers have to work where wind, road noise, mounting space and exposure change the job. Match the driver to the actual location, output target, amplifier power and environment instead of treating it like a normal door-speaker replacement.
Plan aroundConfirm mounting location, depth, cutout and how exposed the speaker will be.
Match itMatch efficiency, usable bandwidth and clean amplifier power to the output needed at speed or outdoors.
Finish itPlan crossover, mounting, wiring and electrical support with the complete open-air system.
